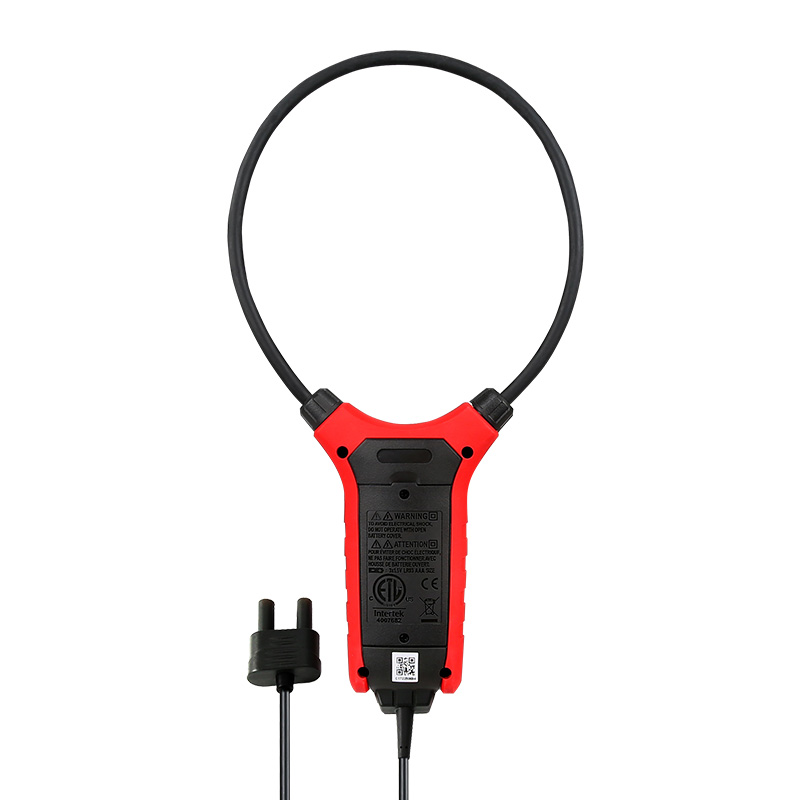

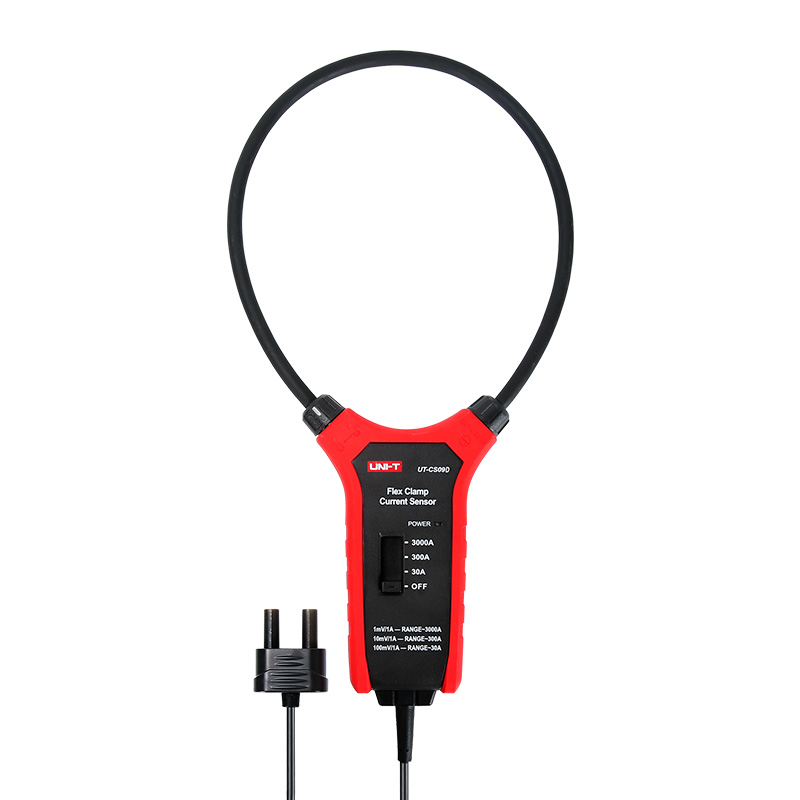

UT-CS09D
Flex Clamp Sensor

UT-CS09D flex clamp sensor solves problems in measuring high current conductors in tight spaces. Its Rogowski coil based current sensor provides stable, safe, and high reliable measurements up to 3000A. This unique design and lightweight feature make it a great choice for professional electricians.

Features of UT-CS09D Flex Clamp Sensor

Certificates: CE, UKCA, cETLus

  • Flex clamp can measure from 1.5A to 3000A current
  • 1m drop proof
  • Robust terminal connection
  • Directly displays current when connected to UT206B/208B

SPECIFICATIONS

Specifications of UT-CS09D Flex Clamp Sensor

Specifications UT-CS09D
AC current (A) 30A/300A/3000A
Frequency response 45Hz~500Hz
Flex clamp size 45.7cm (18 inches)
Operating temperature 0℃~50℃
Storage temperature  -20°C~60°C
Storage humidity ≤80%RH
Low battery indication About 3.3V
Category rating CAT IV 600V
General Characteristics
Power 1.5V battery (R03) x 3
Product net weight 260g
Product size 267mm x 119.4mm x 34mm
Standard accessories Batteries, BNC adapter, English manual
Standard individual packing Blister
Standard quantity per carton 10pcs
Standard carton measurement 495mm x 405mm x 225mm
Standard carton gross weight 7kg

APPLICATIONS

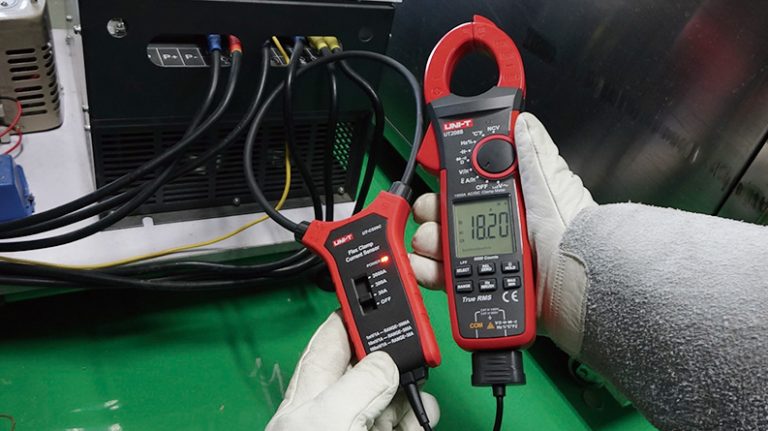

Applications of UT-CS09D Flex Clamp Sensor
