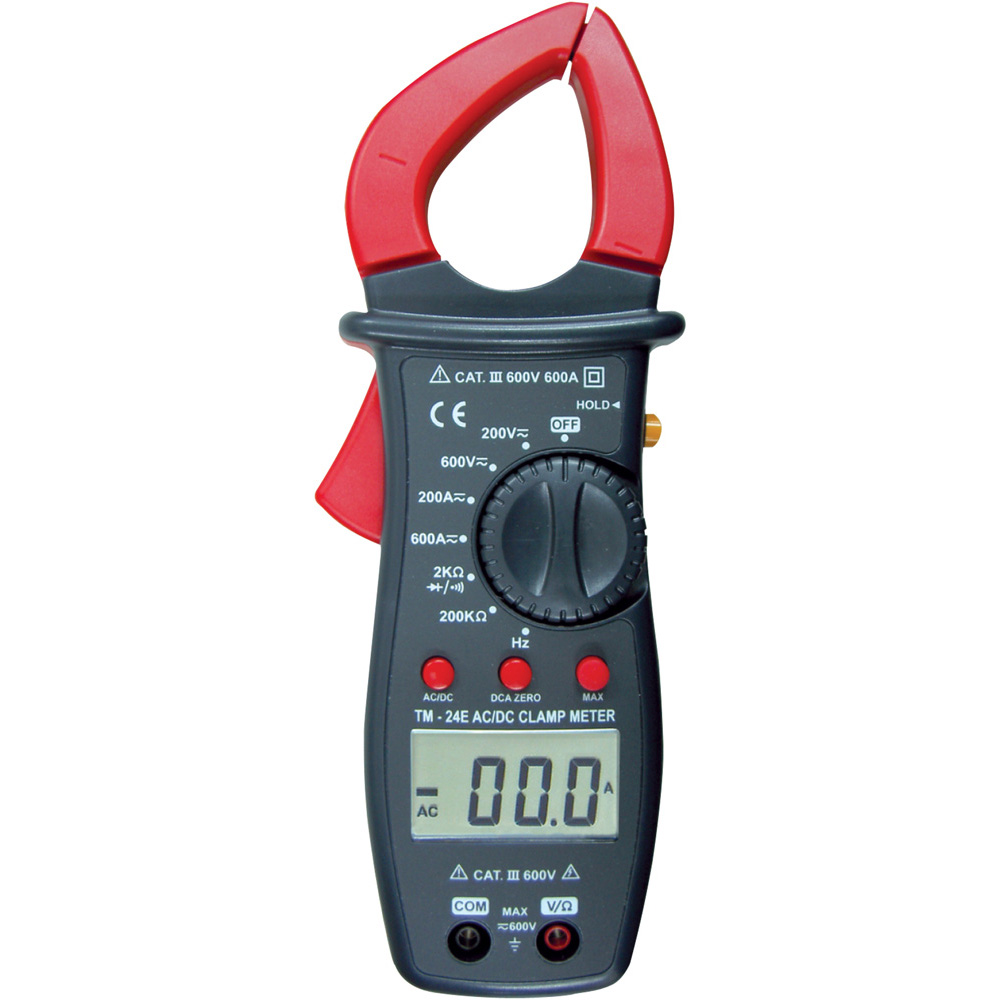

TM-24E AC/DC Clamp Meter

APPLICATION

Measuring voltage over 20V as it may cause human body electricity conduction.
Measure AC power.
Operating Environment: Indoor use. This instrument has been designed for using in an environment of pollution degree 2.
Operation Altitude: up to 2000m.
Operating Temperature & Humidity: 5℃ ~ 40℃,below 80%RH.
Storage Temperature & Humidity: -10℃ ~ 60℃, below 70%RH.
Fingers should hold under the protection guard of test probe.
Category: ICE 1010-1 CATⅡ 600V .
ICE 1010-1 CATⅡ 1000V .
ICE 1010-2-032 CATⅢ 600V .

AC Current (ACA) /DC Current (DCA) measurement

Make sure that all the test leads are disconnected from the meter’s terminal for current measurement.

AC Voltage (ACV) /DC Voltage (DCV) measurement

Resistance measurements

Before measuring the resistance, please be sure to remove power from the circuit being tested and discharge all the capacitors.
If the reading is over range, the symbol “OL” will be displayed.

Display: 3½digits LCD with maximum reading 1999, Plus decimal point, unit symbol indication.
Overload Indication: LCD will show a “1” in the left highest position.
Low Battery Indication: Replace battery as LCD display .
Sampling Rate: 2 times per second for digital display.
Jaws opening:Max. 36mm
Conductor size:Max. 35mm
Dimension: 218mm(L)x75mm(W)x43mm(H).
Weight:about 360g. (Including battery)

Electrical Specifications

※Also with buzz function for continuity purpose,buzz will sound

when the measured resistance is below 40Ω
