APPLICATION
EMC:This apparatus was designed in accordance with EMC standards in force and its compatibility has been tested in accordance EN61326 (1997) + A1 (1998) + A2 (2001).

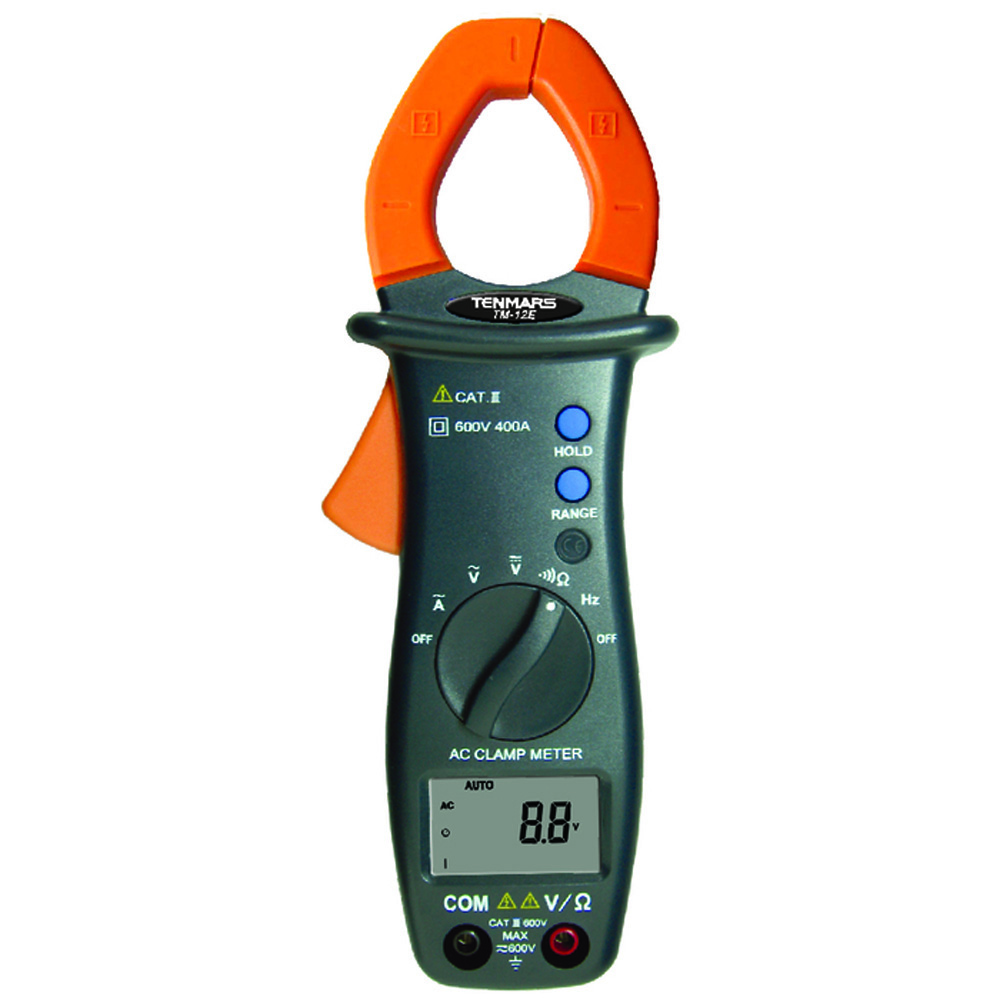

TM-12E
AC Clamp Phase
FEATURES
-
Jaws opening up to 30mm.
-
The maximum conductor size is Ø30mm.
-
Safety sockets designed.
-
Data Hold.
-
Impedance in circuit is below 40Ω. The buzzer will sound.
-
Polarity Indication: Automatic polarity, “-“ display for negative input.
-
Overload Indication: LCD will show a “OL” in the left highest position.
-
Low Battery Indication : Replace battery as LCD display “BAT”.
SPECIFICATIONS
-
Display:3¾LCD with maximum reading 3999 units plus decimal point signs plus backlight
-
Sample rate:2 times/sec.
-
Jaws opening:30mm
-
Max conductor size:30mm
-
Dimension: 195mm(L)x64mm(W)x30mm(H).
-
Weight:about 240g. (Including battery)
Electrical Specifications(23℃±5℃, with RH< 75％RH )
|
ACA (Auto/Manual)
|
|||
|
Range
|
Resolution
|
Accuracy
50Hz~60 Hz
|
Overload
Protection |
|
40A
|
0.01A
|
±(2.0%+10)
|
600A rms
(60 second)
|
|
400A
|
0.1A
|
||
|
ACV (Auto/Manual)
|
||||
|
Range
|
Resolution
|
Accuracy
50Hz~500 Hz |
Input
Impedance
|
Overload Protection
|
|
40A
|
0.1V
|
±(1.5%+5)
|
10MΩ
|
660V rms
|
|
400A
|
1V
|
|||
|
DCV (Auto/Manual)
|
||||
|
Range
|
Resolution
|
Accuracy
|
Input Impedance
|
Overload
Protection
|
|
400V
|
0.1V
|
±(1.0%+3)
|
10MΩ
|
660V rms
|
|
600V
|
1V
|
|||
|
Frequency (Auto-Ranging)
|
||||
|
Range
|
Resolution
|
Accuracy
|
Max.
Sensitivity |
Overload Protection
|
|
4KHz
|
1Hz
|
±(0.8%+3)
|
3V rms
|
DC/AC
600V rms
|
|
40KHz
|
10Hz
|
|||
|
400KHz
|
100Hz
|
|||
|
Continuity
|
|||
|
Range
|
Buzzer
|
Max. Open
Voltage |
Overload
Protection |
 |
below 40
|
About-1.5VDC
|
600V rms
|
|
Resistance
|
||||
|
Range
|
Buzzer
|
Accuracy
|
Max. Open Voltage
|
Overload Protection
|
|
Ω
(400Ω) |
0.1Ω
|
±(1%+5)
|
About-1.5VDC
|
600V rms
|
