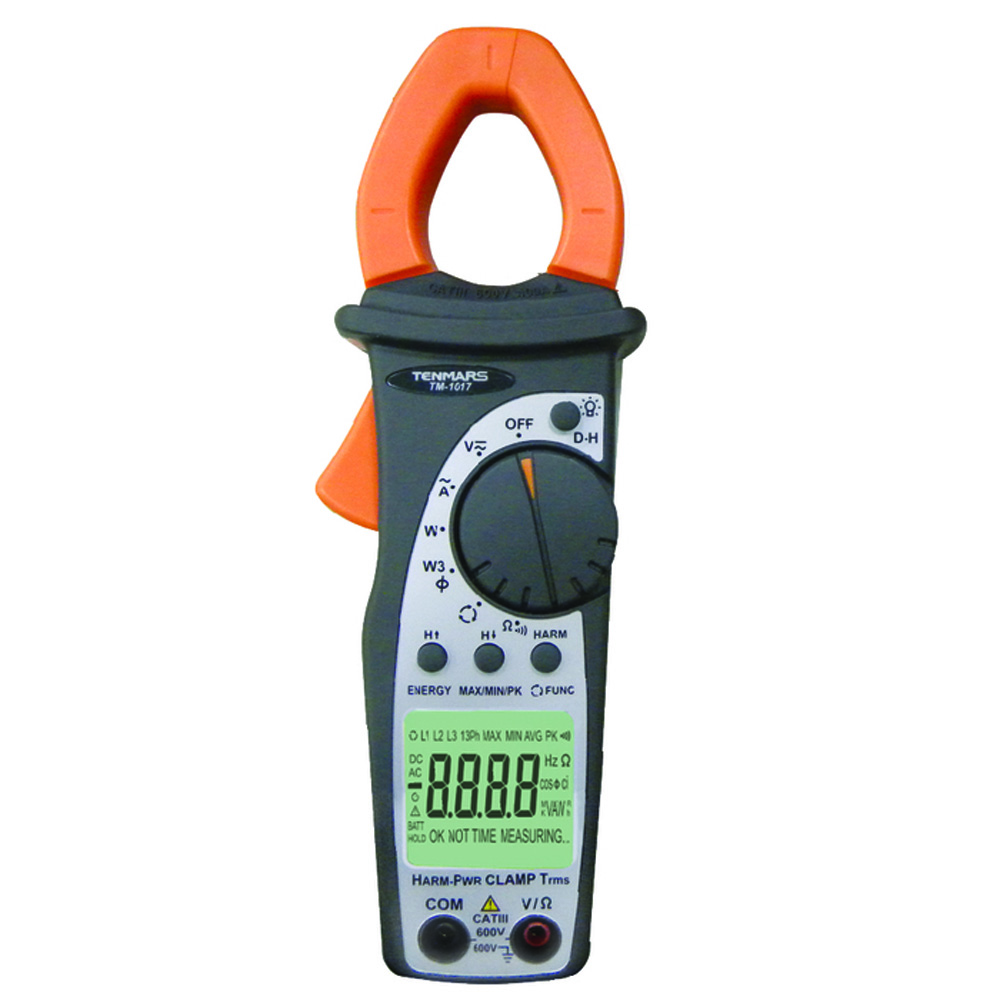

TM-1017
400A True-RMS AC Power Clamp Meter+ Phase

This apparatus conforms to safety standard EN 61010

APPLICATION

It can be used for CURRENT measurements on installations of over voltage category III up to 600V (voltage between phase and earth) and for VOLTAGE and FREQUENCY measurements on installations of over voltage category III up to 600V (voltage between terminals and between phase and earth).

FEATURES

The apparatus can perform the following measurements:
  • AC voltage (VAC) with TRMS conversion mode.
  • DC voltage (VDC).
  • AC current (IAC) with TRMS conversion mode.
  • Harmonic AC voltage (from DC to 24h components)
  • Harmonic AC current (from 1st to 24th components).
  • Frequency with input test leads.
  • Frequency with clamp jaws.
  • Resistance.
  • Continuity test.
  • Phase rotation with only one test lead.
  • Active, reactive, apparent power and power factor measure on single-phase systems.
  • Active, reactive, apparent power and power factor measure on balanced three phase systems.
  • Active, reactive, apparent energy measurements on single-phase systems.
  • Active, reactive, apparent energy measurements on balanced three phase systems.

SPECIFICATIONS

  • Display:4 dgt LCD with maximum reading 9999 units plus decimal point and sign
  • Sample rate:64 samples in 20ms
  • Conversion mode:TRMS
  • Jaws opening:30mm
  • Max conductor size:30mm
  • Dimension: 205mm(L)x64mm(W)x39mm(H).
  • Weight:about 280g. (Including battery)
CHARACTERISTICS SPECIFICATIONS(23℃±5℃, below 75％RH )
DC Voltage
Range
Resolution
Accuracy
Input impedance
0~599.9V
0.1V
±(1.0%+3dgt)
1MΩ
AC Voltage(TRMS)
Range
Resolution
Accuracy
Input impedance
40~200Hz
200~400Hz
1.6~599.9V
0.1V
±(1.0%rdg+3dgt)
±(5.0%rdg+3dgt)
1MΩ
Max. Crest factor = 1.41
MAX / MIN / AVG / PEAK AC/DC Voltage
Function
Range
Resolution
Accuracy
Response time
MAX,MIN,AVG
10÷599.9V
0.1V
±(5.0%rdg+10dgt)
500ms
PEAK
10÷ 850V
1V
±(5.0%rdg+10dgt)
1ms
AC Current (TRMS)
Range
Resolution
Accuracy
Overload protection
40÷200Hz
200÷400Hz
0.0~399.9V
0.1A
±(1.0%rdg+3dgt)
±(5.0%rdg+3dgt)
600A RMS
Max. Crest factor = 2
MAX / MIN / AVG / PEAK AC Current
Function Range Resolution Accuracy Response time
MAX,MIN,AVG 1.0~399.9V 0.1V ±(5.0%rdg+10dgt) 500ms
PEAK 10~800V 1V
±(5.0%rdg+10dgt)
 1ms
Resistance and Continuity test
Range
Resolution
Accuracy
Overload protection
0.0~499.9Ω
0.1Ω
±(1.0%rdg+5dgt)
600V AC/DC RMS
500~999Ω
1Ω
1000~1999Ω
3Ω
Instrument emits a buzzer for R<40Ω
Frequency (with test leads/ with jaws)
Range
Resolution
Accuracy
Overload protection
40.0~399.9Hz
0.1Hz
±(0.5%rdg+1dgt)
600V RMS / 600A RMS
Voltage range for frequency measure, with test leads: 0.5  – 600V, with jaws: 0.5  – 400V
Voltage and current harmonics
Harmonic order
Resolution [V], [A]
Accuracy
1~15
0.1
±(10.0%rdg+5dgt)
16~25
0.1
±(15.0%rdg+5dgt)
ccuracy defined for: voltage≥1.6V, current≥2A
Power factor≥
Range
Resolution
Accuracy
0.20~1.00
0.01
±3°
Accuracy defined for: sine wave, voltage 230 – 400V, current≥2A, freq. 50-60Hz
Active power, Reactive power, Apparent power
Range
[kW],[kVAR],[kVA]
Resolution
[kW],[kVAR],[kVA]
Accuracy
0.00~99.99
0.01
±(3.5% rdg+3dgt)
100.0~999.9
0.1
Accuracy defined for: sine wave, voltage 230- 400V, current≥1A, freq. 50-60Hz, Pf: 0.8i – 0.8c
Phase sequence and phase coincidence
Range
Frequency range
Input impedance
Overload
protection
50~600V
40-69Hz
1MΩ
600V RMS
MAX / MIN / AVG Resistance and Continuity test
Range
Resolution
Accuracy
Tempo di risposta
0.0~499.9Ω
0.1Ω
±(1.0%rdg+5dgt)
1s
500~999Ω
1Ω
1000~1999Ω
3Ω
Instrument emits a buzzer for R<40Ω
MAX / MIN / AVG Frequency (with test leads/ with jaws)
Range
Resolution
Accuracy
Tempo di risposta
40.0~399.9Hz
0.1Hz
±(0.5%rdg+1dgt)
1s
Max∆f/∆t =0.5Hz/s
MAX / MIN / AVG Active power,
Reactive power, Apparent power
Range [kW],[kVAR],[kVA]
Resolution [kW],[kVAR],[kVA]
Accuracy
Tempo di risposta
0.1~99.99
0.01
±(3.5%rdg+3dgt)
1s
100.0~999.9
0.1
Accuracy defined for: sine wave, voltage 230÷400V, current≥1A, freq. 50-60Hz, Pf: 0.8i÷0.8c
MAX / MIN / AVG Power factor
Range
Resolution
Accuracy
Response time
0.20~1.00
0.01
±3°
1s
Accuracy defined for: sine wave, voltage 230 – 400V, current≥2A, freq. 50-60Hz
