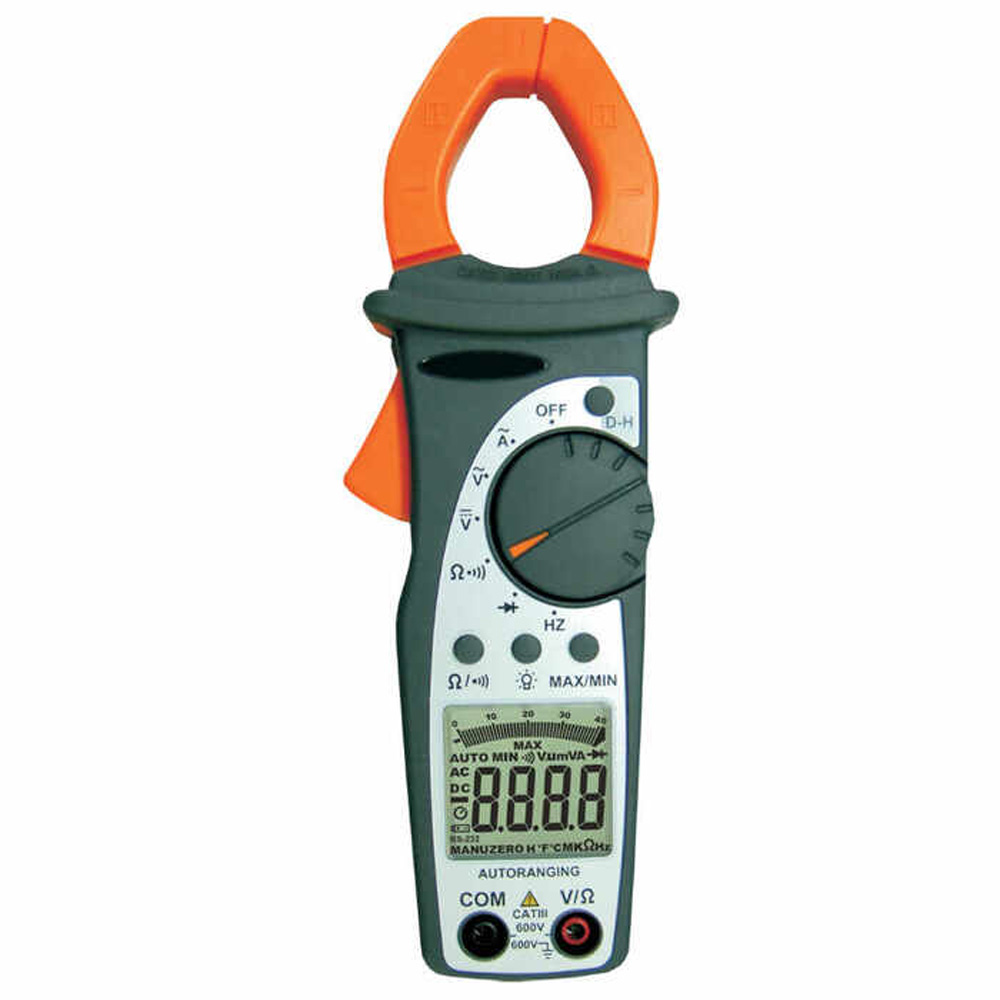

TM-1014
AC Clamp Phase

This apparatus conforms to safety standard EN 61010

APPLICATION

It can be used for CURRENT, VOLTAGE and FREQUENCY measurements on installations of surge voltage category III up to 600 V, voltage between Phase and Earth (fixed installations) and for current measures up to 400A.

FEATURES

The apparatus can perform the following measurements:
  • AC current (IAC).
  • AC voltage (VAC).
  • DC voltage (VDC).
  • DC current (IDC).
  • Resistance.
  • Continuity Test.
  • Frequency
  • Diode test

SPECIFICATIONS

  • Display:3 ¾ LCD with maximum reading 3999 units plus decimal point signs plus backlight
  • Sample rate:2 times/sec.20 times/sec. for analogical bargraph
  • Conversion mode:mean value
  • Jaws opening:30mm
  • Max conductor size:30mm
  • Dimension: 205mm(L)x64mm(W)x39mm(H).
  • Weight:about 280g. (Including battery)
CHARACTERISTICS SPECIFICATIONS(23℃±5℃, below 75％RH )
DC Voltage
Range
Resolution
Accuracy
Input
impedance
400mV
0.1mV
±(0.8%rdg+2dgt)
100MΩ
4V
1mV
11MΩ
40V
10mV
10MΩ
400V
100mV
600V
1V
±(1.0%rdg+2dgt)
AC Voltage
Range
Resolution
Accuracy
(50~500Hz)
Input
impedance
400mV
0.1mV
±(1.0%rdg+50dgt)
(at 40Hz-60Hz)
100MΩ
4V
1mV
±(1.0%rdg+3dgt)
11MΩ
40V
10mV
10MΩ
400V
100mV
600V
1V
±(1.2%rdg+3dgt)
AC Current
Range
Resolution
Accuracy
(50 ~ 60Hz)
Overload
protection
40A
0.01A
±(2.0%rdg+10dgt)
600A rms
(60 seconds)
400A
0.1A
±(1.5%rdg+10dgt)(0.1 – 40A)
±(1.5%rdg+3dgt)(40.1 – 400A)
Resistance
Range
Resolution
Accuracy
Max. Open
Loop voltage
Overload
protection
400Ω
0.1Ω
±(1.0%rdg+5dgt)
about
1.5VDC
600Vrms
(60 seconds)
4KΩ
1Ω
±(1.0%rdg+3dgt)
about
0.45 VDC
40KΩ
10Ω
400KΩ
100Ω
4MΩ
1KΩ
40MΩ
10KΩ
±(3.0%rdg+3dgt)
Continuity test
Range
Buzzer
Max. Open Loop voltage
Overload protection
Activated
for R<40Ω
about 1.5VDC
600V rms
Diode test
Range
Resolution
Max. Open
Loop voltage
Overload protection
1mV
about 3.3VDC
600V rms
FrequenRangecy
Range
Resolution
Accuracy
Voltage range
4kHz
1Hz
±(0.8%rdg+3dgt)
3V÷600V rms
40kHz
10Hz
400kHz
100Hz
