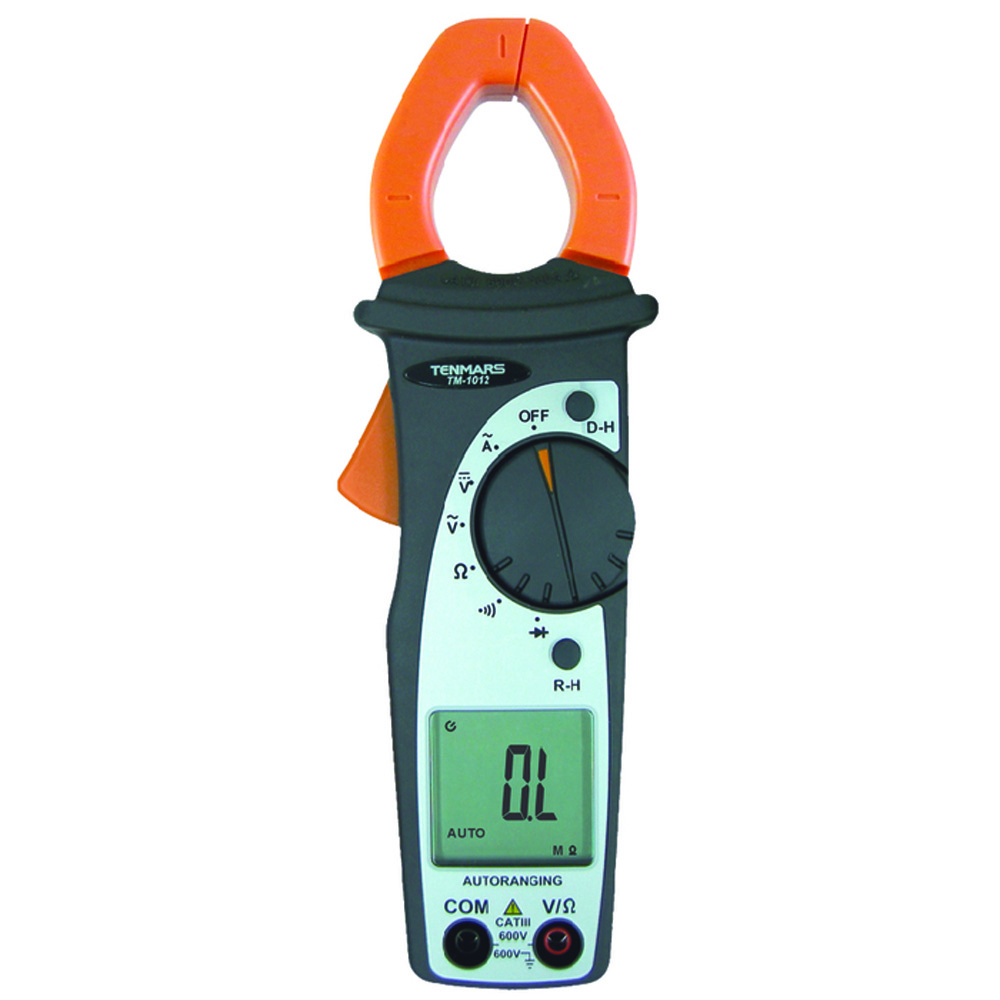

APPLICATION
It can be used for CURRENT, VOLTAGE and FREQUENCY measurements on installations of surge voltage category III up to 600 V, voltage between Phase and Earth (fixed installations) and for current measures up to 400A.
FEATURES
The apparatus can perform the following measurements:
-
AC current (IAC).
-
AC voltage (VAC).
-
DC voltage (VDC).
-
Resistance.
-
Continuity Test.
- Diode test
SPECIFICATIONS
-
Display:3 ½ LCD with maximum reading 1999 units plus decimal point signs plus backlight
-
Sample rate:2 times/sec.
-
Jaws opening:30mm
-
Max conductor size:30mm
-
Dimension: 205mm(L)x64mm(W)x39mm(H).
-
Weight:about 280g. (Including battery)
CHARACTERISTICS SPECIFICATIONS(23℃±5℃, with RH< 75％RH )
|
ACA (Auto/Manual)
|
|||
|
Range
|
Resolution
|
Accuracy
50Hz~60Hz |
Overload
protection
|
|
200A
|
0.1A
|
±(1.5%+10)
|
600A RMS
(60 seconds)
|
|
400A
|
1A
|
||
|
DCV (Auto/Manual)
|
||||
|
Range
|
Resolution
|
Accuracy
|
Input impedance
|
Overload Protection
|
|
2V
|
1mV
|
±(0.8%+2)
|
11MΩ
|
DC/AC 660V rms
|
|
20V
|
10mV
|
10MΩ
|
||
|
200V
|
100mV
|
|||
|
600V
|
1V
|
±(1.0%+2)
|
||
|
ACV (Auto/Manual)
|
||||
|
Range
|
Resolution
|
Accuracy
50Hz~500Hz
|
Input impedance
|
Overload Protection
|
|
2V
|
1mV
|
±(1.0%+3)
|
11MΩ
|
DC/AC
660V rms |
|
20V
|
10mV
|
10MΩ
|
||
|
200V
|
100mV
|
|||
|
600V
|
1V
|
±(1.2%+3)
|
||
|
Resistance (Auto/Manual)
|
||||
|
Range
|
Resolution
|
Accuracy
|
Max. Open
Loop voltage |
Overload protection
|
|
200Ω
|
0.1Ω
|
±(1.0%+5)
|
About-1.5VDC
|
DC/AC 600V rms
(60 Second) |
|
2kΩ
|
1Ω
|
±(1.0%+3)
|
About-0.45 VDC
|
|
|
20kΩ
|
10Ω
|
|||
|
200kΩ
|
100Ω
|
|||
|
2MΩ
|
1kΩ
|
|||
|
20MΩ
|
10kΩ
|
±(3.0%+3)
|
||
|
Continuity test
|
|||
|
Range
|
Buzzer
|
Max. Open
Loop voltage |
Overload protection
|
|
Below 25Ω
|
About-1.5 VDC
|
600A rms
|
|
