APPLICATION

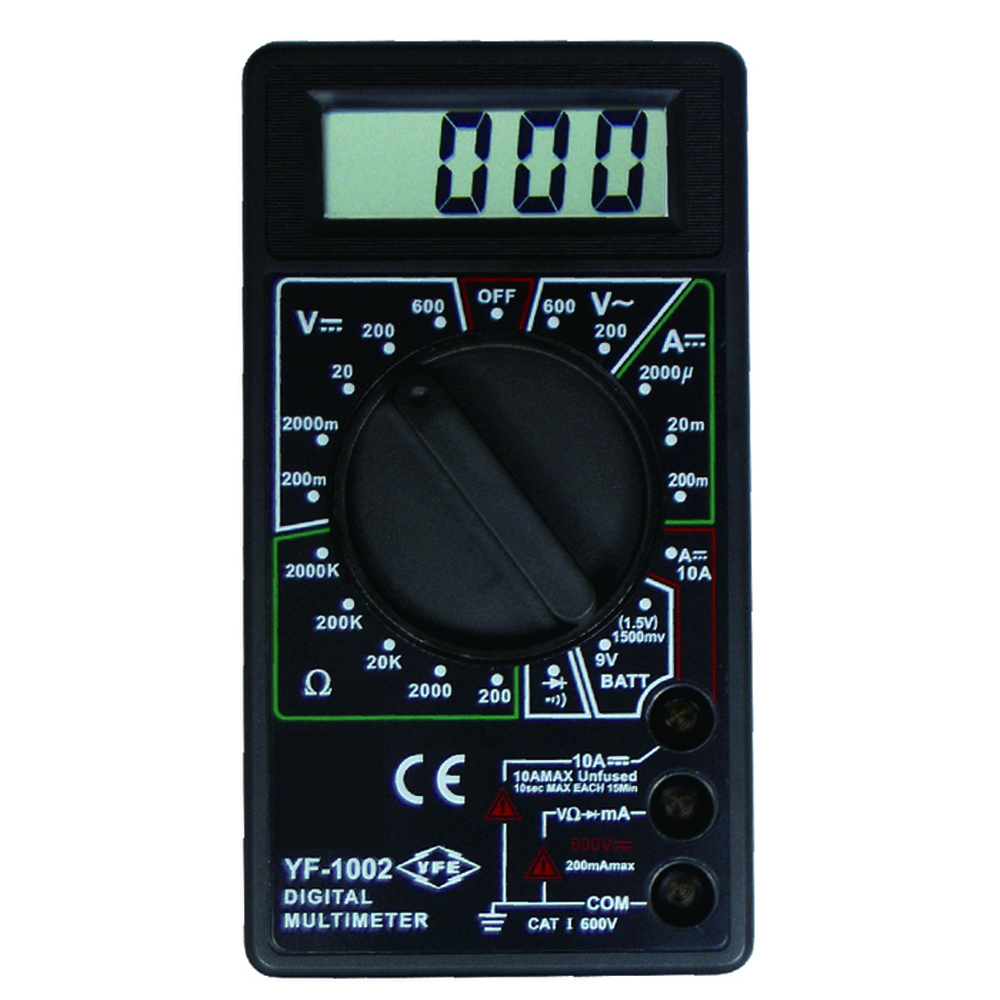

The multimeter is a pocket-sized 3½-digit digital multimeter for measuring DC and AC Voltage, DC Current, Resistance, testing Diode and continuity. Overload protection and low battery indication are provided.
FEATURES
-
This switch is used to select the functions and desired ranges as well as to turn ON/OFF the meter. To extend the life of the battery, the switch should be in the “OFF” position when the meter is not in use.
-
DISPLAY
3½digit LCD , Max. reading 1999 -
“COM” JACK
Pulg in connector for black (negative) test lead. 4. “VO*MA”JACK Plug in connector for red (positive) test lead for all voltage, resistance and current ( <200mA ) measurements. 5. “10A”JACK -
“VΩ mA”JACK
Plug in connector for red (Positive) test lead for -
“10A “JACK
measurement. There is no fuse in the built in circuit for “10A” jack. To use safely, each measurement can not last for more than 10 seconds, and the interval between each measurement must be more than 15 minutes.
SPECIFICATIONS
-
Diode: Testing Voltage about 2.4V, current about 1mA. The forward voltage drop in mV will be displayed.
-
Buzzer: When you measure for continuity, the buzzer will sound if the resistance is less than 50Ω
-
Dimensions:130x70x28mm(length x width x height).
-
Weight: Approximately 146 grams.
Electrical Specifications
Accuracy is specified for a period of 1 year after calibration and at 18°C– 28°C(64°F~ 82°F) with relative humidity up to 75%
Accuracy is specified for a period of 1 year after calibration and at 18°C– 28°C(64°F~ 82°F) with relative humidity up to 75%
|
DC VOLTAGE
|
||
|
RANGE
|
RESOLUTION
|
ACCURACY
|
|
200mV
|
100µV
|
±(0.5% +2D)
|
|
2000mV
|
1mV
|
|
|
20V
|
10mV
|
±(0.8% +2D)
|
|
200V
|
100Mv
|
|
|
600V
|
1V
|
±(1.0% +2D)
|
|
Input impedance:1MΩ
Max.input voltage:600V DC or 600V AC rms.
|
||
|
AC VOLTAGE
|
||
|
RANGE
|
RESOLUTION
|
ACCURACY
|
|
200V
|
100mV
|
±(1.2%+10D)
|
|
600V
|
1V
|
|
|
Freq. response:45-400Hz
Max.input voltage: 600V AC rms
Display: sine wave rms. average response
|
||
|
DC CURRENT
|
||
|
RANGE
|
RESOLUTION
|
ACCURACY
|
|
2000µA
|
1µA
|
±(1.0%+2D)
|
|
20mA
|
10µA
|
|
|
200mA
|
100µA
|
±(1.2%+2D)
|
|
10A
|
10µA
|
±(2.0%+2D)
|
|
Overload protection:F 250mA/250V Fused(10A unfused)
|
||
|
RESISTANCE
|
||
|
RANGE
|
RESOLUTION
|
ACCURACY
|
|
200Ω
|
0.1Ω
|
±(1.0%+2D)
|
|
2000Ω
|
1Ω
|
±(0.8%+2D)
|
|
20kΩ
|
10Ω
|
|
|
200kΩ
|
100Ω
|
|
|
2000kΩ
|
1KΩ
|
±(1.2%+2D)
|
|
Max. open circuit voltage: about 3V
|
||
|
BATTERY TEST
|
||
|
RANGE
|
DESCRIPTION
|
ACCURACY
|
|
1.5V
|
The working voltage of the battery will be displayed on the LCD, so that the quality of the battery can be judged.
|
The working current is about 20mA.
|
|
9V
|
The working current is about 6mA.
|
|
