UT8804E SERIES
Bench Multimeters

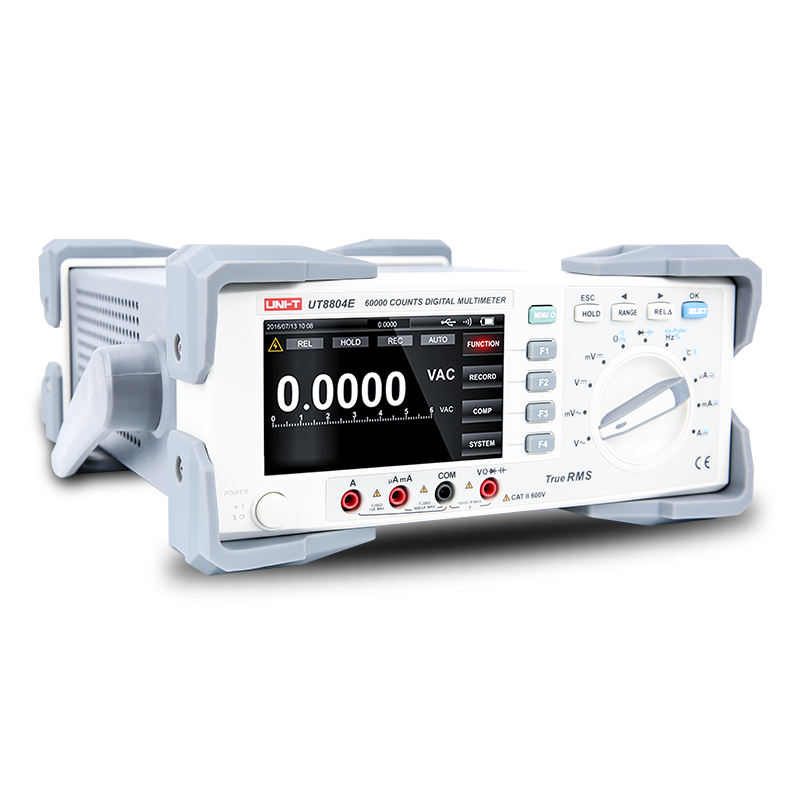

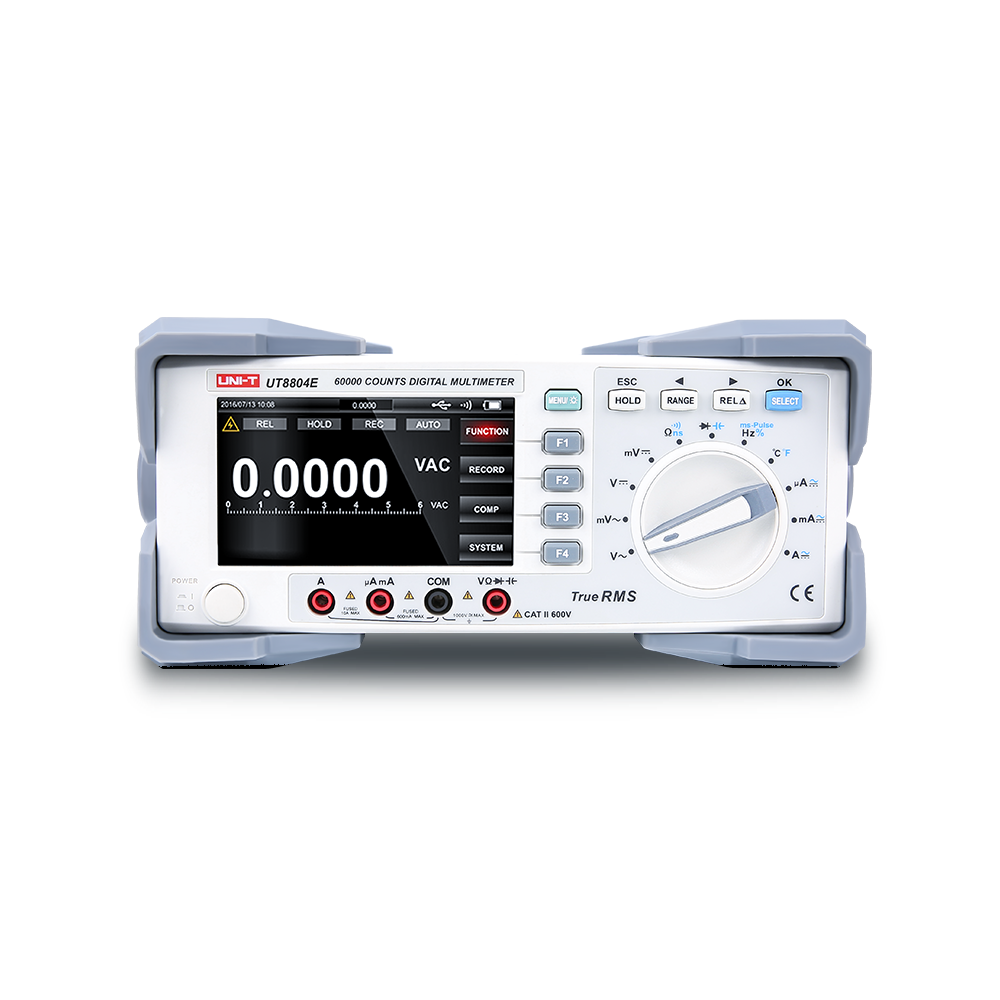

The UT8804E is an automatic range of 59999 counts, a true RMS desktop digital multimeter, 100kHz frequency response, and a 4.3 inch TFT LCD. VFC low-pass filtering function, reduce the interference of high-frequency signals on the measurement results, NCV non-contact voltage sensing, maximum/minimum/ average/relative value measurement, 20000 sets of output storage, making it a more superior electrician gauge



READING RESOLUTION
FASTEST TEST RATE
4⅚
3rdgs/s



FREQUENCY RESPONSE
DC VOLTAGE ACCURACY in a Year
100kHz
0.025%

Multiple measurement items optional

For each test item, multiple test parameters can

be selected to meet yourtest requirements.

Additional secondary parameters can be added

to make the measurement more specific, while

displaying the main parameters.

Recording function

UT8804E digital multimeter has recording function. Historical data records can be presented in statistics and trend charts.

The UT8804E digital multimeter has the function of maximum and minimum value statistics

At the same time, it has the function of reference value, and the calculation results relative to the reference value can be obtained.

Extreme value Function

For the index range required by batch device
test, UT8804E will help you automatically identify
unqualified devices and give an alarm

UT8804E digital multimeter can display 4 ⅚ digits (59999)

It can provide you high-precision and accurate result display.
Its simulation bar makes the display of measurement results
more intuitive. 4.3 inch full-color display, giving you a better
visual experience.

MODEL READING RESOLUTION FASTEST TEST RATE FREQUENCY RESPONSE DC VOLTAGE ACCURACY ın a Year CONNECTIVITY
UT8804E 4⅚ 3 rdgs/s 100kHz 0.025% USB Device
