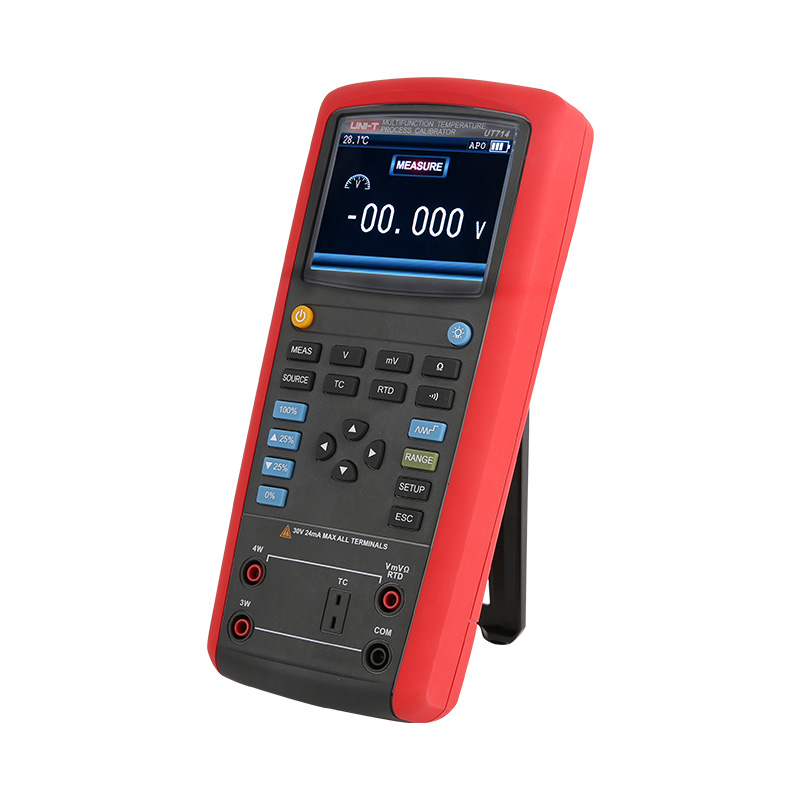

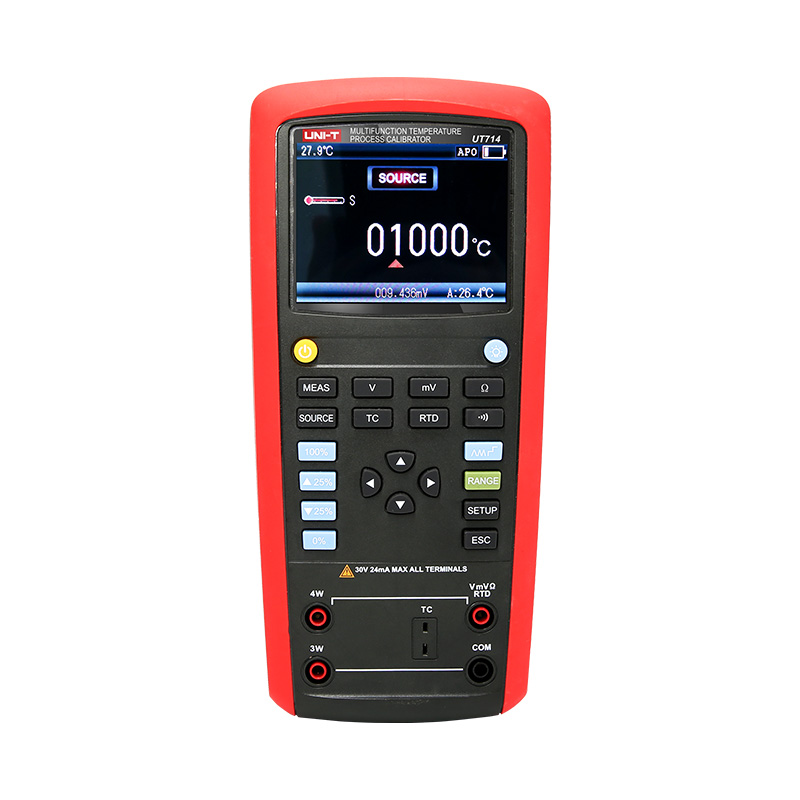

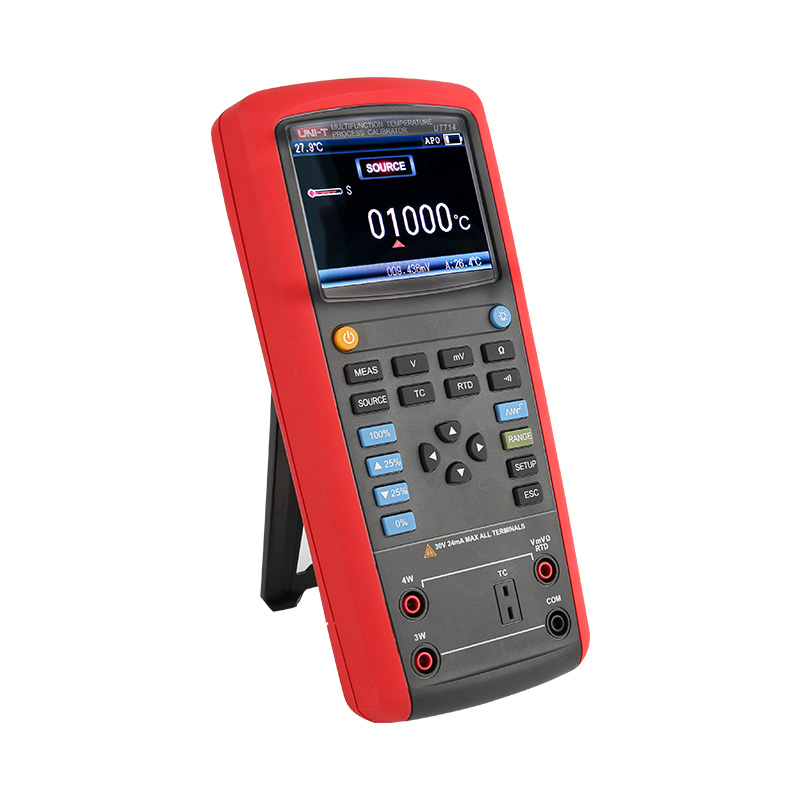

The UT714 is powerful temperature calibrator that sources and measures thermocouples, RTDs, voltage, and resistance. It can be used to test and calibrate diffrent types of temperature instruments. This device is suitable for testing input/output temperature terminals such as sensors and transmitters.
Features of UT714 Multifunction Temperature Process Calibrator
Certifications: CE, UKCA
Specifications of UT714 Multifunction Temperature Process Calibrator
| Specifications | Range | UT714 |
| Measurement | ||
| DC voltage (V) | 50mV/500mV/30V | ±(0.02%+2) |
| Resistance (Ω) | 500Ω/5000Ω | ±(0.05%+10) |
| Thermocouples | R,S,K,E,J,T,N,B,L,U | |
| RTDs | Pt100/Pt200/Pt500/Pt1000/Cu10/Cu50/Cu100/Pt100-392/Pt100-JIS/Ni120 | |
| Continuity test | √ | |
| Source | ||
| DC voltage (V) | 100mV/1000mV/10V | ±(0.02%+10) |
| Resistance (Ω) | 400Ω/4000Ω | ±(0.05%+10) |
| Thermocouples | R,S,K,E,J,T,N,B,L,U | |
| RTDs | Pt100-385/Pt100-392/Pt100-JIS/Pt200-385/P500-385/Pt1000-385/Cu10/Cu50/Cu100/Ni120 | |
| Display count | 20000 | |
| Operating temperature | -10°C~55°C | |
| General Characteristics | ||
| Power | 1.2V x 6 AA rechargeable battery | |
| Product net weight | 650g | |
| Product size | 195mm x 95mm x 58mm | |
| Standard accessory | Test lead, USB cable, power adapter, temperature probe, English manual | |
Applications of UT714 Multifunction Temperature Process Calibrator

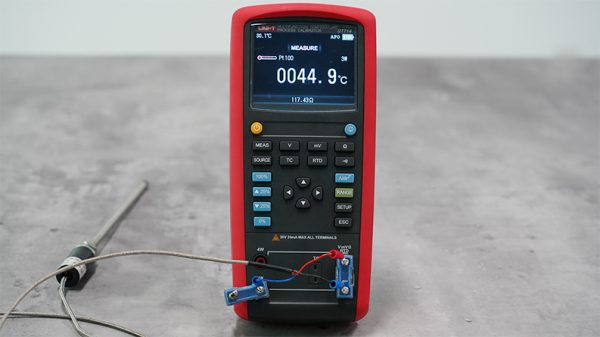

RTDs measurement

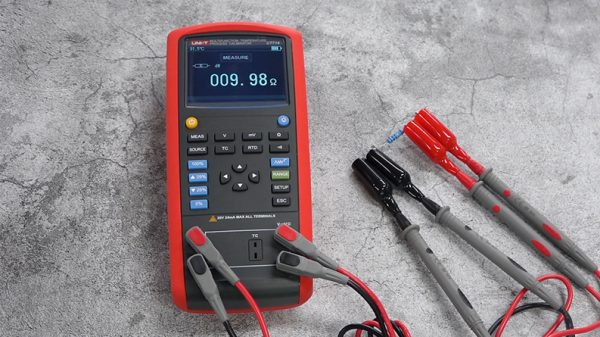

Resistance measurement
