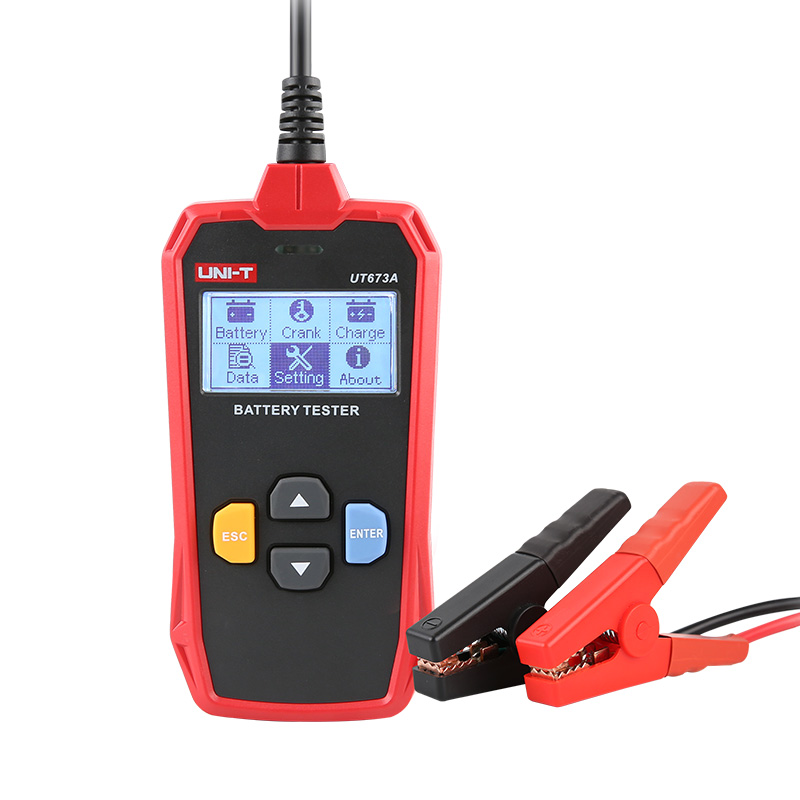

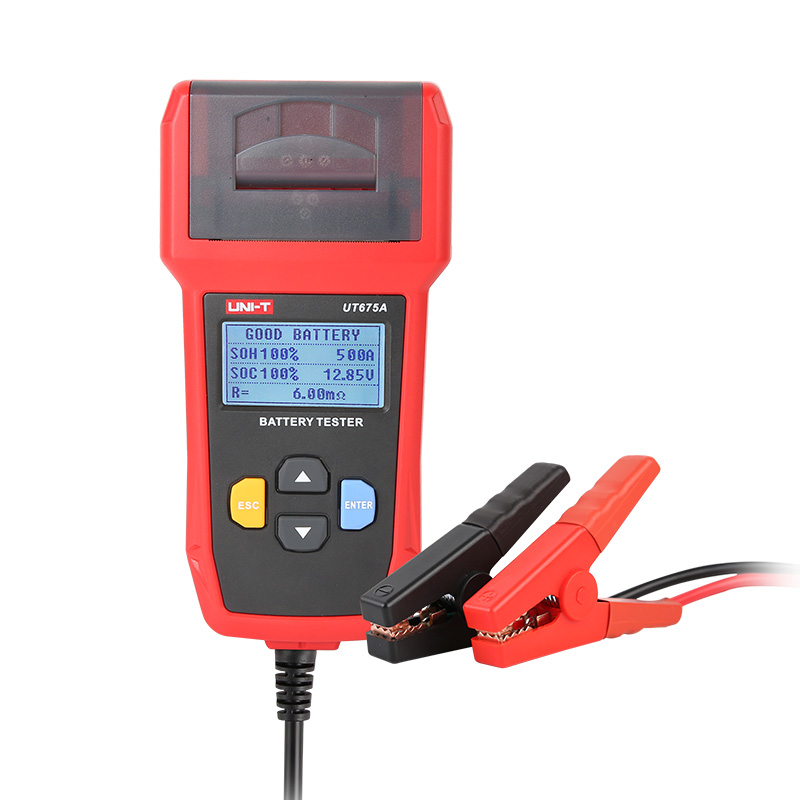

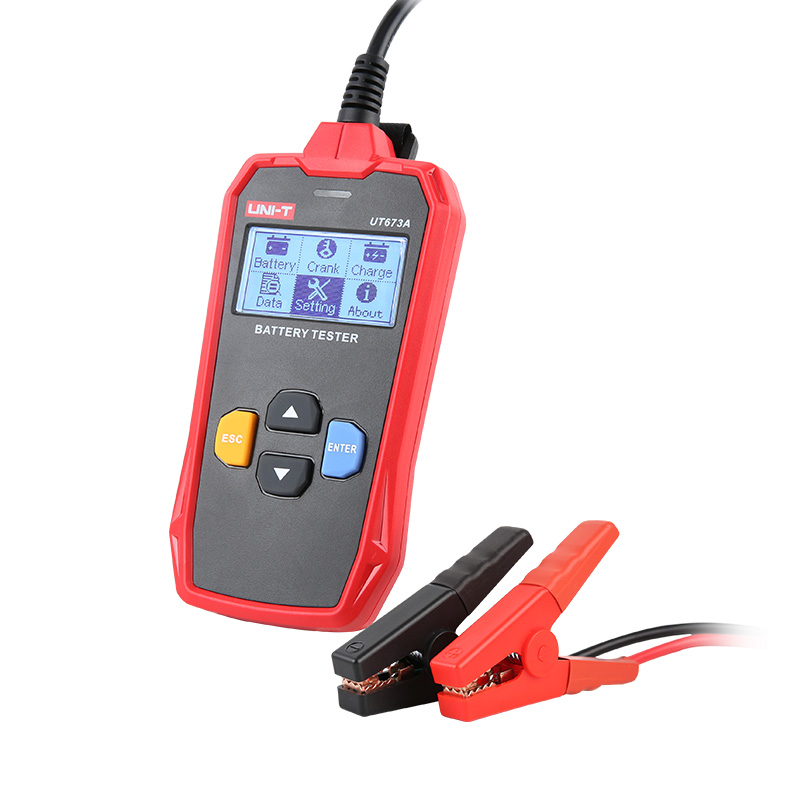

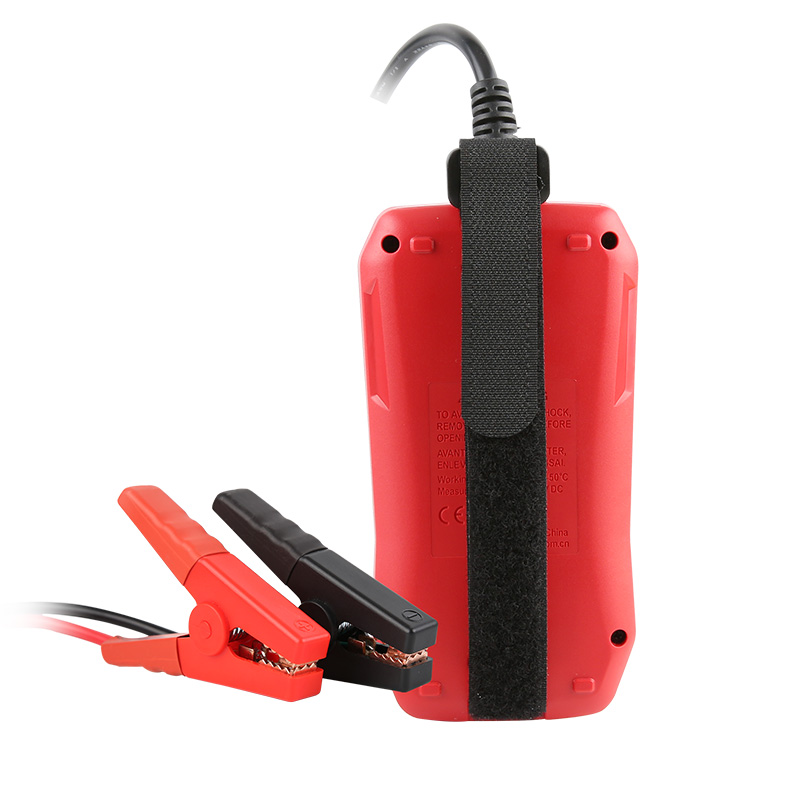

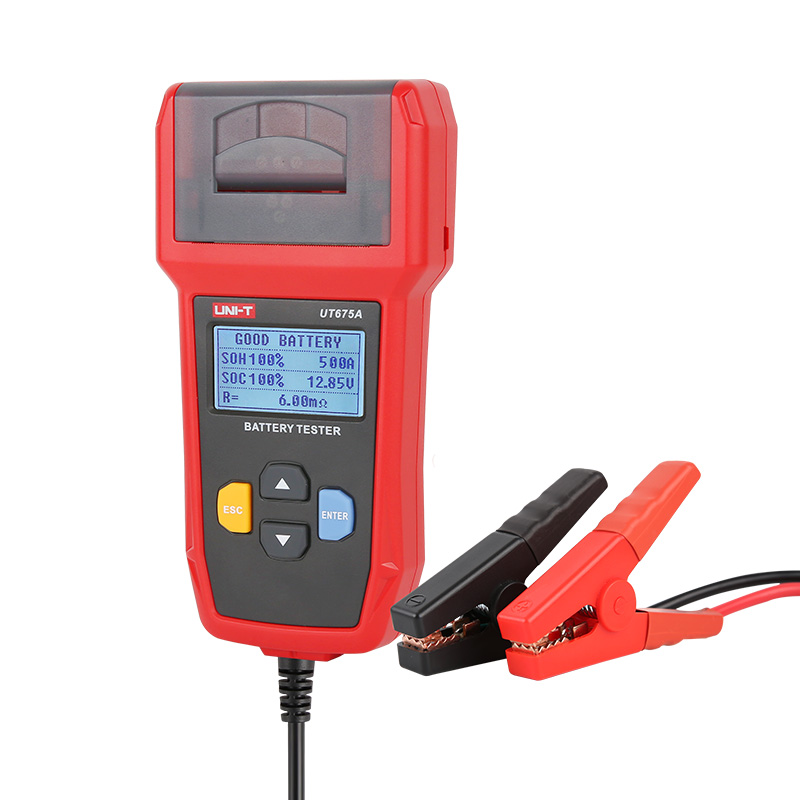

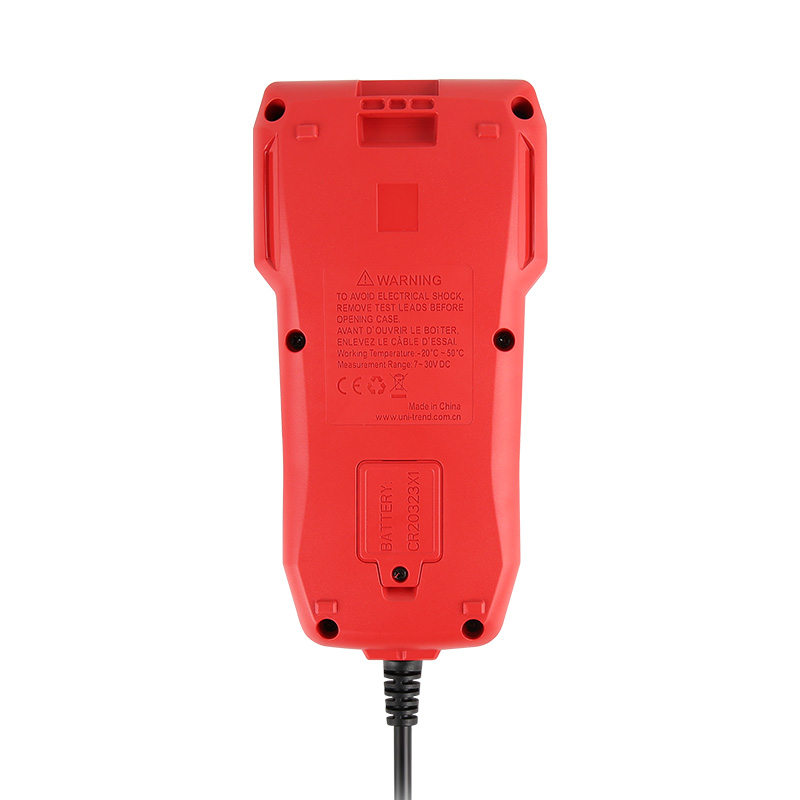

UT673A/UT675A
Battery Testers

UT673A/UT675A battery testers can be used to analyze the battery health of automobile batteries, suitable for battery capacities from 30Ah to 200Ah. These CE certified testers can rapidly and accurately detect common faults caused by battery. UT675A also includes USB communication and built-in printer for report generation.

Models: UT673A, UT675A

Features of UT673A/UT675A Battery Testers

Certifications: CE, UKCA, FCC

  • 12V cranking lead acid battery test
  • 12/24V charging or cranking system test
  • Display battery capacity, voltage, resistance and life
  • Four-termina Kelvin test
  • 10 types of battery standards
  • Language option (Chinese/English)
  • Test without battery disassembly
  • LED color indication for test result (UT673A)
  • Print on-line and real-time test reports (UT675A)
  • USB data transfer (UT675A)

SPECIFICATIONS

Specifications of UT673A/UT675A Battery Testers

Specifications Range UT673A UT675A
Certificates CE, FCC, RoHS
12V battery test 7~16V DC √ √
12V/24V cranking system test 7~30V DC √ √
12V/24V charging system test 7~30V DC √ √
Battery type Ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, GEL battery, EFB battery
Battery capacity 3~250Ah √ √
Battery standard and range CCA: 40~2000; BCI: 40~2000; CA: 40~2000; MCA: 40~2000; JIS: 26A17~245H52; DIN: 40~1400;
IEC: 40~1400; EN: 40~2000; SAE: 40~2000; AH: 3~250AH
Over voltage protection √ √
Reverse  connection protection √ √
A prompt of poor contact √ √
Battery status display √ √
Battery life display √ √
Battery capacity display √ √
Battery internal resistance display √ √
USB communication √
Printing function √
General Characteristics
Power None, powered by external source
Display 128*64 black and white lattice
Product net weight UT673A: 264g; UT675A: 413g
Product size UT673A: 76mm x 22mm x 142mm; UT675A: 95mm x 47mm x 183mm

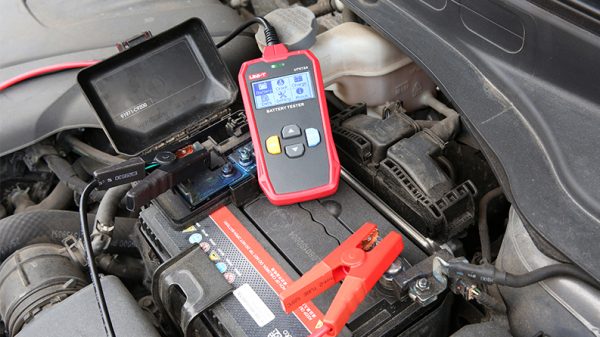

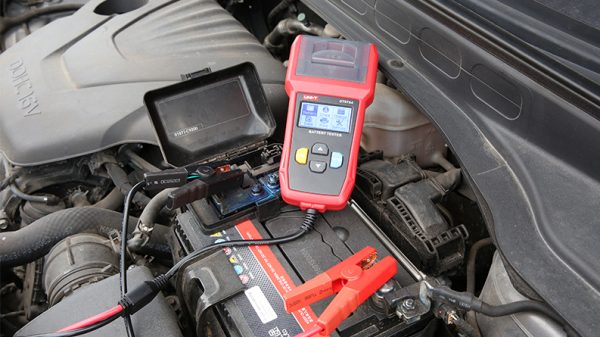

APPLICATIONS

Applications of UT673A/UT675A Battery Testers
