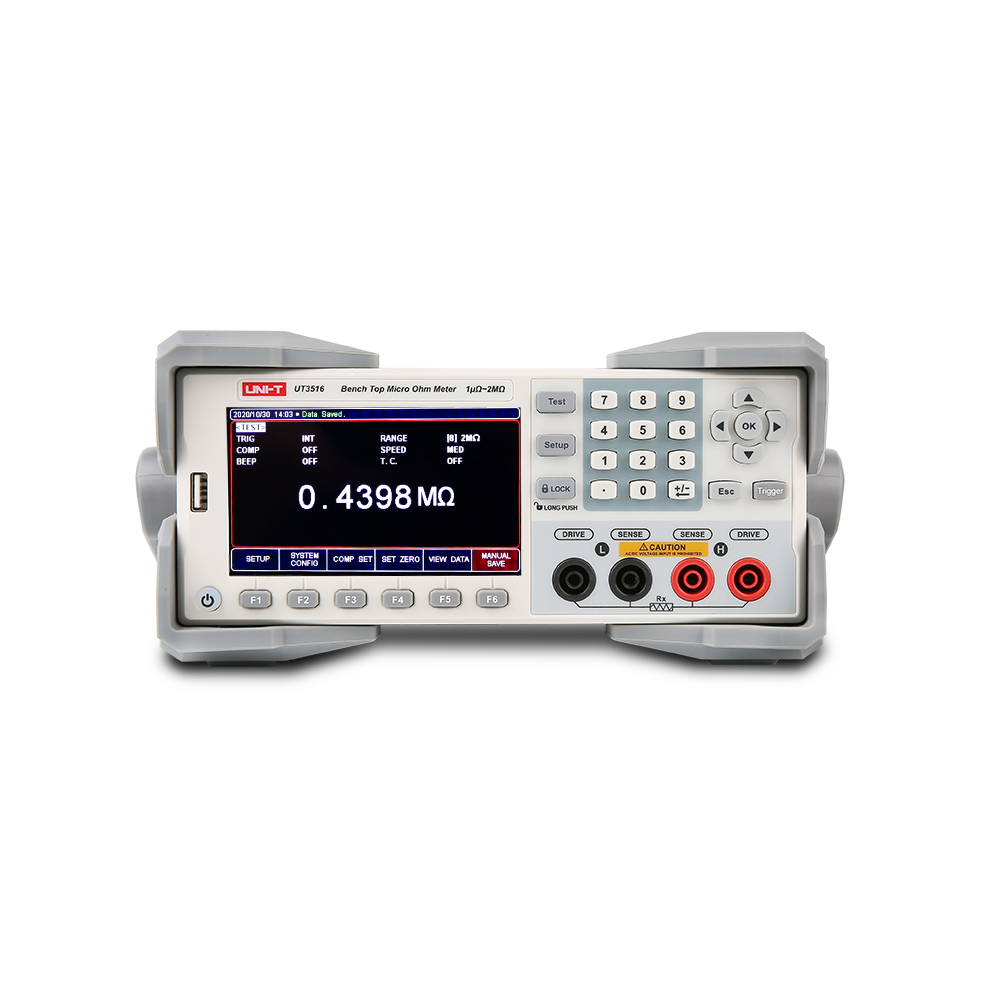

4.3 inch LCD screen display
4.3 inch LCD screen display
0.05% accuracy, with 20000 readings
UT3513 resistance test range: 1μΩ~20kΩ
UT3516 resistance test range: 1μΩ~2MΩ
Range mode
The instrument can realize automatic, manual, and nominal range test modes
Optional test r speed
Three test speeds:
Slow speed: 3 times/sec.
Medium speed: 18 times/sec.
Fast: 60 times/sec.
File management, saving and browsing data
For the measured display value, it can be quickly browsed on the screen
of the instrument after manual saving. File management allows users to
save settings to 10 files, which is easy to read when starting up or changing specifications.
Comparator function
UT3516 has 6-gear sorting function, and UT3513 has 1 set of comparator functions.
Built-in 10-level comparator output (UT3516): 6 qualified files (BIN1~BIN6),
3 unqualified files (NG, NG LO, NG HI, and 1 total qualified file (OK).
Three ways to select the sound: off, qualified, unqualified Comparison method:
direct reading comparison, absolute value tolerance, percentage tolerance.

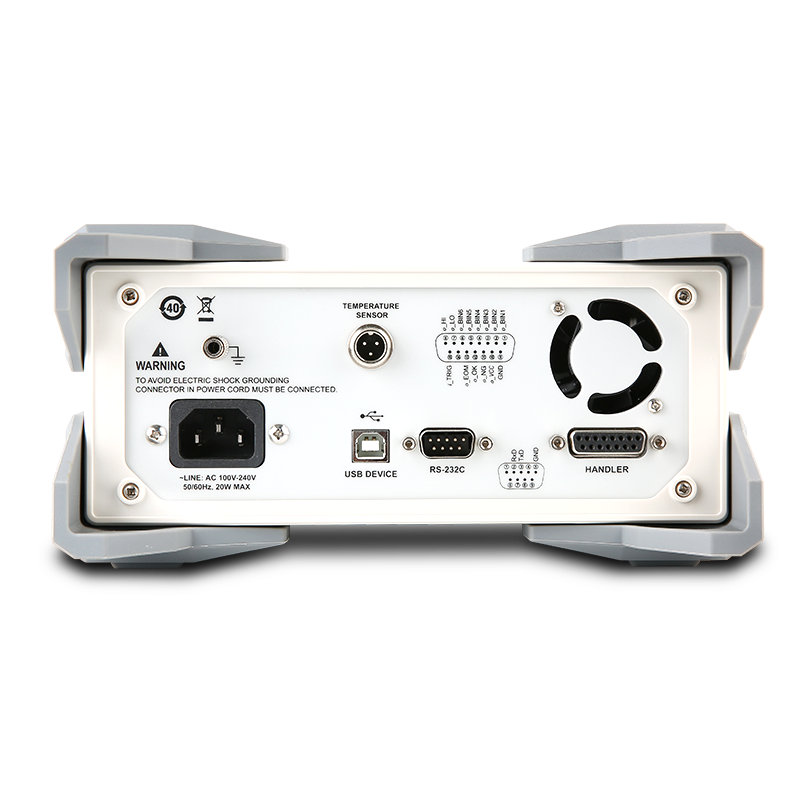

Configure rich interfaces
RS-232/RS-485 interface:
Use SCPI and Modbus RTU protocols to communicate with computers, PLCs or WINCE devices to efficiently complete remote control and data acquisition functions.
USB Device:
It can simplify the communication between the computer and the instrument.
HANDLER interface:
used to realize online operation to facilitate automatic control with user system control
components Temperature compensation sensor input interface:
the instrument has a built-in temperature compensation interface to compensate for test errors caused by ambient temperature
USB Host interface:
used to save data or screenshots
| Model | Measurıng Range | Max. Test Rate | Connectıvıty | Sıze | Dısplay |
|---|---|---|---|---|---|
| UT3513 | 1μΩ~20kΩ | 18 times/s | Handler, RS232, USB Device, USB Host | ½ 2U | 4.3 inches TFT LCD |
| UT3516 | 1μΩ~2MΩ | 60 times/s | Handler, RS232, USB Device, USB Host | ½ 2U | 4.3 inches TFT LCD |
