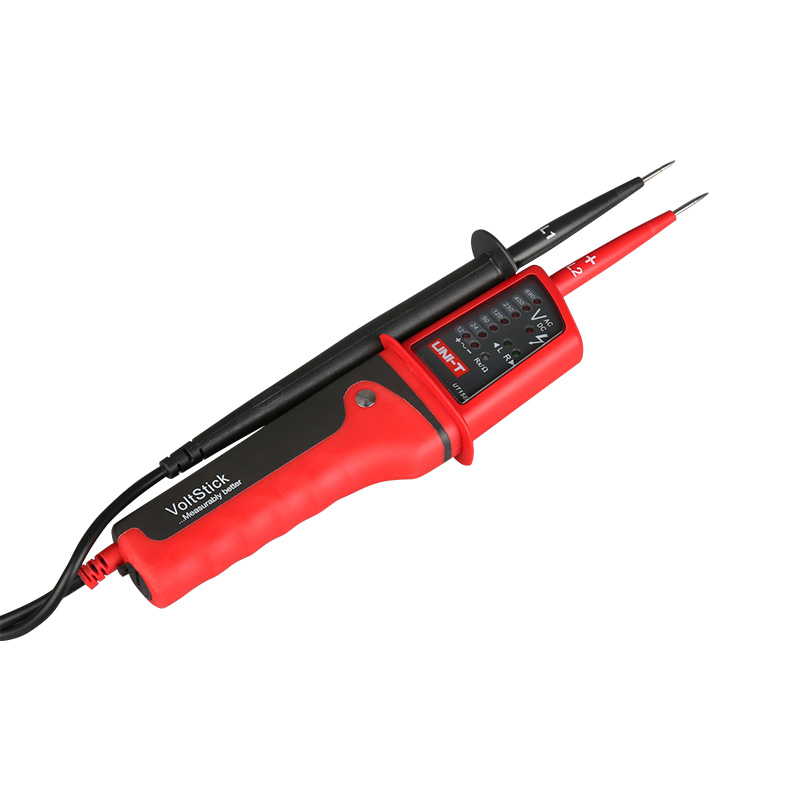

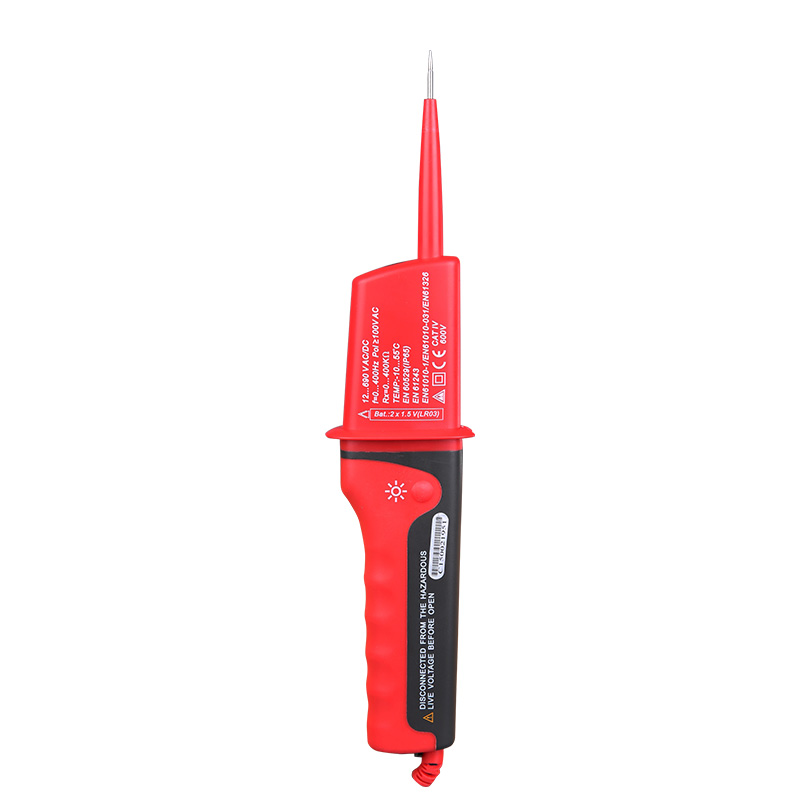

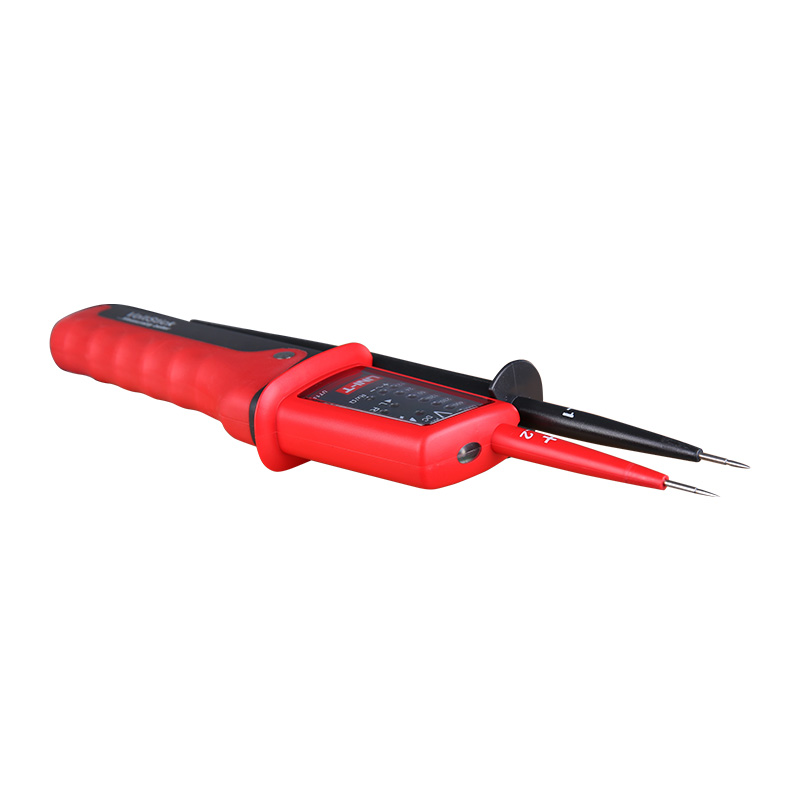

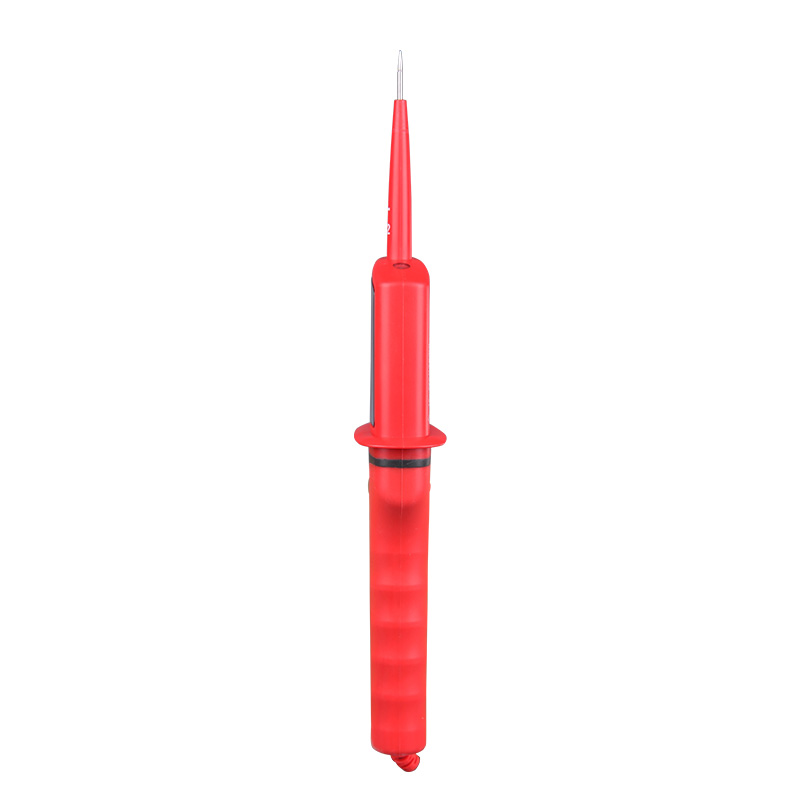

UT15 Series
Waterproof Type Voltage Tester

UT15 Series test pen has the functions: AC/DC voltage measurement (include three-phase AC), phase position indication of three-phase AC, continuity test and single probe measurement (judge null wire or live wire). It can also solve the complex problems of electric, factory automation, etc.

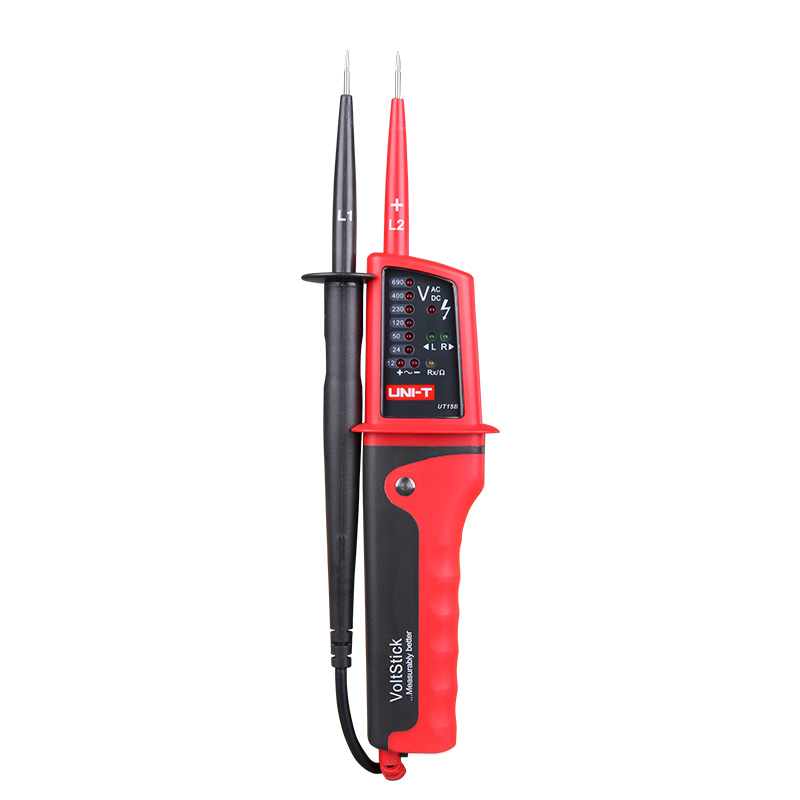

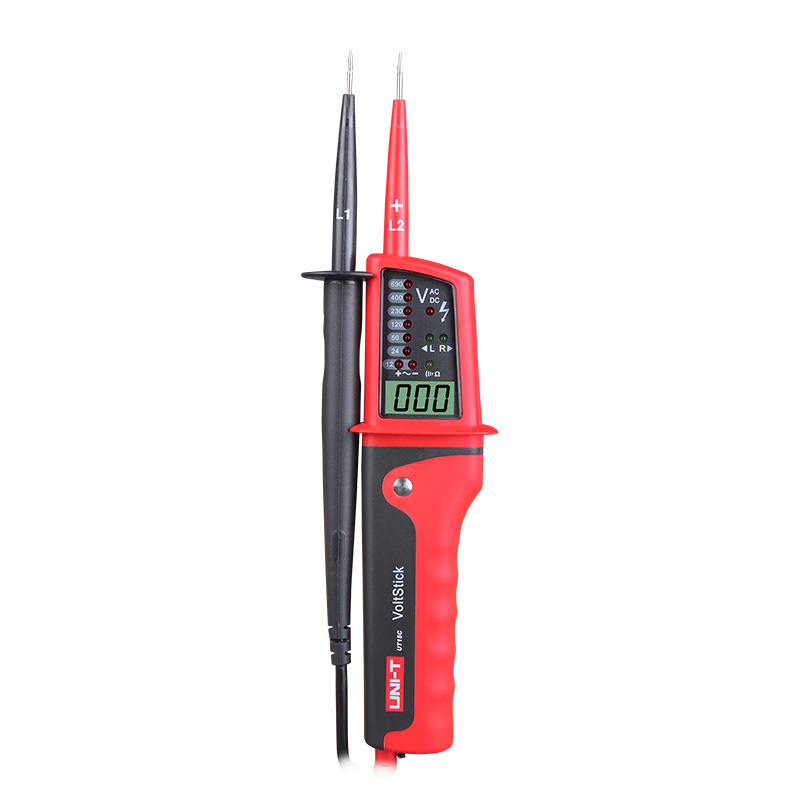

Models in UT15 Series: UT15B, UT15C

Features of UT15 Series Waterproof Type Voltage Tester

  • AC/DC voltage measurement
  • Continuity test
  • Single probe measurement
  • Phase position indication of three-phase AC

SPECIFICATIONS

Specifications of UT15 Series Waterproof Type Voltage Tester

Specifications Range UT15B UT15C
LED AC/DC voltage indication (V) 12V 0~12V 0~12V
24V 17V±2V 17V±2V
50V 35V±5V 35V±5V
120V 80V±15V 80V±15V
230V 165V±20V 165V±20V
400V 300V±30V 300V±30V
690V 510V±40V 510V±40V
Phase rotation test Operating Voltage: 0V~690V √ √
Frequency: 50Hz~60Hz
Single lead (L2) voltage detection Operating Voltage: 0V~690V √ √
Frequency: 50Hz~400Hz
Continuity  test Resistance: 0~100kΩ √ √
Beeper and LED light Indicator
Polarity detection Positive & Negative √ √
Features
Water-proof (IP65) √ √
Auto range √ √
Work light √ √
Low battery indication Short circuit two leads, LED and beeper off when the bettery is low  √ √
LCD AC/DC voltage display 24V~690V ±(3%+5)
General Characteristics
Power 1.5V battery (R03) × 2
Display UT15C- 23mm × 12mm
Product color Red and grey
Product net weight 210g
Product size (W x H x D) 275mm × 51mm × 30mm
Standard accessories Batteries
Standard individual packing Blister, English manual
Standard quantity per carton 30 pcs
Standard carton measurement 440mm × 395mm × 455mm (0.079CBM Per standard carton)
Standard carton gross weight 17kg

APPLICATIONS

Applications of UT15 Series Waterproof Type Voltage Tester

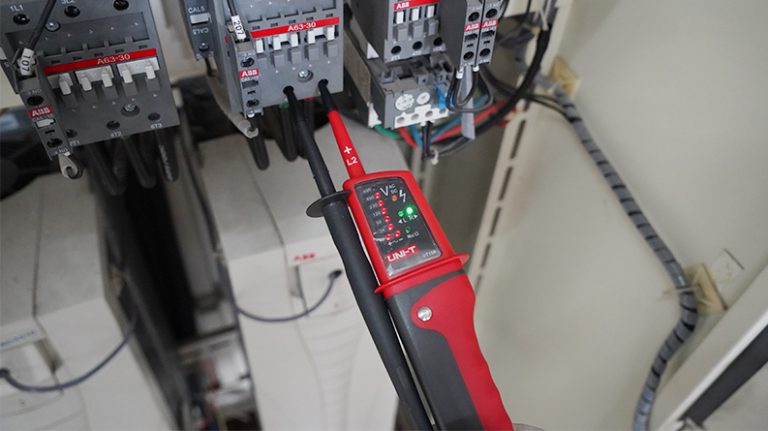

UT15B voltage measurement

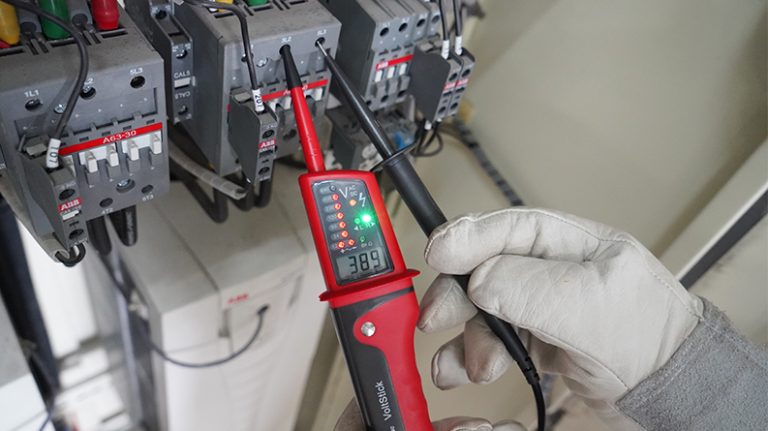

UT15C voltage measurement
