UT132 Series
Palm Size Digital Multimeters

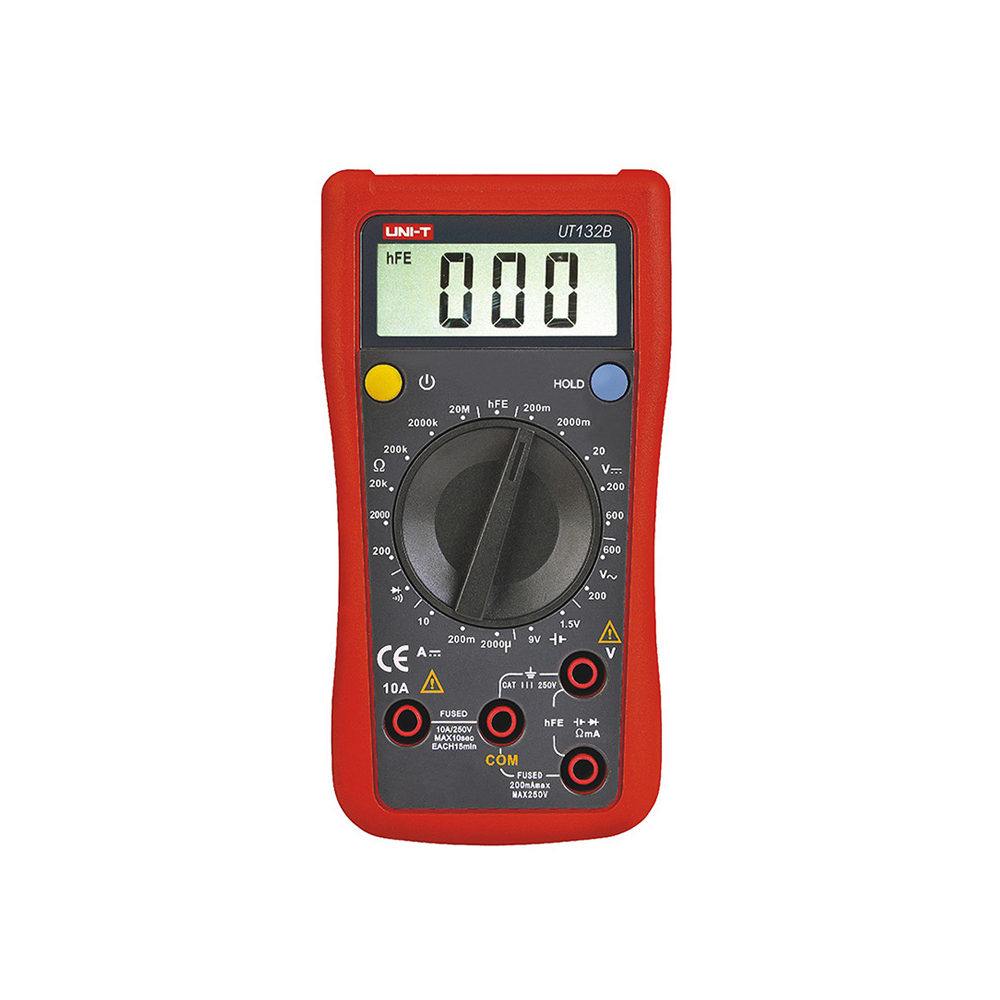

UNI-T’s UT132B is a palm size digital multimeter. It features over 10MΩ input impedance for DCV and 1.5/9v battery voltage test.

UNI-T’s UT132C is a palm size 2000-count digital multimeter, which measures AC/DC voltage with ±(0.5%+2) accuracy, DC current and more.

Models: UT132B, UT132C

Features of UT132 Series Palm Size Digital Multimeters

Certificates: CE/cETLus/RoHS

  • Display counts: 2000
  • AC/DC voltage
  • DC current
  • Resistance
  • Temperature
  • CAT III 600V

SPECIFICATIONS

Specifications of UT132 Series Palm Size Digital Multimeters

Specifications Range UT132B UT132C
DC Voltage (V) EU: 200mV/ 2000mV/ 20V/ 200V/ 600V ±(0.5%+2) ±(0.5%+2)
ROW: 200mV/ 2000mV/ 20V/ 200V/ 250V ±(0.5%+2) ±(0.5%+2)
AC Voltage (V) EU: 200V/600V ±(1.2%+3) ±(1.2%+3)
ROW: 200V/250V ±(1.2%+3) ±(1.2%+3)
DC Current (A) 2000μA/ 20mA/ 200mA/10A ±(1%+2)
2000μA/ 200mA/10A ±(1%+2)
Resistance (Ω) 200Ω/ 2000Ω/ 20kΩ/ 200kΩ/ 2000kΩ/ 20MΩ ±(0.8%+5) ±(1.2%+3)
Temperature (°C) -40 °C ～ 1000°C ±(1.0%+3)
Features
Display Count 2000 2000
Manual Range √ √
Battery Test 1.5V/ 9V ±(1%+2)
Diode √ √
Transistor √ √
Continuity Buzzer √ √
Low Battery Indication √ √
Data Hold √ √
Input Impedance for DCV Around 10MΩ √ √
General Characteristics
Power 9V Battery (6F22)
LCD Size 49mm x 18mm
Product Color Red and grey
Product Net Weight 200g
Product Size 72mm × 137mm × 35mm
Standard Accessories UT132B-Battery, test lead, multi-purpose socket
UT132C-Battery, test lead, multi-purpose socket, point contact temperature probe
Standard Individual Packing Gift box, English manual
Standard Quantity Per Carton 40pcs (UT132B), 66pcs (UT132C)
Standard Carton Measurement 595mm × 360mm × 420mm (0.09CBM per standard carton)
Standard Carton Gross Weight 25.7kg
