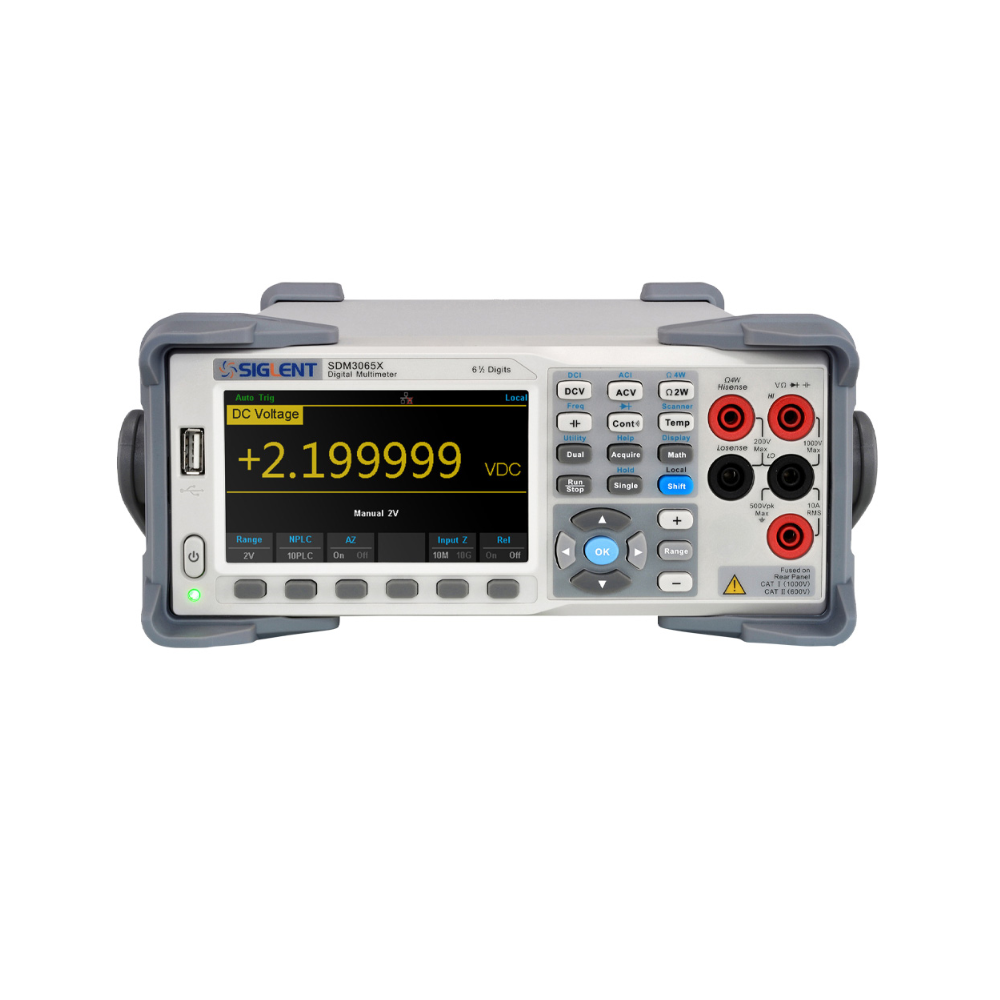

OVERVIEW
Multi-function Measurement, Dual Display
- 61⁄2-digit reading resolution
- ACV, ACI, DCV, DCI, resistance, capacitance, frequency, period, temperature and other parameters can be measured
- Support diode and connectivity test

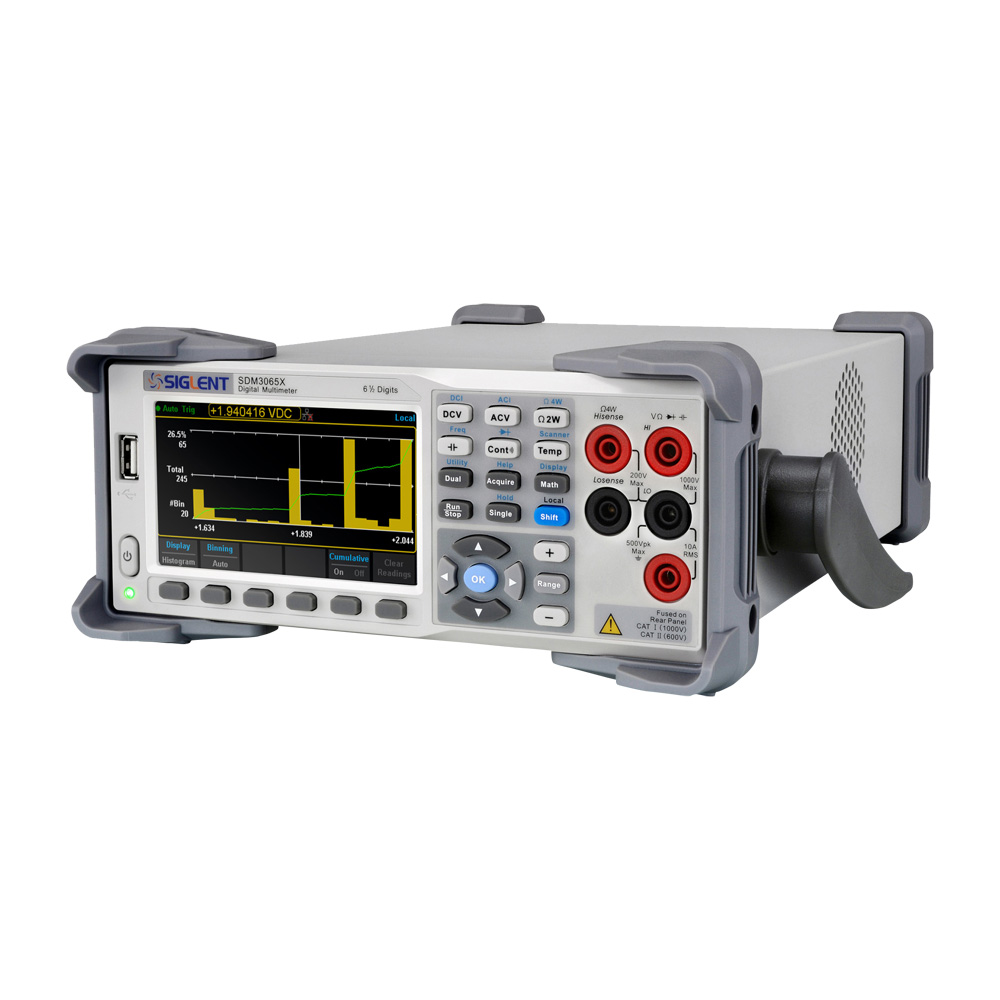

Graphical and Statistical
Graphically display the collected data , intuitively observe changes of measured parameters; provide data statistics based on collected data for analysis
- Support bar chart, trend chart, histogram display
- Data statistics show the maximum, minimum, average, deviation range, standard deviation, and number of samples of the measurement data during the test
- The collected data can be stored in external memory for long-term data storage and data processing.
Scanner Card (only SDM3065X-SC Model)
16 channels of data acquisition (12 multi-channels + 4 current channels), combined with sophisticated measurement functions and flexible signal connectivity, providing a test and measurement solution
- Switching time between channels: 180 ms
- With the computer analysis software EasyDMM, to achieve data recording, collection, monitoring and other functions
- Support measurement channel trend graph calculation function
- Support SCPI instruction to realize computer control automation test
Specifications
| DC Voltage | 200 mV ，2 V，20 V，200 V，1000 V |
| DC Current | 200 μA，2 mA，20 mA，200 mA，2 A，10 A |
| AC Voltage | True-RMS，200 mV，2 V，20 V，200 V，750 V |
| AC Current | True-RMS，200 μA，2 mA，20 mA，200 mA，2 A，10 A |
| 2/4-Wire Resistance | 200 Ω，2 KΩ，20 KΩ，200 KΩ，1 MΩ，10 MΩ，100 MΩ |
| Capacitance | 2 nF，20 nF，200 nF，2 μF，20 μF，200 μF，2 mF，20 mF，100 mF |
| Continuity Test | Range is fxed at 2 kΩ |
| Diode Test | Adjustable range is 0 – 4 V |
| Frequency Measurement | 3 Hz~1 MHz |
| Period Measurement | 1 μs~0.33 s |
| Temperature | Support for TC and RTD sensor |
| Math Function | Max, Min, Average, Standard Deviation,dBm/dB, Relative Measurement ,Pass/Fail Histogram, Trend Chart, Bar Meter, etc. |
| Dispay | 4.3” TFT-LCD, 480*272 |
| Reading Resolution | Real 6½ digits readings resolution (2,200,000 counts) |
| Size | 1 Gb Nand Flash |

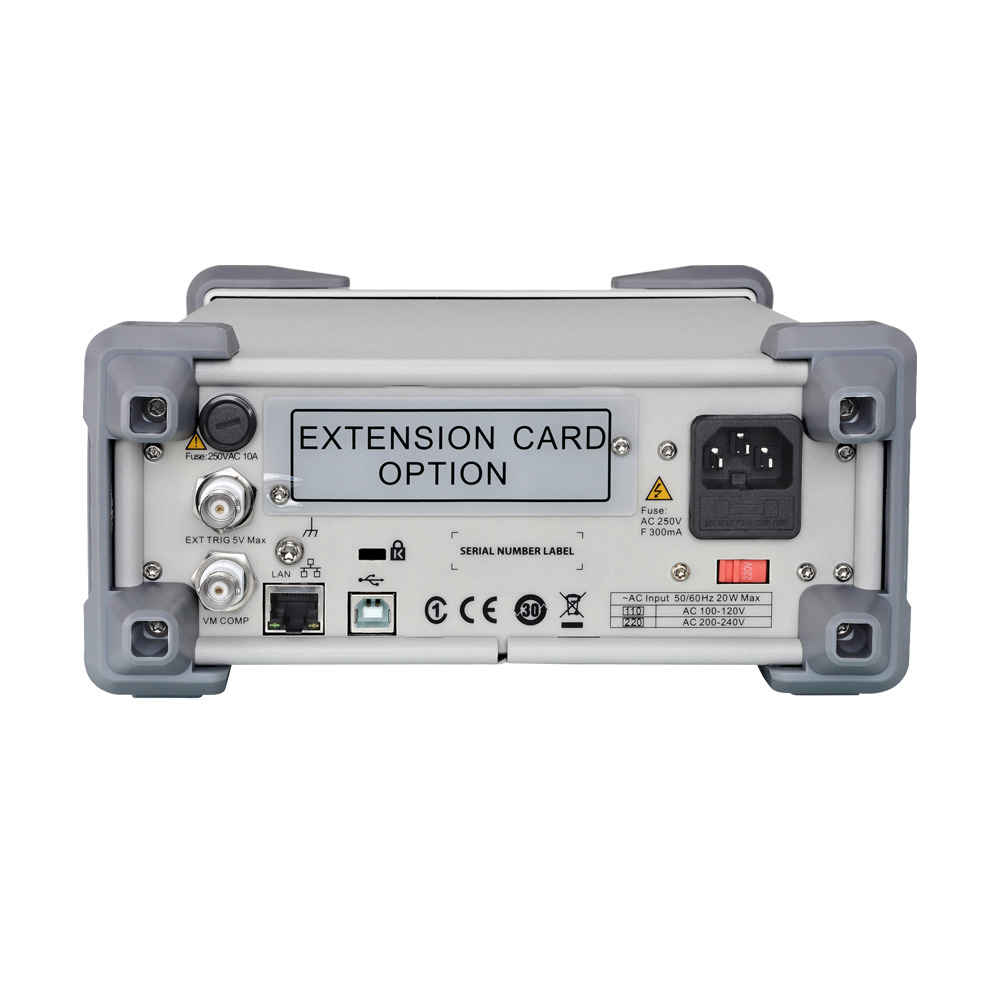

| Standard Interface | USB Device, USB Host, LAN |
| Optional Interface | USB-GPIB Adapter and Scanner Card SC1016 |
| Scanner Card SC1016 | Only for SDM3065X-SC |
