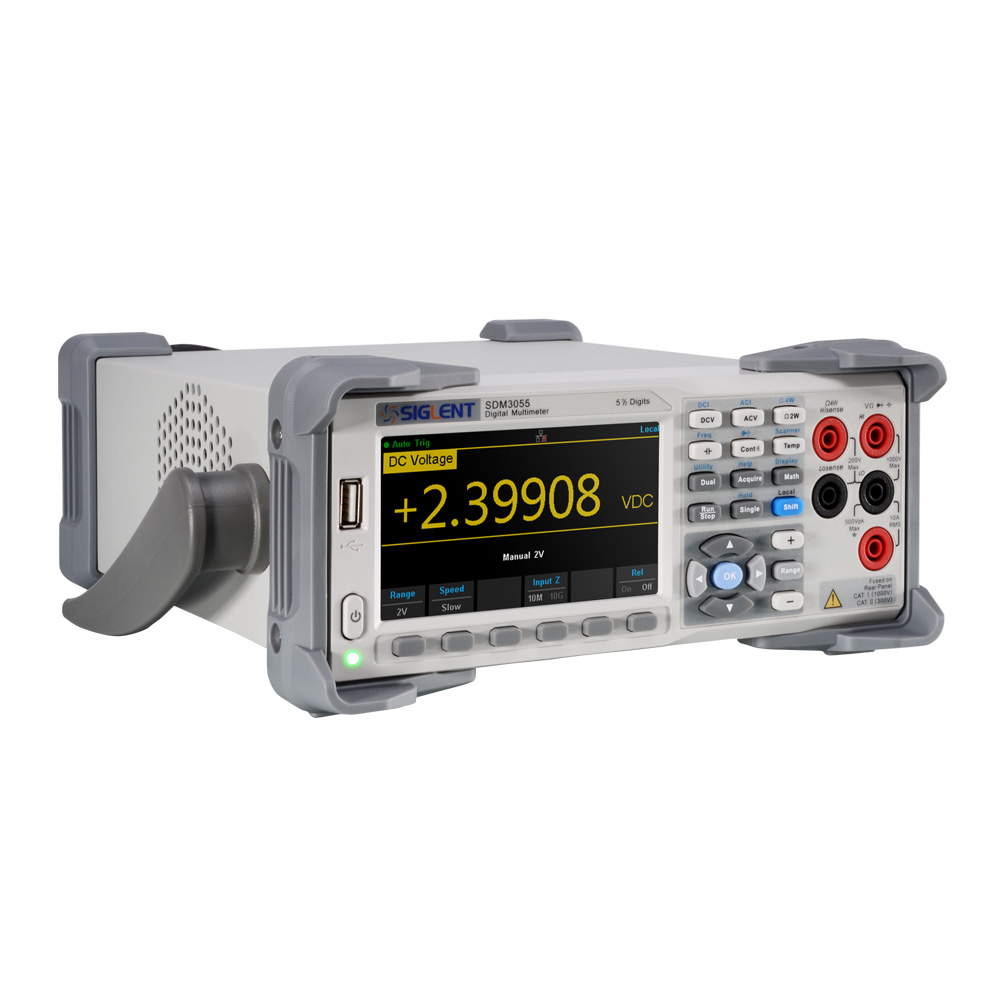

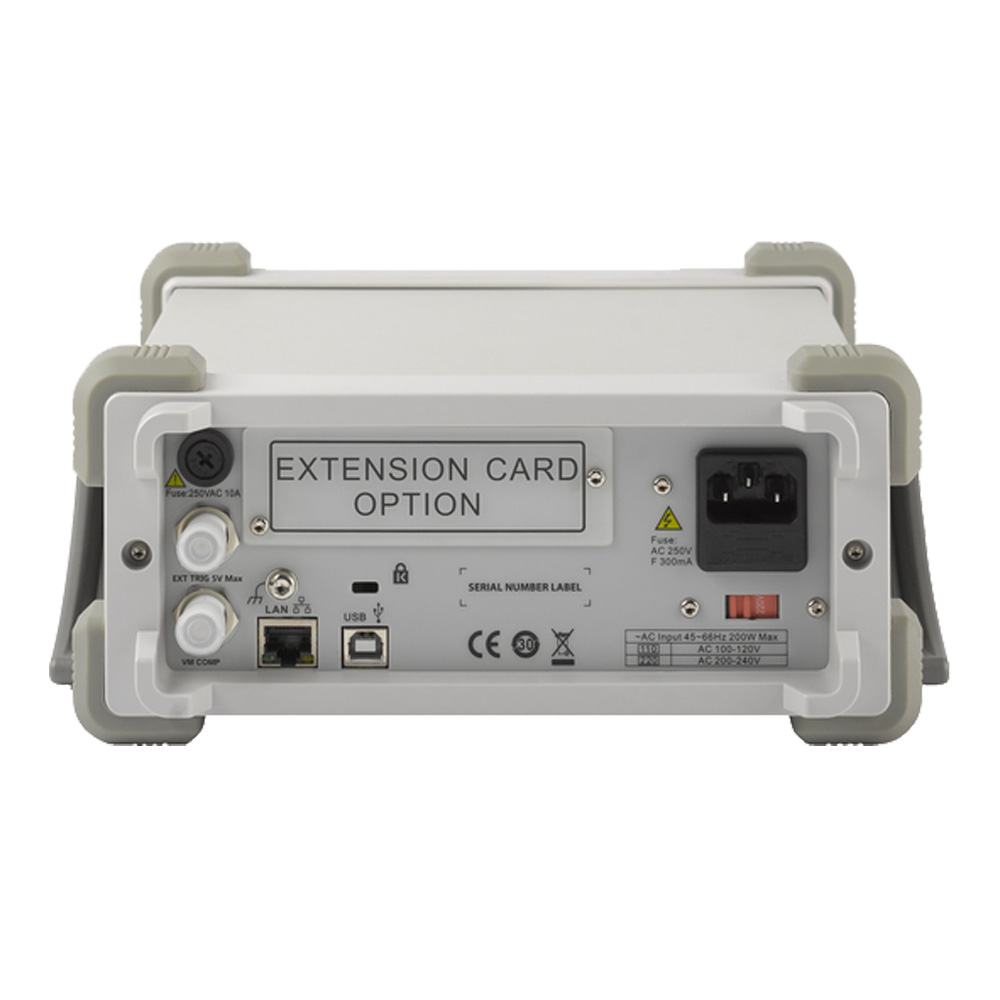

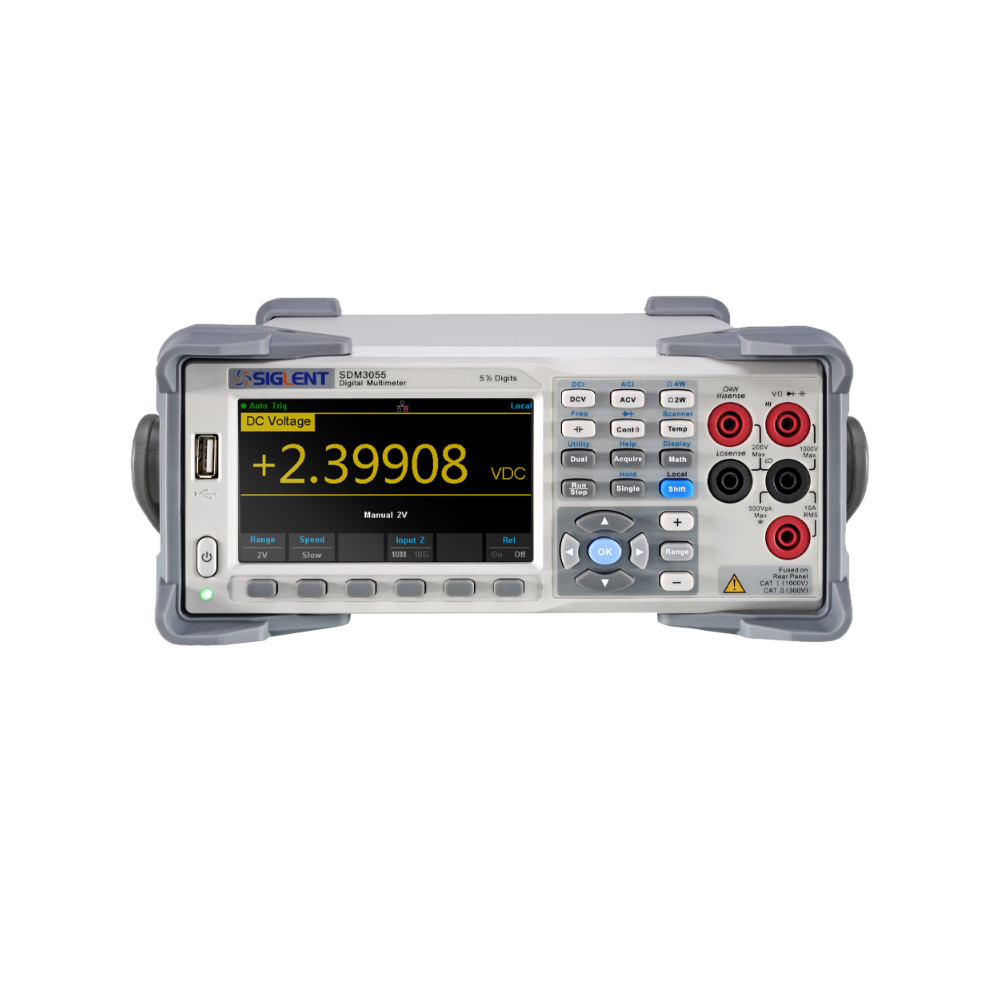

SDM3055 / SDM3055-SC
½ Digital Multimeters

Main Features

  • Real 5½ digits readings resolution ( 240, 000 counts )
  • Up to 150 rdgs/s measurement speed
  • True-RMS AC Voltage and AC Current measuring
  • 1 Gb Nand flash size, Mass storage configuration files and data files
  • Optional Scanner for multipoint measurements (-SC part number)

OVERVIEW

Section with Image right

Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat.

Section with image left

Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat.

Section with Image right

Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat.

Specifications

DC Voltage 200 mV ,2 V,20 V,200 V,1000 V
DC Current 200 μA,2 mA,20 mA,200 mA,2 A,10 A
AC Voltage True-RMS,200 mV,2 V,20 V,200 V,750 V
AC Current True-RMS,20 mA,200 mA,2 A,10 A
2/4-Wire Resistance 200 Ω,2 kΩ,20 kΩ,200 kΩ,2 MΩ,10 MΩ,100 MΩ
Capacitance 2 nF,20 nF,200 nF,2 μF,20 μF,200 μF,1000 μF
Continuity Test Range is fxed at 2 kΩ
Diode Test Adjustable range is 0 ~ 4 V
Frequency Measurement 20 Hz~1 MHz
Period Measurement 1 μs~0.05 s
Temperature Support for TC and RTD sensor
Math Function Max, Min, Average, Standard Deviation,dBm/dB,Relative Measurement, Pass/Fail Histogram, TrendChat
Display 4.3” TFT-LCD, 480*272 display
Reading Resolution Real 5½ digits readings resolution ( 240,000 counts )
Size 1 Gb Nand Flash
Standard Interface USB Device,USB Host,LAN
Optional Interface USB-GPIB
Scanner Card SC1016 Only for SDM3055-SC

MODEL

Model
 Reading resolutIon
DC voltage measurement range
AC voltage measurement range
 DC current measurement range AC current Scanner card
SDM3055 5 1/2 200 mV ~ 1000 V 200 mV ~ 750 V 200 μA ~ 10 A 20 mA ~ 10 A Not Support
SDM3055-SC 5 1/2 200 mV ~ 1000 V 200 mV ~ 750 V 200 μA ~ 10 A 20 mA ~ 10 A Support

COMPARE

Comparatıve Data
SDM3055
keysıght 34450A
TEK Keıthley 2110
Readıng Resolutıon
5½
5½
5½
Sample Rate (Max.)
150 rdgs/s
 190 rdgs/s 200 rdgs/s
DCV Resolutıon
0.015 + 0.003
0.015 + 0.005
0.012 + 0.001
Dual Dısplay
Support
Support
Support
Cold Termınal Compensatıon for Thermocouple
 Support
Not support
Not support
Scanner Card
SDM3055-SC support
Not support
Not support
Volatıle Memory
10 K reading of history records
50 K reading of history records
 Not support
Nonvolatıle Memory
1Gb Nand Flash
 Not support Not support
Interface
USB Device,USB Host,LAN,GPIB(option)
GPIB,USB Device
GPIB,USB Device
Dısplay
4.3 inch 480*272
 OLED
Dot matrix LCD display
