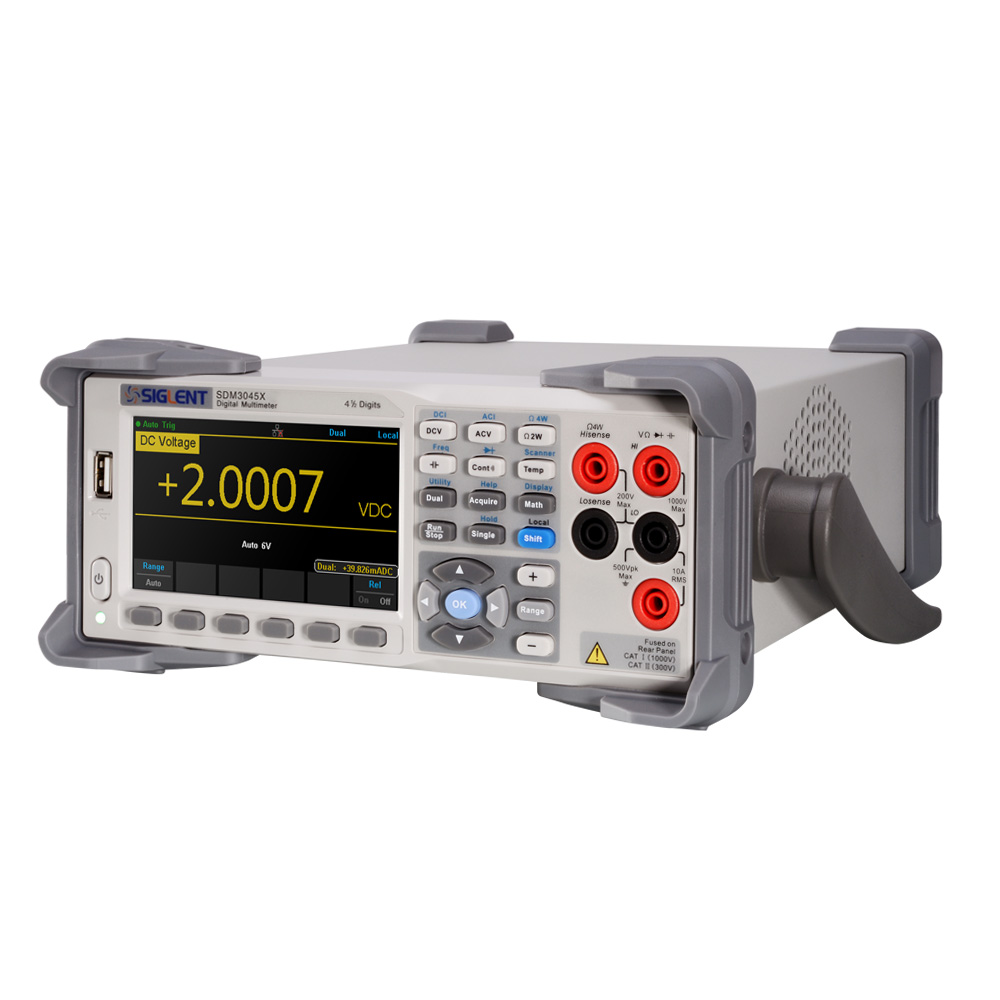

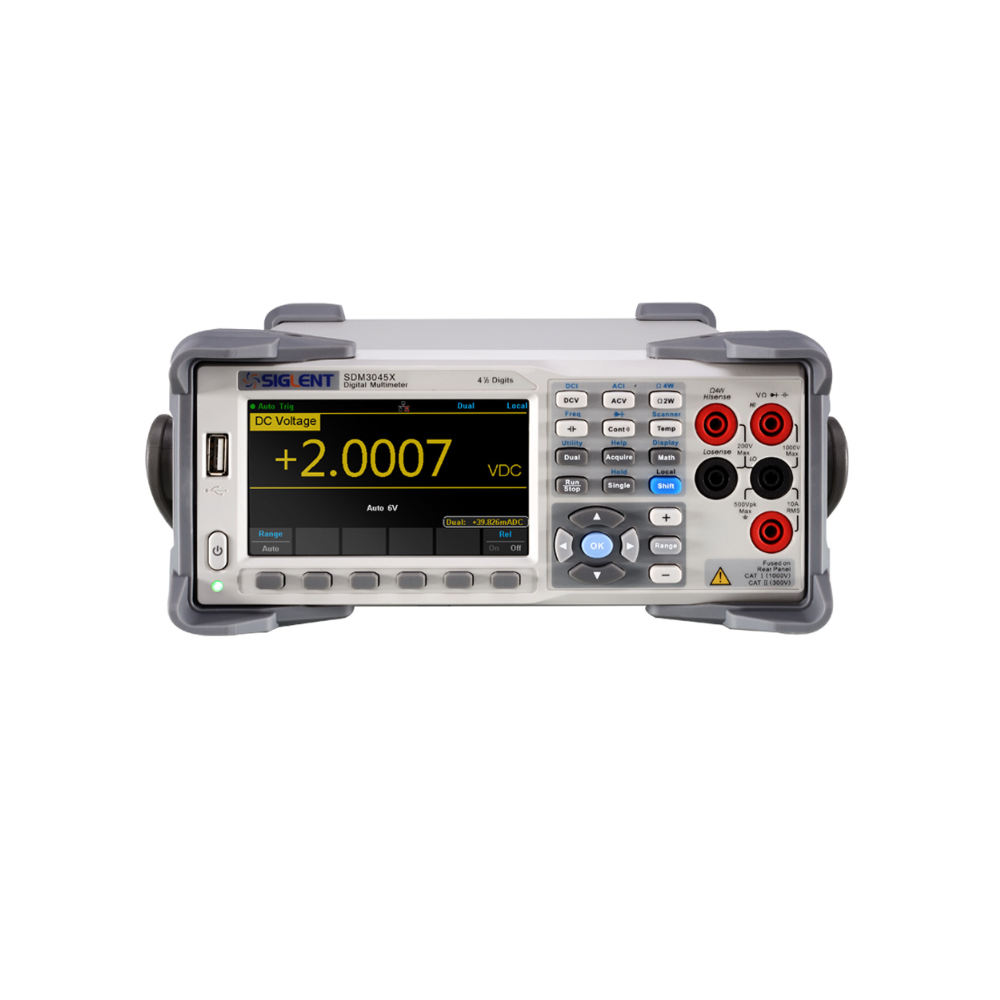

SDM3045X
Digital Multimeter

Main Features

  • Real 4½ digit (66,000 count) readings resolution
  • Up to 150 rdgs/s measurement speed
  • True-RMS AC Voltage and AC Current measuring
  • 1 Gb NAND flash size, Mass storage configuration files and data files
  • Built-in cold terminal compensation for thermocouple
  • With easy, convenient and flexible PC software: EasyDDM

OVERVIEW

Multi-function Measurement, Dual Display

  • 61⁄2-digit reading resolution
  • ACV, ACI, DCV, DCI, resistance, capacitance, frequency, period, temperature and other parameters can be measured
  • Support diode and connectivity test

Graphical and Statistical

Graphically display the collected data , intuitively observe changes of measured parameters; provide data statistics based on collected data for analysis

  • Support bar chart, trend chart, histogram display
  • Data statistics show the maximum, minimum, average, deviation range, standard deviation, and number of samples of the measurement data during the test
  • The collected data can be stored in external memory for long-term data storage and data processing.

MODEL

Model
 Reading resolutIon
DC voltage measurement range
AC voltage measurement range
 DC current measurement range AC current Scanner card
SDM3045X
 4 1/2 600 mV~ 1000 V
600 mV ~ 750 V
 600 μA ~ 10 A 60 mA ~ 10 A Not Support
