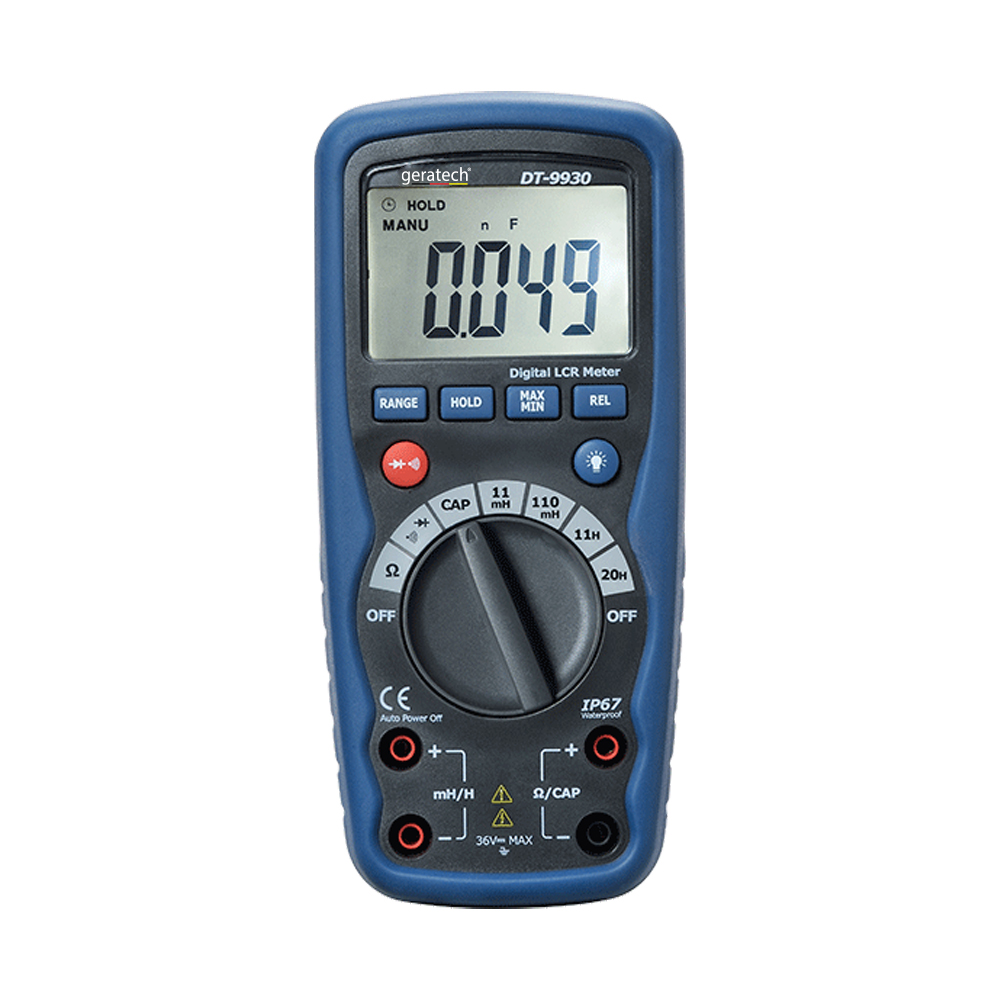

DT-9930/9931
Digital Multimeter with LCR Function

DT-9930 is new 11,000 Counts LCR Meter
DT-9931 is new 11,000 Counts digital multimeter with LCR function
Safety Conformance

EN61010-1 CAT IV 600V, CAT III 1000V (9931)
Full ranges protection

DT-9930 is new 11,000 Counts LCR Meter
DT-9931 is new 11,000 Counts digital multimeter with LCR function

Safety Conformance

  • EN61010-1 CAT IV 600V, CAT III 1000V (9931)
  • Full ranges protection

FEATURES

Features DT-9930 DT-9931
Digital display counts 11000 11000
Safety design * *
Data Hold * *
MAX/MIN recording mode * *
Auto Ranging * *
Auto Power Off * *
DMM + LCR *

Size(HxWxD): 182mm x 82mm x 55mm

Weight: 360g

SPECIFICATIONS

Multimeter
Function Max Range Basic Accuracy DT-9930 DT-9931
Voltage DC 1000V ±0.5% *
Voltage AC 1000V ±0.8% *
Current DC 1.1A ±1.2% *
Current AC 1.1A ±1.8% *
Frequency 10MHz ±1.5% *
Duty Cycle 99.90% ±1.2% *
Diode Check * *
Continuity Test * *
LCR 
Function Max Range Max. Resolution Basic Accuracy
Resistance 110.00MΩ 0.01Ω ±1.2% of rdg ±5 digits
Capacitance 110.00uF 1pF ±3.0% of rdg ±30 digits
Inductance 20H 1uH ±(2%+5)

ACCESSORIES

Accessories:Test leads and 9V battery, gift box with carrying case.
