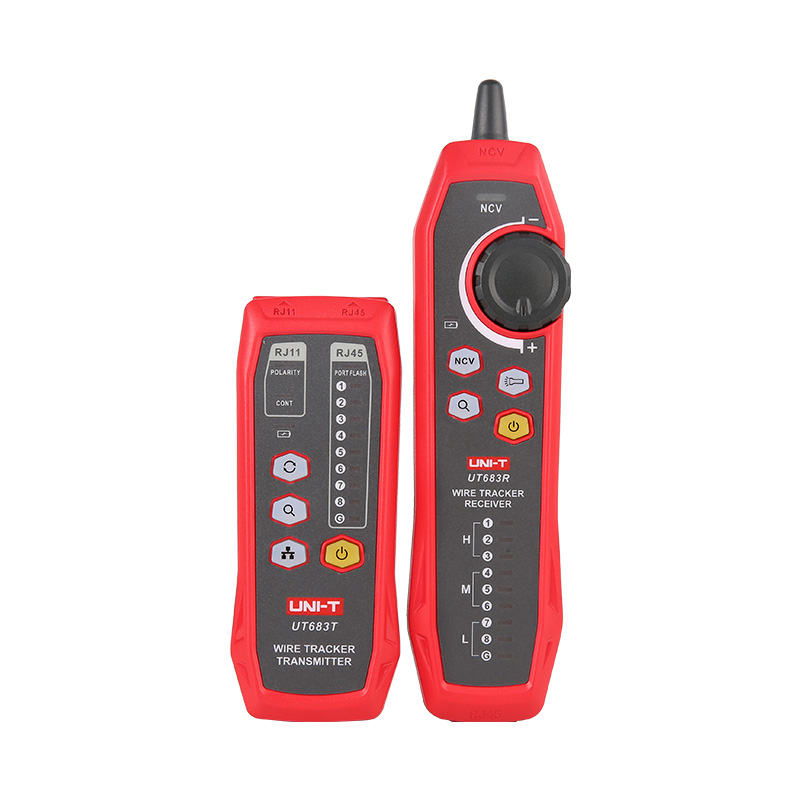

UT683KIT
Wire Tracker

The UT683KIT is an intelligent wire tracker which consists of the transmitter and receiver, this kit is designed with strong anti-interference ability. The receiver can quickly and accurately locate the target cable. This kit can automatically identify open, short, polarity, and quickly distinguish cable failure.

Features of UT683KIT Wire Tracker

Certifications: CE, UKCA

  • Line function
  • NCV function
  • Withstand voltage DC 60V
  • Port flashes

SPECIFICATIONS

Specifications of UT683KIT Wire Tracker

Specifications Description
Certificates CE, RoHS
Transmitter
Port flashing √
Wire tracking √
Line alignment √
Open-short test 10kΩ
Polarity test √
Operating time ＞8 hours
Receiver
Wire tracking RJ11＞3000m; RJ45＞100m
NCV function √
Headset jack 3.5mm
Low battery indication √
Operating time ＞5 hours
General Characteristics
Power 1050mAh rechargeable lithium battery
Product net weight Transmitter: around 95g; Receiver: around 127g
Product size Transmitter-130mm x 51mm x 28mm; Receiver-197mm x 48mm x 34mm
Standard accessories USB cable, RJ11 aligator clip test cable, RJ45 test cable, RJ11 test cable, English manual
Standard individual packing Gift box, carrying bag
Standard quantity per carton 20pcs
Standard carton measurement 480mm x 370mm x 325mm
Standard carton gross weight About 10kg

APPLICATIONS

Applications of UT683KIT Wire Tracker

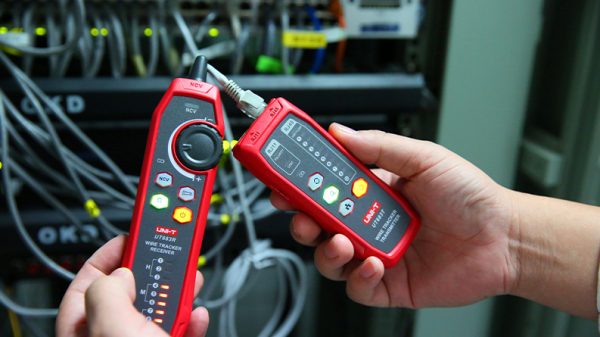

Wire tracking

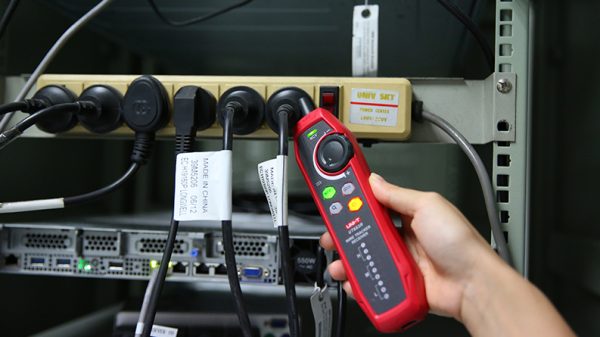

NCV measurement
