UT681 series handheld cable testers can be used to fast check if Ethernet/telephone/BNC/HDMI cables are conducting, short-circuit, crossed or open-circuit. They are ideal tools for technicians to install, maintain and inspect week current system circuit.

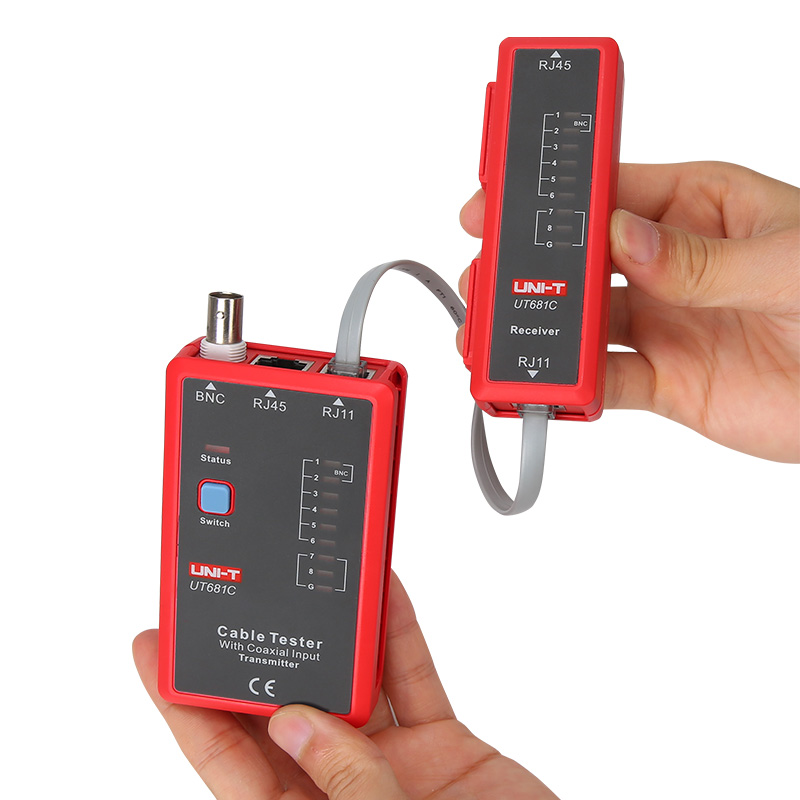

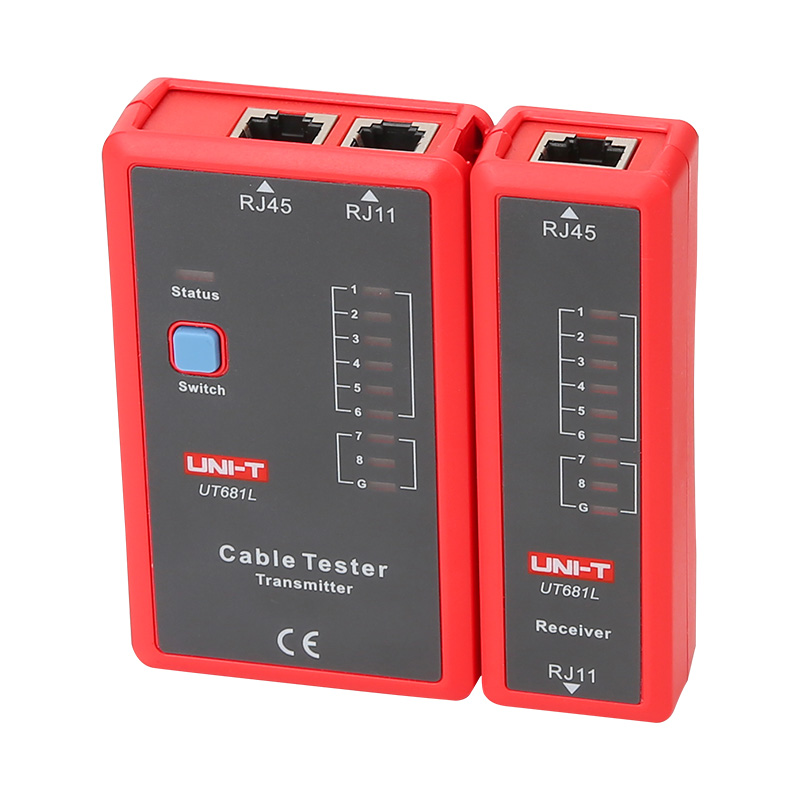

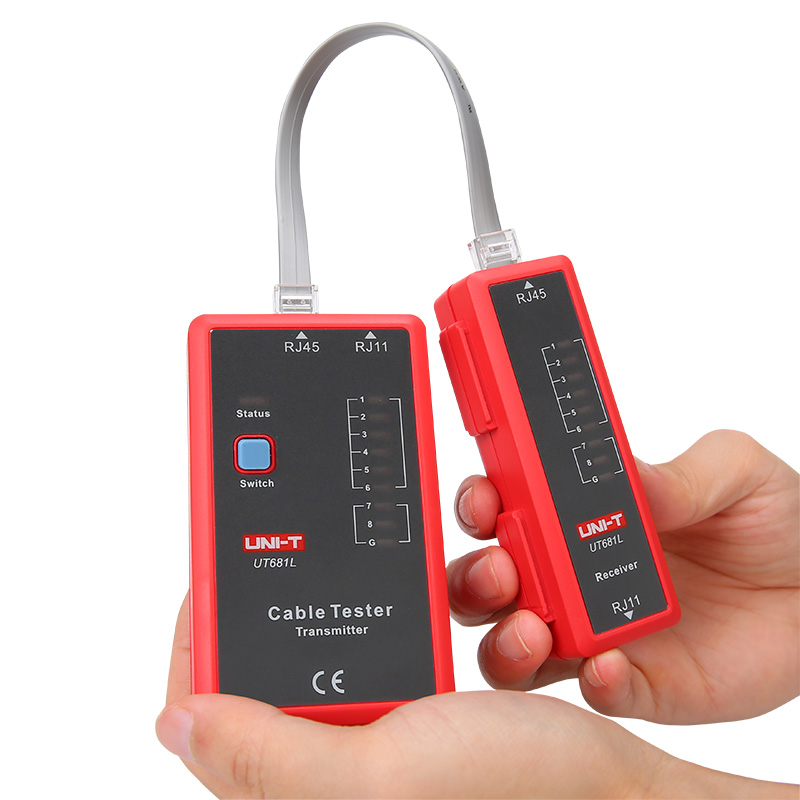

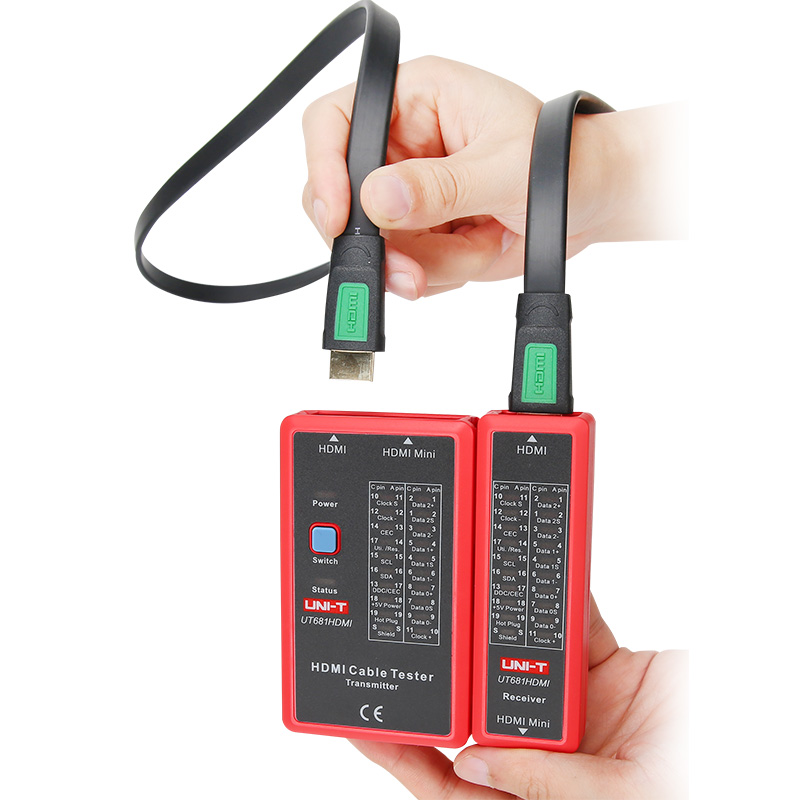

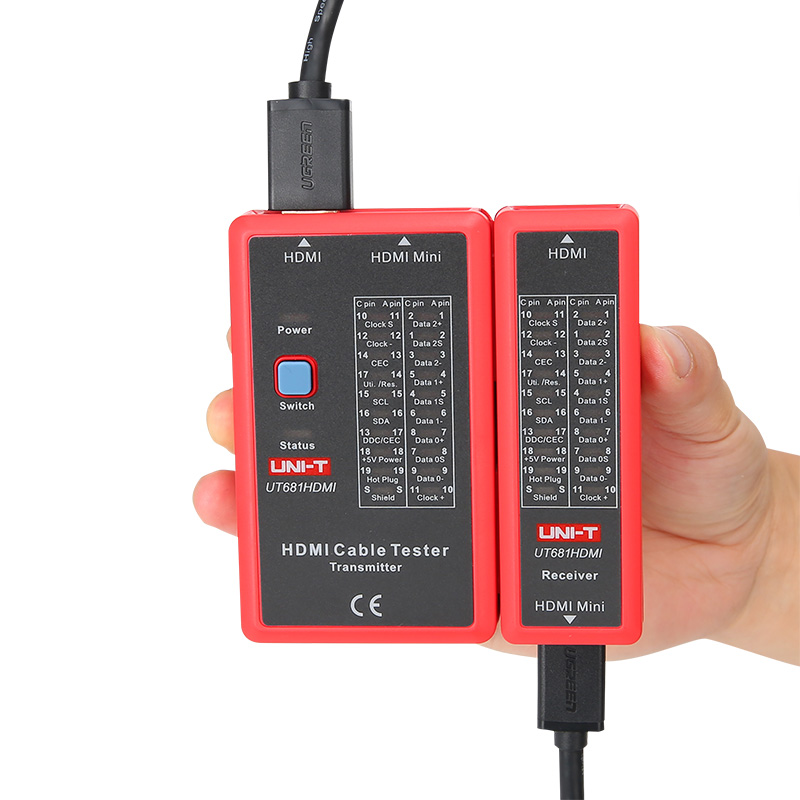

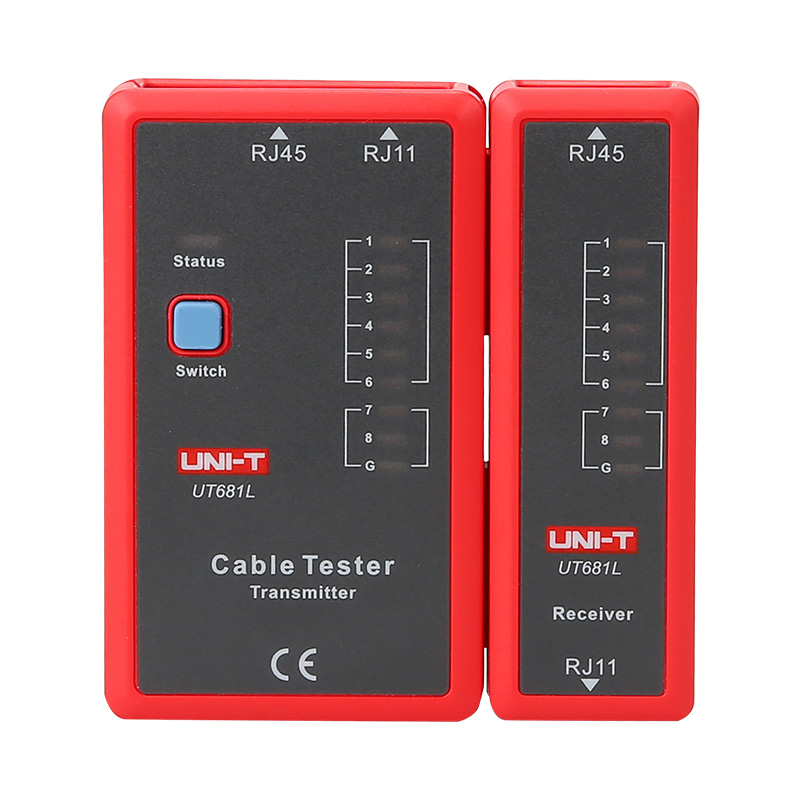

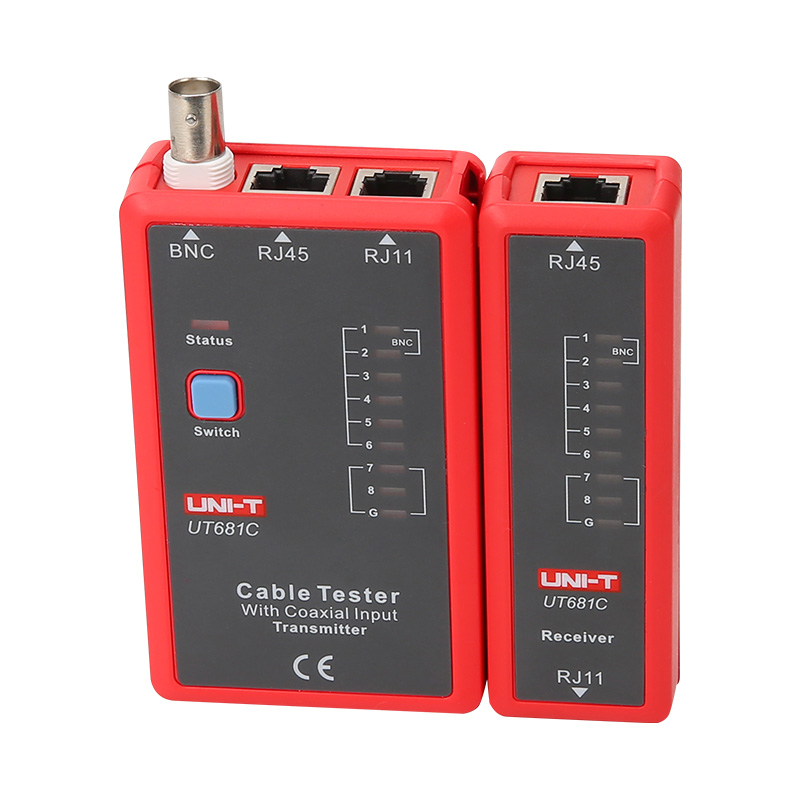

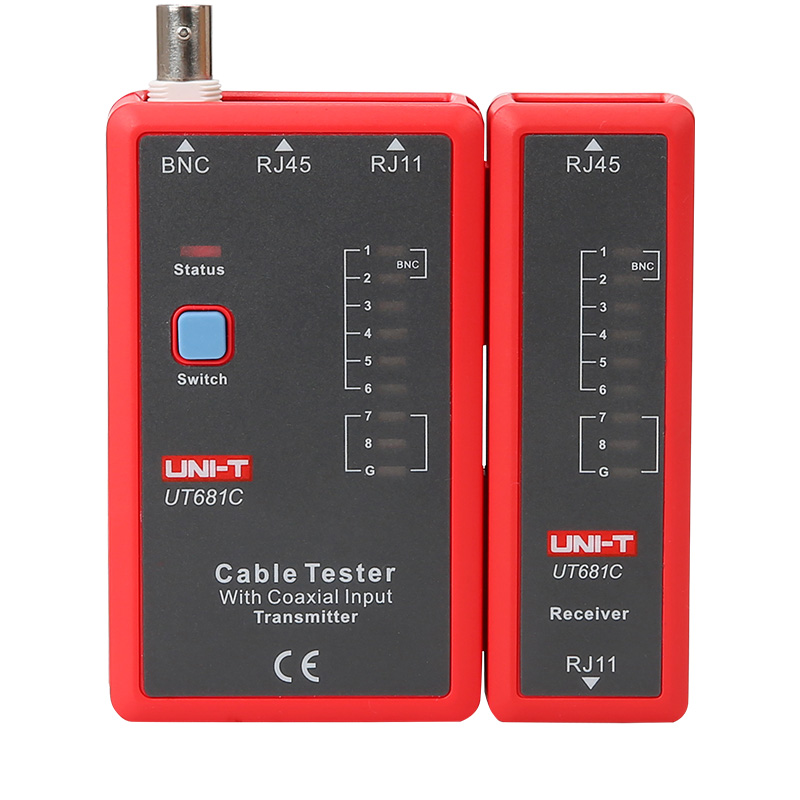

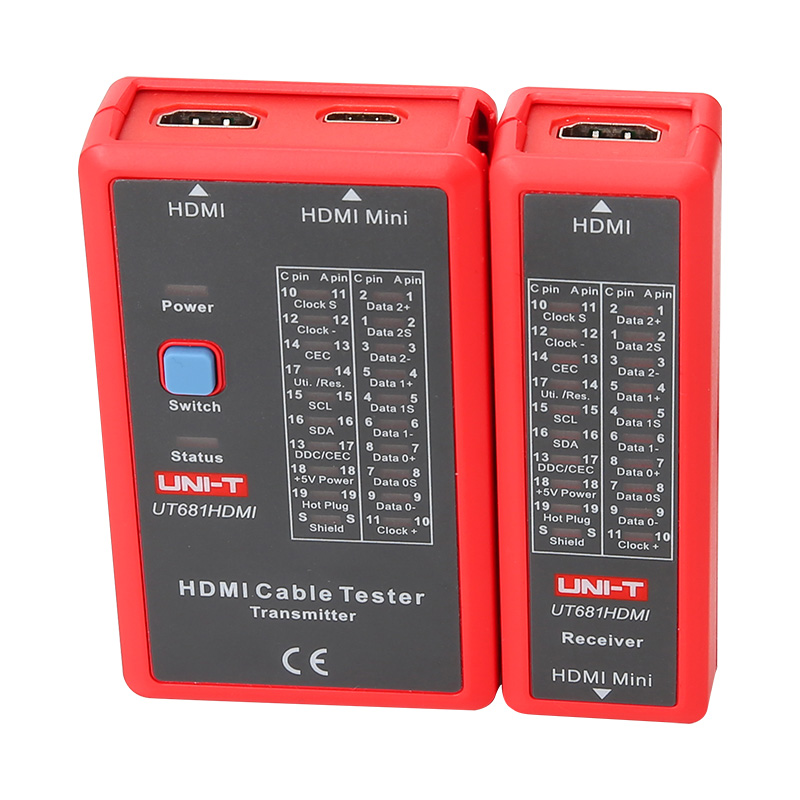

Models in UT681 Series: UT681L, UT681C, UT681HDMI
Features of UT681 Series Cable Testers
Certifications: CE, UKCA
Specifications of UT681 Series Cable Testers
| Specifications | Range | UT681L | UT681C | UT681HDMI | Description |
| Test function | To test for: RJ45/RJ11 | √ | |||
| To test for: RJ45/RJ11/BNC | √ | Need to use RJ45 to BNC adaptor | |||
| To test for: HDMI/MINI-HDMI | √ | ||||
| Fast test mode | √ | √ | LED1~LED8, LED_G | ||
| Slow test mode | √ | √ | LED1~LED8, LED_G | ||
| Scan test mode | √ | LED1~LED19, LED_S | |||
| Full display test mode | √ | LED1~LED19, LED_S | |||
| To test for the case of short circuit, crossover, open circuit, etc. | √ | √ | √ | ||
| Ethernet cable: shielded/ unshielded test | √ | √ | √ | ||
| Manual shutdown function | √ | √ | √ | ||
| Auto shutdown function | √ | √ | √ | No operation within 10 minutes, the device will shut down automatically | |
| Single key operation | √ | √ | √ | ||
| Power supply: 9V battery | √ | √ | √ | ||
| Low battery detection | √ | √ | √ | Less than 7.2V | |
| Application environment | Operating temperature: 0~40℃ | √ | √ | √ | |
| Storage temperature: -10~50℃ | √ | √ | √ | ||
| Operating humidity: 20~80%RH | √ | √ | √ | ||
| Storage humidity: 10~90%RH | √ | √ | √ | ||
| Altitude: ≤2000 meters | √ | √ | √ | ||
| Safety standard | CE EN61326-1: 2013; EN61326-2-2: 2013 | √ | √ | √ | |
| General Characterisitics | |||||
| Product color | Red and grey | ||||
| Product net weight | Transmitter: 87g; receiver: 51g | ||||
| Product size | Transmitter: 102mm x 62mm x 28mm; receiver: 102mm x 37mm x 28mm | ||||
| Standard accessories | 9V battery, BNC to RJ45 adaptor (UT681C) | ||||
| Standard individual packing | Gift box, English manual | ||||
| Standard quantity per carton | 40pcs | ||||
| Standard carton measurement | 455mm x 410mm x 225mm | ||||
| Standard carton gross weight | UT681L: 6.4kg; UT681C: 8.7kg; UT681HDMI: 9.5kg | ||||

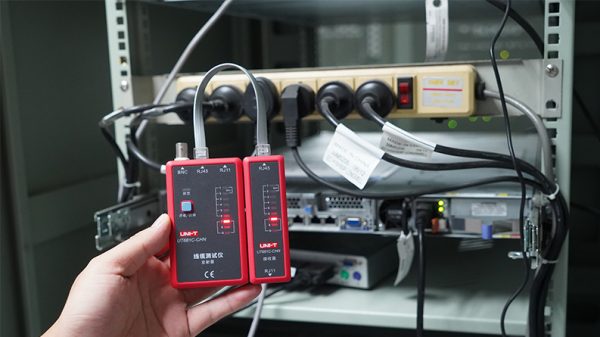

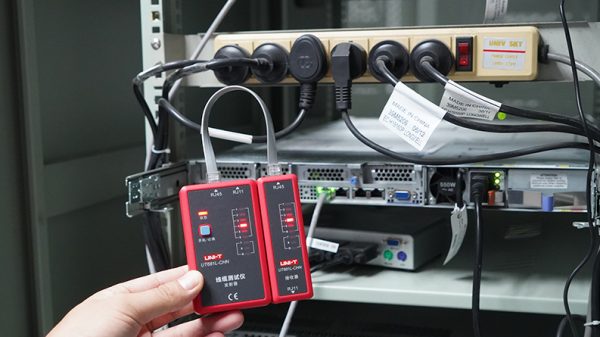

Applications of UT681 Series Cable Testers
