Features of UT387C/UT387D Wall Scanners
Certificates: CE, UKCA, FCC
- Buzzer indication
- Auto power off
- Error calibration alarm
- LED alarm
- Low battery indication
Specifications of UT387C/UT387D Wall Scanners

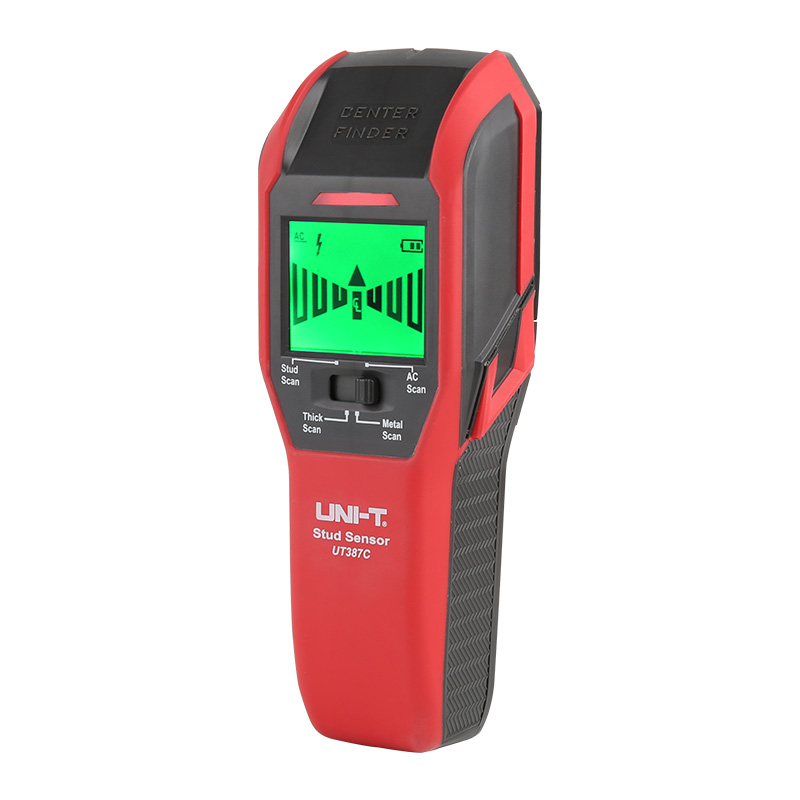

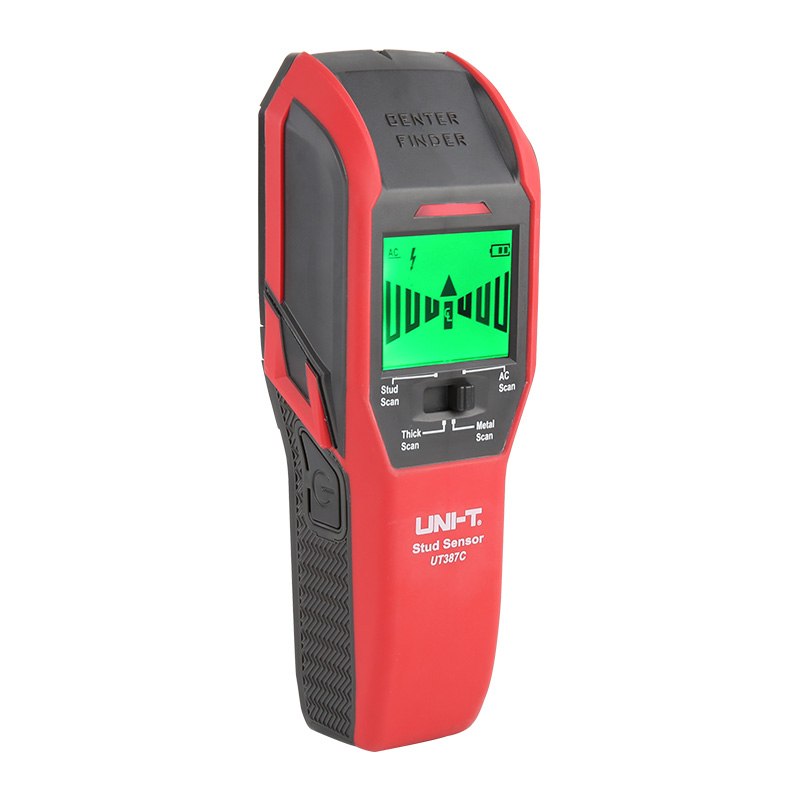

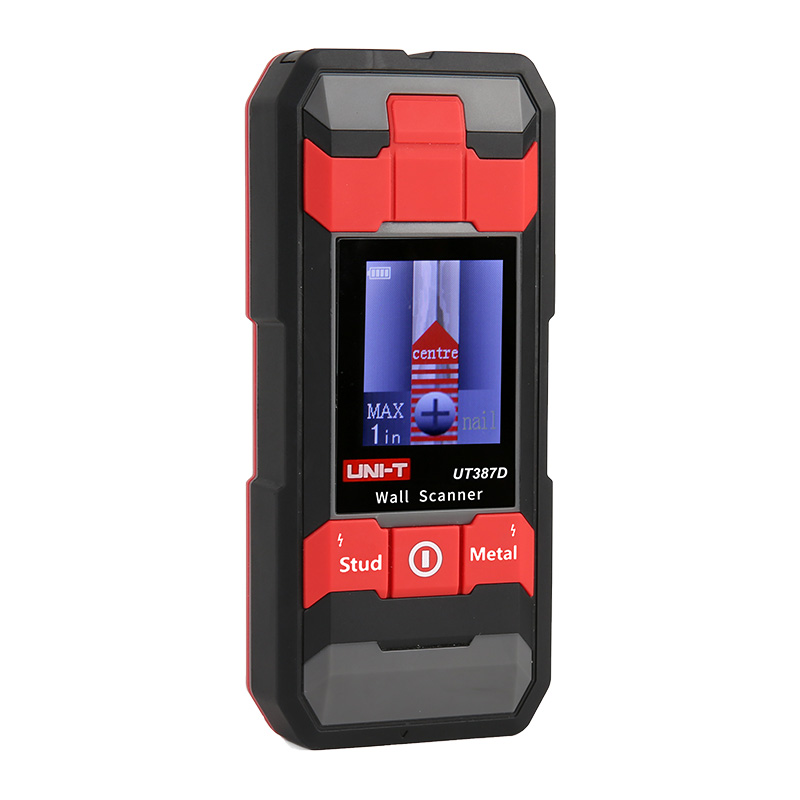

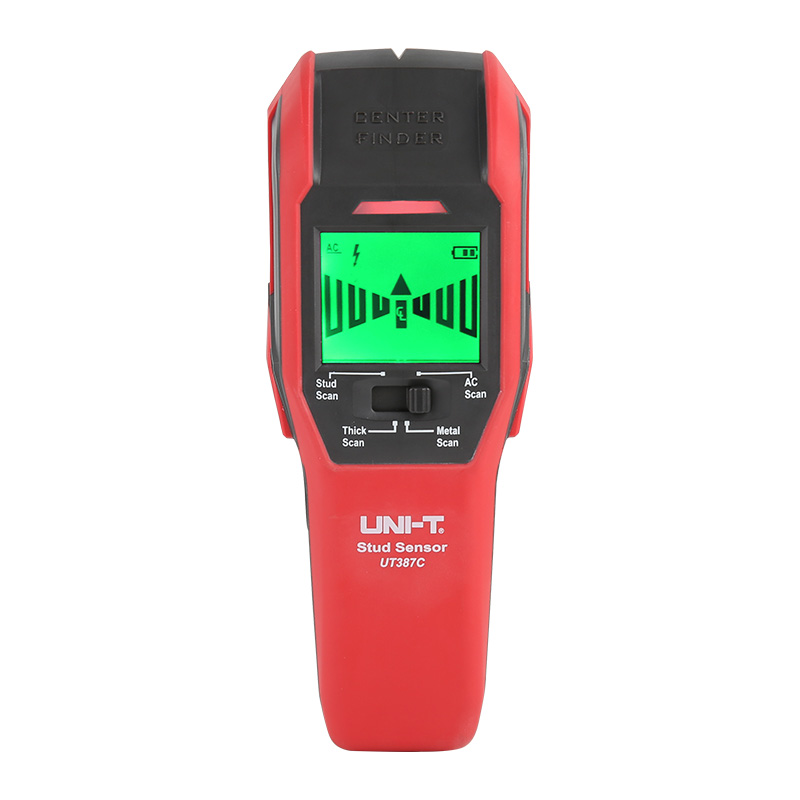

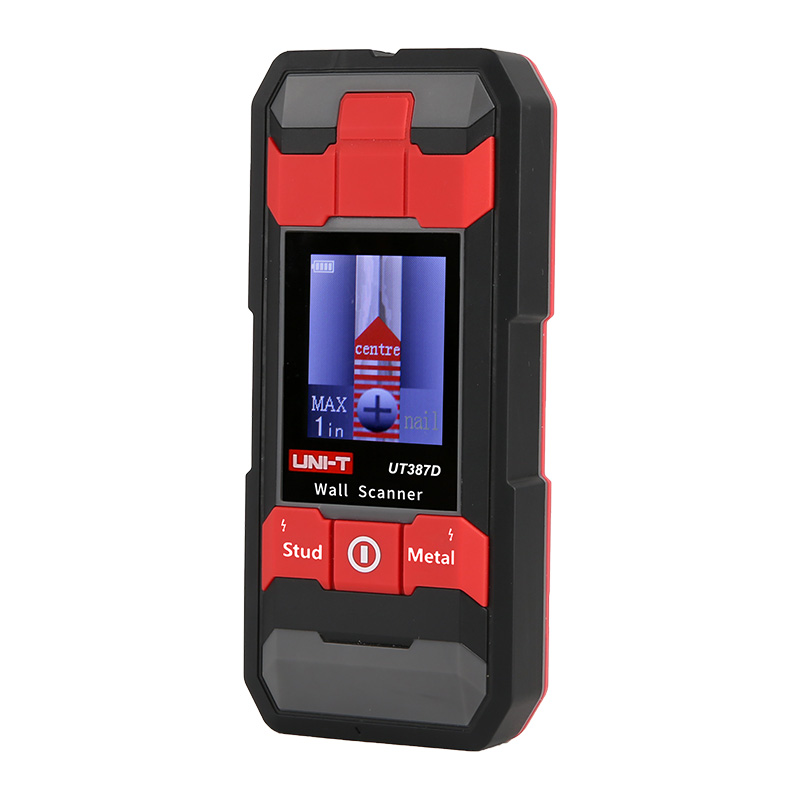

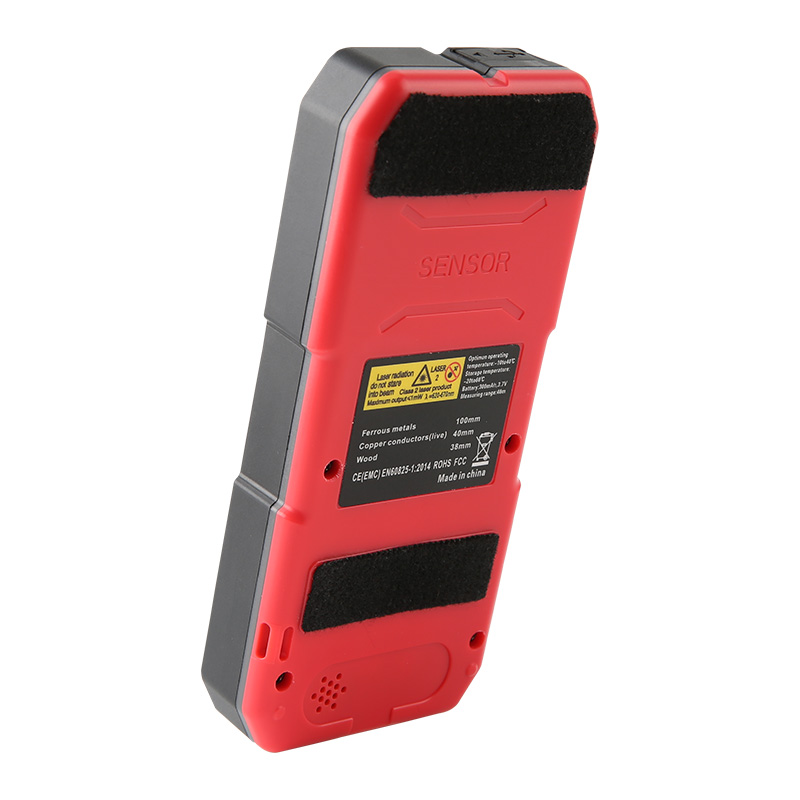

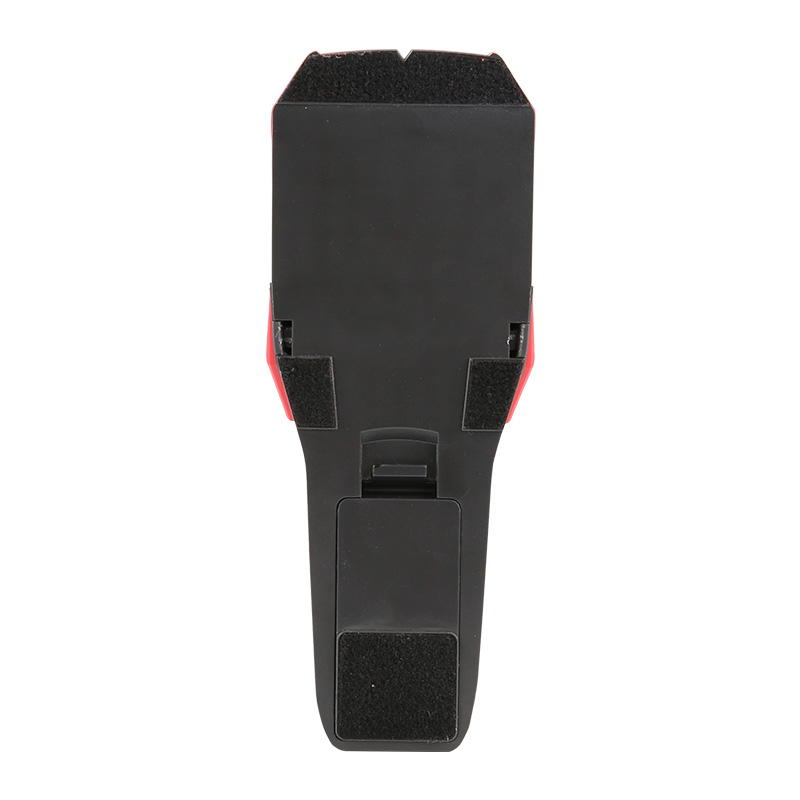

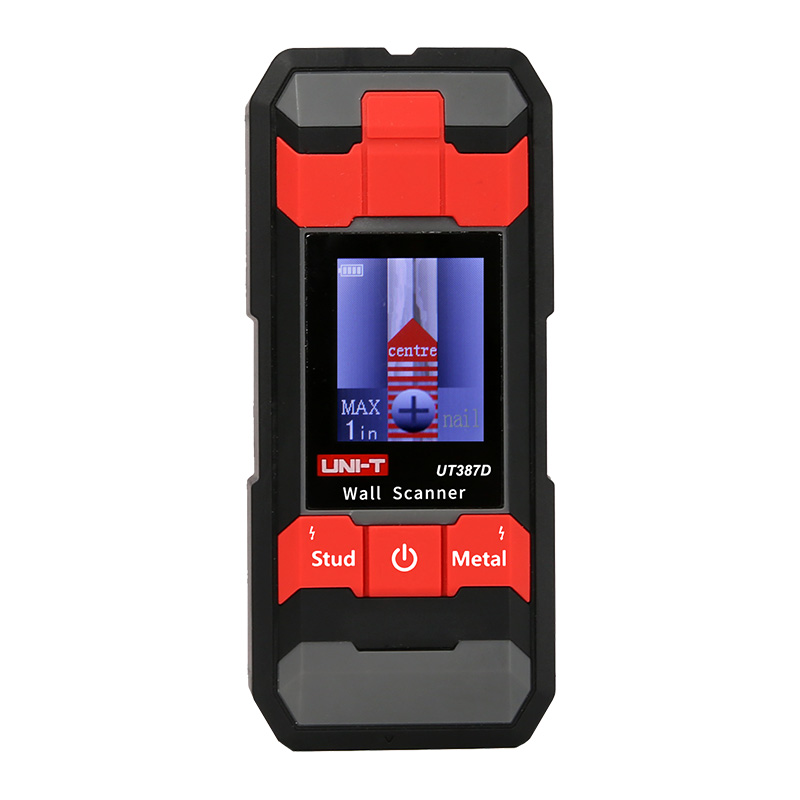

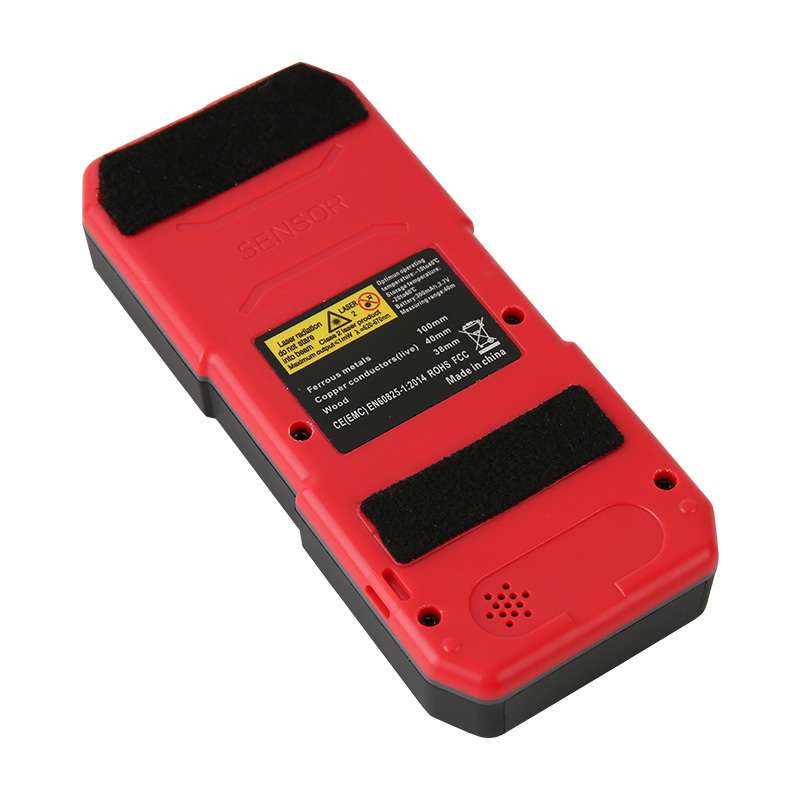

UT387C/UT387D
Wall Scanners
UT387C/UT387D wall scanners enable you to detect electric wire, metal object, wooden beams accurately. The new and improved wall scanners are great tools for interior finish, renovation, furniture installation, flooring, pipe installation, and building construction.
Models: UT387C, UT387D
SPECIFICATIONS
| Specifications | UT387C | UT387D |
| Certificates | CE, RoHS, FCC | |
| Detect principle | Electro-magnetic induction | Electro-magnetic induction |
| Detects | Wooden beam, metal object, electric wire | Wooden beam, metal object, electric wire |
| Metal-scan depth | 76mm | 100mm @iron pipe; 80mm @brass pipe |
| Stud-scan depth (wood) | 28.5mm | 38mm |
| Thick-scan depth (wood) | 38mm | |
| AC electric wire depth | 51mm | 50mm |
| Detect accuracy | ±15mm @28.5mm depth drywall | ±15mm @28.5mm depth drywall |
| Calibration error alarm | √ | |
| Notifications | LED/buzzer | Voice |
| General Characteristics | ||
| Power | UT387C: 9V battery (6F22); UT387D: 3.7V 300mAh Li-ion | |
| Product net weight | UT387C: 247g; UT387D: 112g | |
| Product size | UT387C: 170mm x 70.5mm x 38.9mm; UT387D: 135 x 60mm x 25mm | |

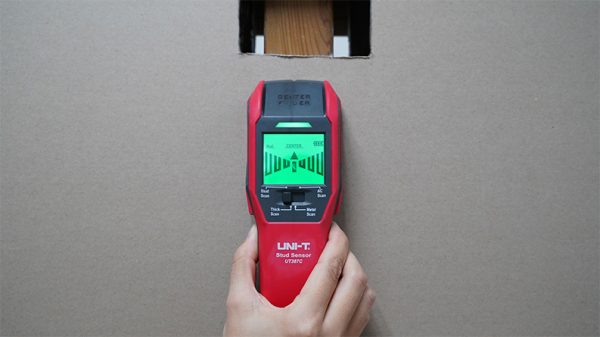

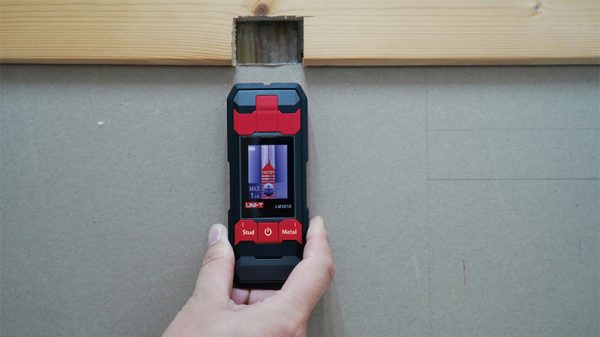

APPLICATIONS
Applications of UT387C/UT387D Wall Scanners
