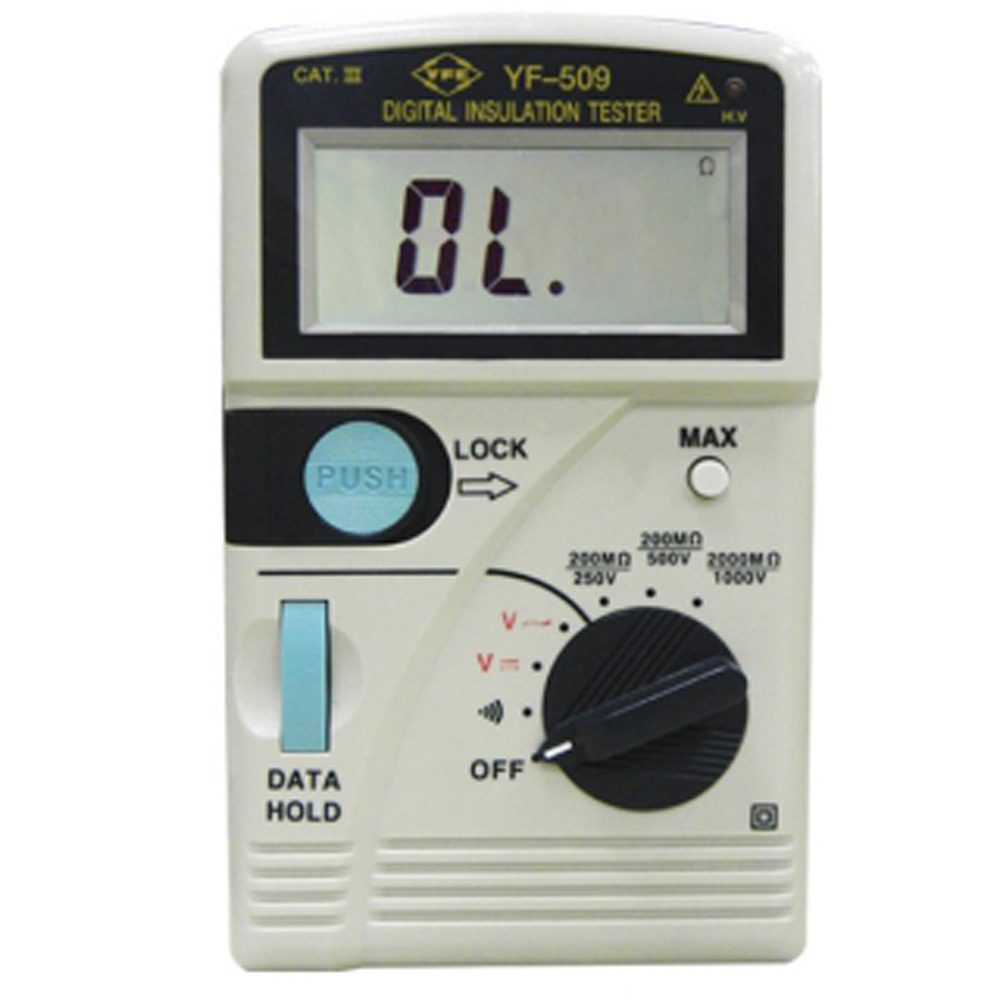

APPLICATION
The unit has select able long duration and momentary operation switches for high resistance measurements.
FEATURES
-
Measures high insulation resistance (0.1MΩ～2000MΩ), manual range , of 200MΩ / 250V,200MΩ / 500V and 2000MΩ / 1000V.
-
Measures DC voltage (0 V~1000V), AC Voltage( 0V ~ 750V).
-
Has a DATA HOLD switch to hold LCD readings.
-
Has a Maximum Reading Hold function.
SPECIFICATIONS
-
Display :3½digit LCD that indicates values up to 1999, units, decimal point and symbols.
-
Polarity indication : Automatically displays “ – “ symbol during negative input.
-
Zero adjustment : Automatic zeroing.
-
Overload indication :Display the highest “OL” at left side.
-
Low battery indication :Replace battery as LCD displays .
-
Sampling rate : 2.5 times/second.
-
Dimensions:160x100x52mm(length x width x height).
-
Weight: Approximately 480 grams.(incl. Battery)
Electrical Specifications(23℃±5℃, below 80％RH )
|
DC Voltage
|
||||
|
Range
|
Resolution
|
Accuracy
|
Input
Impedance
|
Overload
Protection
|
|
DCV
|
1V
|
±(0.5% +1)
|
10MΩ
|
DC 1000V
AC 750V rms
|
|
AC Voltage
|
||||
|
Range
|
Resolution
|
Accuracy
|
Input
Impedance
|
Overload
Protection
|
|
DCV
|
1V
|
±(0.8% +4)
|
10MΩ
|
DC 1000V
AC 750V rms
|
|
Insulation High-resistance
|
|||
|
Range
|
Resolution
|
Accuracy
|
Tolerance
|
|
200M/250V
|
0.1MΩ
|
±(3%+3)
|
0.4mA max
|
|
200M/500V
|
0.1MΩ
|
0.9mA max
|
|
|
2000M/1000V
|
1MΩ
|
±(3%+5)
|
1.7mA max
|
|
Measurement Voltage
|
||
|
Range
|
Terminal Measurement
open Voltage
|
Supported Range
Terminal Voltages
|
|
250V/50MΩ
|
Rated voltage ±10%
|
When the resistance is in the 1MΩrange, the rated
voltage should reach up to 90%. |
|
500V/1000MΩ
|
Rated voltage ±10%
|
Rated voltage ±10%
When the resistance is in the 20MΩrange, the rated voltage |
|
1000V/2000MΩ
|
Rated voltage ±10%
|
When the resistance is in the50MΩ range,
the rated voltage should reach up to 90%. |
ACCESSORIES
Ohm probe -1 set, case -1 pcs), batteries- 8 PCs and operation manual.
