UTE9800 SERIES
Güç Analizörü

The UTE9800 Series intelligent electric parameter measuring instrument, also known as digital power meter, is an economical and por table measuring instrument. It is a multifunctional measuring instrument integrating voltage, current, power, power factor and frequency. It has high cost performance and is widely used in many fields such as production, testing, quality and scientific research.



VOLTAGE RANGE
CURRENT RANGE
3.0V~600V
0.5mA~20.0A



FREQUENCY RANGE
ACCURACY
40Hz~130Hz；BW 5kHz
± (0.4% reading + 0.1 range + 1 digit)



MEASUREMENT MODE
CONNECTIVITY
AC，DC，AC+DC
RS-232/RS-485



SIZE
DISPLAY
½ 2U
VA LCD

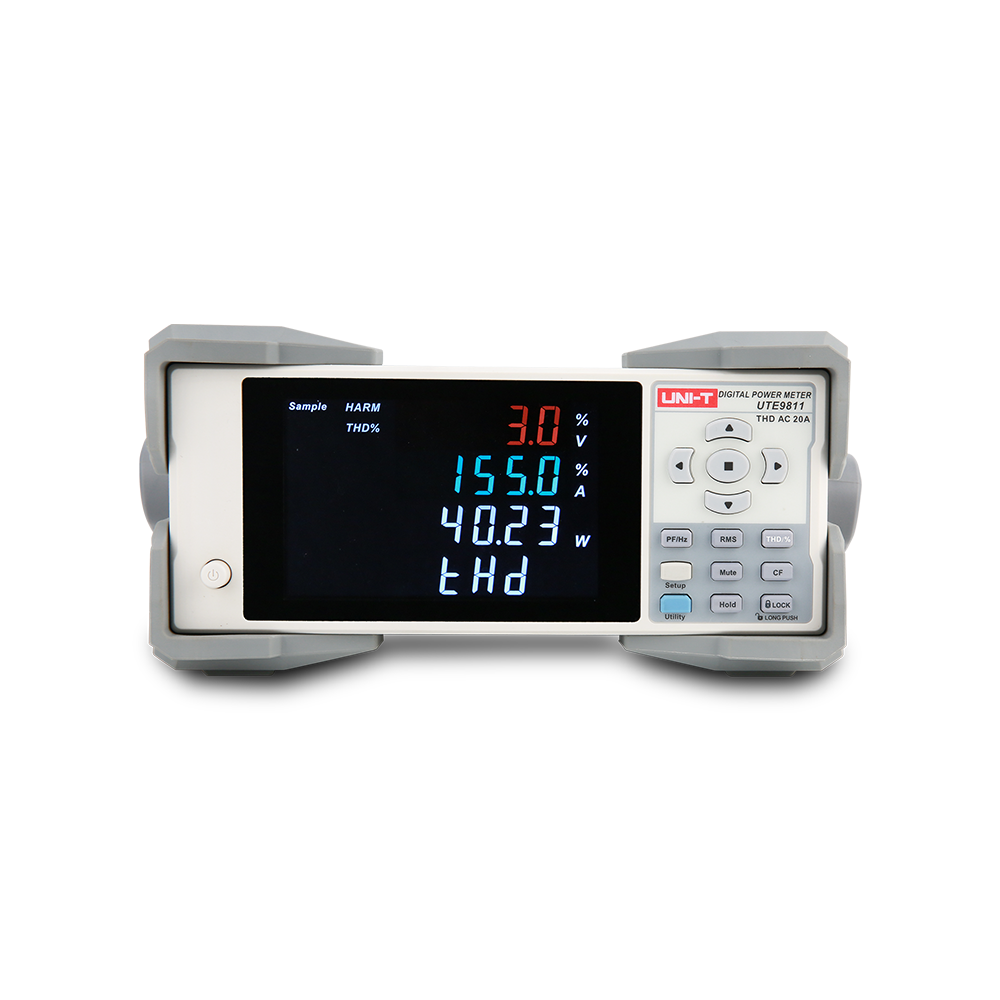

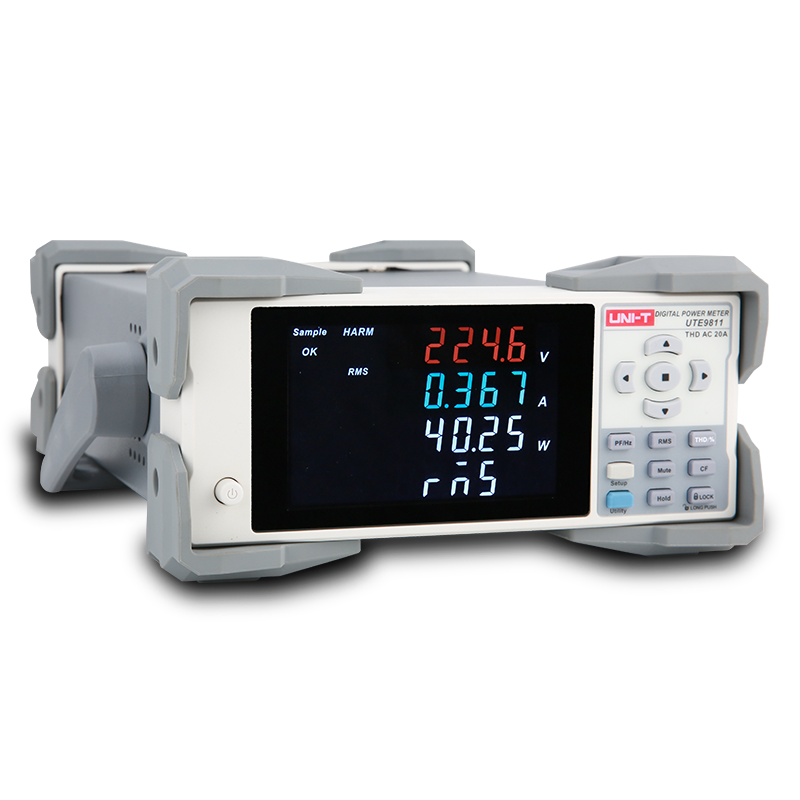

Four-window display

Four windows simultaneously display voltage, current, power, power factor/frequency, UTE9811 has voltage crest ratio and current crest ratio. 5-digit high-precision display

Harmonic measurement

UTE9811 adopts phase locked loop (PLL) synchronization method, and the maximum harmonic analysis is 50 times

True RMS measurement

UTE9802 true RMS measurement. Can measure AC、DC、AC+DC

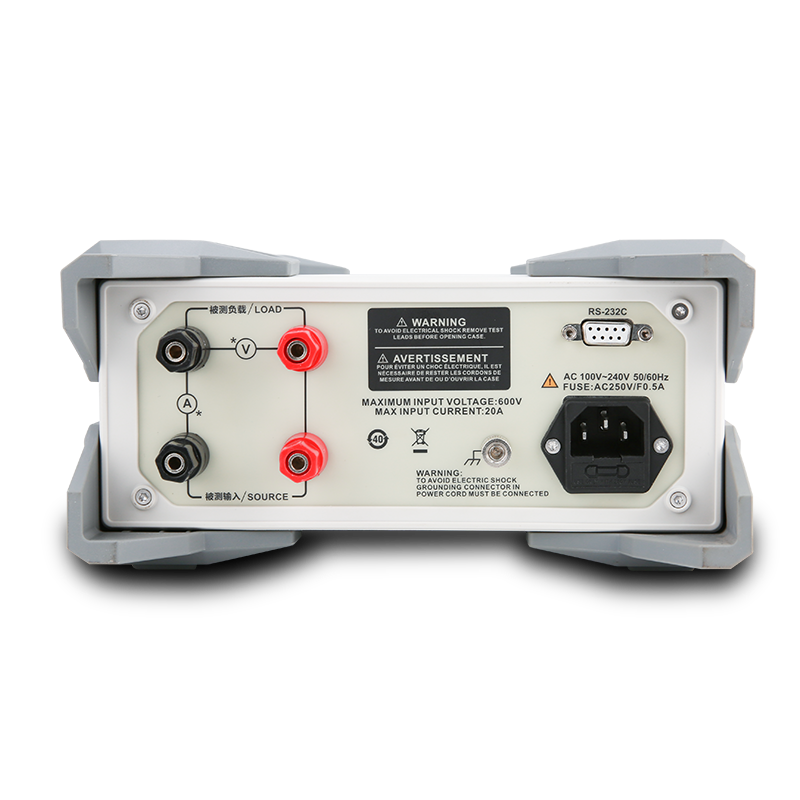

Remote control

It is equipped with RS232 port and supports remote control

Effortless to build

Optional test cable, easy to build measurement environment

Model Voltage Range Current Range Frequency Range Accuracy Measurement Mode Connectıvıty Sıze Dısplay
UTE9811 3.0V~600V 5mA~20.0A 40Hz~70Hz; BW 5kHz ± (0.4% + 1) AC RS-232/RS-485 ½ 2U VA LCD
UTE9802 3.0V~600V 0.5mA~20.0A 40Hz~130Hz; BW 5kHz ± (0.4% + 1) AC, DC, AC+DC RS-232/RS-485 ½ 2U VA LCD
