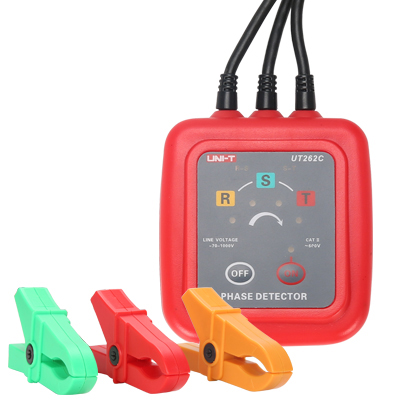

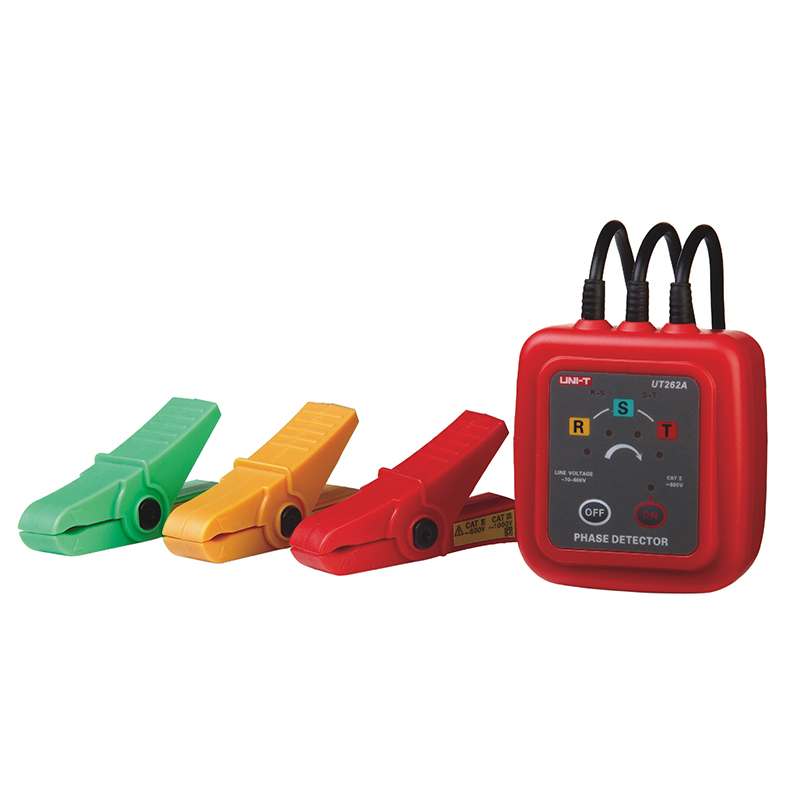

UT262A/UT262C
Non-Contact Phase Detectors

UT262A/C are clamp type non-contact phase detectors. Users do not need to be in contact with high-voltage, reducing risk of electrical shock to electricans and other professional personnels. Beside phase sequence detection, UT262 series can also be used for live wire detection, simple electrical inspection, phase identification, missing-phase judgment, and wire breaker searching. It is a perfect tool for phase sequence detection, motor mounting, and wires maintenance.

Models: UT262A, UT262C

Features of UT262A/UT262C Non-Contact Phase Detectors

  • Clamp opening 1.6~16mm
  • Power on indication
  • Auto power off (Automatically switch off after three minutes)
  • LED, buzzer indication

SPECIFICATIONS

Specifications of UT262A/UT262C Non-Contact Phase Detectors

Specifications Range UT262A UT262C
Phase sequence [Positive phase] four phase lights on clockwise, and beeping sound √ √
[Negative phase] four phase lights on anti-clockwise, and solid sound √ √
Missing phase detection R-S or S-T light off √ √
Live power detection R-S or S-T light on √ √
Circuit break detection R-S or S-T light off √ √
Voltage detection R-S or S-T light on √ √
AC voltage range (V) 70V~600V 70V~1000V
Frequency range (Hz) 40Hz~70Hz √ √
General Characteristics
Power 1.5V battery (R6) x 2
Product color Red and grey
Product net weight 180g
Product size 70mm x 75mm x 30mm
Standard accessories Batteries
Standard individual packing Blister, English manual
Standard quantity per carton 10pcs
Standard carton measurement 670mm x 315mm x 190mm
Standard carton gross weight 4.6kg
