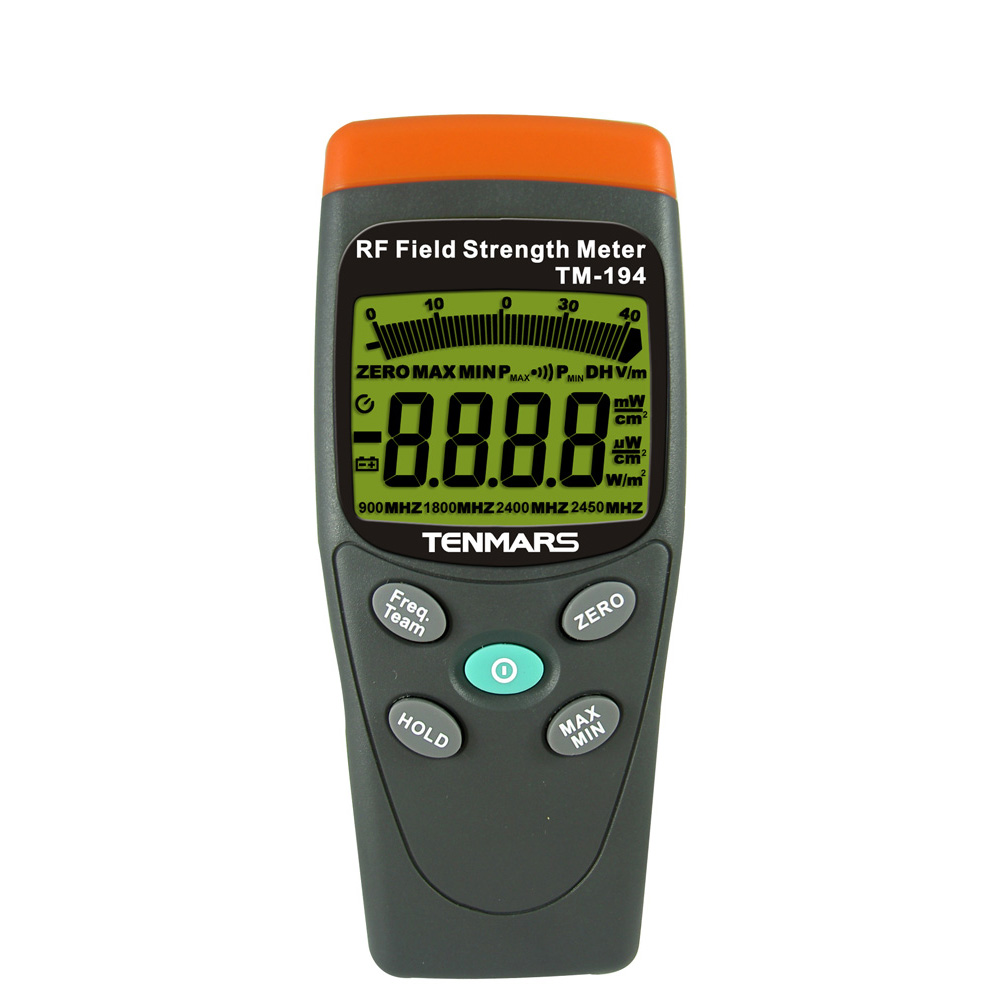

TM-194

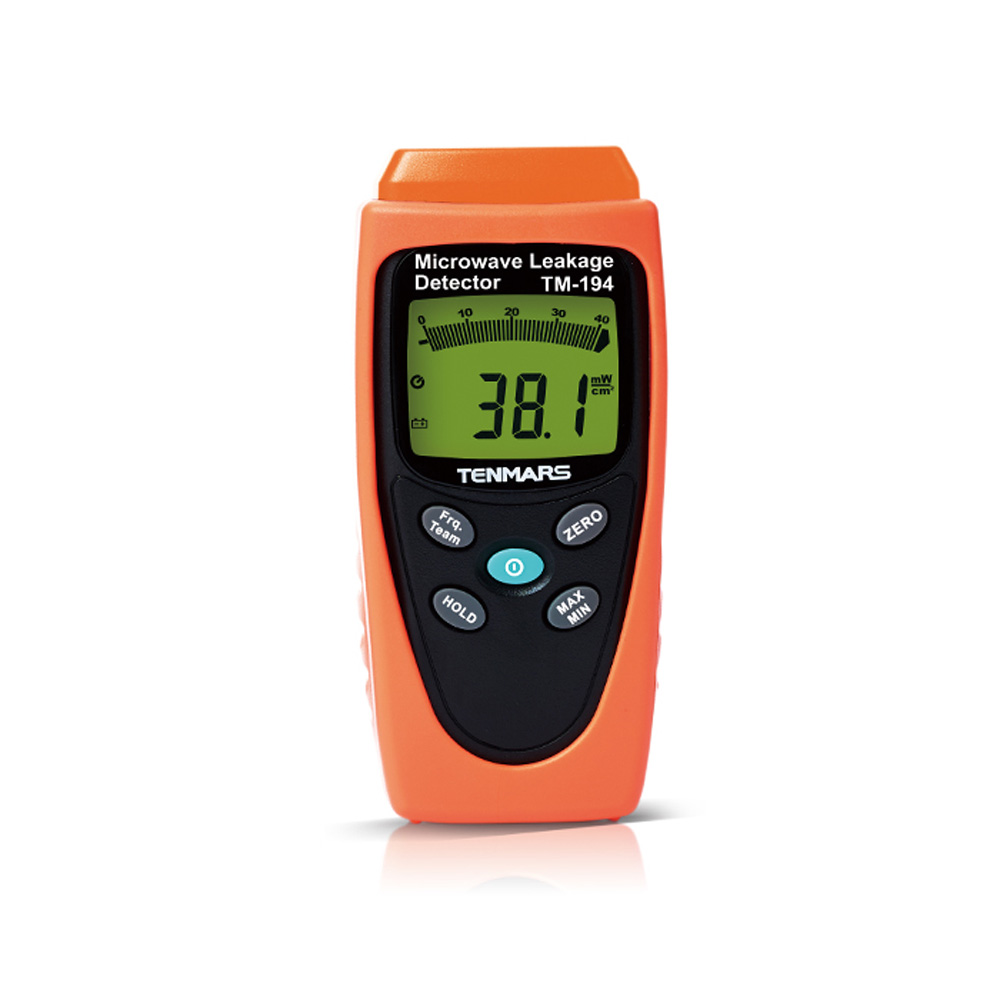

Microwave Leakage Detector

This meter is designed for measuring and monitoring electromagnetic field value of the Radio –Frequency
The meter is calibrated precisely on the frequency value 2.45 GHZ(Microwave Oven)

APPLICATION

  • This meter is applied to measuring electromagnetic fields of 2.45 GHZ (microwave frequency) or normal (50MHZ~3.5 GHZ).
  • It is capable of measuring the electromagnetic field radiation intensity that is produced from welding equipment, microwave oven and otherenvironment…etc.
  • Microwave oven leakage detection.

FEATURES

  • Ranges: 2.45 GHZ (microwave frequency) or 50MHZ~3.5 GHZ.
  • RF power density: 0.01~2.700m W/cm2.
  • Data hold (HOLD).
  • Maximum (MAX) Hold.
  • Minimum (MIN) Hold.
  • Zero function.
  • Build in alarm setting.
  • Low battery indication.
  • Overload indication.

SPECIFICATIONS

  • Display : 3-3/4 digits LCD, maximum reading 3999.
  • Resolution : 0.001mW/cm2.
  • Frequency response : 50MHz to 3.5 GHz.
  • Sensor : Single Axis.
  • Accuracy : ±2 dB at 2.45 GHz ± 50MHz.
  • Over load : LCD display “OL”.
  • Sample rate : 2.5 times per second.
  • Battery : 9V NEDA 1604, IEC 6F22 or JIS 006P.
  • Battery life : Approximate 100 hours.
  • Operating temperature & humidity : 5℃to 40℃,below 80% RH.
  • Storage temperature & humidity : -10℃to 60℃, below 70%.
  • Weight : About 170g.
  • Dimensions : 130(L)*56(W)*38(H) mm.

ACCESSORIES

  • User’s manual
  • 9V battery
  • Carrying case.
