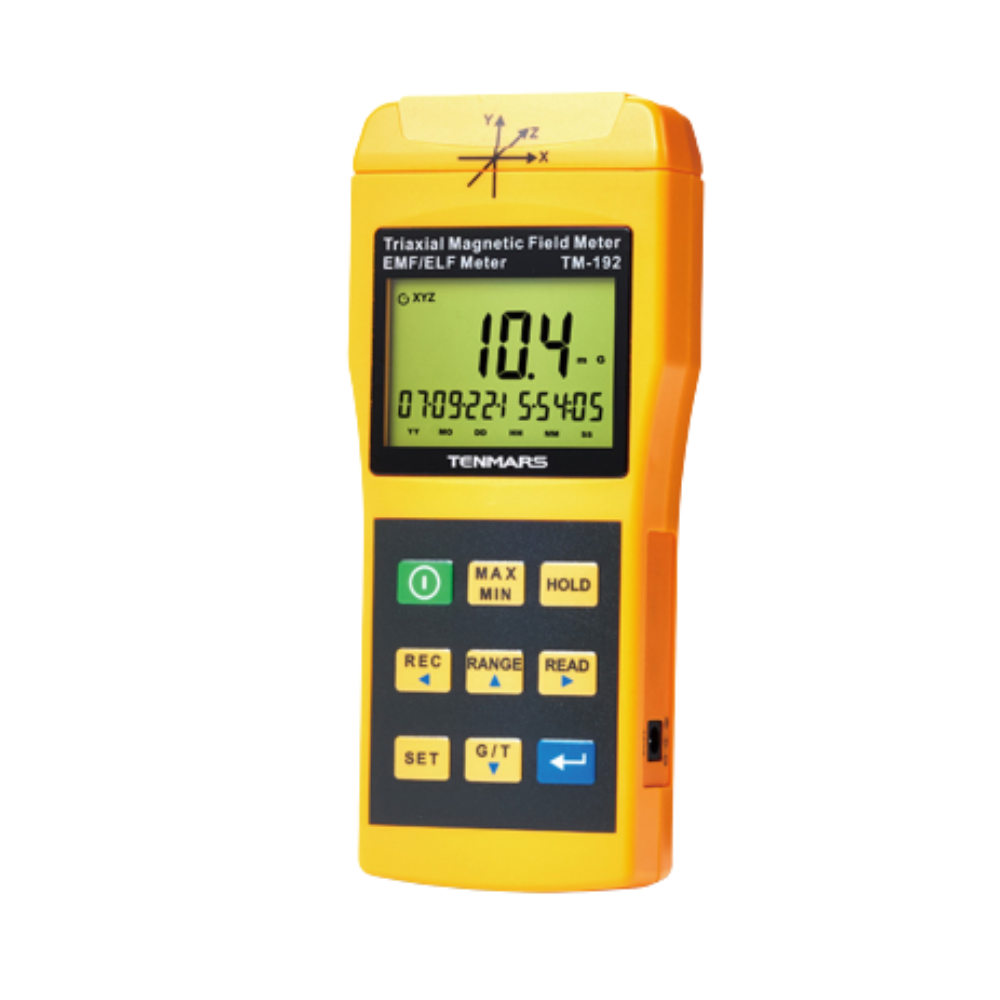

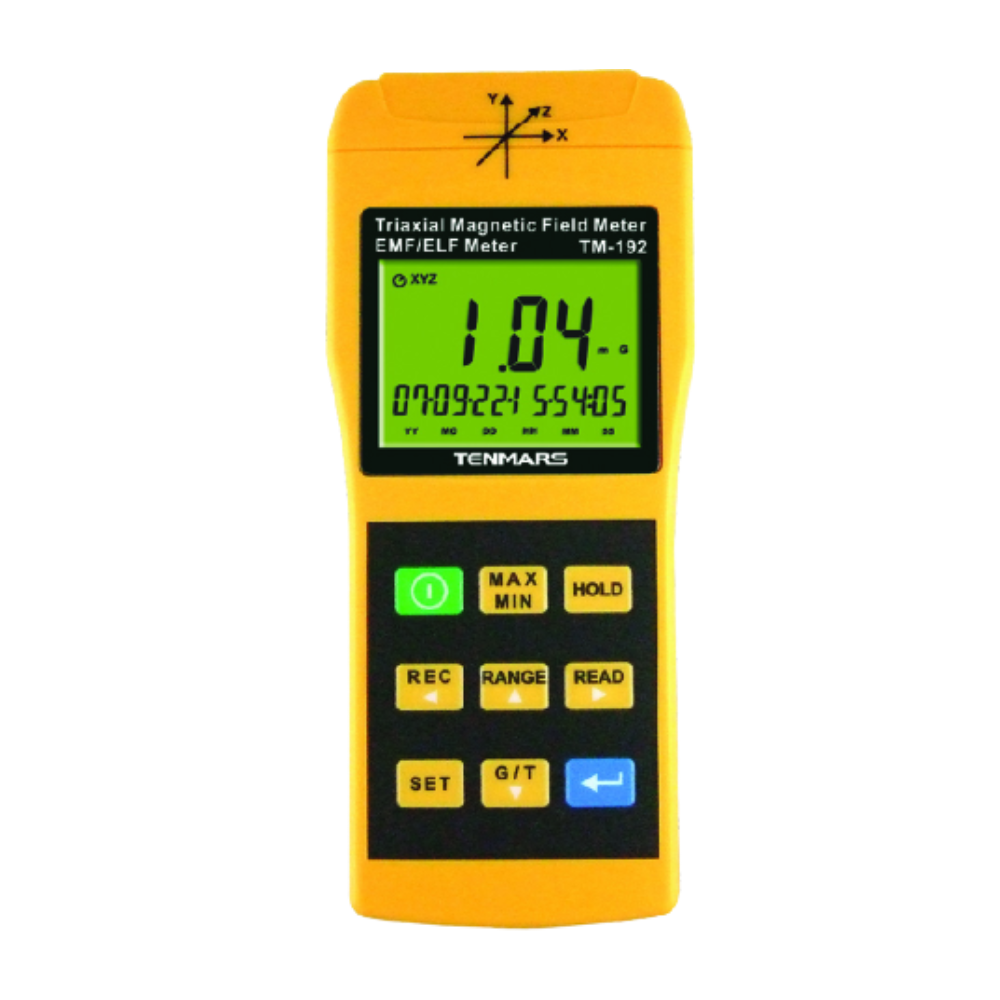

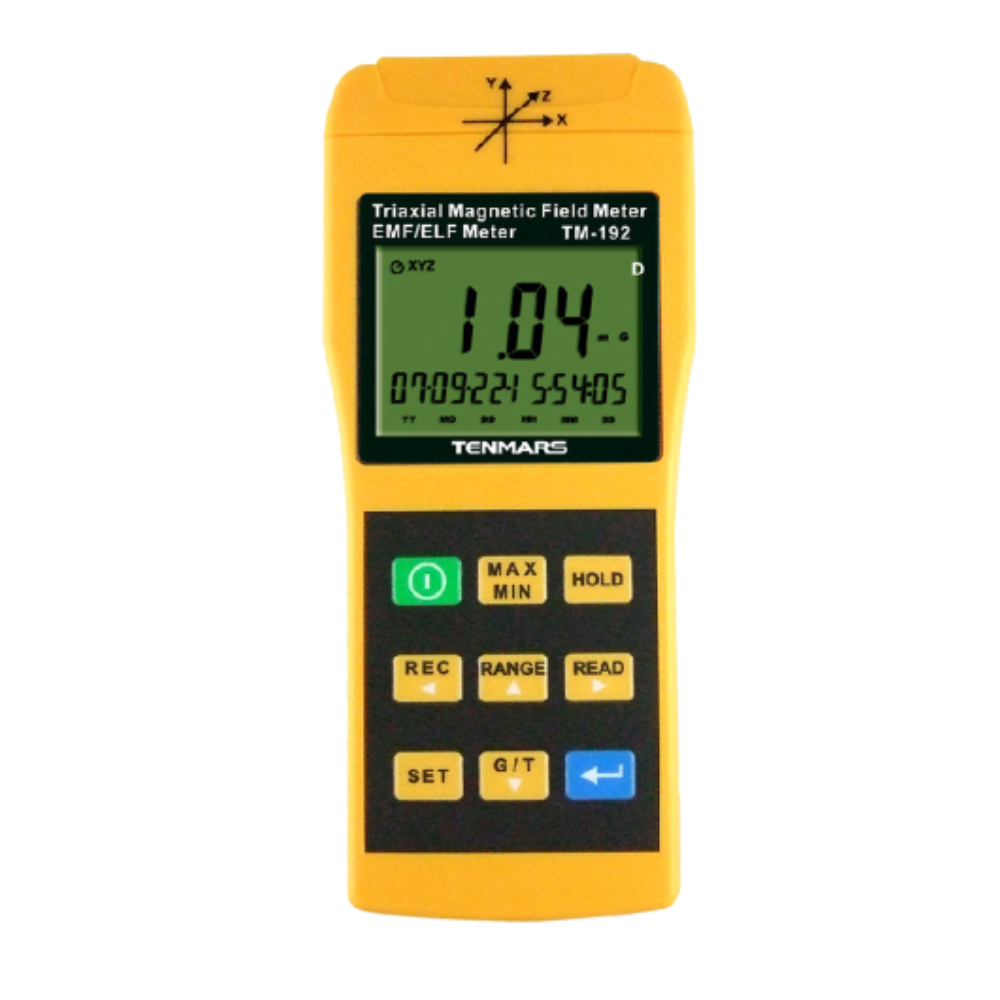

TM-192/TM-192D
3-axis EMF Meter

  • Frequency response: 30Hz to 2000Hz
  • Sensor: Triple Axis (X, Y, Z)
  • Range: 20/200/2000 mG,2/20/200μT
  • Data hold (HOLD)

APPLICATION

TM-192 and TM-192D (with USB datalogger) are applied to measuring electromagnetic fields of extremely low frequency (ELF) of 30 to 2000Hz. They are capable of measuring the electromagnetic field radiation intensity produced from:
  • Electric transmission equipment
  • Power line.
  • Microwave oven.
  • Air conditioner.
  • Refrigerator.
  • Computer monitor.
  • Video/audio device and so forth.

FEATURES

  • Uses three internal orthogonal sensors to test a wide range of ELF magnetic fields,independent of measurement angle.
  • The tester is designed to provide a quick, reliable and easy way to measure magnetic field radiation levels around power lines, home appliances and industrial devices.
  • The tester is a cost-effective hand-held instrument that was designed and calibrated to measure magnetic field radiation at different bandwidths from 30Hz to 2000Hz.
  • Display microTesla(uT) or milliGauss(mG) units.
  • Data hold (HOLD), maximum Hold (MAX), and minimum Hold(MIN) function.
  • Auto range or manual range select mode.
  • Datalogging capacity with Memory Size：500 data sets (Model 192) or 9999 data sets(Model 192D).
  • USB PC interface (192D).
  • Time and calendar function.
  • Low battery indication.
  • Over load display “OL”.
  • Auto power OFF function .

SPECIFICATIONS

Display
 4 digits
 Triple LCD display
Accuracy
 20mG±(3.0%+30dgt)
at 50Hz/60Hz or
 3µT±(3.0%+30dgt)
at 50Hz/60Hz.
Range
 20/200/2000mG,   2/20/200µT
Over load
 LCD display “OL”
Resolution
 0.01/0.1/1 mG or   0.001/0.01/0.1µT
Sample rate
 2.5 times per second
Frequency response
 30Hz to 2000Hz
Weight
 About 230g
Sensor
 Triple Axis
 (X, Y, Z)
Dimensions
 173X80X32
 (LxW xH)mm

ACCESSORIES

  • User’s manual
  • 9V battery
  • Carrying case
    MINI USB 4P(MALE) to USB A Type cable,CD disk TM-192DP
