OVERVIEW
Excellent Output Performance
The SPD1000X is robust and stable, and can accurately simulate even small voltage or current changes, fully meeting the power requirements of the load.
- Ultra-high resolution: 1 mV, 1 mA
- Excellent setting and readback accuracy to ensure accurate and pure output
- Support panel programming and timing output
- independently controlled and isolated outputs
Stable Performance
This single output design is focused on delivering high performance and ease-of-use in a small package. And it also offers stable performance. All the features make it an ideal choice for bench power supplies:
- Low noise ≤350uVrms/3mVpp
- Fast transient response time <50μs
- Voltage output without overshoot
- 0.01% load regulation and 0.2% power regulation
- Intelligent temperature control fan to effectively reduce noise
Convenient Operation and Real-time Display
- Support panel timing output function (5 sets of timing settings and output control). With Free PC software EasyPower, comprehensive communication and control requirements can be easily achieved.

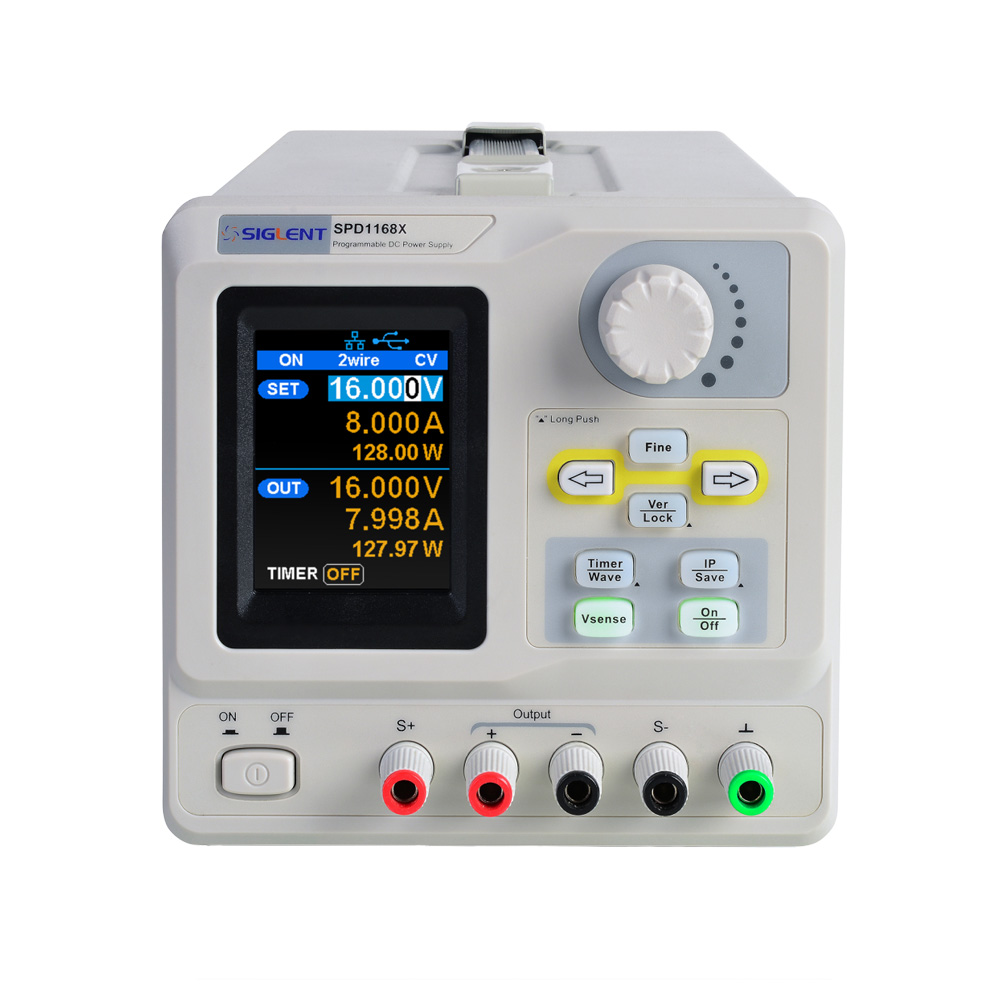

- The SPD1000X programmable linear DC power supply employs a 2.8-inch TFT-LCD liquid crystal screen with a resolution of 240×320 which can display voltage and current clearly, allowing users to understand the output status.
Specifications
| DC Output | SPD1168X: 16 V ,8 A ,128 W SPD1305X: 30 V ,5 A ,150 W |
| Resolution | 1 mV / 1 mA |
| Dispaly | 2.8 inch true color TFT-LCD,5 digit voltage/ 4 digit current |
| Output model | 2-wire output mode,4-wire compensation,Maximum compensation voltage 1 V |
| Constant Voltage Mode | Load Regulation≤ 0.01% + 2 mV |
| Ripple & Noise≤ 350 uVrms/3 mVpp (20 Hz to 20 MHz) | |
| Recovery Time< 50 μs (50% load change, minimum load 0.5 A) | |
| Constant Current Mode | Line Regulation≤ 0.2% + 3 mA |
| Load Regulation≤ 0.2% + 3 mA | |
| Ripple & Noise≤ 2 mArms |
| Locking Key | Yes |
| Memory Save/Recall | 5 Sets |
| Power Source | AC 100 /120/220/230 V ± 10% 50/60 Hz |

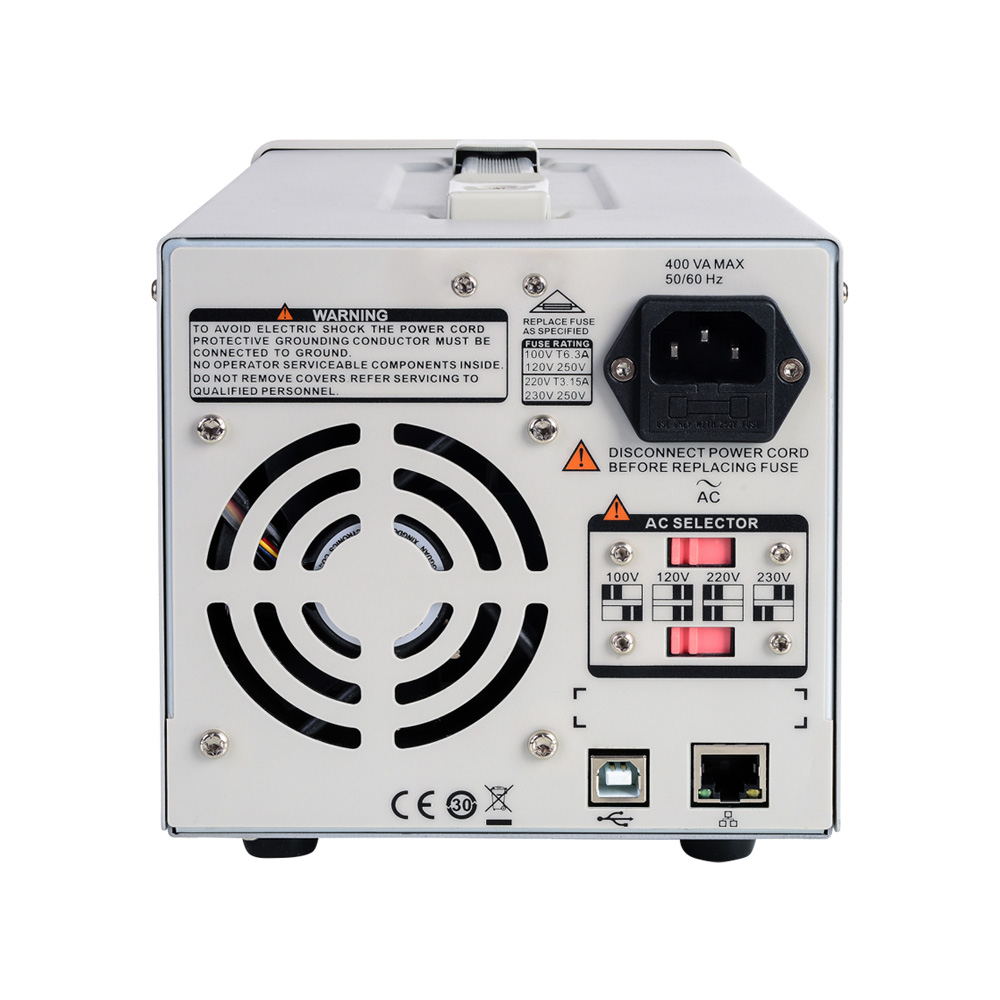

| Standard Confguration Interface | USB Device, LAN |
| Insulation | Case to Terminal ≥ 20 MΩ (DC 500 V) Case to AC line ≥ 30 MΩ (DC 500 V) |
| Operating Environment | Outdoor Usage: Elevation: ≤2000 m Environment Temperature 0 to 40 ℃ Relative Humidity ≤ 80% Installation Level: Ⅱ Pollution Level: 2 |
| Storage Environment | Environment Temperature: -10 to 70 ℃ Relative Humidity ≤ 70% |
| Dimension | 154.6 (W) × 144.5 (H) × 280(D) mm |
| Weight | ≈5.5 kg |
