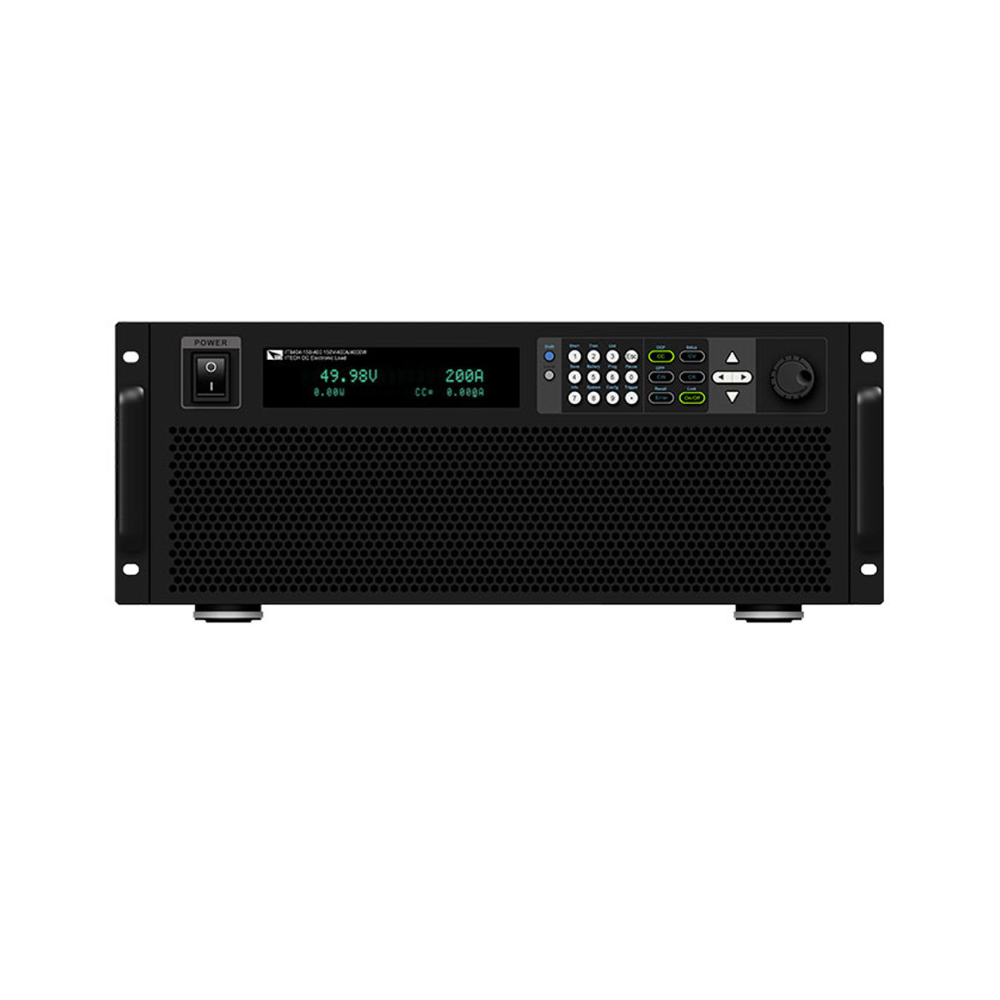

IT8400 Series
High Performance DC Electronic Load

♦ Max.Voltage : 1200V
♦ Current range: 1.5A~15,000 A
♦ Power extended to 600 kW through master-slave connection in parallel
♦ High-precision three current measurement ranges with resolution up to 40uA
♦ Fast double power loading capability (<3 s)
♦ 25kHz fast dynamic mode, current rising and falling time is adjustable
♦ Provide 8 working modes: CC, CV, CR, CP, CC+CV, CV+CR,CR+CC, CP+CC
♦ 1 kHz continuous sampling rate
♦ List programming
♦ The battery discharge function is used to test energy storage devices such as batteries and super capacitors
♦ CV loop speed is adjustable to match different power supplies
♦ 500 kHz voltage and current sampling rate
♦ Time measurement, OCP/OPP test short circuit simulation, automatic test
♦ Soft start and soft shutdown to prevent voltage fluctuations during on/off
♦ I-monitor function
♦ Full protection: OVP, UVP, OCP, OPP, OTP, current oscillation protection, current limit, power limit, reverse alarm, etc.
♦ Power-off retention memory function, recording up to 100 groups data
♦ Independent control, easy to maintain and install.
♦ Built-in standard LAN, USB, RS232, GPIB, CAN and analog, IO interface
♦ LabVIEW driver and SCPI protocol

Fast loading with double power

The input voltage of IT8400 DC electronic load can reach 1200V. It has a fast double power loading capacity and is available for all models from 6kW to 600kW. You do not need to select the model according to the maximum power during the actual test, which can greatly save your costs. The input over power and loading time are relevant with the temperature of the electronic load. For example: below 30℃, IT8400 supports double power loading within 3 seconds. This makes it suitable for instantaneous high-power discharge tests of motors and batteries. For example, simulating the starting of a DC motor, simulating the transient overload characteristics of some power supplies, or instantaneously discharging a high-power battery or fuel cell.

Higher current rise and fall speed and dynamic speed

Dynamic testing is one of the necessary test items for power supplies. The dynamic mode of IT8400 DC Electronic Load can be used to measure it.Set the current level, time, rising and falling slope and repeat times, and then you can check if the power supply still works stably when the load current is changed stepwise. IT8400 DC Electronic Load supports the programmable dynamic loading mode with 25kHz. The minimum current rise and fall time is 15us. When the loading current changes continuously, the internal monitoring and circuit can minimize the current waveform distortion. So it is well used for transient response test of switching power supply and dynamic discharge test of battery.

3 Current measurement range

All models of IT8400 series DC Electronic Load have 3 current measurement ranges. For example, the 1200V, 6kW model, its current can reach 1.5A. In addition, the high resolution (40uA at most ) and high accuracy (1.5mA at most ) enable it to be widely used in the tests such as solar, power semiconductor devices, automotive electronics and so on.
