| MODEL | VOLTAGE | CURRENT | POWER | RESOLUTION | ACCURACY | INTERFACE | SIZE |
| IT8245-350-270 | 350 V | 270 A | 45 kVA | 0.01V/0.01A | ＜0.1%+0.1%FS /＜0.1%+0.2%FS | USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 | 15U |
| IT8230-350-180 | 350 V | 180 A | 30 kVA | 0.01V/0.01A | ＜0.1%+0.1%FS /＜0.1%+0.2%FS | USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 | 6U |
| IT8215-350-90 | 350 V | 90 A | 15 kVA | 0.01V/0.01A | ＜0.1%+0.1%FS /＜0.1%+0.2%FS | USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 | 3U |
| IT8212-350-90 | 350 V | 90 A | 12 kVA | 0.01V/0.01A | ＜0.1%+0.1%FS /＜0.1%+0.2%FS | USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 | 3U |
| IT8209-350-90 | 350 V | 90 A | 9 kVA | 0.01V/0.01A | ＜0.1%+0.1%FS /＜0.1%+0.2%FS | USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 | 3U |
| IT8206-350-90 | 350 V | 90 A | 6 kVA | 0.01V/0.01A | ＜0.1%+0.1%FS /＜0.1%+0.2%FS | USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 | 3U |
| IT8205-350-30U | 350 V | 30 A | 5 kVA | 0.01V/0.01A | ＜0.1%+0.1%FS /＜0.1%+0.2%FS | USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 | 3U |
| IT8203-350-30U | 350 V | 30 A | 3 kVA | 0.01V/0.01A | ＜0.1%+0.1%FS /＜0.1%+0.2%FS | USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 | 3U |
| IT82165-350-990 | 350 V | 990 A | 165 kVA | 0.01V/0.01A | ＜0.1%+0.1%FS /＜0.1%+0.2%FS | USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 | 37U |
| IT82150-350-900 | 350 V | 900 A | 150 kVA | 0.01V/0.01A | ＜0.1%+0.1%FS /＜0.1%+0.2%FS | USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 | 37U |
| IT82135-350-810 | 350 V | 810 A | 135 kVA | 0.01V/0.01A | ＜0.1%+0.1%FS /＜0.1%+0.2%FS | USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 | 37U |
| IT82120-350-720 | 350 V | 720 A | 120 kVA | 0.01V/0.01A | ＜0.1%+0.1%FS /＜0.1%+0.2%FS | USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 | 37U |
| IT82105-350-630 | 350 V | 630 A | 105 kVA | 0.01V/0.01A | ＜0.1%+0.1%FS /＜0.1%+0.2%FS | USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 | 27U |
| IT8290-350-540 | 350 V | 540 A | 90 kVA | 0.01V/0.01A | ＜0.1%+0.1%FS /＜0.1%+0.2%FS | USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 | 27U |
| IT8275-350-450 | 350 V | 450 A | 75 kVA | 0.01V/0.01A | ＜0.1%+0.1%FS /＜0.1%+0.2%FS | USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 | 27U |
| IT8260-350-360 | 350 V | 360 A | 60 kVA | 0.01V/0.01A | ＜0.1%+0.1%FS /＜0.1%+0.2%FS | USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 | 27U |
Product Features
- High power density, 15kV A in 3U unit
- Measure up to 16 parameters including Vrms/Arms/Freq/CF/PF/UTHD/ITHD/±Vpeak.
- Master/Slave parallel, power up to 960kVA *1
- High efficient energy regeneration
- Voltage – 350 VL-N
- Comprehensive working modes selectable: single-phase, three-phase, reversed phase. Rated voltage can be extended
to 200% under reversed phase - Frequency: 16-500Hz
- Simulate arbitrary waveform output, support csv. file import
- Built-in various waveforms
- Touch screen, simple UI for easy operation
- Built-in USB/CAN/LAN/Digital IO interface, optional GPIB/Analog&RS232
- DC mode supports nine working modes, including CC, CR,CP, and CV
- C mode supports CC/CP/CR/CS/CC+CR/CE multiple working modes, CE mode can simulate various circuit topologies
such as single-phase rectifier RLC and parallel RLC - AC mode supports both rectification and non-rectification modes
- Adjustable crest factor: 1.414 ~ 5.0
- Supports phase shift, ranging from -90 º to 90.0 º *2
- The unit power factor1 function allows the current waveform to vary with the voltage waveform and the power factor is as close to 1 as possible
- In three-phase AC mode, two access modes are supported: Y and Δ
- Comprehensive harmonics measurement and analysis, up to 50th. Built-in IEC61000-3-2/3-12 pre-compliance test standard *3
- Support the loading and unloading angle control, the full range of 0-359° can be set
- Various protection functions such as Protect auto clear (UV&FE auto Clear), POVP, POCP, UVP, Software watchdog
- Support CANopen*4, Modbus, LXI, SCPI and other communication protocols
* 1 For 3U models, max.64 units can be connected in parallel.
* 2 After the rectification function is enabled, the setting range of phase shift is restricted by the peak factor
* 3 Voltage/current harmonic analysis, current harmonic simulation, fundamental wave ≤ 60Hz
*4 Coming soon

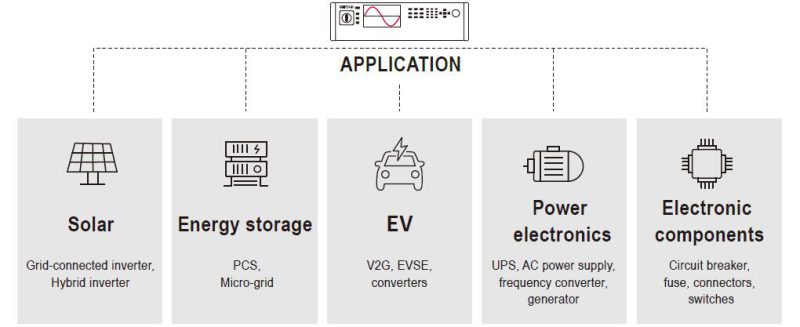

Functions and Advantages

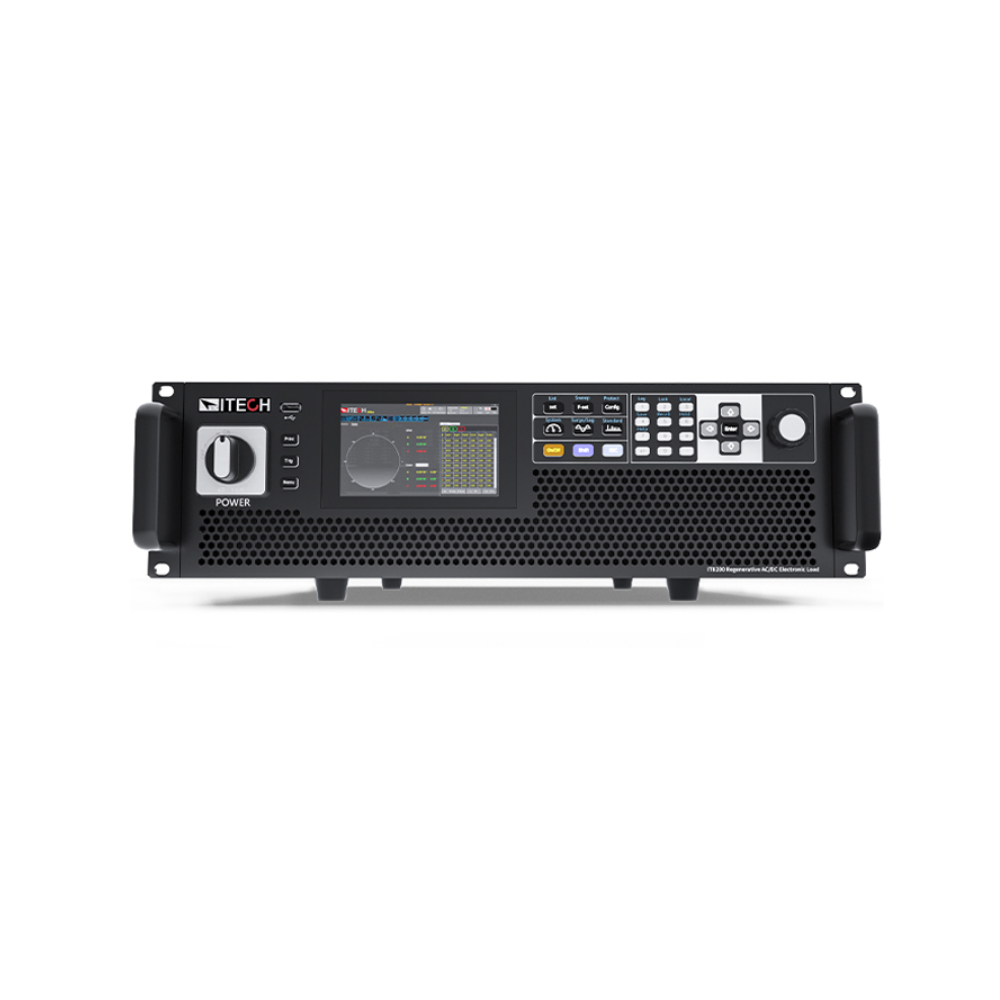

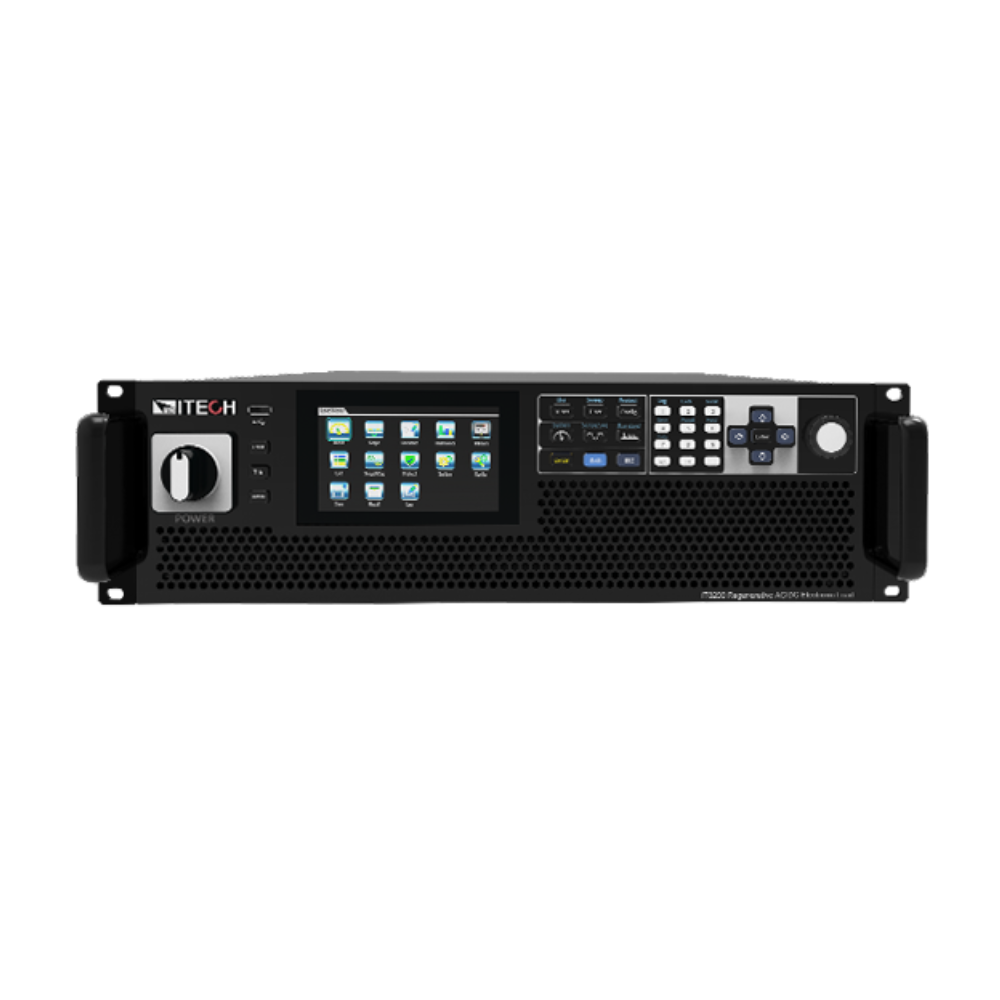

Regenerative AC/DC electronic load
The IT8200 series are new regenerative AC Electronic Load with 88% energy recovery capability. Whether in AC mode or DC mode, the power generated by the DUT can be fed back to the grid,rather than being dissipated as heat, which protects the environment and save the cost of electricity, HVAC and cooling infrastructure.
Single-phase, three-phase, reverse-phase
The IT8200 series has single-phase, three-phase, and reverse-phase output modes, which can be selected through the menu. Under reverse mode, the single-phase 350V input voltage can be increased to 700V with the power down to 2/3 of the original. Under the three-phase mode, you can choose a Y-type or a Δ-type connection. The Y-type connection supports the C-phase loss.
IT8200 AC electronic load can enable the ‘Rectified’ function in AC mode, so that the load works in the first and third quadrants to ensure that the voltage and current flow always in the same direction. At this time, full wave, positive half wave, or negative half wave can be freely selected.
CF 1.414-5.0
