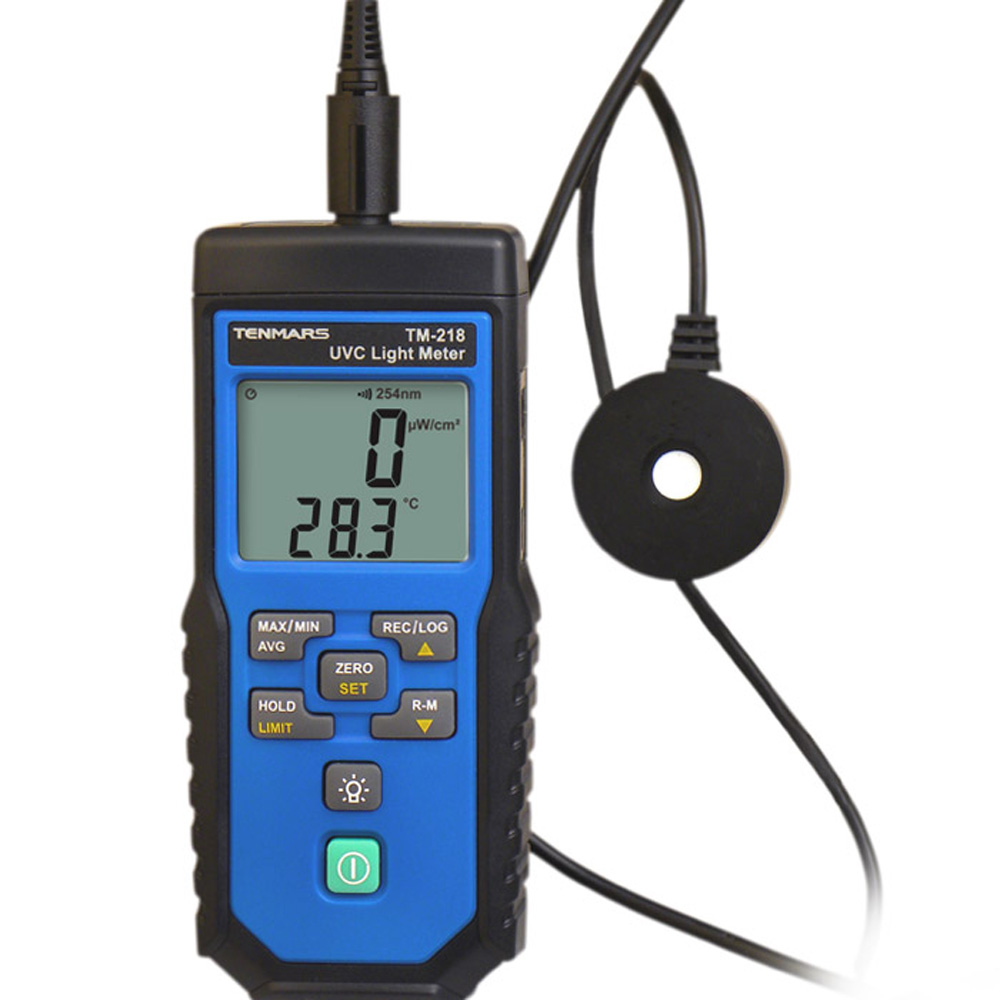

TM-218
UVC Light Meter

  • UV intensity: 0~9999uw/cm2, 10.00~40.00mw/cm2.
  • Locking for Max./Min./Ave. value
  • Auto-switch band and locking data
  • Display the UV intensity and temperature simultaneously

APPLICATION

  • Quickly determine the UV intensity of the factory’s UV products
  • UVC germicidal lamp intensity and aging measurement.

FEATURES

  • 4-digit LCD display, the max. value is up to 9999.
  • UV intensity: 0~9999uw/cm2, 10.00~40.00mw/cm2.
  • Locking for Max./Min./Ave. value
  • Auto-switch band and locking data
  • Display the UV intensity and temperature simultaneously
  • Enable and disable auto-power-off
  • Alarm setting LIMIT: The beep of auxiliary judgment for pass/fail from factory QC
  • 200 logs for stored data with auto logging/manual record
  • Sampling time: per 2 seconds.

SPECIFICATIONS

  • Dimensions:132x60x38mm(length x width x height).
  • Sensor:39.5Ø x 30.5(H) mm
  • The line length of the light receiver: approximate 100 cm.
  • Weight: Approximately 320 grams.
ELECTRIC SPECIFICATION
  UV Irradiance Measurement Range
 Spectrum Range
  220nm～280nm
 Spectrum Range
  254nm
 Range
  1μW/cm²～40.00m W/cm²
 Accuracy
  ±4%+1digit
 Resolution
  1μW/cm², 0.01 m W/cm²
Temprature
 Range
 0.0°C～70.0°C(32.0°F～158.0°F)
 Accuracy
 ±1.0°C(±2.0°F)
 Resolution
 0.1°C/0.1°F
