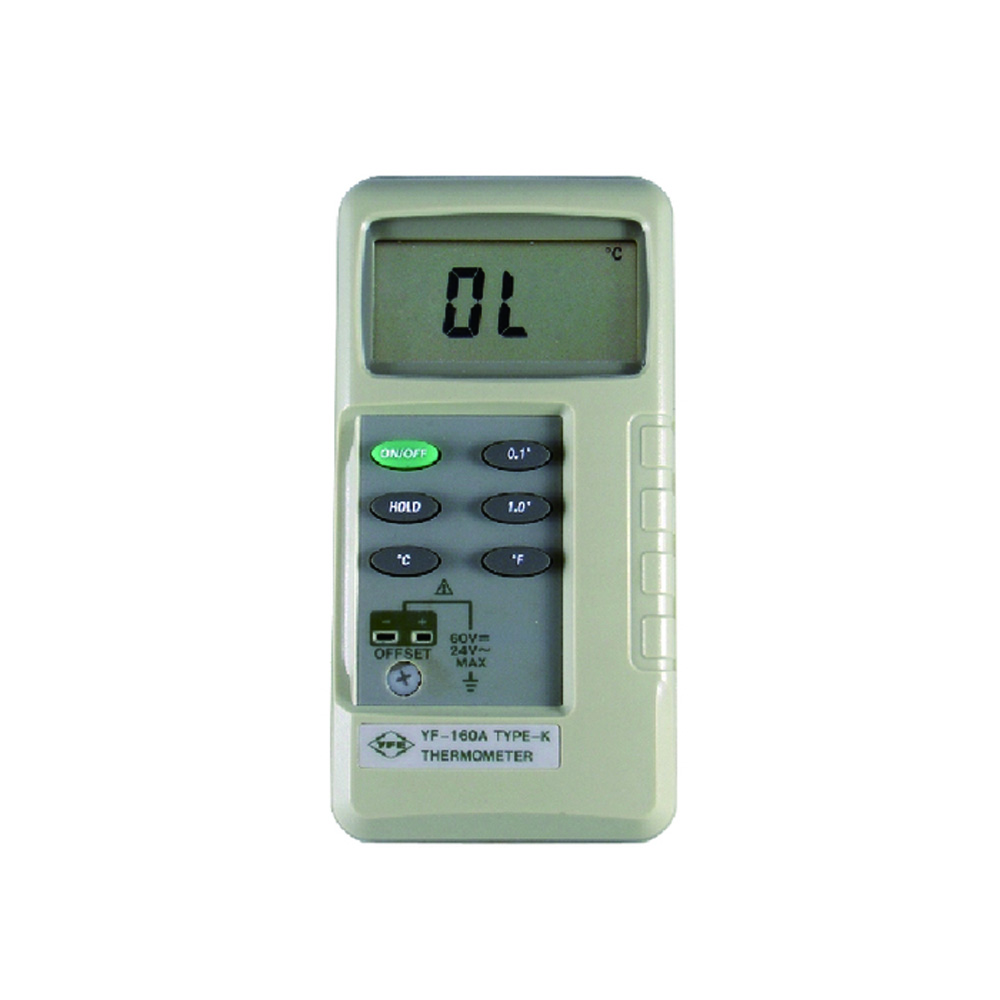

This machine is K(CA) NiAl / NiCr type thermocouple with high accuracy ,range of 58°F~1999°F(-50°C~1200°C) and alternative measuring by °C or °F.
It is suitable for electric engineering, freezing, air conditioning, food processing fields as well as surface temperature. Metal, steel, electricity, chemical, ship building, synthetic resin process and metal heat process or other temperature control /management fields.
|
Display
|
3½ dig. LCD with max. reading of 1999
|
|
|
Polarity Indication
|
Automatic polarity ”-“ display
|
|
|
Low battery indication
|
”
 ” appears on LCD while low battery |
|
|
Sampling Rate
|
2.5 times/sec
|
|
|
Dimension
|
143x74x34mm
|
|
|
Weight
|
235g
|
|
General Specifications Temp:23 ±5°C, Humidity:90% RH
|
Storage temp
|
-10°C~60°C,10°F~140°F
|
|
Max input voltage
for thermocouple |
DC60V, AC24V
|
|
Operating Humidith
|
0%~90% RH (0°C~35°C)
|
|
Operating temp
|
0°C~50°C.325°F~122°F
|
Temp measurement (optional temp probe: CA type)
|
Function
|
Range
|
Accuracy
|
|
|
°C
|
-50°C~1300°C
|
0.1°C
|
-50°C~0°C:±(0.5%+ 1°C)
0°C~199.9°C:±(0.5%+ 1°C)
|
|
1°C
|
-50°C~300°C:±(0.5%+ 1°C)
301°C~1000°C:±(0.3%+ 1°C
1001°C~1300°C:±(0.5%+ 1°C
|
||
|
°F
|
-58°F~1999°F
|
0.1°F
|
-58°F~199.9°F:± (0.3%+ 2°F)
|
|
1°F
|
-58°F~1999°F:± (0.3%+ 2°F)
|
||
|
The tolerance of temp probe excluded
|
|||
Specification of Temp probes
|
ITEM＼TYPE
|
TP-01
|
TP-02
|
TP-03
|
TP-04
|
|
Thermo couple material
|
K (CA) NiCr/Ni Al Thermocouple
|
|||
|
Contact Type
|
Insulation Type
|
Ground Type
|
Exposed Type
|
Ground Type
|
|
Accuracy Classification
|
JIS C1602 Classification 0.75
|
|||
|
Size
|
3.2Ø*150mm
|
10Ø(Top)*150mm
|
Bead
|
15Ø*150mm
|
|
Max Temperature
|
1300°F/ 700°C
|
392°F/200℃
|
1300°F/700°C
|
|
|
Min Temperature
|
-58℉/ -50℃
|
|||
|
Compensating Lead-Wire
|
(-20~90°C) 1m approx
|
1m approx
|
(-20~90°C)
1m approx |
|
|
Handhold
|
Max. Allowable
Heat:150°C
Size:12Ø x100mm
|
Max. Allowable
Heat:150°C
Size:12Ø x90mm
|
||
|
Sensor
|
K(CA)NiCr/NiAl alloyed thermocouple
|
|||
|
Accuracy degree
|
JIS C 1602 0.75 ±2.2°C
|
|||
|
Application
|
Available for liquid or gel
|
Available for front or plate
|
Available for complex or any place hard to enter
|
Available for precise surface
|
|
Shape
|
See Fig.1
|
See Fig.2
|
See Fig.3
|
See Fig.4
|
※TP-03 is a K type thermocouple isolated by TEFLON Max. insulation temp. is 260°C,Accuracy is 2.2°C or 0.75%.
