APPLICATION
-
Logistics
-
Industrial
-
Refrigeration
-
Laboratory
-
Ventilation
-
Automotive
-
Storage
-
Agriculture
-
Biotechnology
-
Chemical Industry
-
Food Processing
-
Energy Management
FEATURES
-

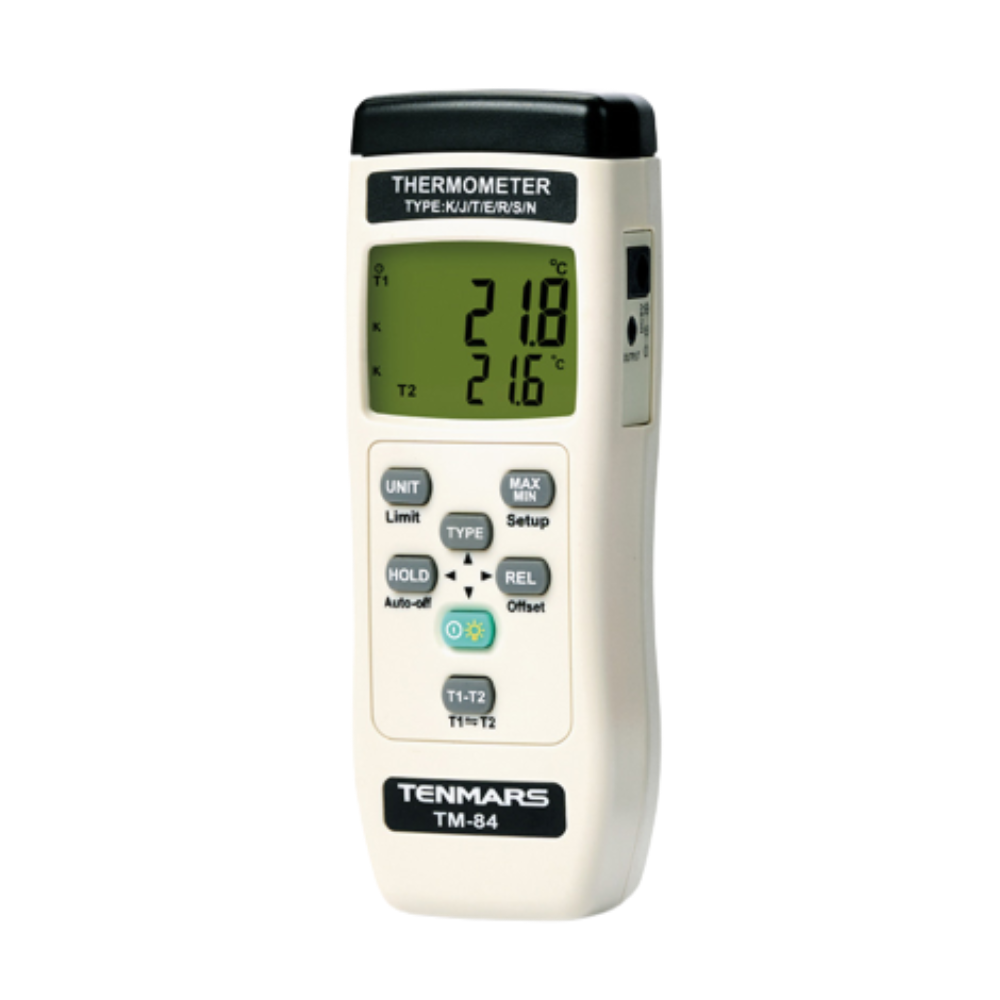

Display: Dual-display 5-digit LCD monitor with a maximum display of 99999.
-
Unit: °C / °F / °K
-
Data hold.
-
Auto ranging.
-
Back light.
-
Auto power (default 15 min)and disable auto power off.
-
Maximum/minimum/mean value/measurement elapsed time.
-
Alarm function
-
Overload display: “OL” or “-OL”
-
Input limit: Maximum input 24V DC or AC.
-
Manual 300 records. (TM-84D)
-
Datalogging capacity 14,000 records. (TM-84D)
-
Save interval: 1 second~24 hours.
-
Low battery display
-
T1 – T2 / T1 and T2 top and bottom switch button
SPECIFICATIONS
-
Dimensions:155x56x38mm(length x width x height).
-
Weight: Approximately 170 grams.
Electrical Specifications
|
Range
|
TYPE-K:-200°C to +1372°C (-328°F to +2501°F)
TYPE-J:-210°C to +1200°C (-346°F to +2192°F)
TYPE-T:-250°C to +400°C (-418°F to +752°F)
TYPE-E:-210°C to +1000°C (-346°F to +1832°F)
TYPE-R/S：0°C to +1767°C (+32°F to +3212°F)
TYPE-N:-150°C to +1300°C (-238°F to +2372°F)
|
|
|
Resolution
|
0.1
|
K / J / T / E / N
|
|
1
|
R / S
|
|
|
Accuracy
|
±(0.05% rdg + 0.7°C / 1.4°F)
-250°C to -100°C (-418°F to -148°F)
|
|
|
±(0.05% rdg + 0.7°C / 1°F)
-100 to +1372°C (-148 to 2501°F)
|
||
|
R/S Type:
|
||
|
±(0.05% rdg + 2°C / 4°F)
0°C to 1767°C (32°F to 3212°F)
|
||
|
Temperature coefficient
|
0.01%+0.03°C of read value/ °C (0.06°F/ °F) outside
+18°C to 28°C (+64°F to +82°F) specified range
(Under -100°C (-148°F): 0.04% of read value added to K, J, T, E, and 0.08% read value added to N).
|
|
|
Temperature scale
|
ITS-90
|
|
|
The above specifications do not include error of thermocouple.
|
||
Functions:
|
TM-83
|
TM-83D
|
TM-84
|
TM-84D
|
|
|
Single input
|
•
|
•
|
||
|
Dual input
|
•
|
•
|
||
|
Data logger
|
•
|
•
|
ACCESSORIES
-
User’s Manual
-
9 V alkalie battery
-
Carrying Case
-
9V AC to DC adaptor(TM-84D)
-
USB cable(TM-84D)
-
Installation disk(TM-84D)
