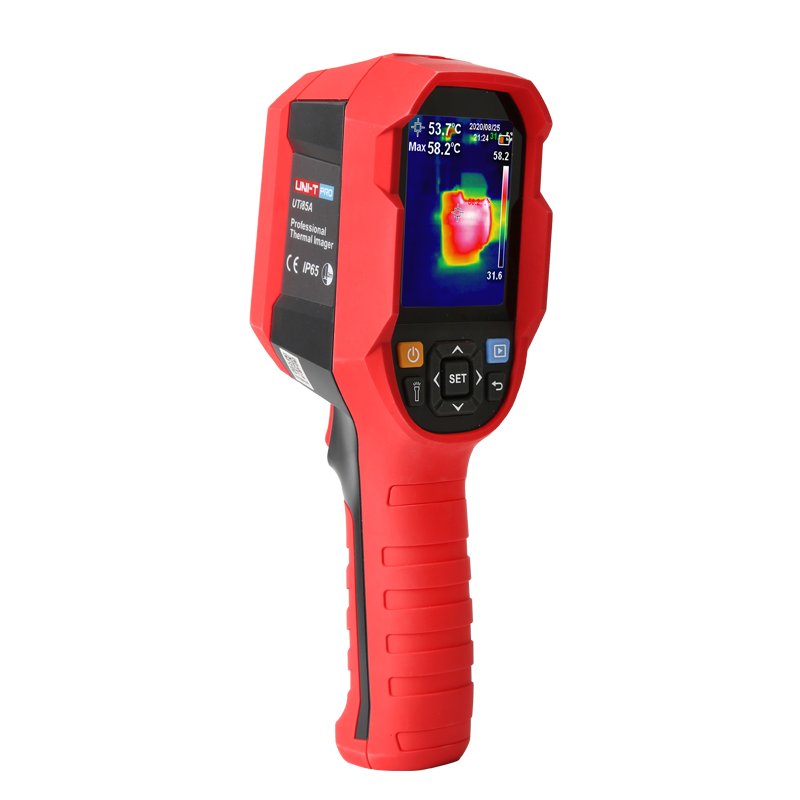

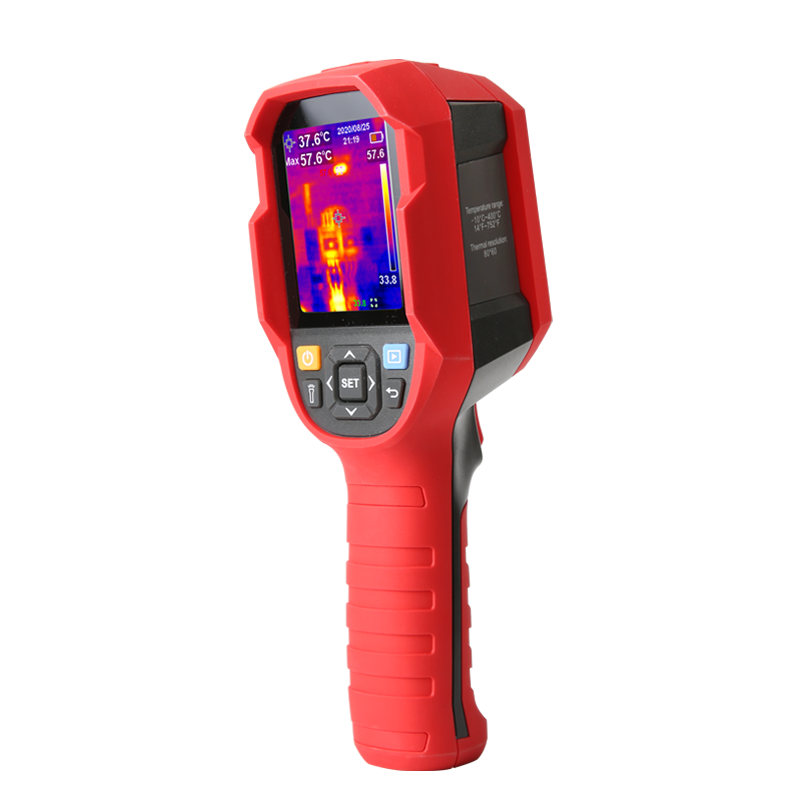

UTi85A
Heavy Duty Thermal Camera

UTi85A is a rugged and ergonomically designed thermal camera. It is powerful, user friendly, and with great performance. UTi85A can automatically track the objective’s temperature from -10℃~400℃. It is an economical professional troubleshooting tool, widely used in many applications.

Heavy Duty Thermal Camera

Features :

Durable and user-friendly

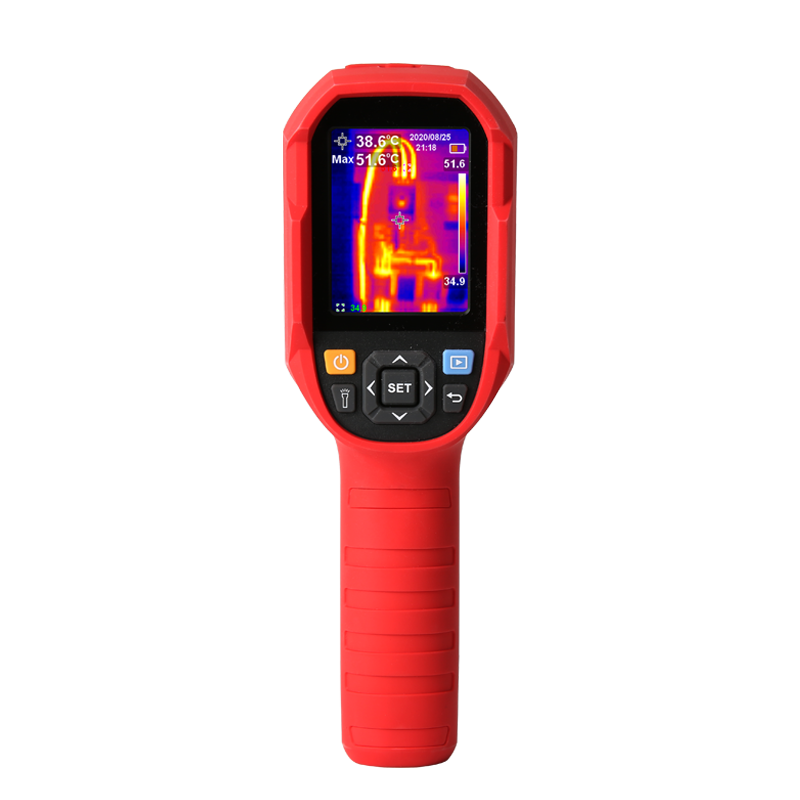

2.8” TFT display screen (320×240 Pixels)
IR resolution: 80×60
Temperature measurement range: -10℃ to 400℃ / 14℉ to 752 ℉
Auto alarm for high/low temperature
Auto tracking for hot spot/cold spot
Image capture
Color palettes: 5(White hot, Red hot, Ice blue, Rainbow, Ironbow)

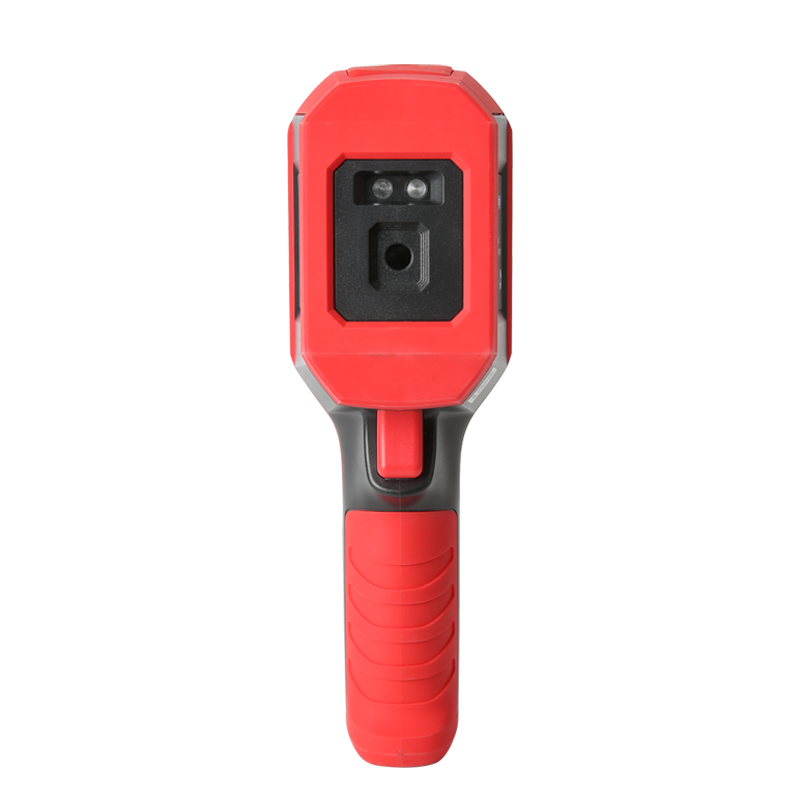

LED flashlight
PC software analysis
Rechargeable Li-ion battery

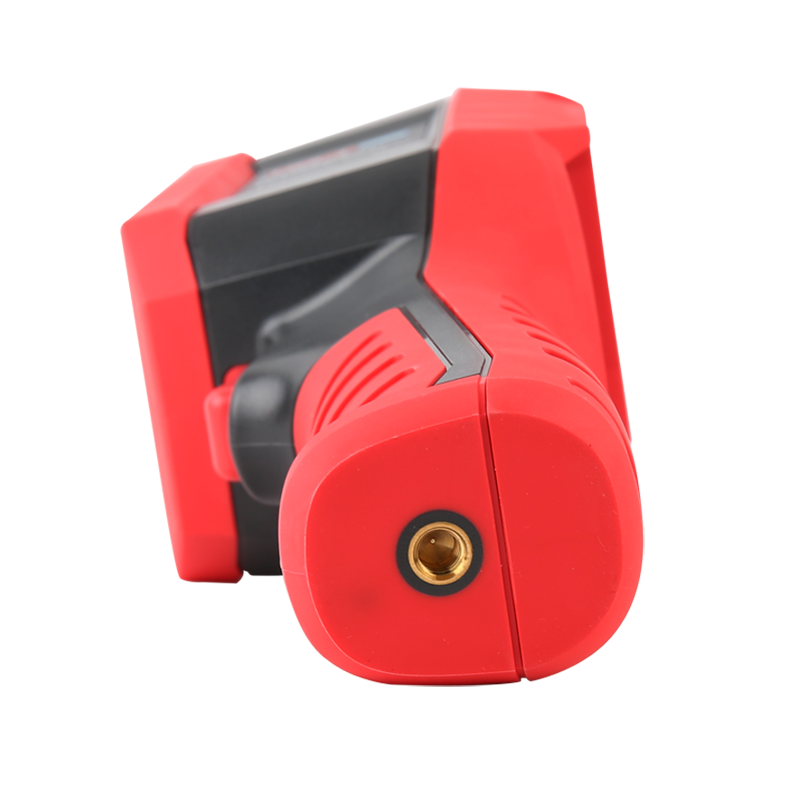

1/4” tripod mounting hole
IP65
2m drop proof

SPECIFICATIONS

Product Specifications of UTi85A

Technical Data
IR resolution (Pixels)	80×60
Display	2.8” TFT LCD (320×240)
Field of view(FOV)	51°×38°
Thermal sensitivity(NETD)	≤150mK
Spatial resolution(IFOV)	11.1mrad
Frame rate	≤9Hz
Spectral range	8~14µm
Focus	Focus Free
Temperature measurement range	-10℃~400℃
Accuracy	±2℃ or ±2% whichever is greater
Emissivity	0.01~1.00 adjustable (0.95 default)
Functions
Color palettes	5 (White hot, Red hot, Ice blue, Rainbow, Ironbow)
Image modes	Thermal
Hi/Lo temperature alarm	Icon,LED flashlight
PC software analysis	√
General Characteristics
Battery	Fixed Li-ion battery (3.6V 5000mAh)
Battery operation time	≥ 6 hours
USB	Type-C
IP rating	IP65
Drop proof	2m

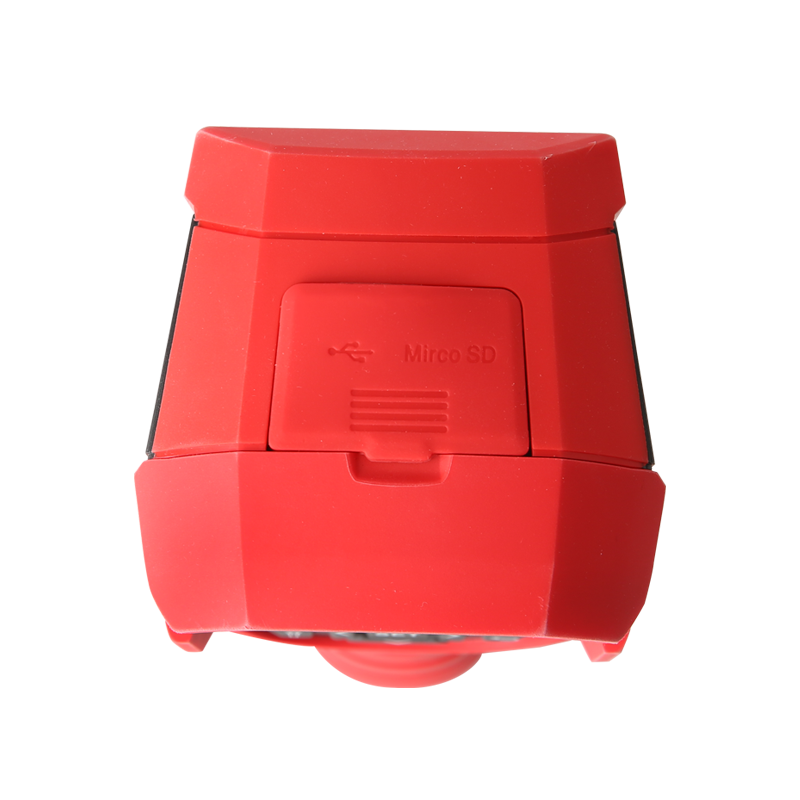

Storage	Up to 32GB Micro SD card
Image/Video storage format	BMP
Certificates	CE,FCC,RoHS
Product net weight	490g
Product size	236mm×75.5mm×86mm
Packing Details
Standard accessories	Micro SD card, Type-C USB cable, Adapter, English manual,Documents download operation guide card
Standard individual packing	Gift box
Standard Qty per carton	10
Standard carton size	500mm×315mm×295mm
Standard carton G.W.	10.1kg

APPLICATIONS

Applications of UTi85A

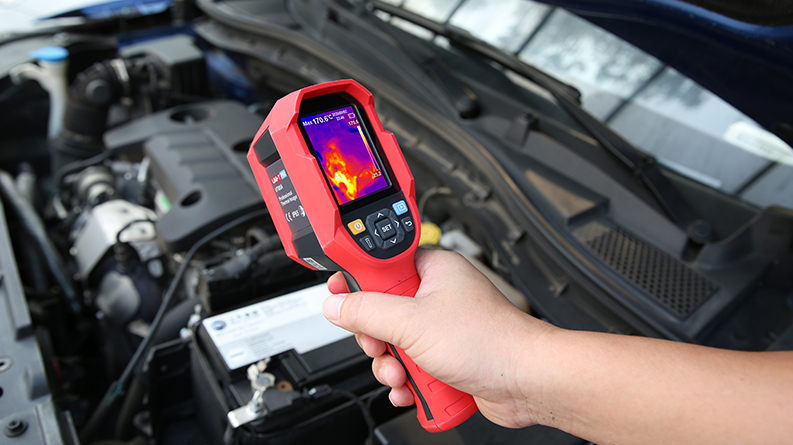

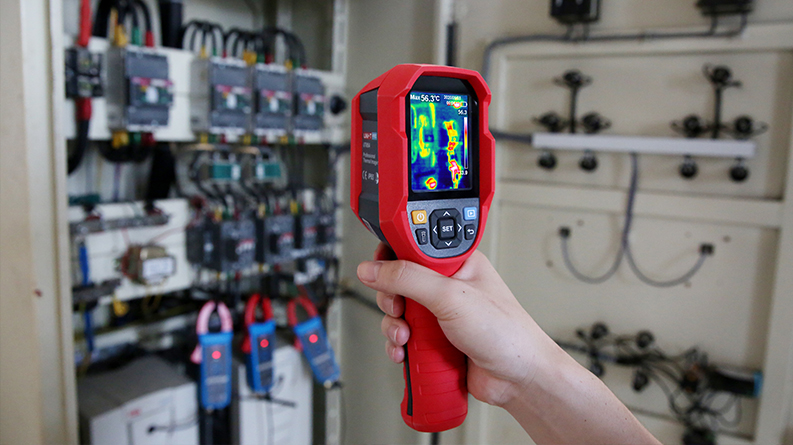

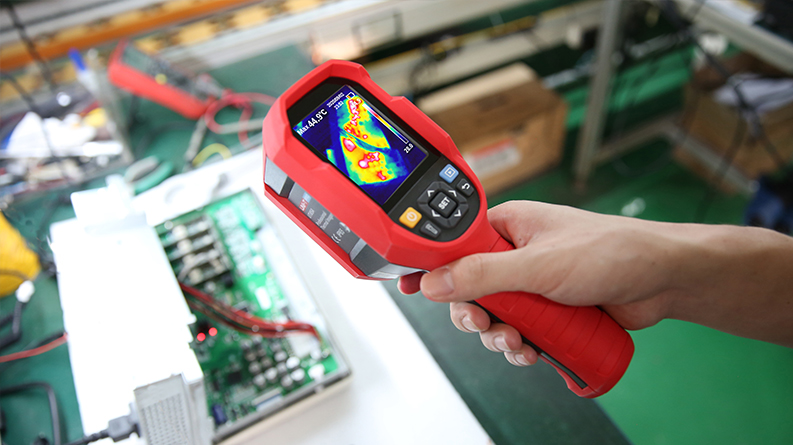

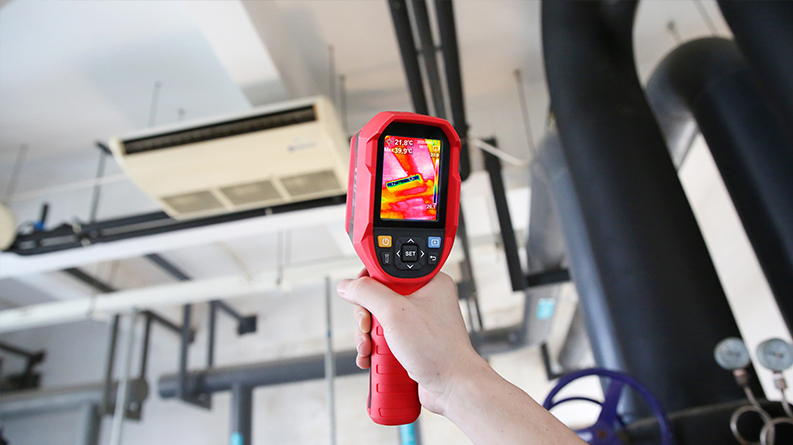

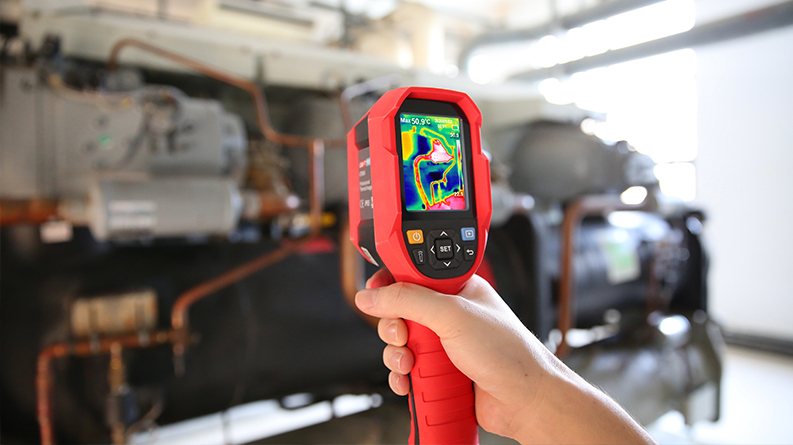

PCBA inspection, motor inspection, automotive maintenance, solar panel inspection, power distribution cabinet inspection, electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building&HVAC inspection etc.
