UTi80P
Pocket-sized Thermal Camera

UTi80P thermal camera is mini and portable in size, users can put it into pocket to go anywhere to identify and troubleshoot problems, it can automatically track the objective’s temperature from -10°C to 400°C, which can be widely used in many applications.

Pocket-sized Thermal Camera

UTi80P thermal camera is mini and portable in size, users can put it into pocket to go anywhere to identify and troubleshoot problems, it can automatically track the objective’s temperature from -10°C to 400°C, which can be widely used in many applications.

Features :

  • Mini and portable

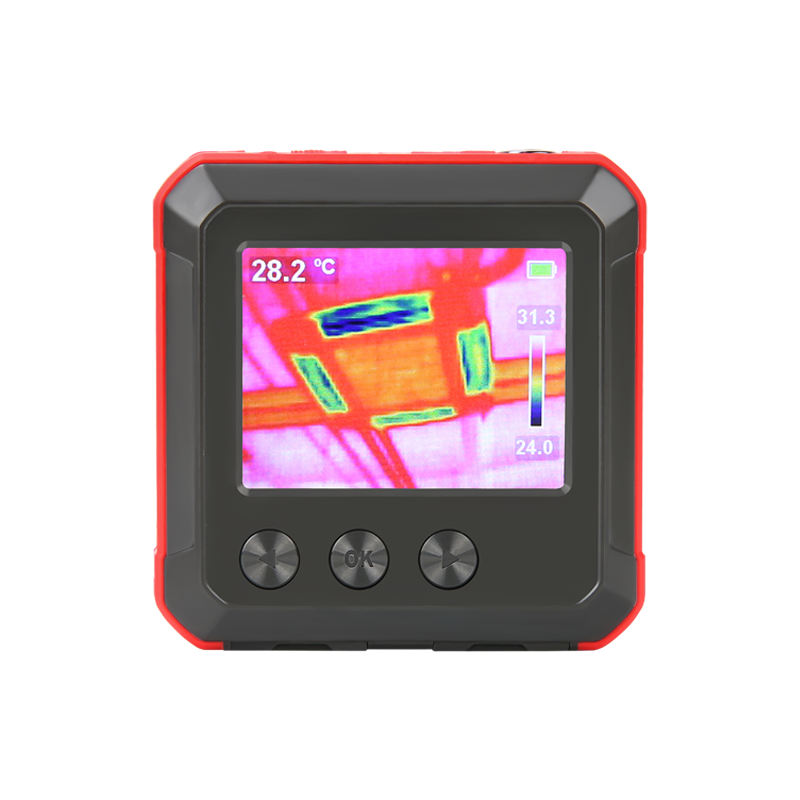

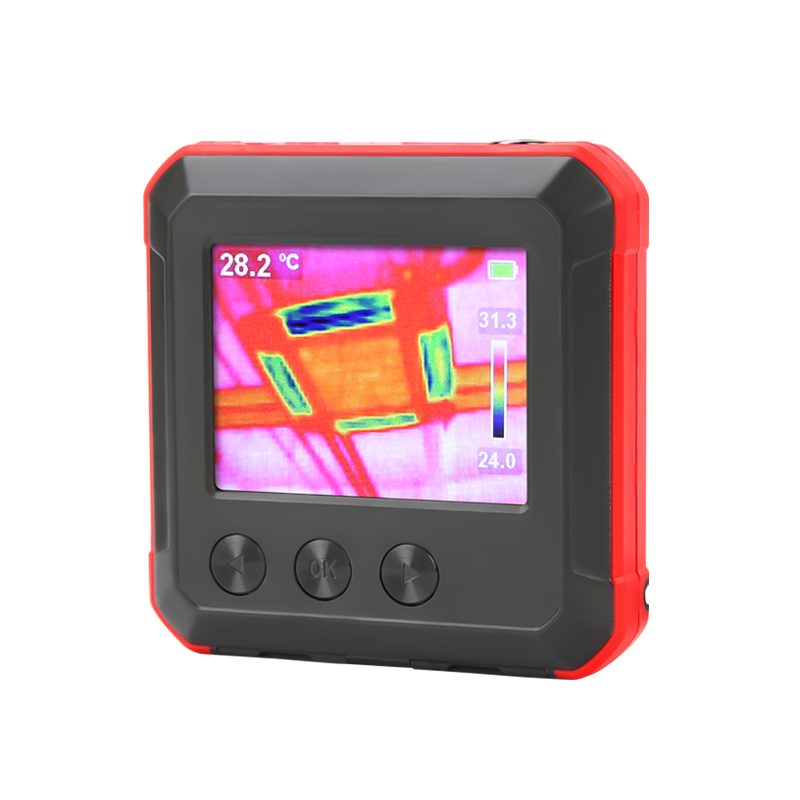

  • 2.4” TFT display screen (320×240 Pixels)
  • IR resolution: 80×60
  • Temperature measurement range: -10℃ to 400℃ / 14℉ to 752 ℉
  • Auto alarm for for high/low temperature
  • Auto tracking for hot spot/cold spot
  • Image capture
  • Color palettes: 3(Iron, Rainbow, Grey)
  • PC software analysis
  • Rechargeable Li-ion battery

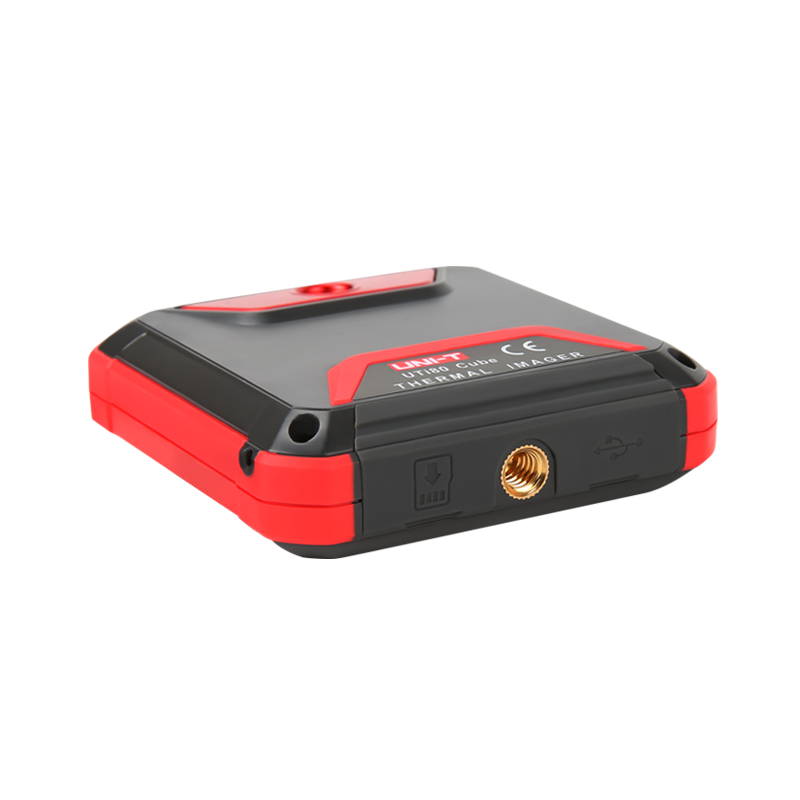

  • 1/4” tripod mounting hole
  • 1m drop proof

SPECIFICATIONS

Product Specifications of UTi80P

Functions
☑ Color palettes: 3 (Ironbow, Grey, Rainbow)
☑  Auto tracking and alarm for high/low temperature
☑ PC software analysis
☑  Auto power off: 5/10/30mins(default)/off
Technical Data
IR resolution (Pixels) 80×60
Display 2.4” TFT LCD (320×240)
Field of view(FOV) 50°×38°
Thermal sensitivity(NETD) ≤150mK
Spatial resolution(IFOV) 11mrad
Frame rate ≤9Hz
Spectral range 8~14µm
Focus Focus Free
Temperature measurement range  -10℃~400℃
Accuracy ±2℃ or ±2% whichever is greater
Emissivity 0.01~1.00 adjustable (0.95 default)
General Characteristics
Battery Fixed Li-ion battery (3.7V 1300mAh)
Battery operation time  ≥3.5 hours
USB Micro USB
Drop proof 1m
Storage 16GB Micro SD card
Image/Video storage format BMP
Certificates CE,RoHS
Product net weight 125g
Product size 76mm×76mm×24mm
Packing Details
Standard accessories Hand strap, Carrying bag, Micro SD card,
Micro USB cable, English manual,Documents download operation guide card
Standard individual packing Gift box
Standard Qty per carton 5
Standard carton size 455mm×145mm×150mm
Standard carton G.W. 2.8kg

APPLICATIONS

Applications of UTi80P

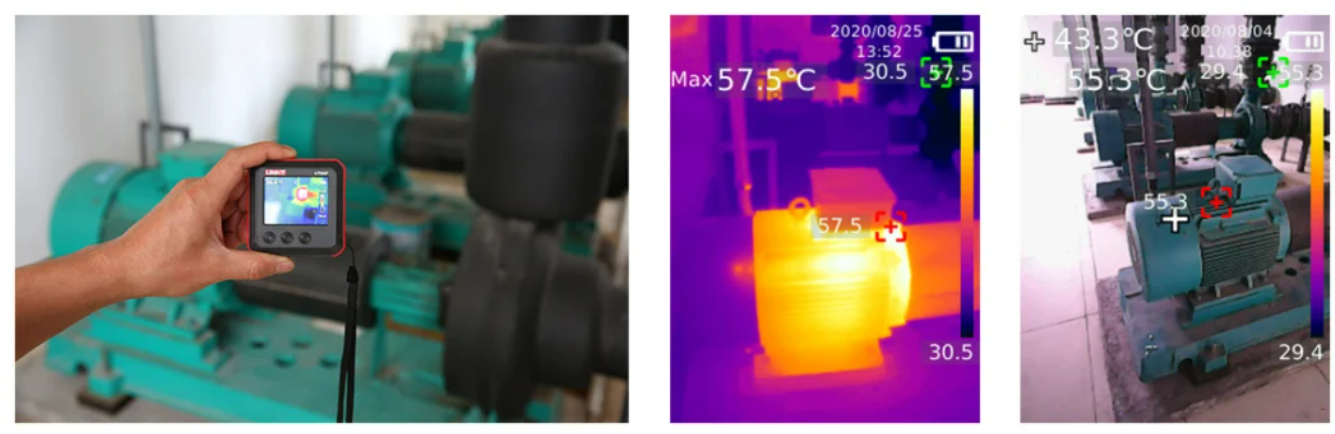

Motor inspection:

The thermal camera UTi80P can detect the imbalance loading, overloading, wiring error and parts malfunction etc. Heat insulation protection is the key action for avoid fire risk, engineer can also use the thermal imager check the protection situation regularly to ensure the safety production.

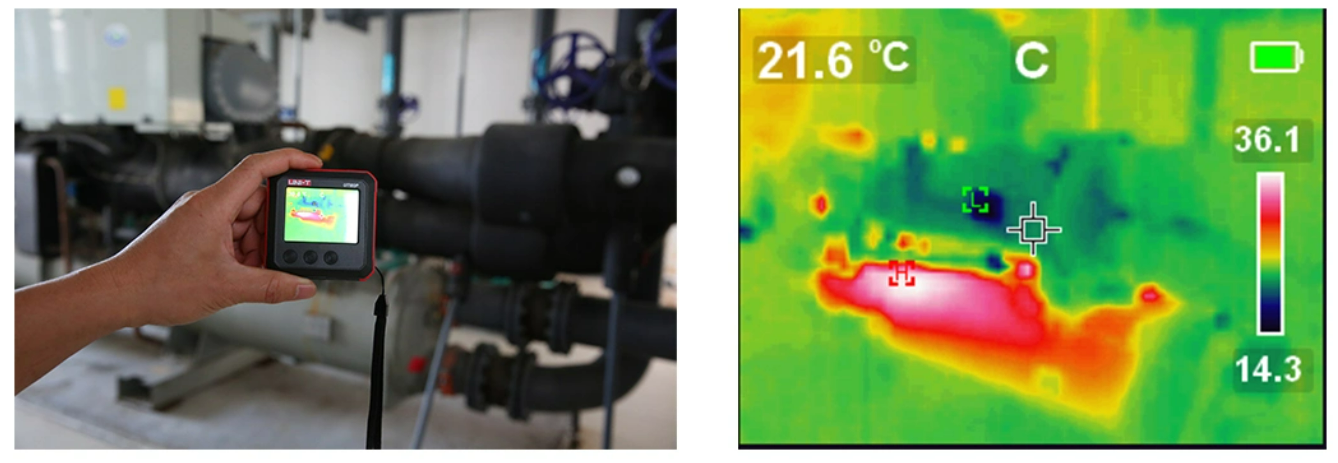

HVAC inspection:

Using UTi80P can check the temperature change of pipeline without any body touch, detect the potential problems such as pipeline thinning, corrosion, leakage. Avoid the risk to human and environment.
