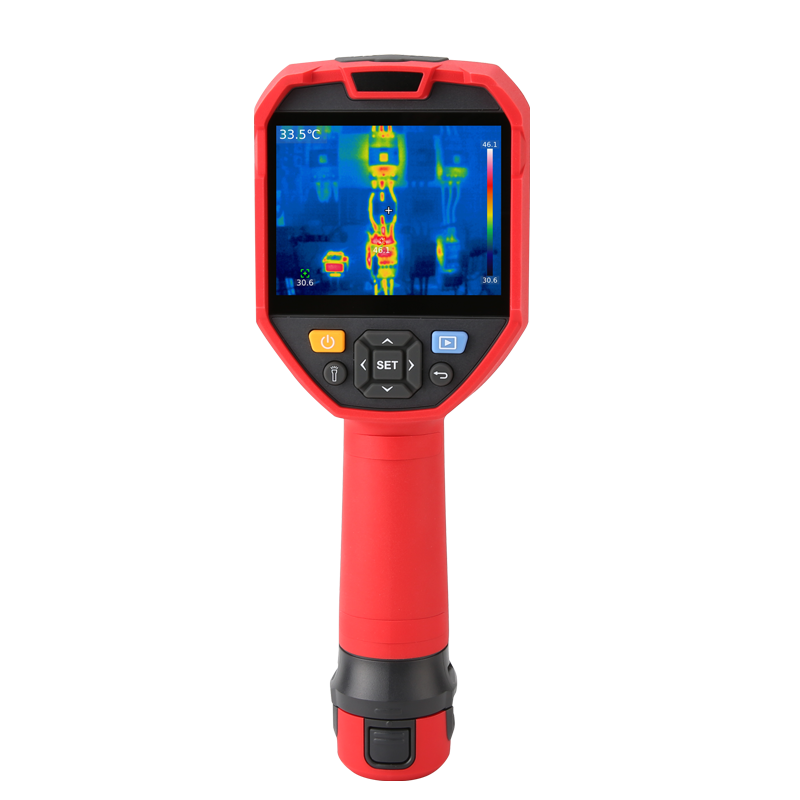

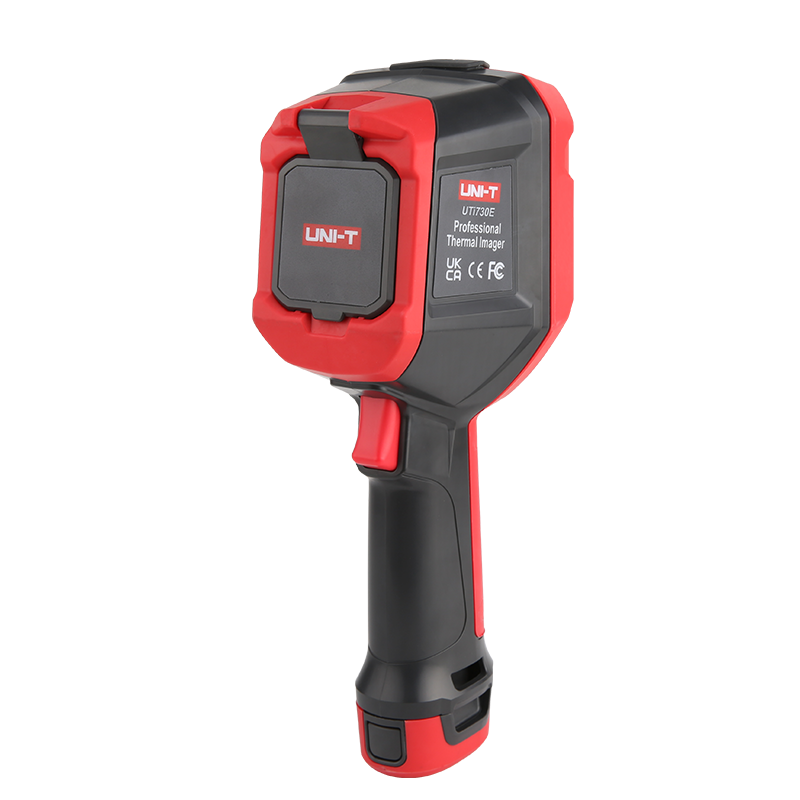

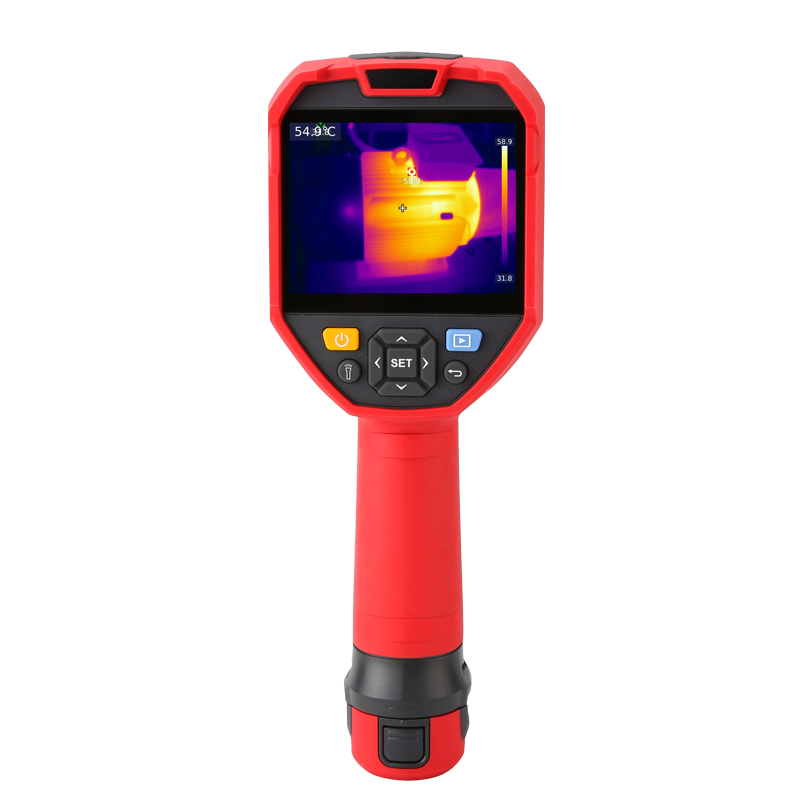

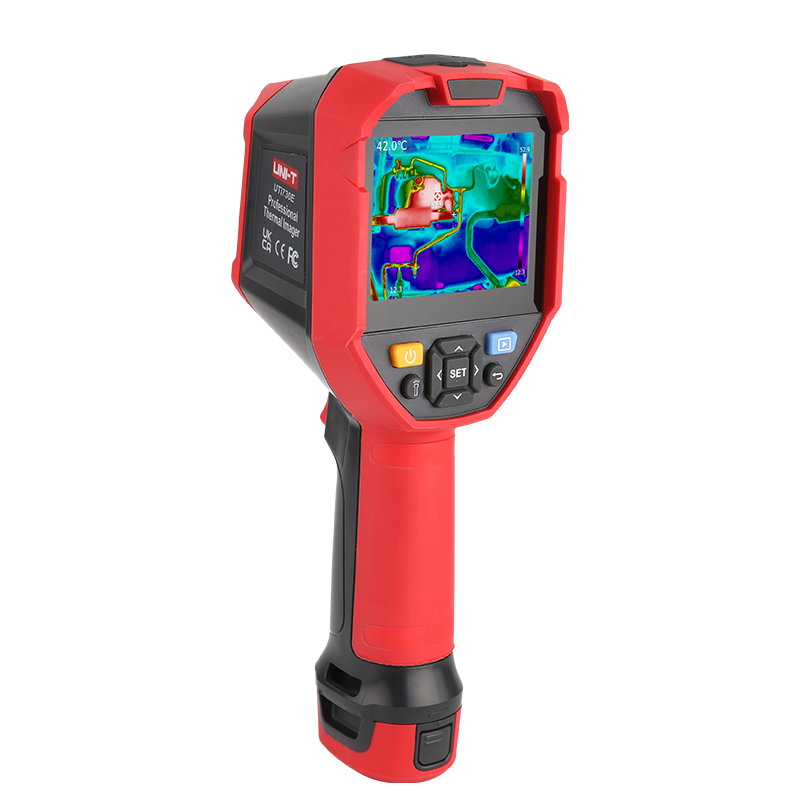

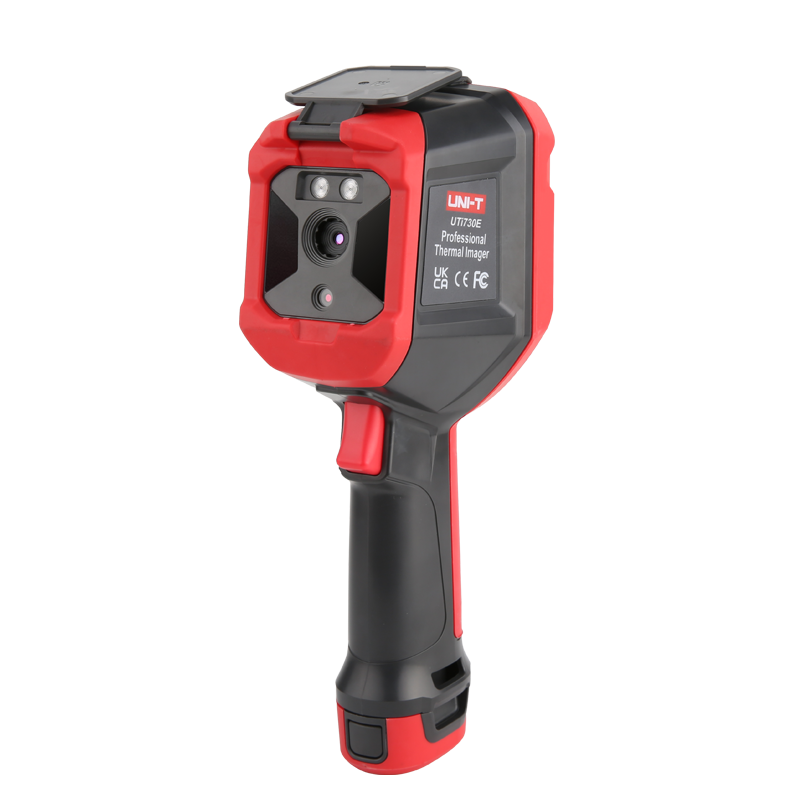

UTi730E
Enhanced Thermal Camera

UTi730E is an advanced thermal camera with Wi-Fi capability. Its large 3.5” IPS display screen can clearly display 320×240 thermal resolution 2MP visual camera, or a blended image of both. UTi730E’s 5200mAh detachable battery pack is also convenient for easy and quick battery change, allowing continuously work for long periods of time.

Enhanced Thermal Camera

UTi730E is an advanced thermal camera with Wi-Fi capability. Its large 3.5” IPS display screen can clearly display 320×240 thermal resolution 2MP visual camera, or a blended image of both. UTi730E’s detachable battery pack is also convenient for easy and quick battery change, allowing continuously work for long periods of time.

Features :

3.5”IPS display screen (640×480 Pixels)
IR resolution: 320×240
Temperature measurement range: -40℃to 400℃ / -40℉ to 752 ℉
Auto alarm for high/low temperature
Auto tracking for hot spot/cold spot
On screen analyzer :5 Points/1 Line/3 Rectangles/3 Circles
Image capture
Digital camera resolution: 2MP
Digital zoom: 2x, 4x
Image modes: Thermal,Visual image,Fusion,PIP
Color palettes: 7(White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava)
Isotherm(Auto/Ratio/Below/Above/Section/Manual)
LED flashlight
Wi-Fi connection through Mobile App
QR Code – photo management
PC software: analysis and real-time image projection
5200mAh replaceable battery pack (Type-C rechargeable)

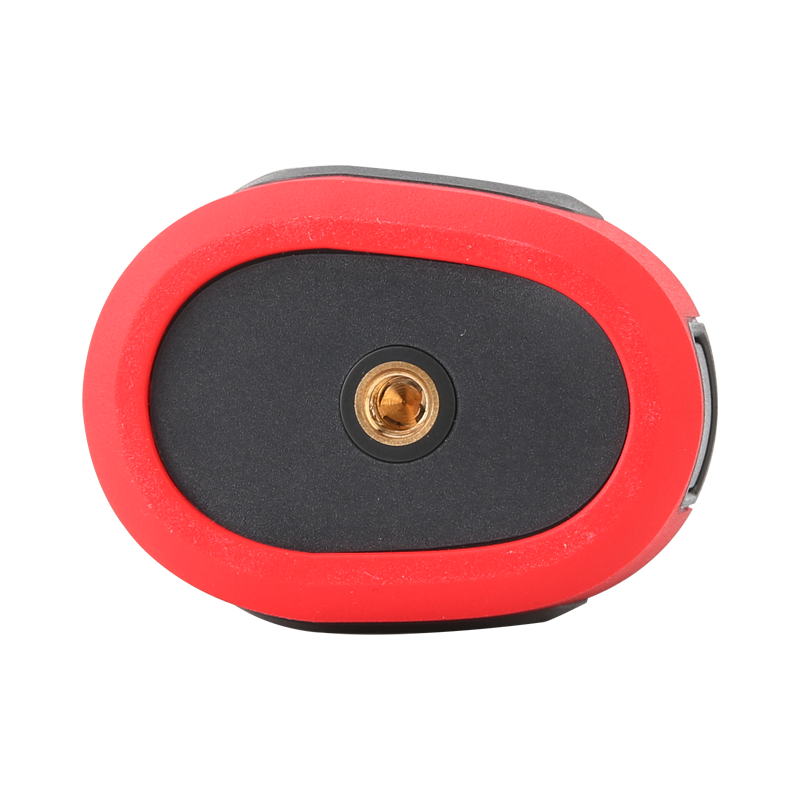

1/4”tripod mounting hole
IP54
2m drop proof

SPECIFICATIONS

Product Specifications of UTi730E

Technical Data
IR resolution (Pixels)	320×240
Display	3.5‘’IPS (640×480)
Field of view(FOV)	56°×42°
Thermal sensitivity(NETD)	≤65mK
Spatial resolution(IFOV)	3mrad
Frame rate	≤9Hz
Spectral range	8~14µm
Focus	Focus Free
Temperature measurement range	-40℃~400℃
Accuracy	±2℃ or ±2% whichever is greater
Emissivity	0.01~1.00 adjustable (0.95 default)
Functions
Color palettes	7 (White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava)
Image modes	Thermal,Visual image,Fusion,PIP
On screen analyzer	5 Points/1 Line/3 Rectangles/3 Circles
Digital camera resolution	2MP
Digital zoom	2x, 4x
Hi/Lo temperature alarm	Icon,LED flashlight
Isotherm	Auto/Ratio/Below/Above/Section/Manual
Software analysis	PC+APP
Wi-Fi	√
General Characteristics
Battery	Detachable Li-ion battery pack(3.7V 5200mAh)
Battery operation time	≥ 3 hours (with Wi-Fi off)
USB	Type-C
IP rating	IP54
Drop proof	2m
Storage	16G Micro SD card
Image/Video storage format	JPEG
Certificates	CE,UKCA,FCC,RoHS
Product net weight	654g
Product size	260mm×97mm×99mm
Packing Details
Standard accessories	Micro SD card, Type-C USB cable, English manual, Li-ion battery pack
Standard individual packing	Toolbox,Gift box
Standard Qty per carton	1
Standard carton size	400mm×185mm×345mm
Standard carton G.W.	3.6kg

APPLICATIONS

Applications of UTi730E

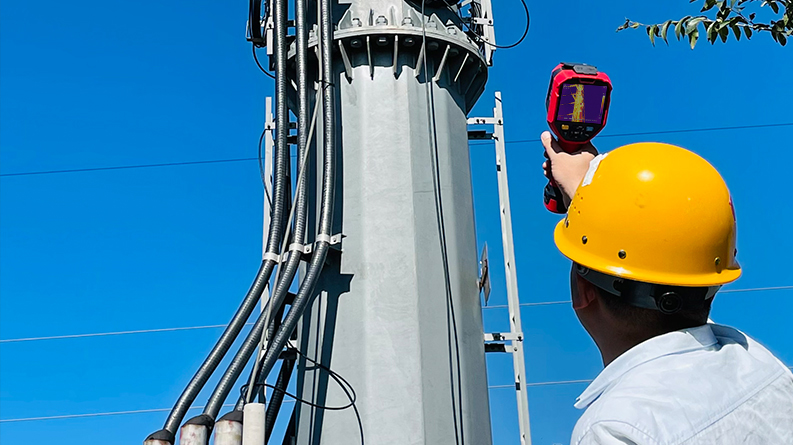

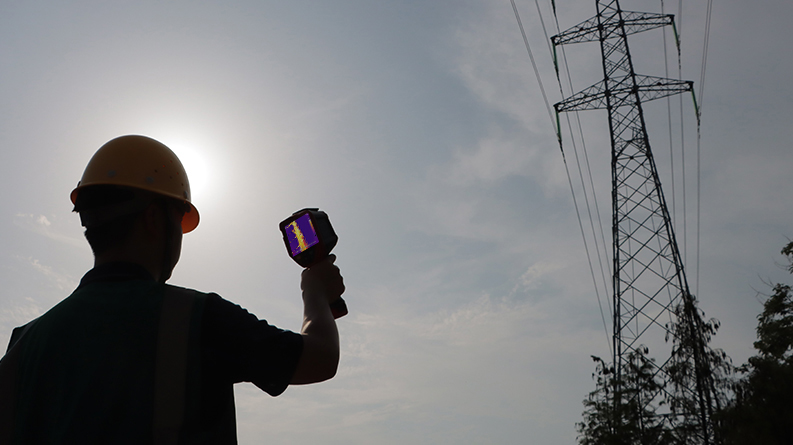

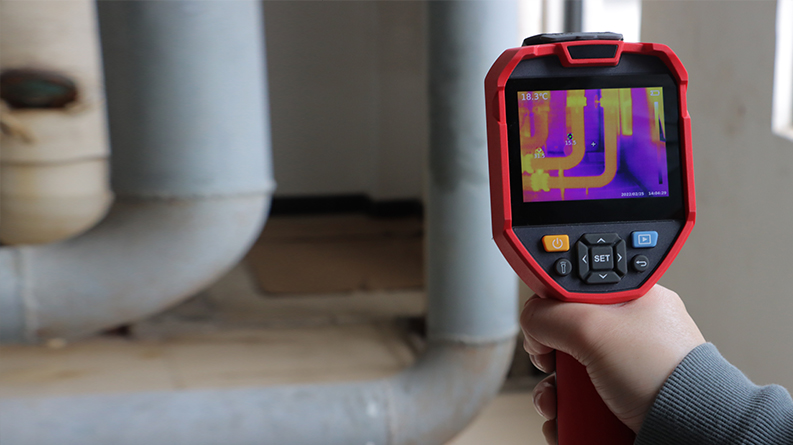

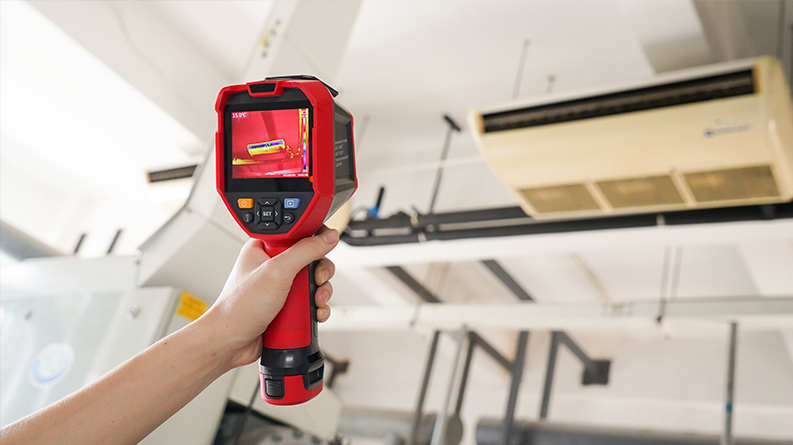

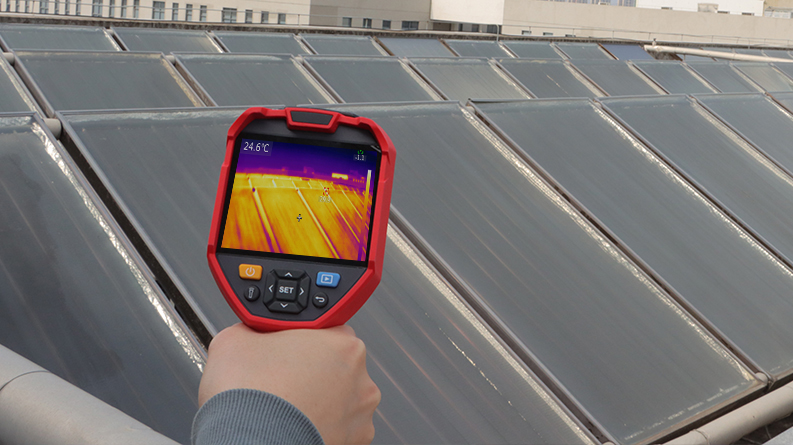

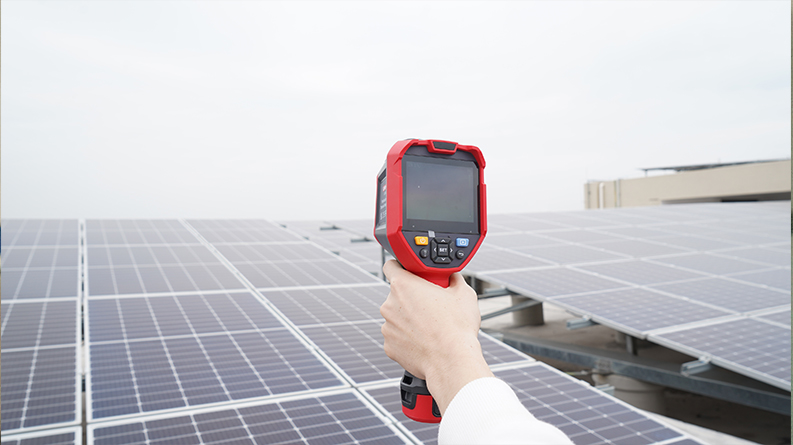

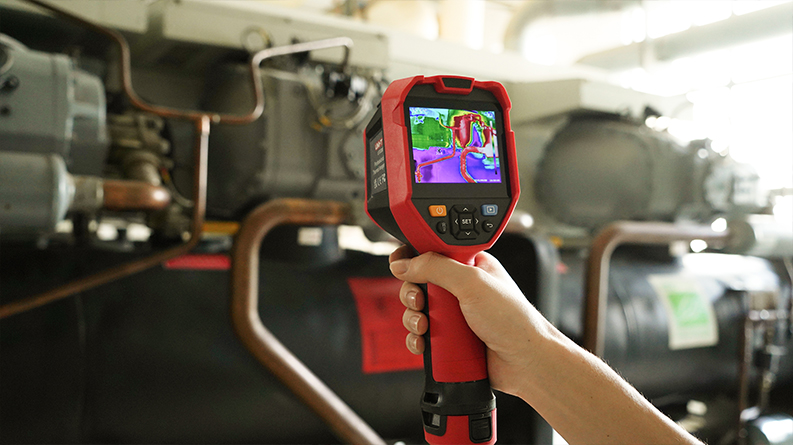

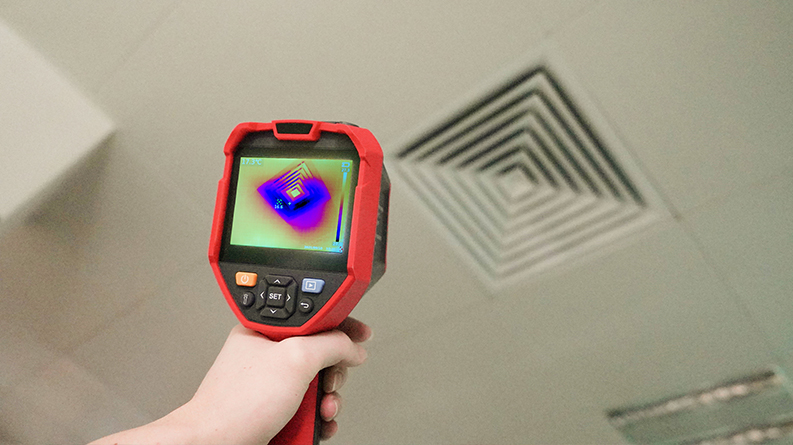

PCBA inspection, motor inspection, automotive maintenance, solar panel inspection, power distribution cabinet inspection, electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building&HVAC inspection etc.
