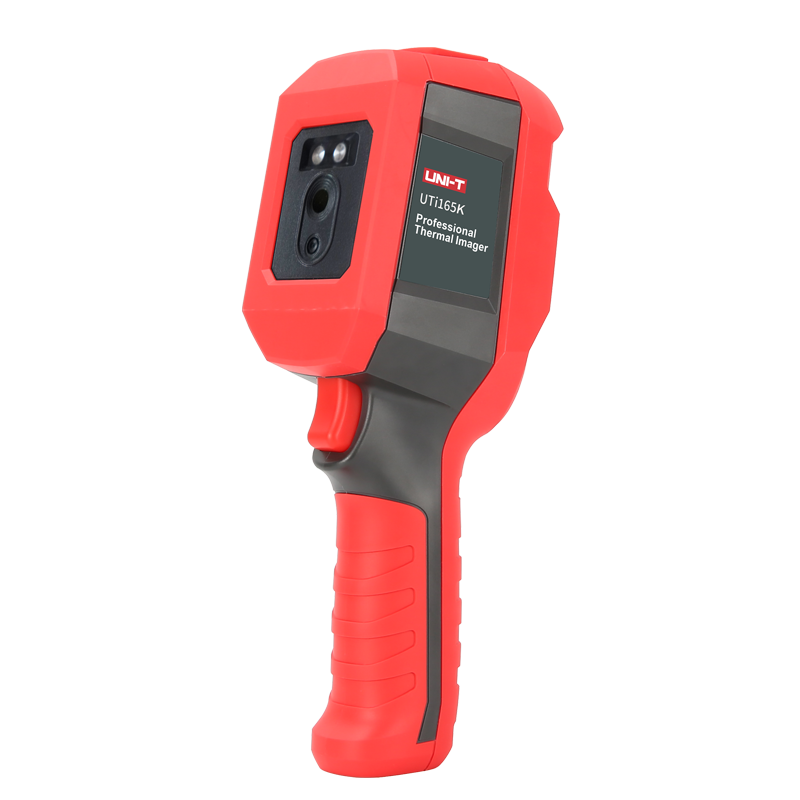

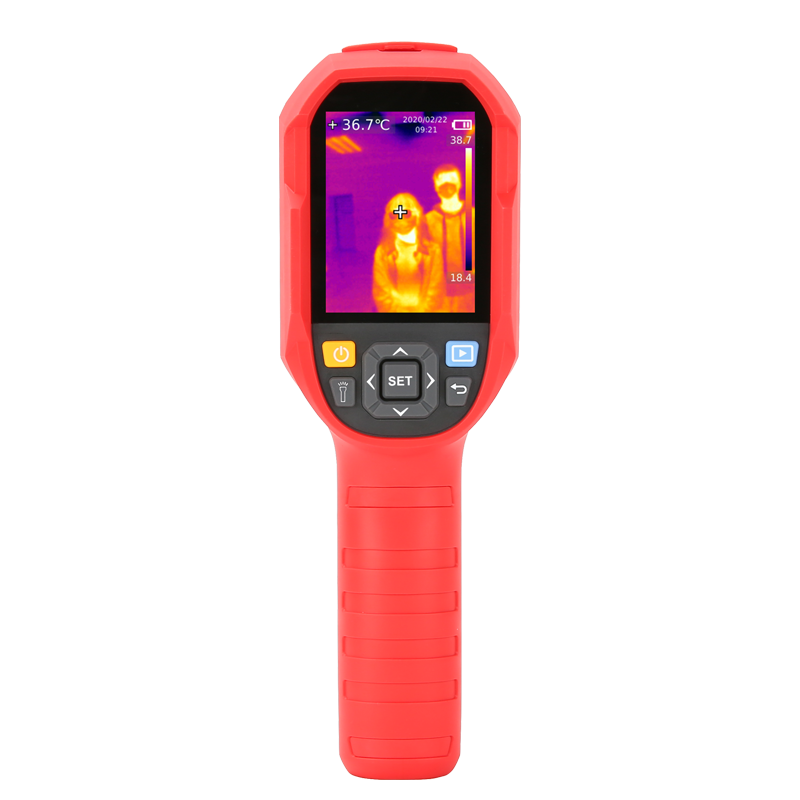

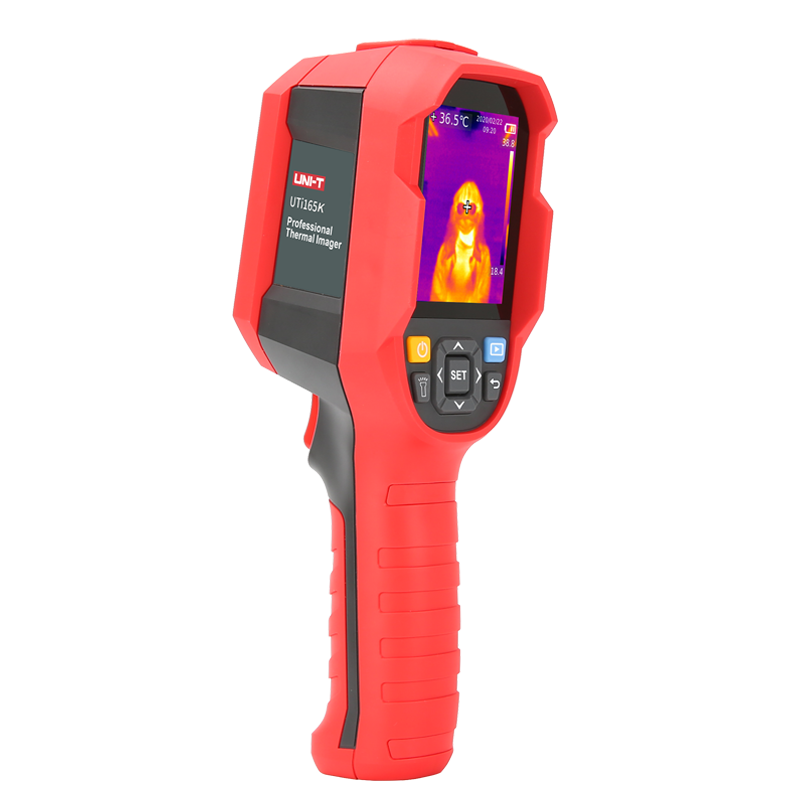

UTi165K
EST Thermal Camera

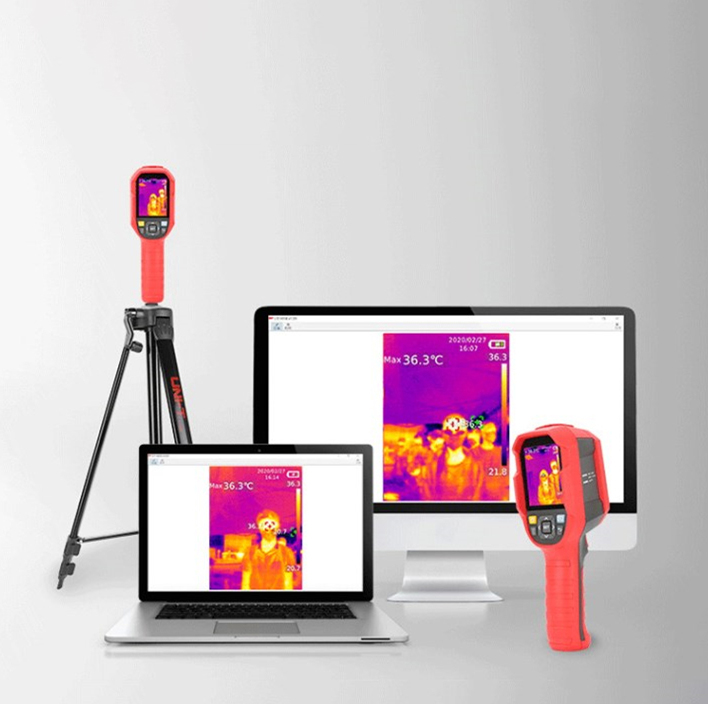

UTi165K EST thermal camera can quickly and effectively measure surface temperatures to identify elevated body temperature. It can aslo be mounted on a tripod and set in public locations, such as schools, shopping malls,airport and other high traffic areas. The thermal camera is with PC software (support data review, analysis and report sharing), it also supports real time projection to display the image and data on a large monitor and automaticlly tracking and alarm for high temperature.

Elevated Skin Temperature Thermal Cameras

UTi165K EST thermal camera can quickly and effectively measure surface temperatures to identify elevated body temperature. It can aslo be mounted on a tripod and set in public locations, such as schools, shopping malls,airport and other high traffic areas. The thermal camera is with PC software (support data review, analysis and report sharing), it also support real time projection to display the image and data on a large monitor and automaticlly tracking and alarm for high temperature.

Features :

  • Durable and user-friendly
  • IR resolution: 160×120
  • 8” TFT display screen (320×240 Pixels)
  • Temperature measurement range: 30℃ to 45℃
  • Auto alarm for high temperature
  • Image modess: Thermal,Visual image,Fusion
  • Color palattes: 7(Ironbow, Rainbow, White hot, Black hot, Red hot, Lava, Rainbow HC)
  • PC software analysis
  • Real-time image projection
  • RIO
  • LED flashlight
  • Rechargeable Li-ion battery
  • 1/4” tripod mounting hole

SPECIFICATIONS

Product Specifications of UTi165K

Technical Data
IR resolution (Pixels) 160×120
Display 2.8”TFT LCD (320×240)
Field of view(FOV) 56°×42°
Thermal sensitivity(NETD) ≤50mk
Spatial resolution(IFOV) 6.1mrad
Frame rate ≤9Hz
Spectral range 8~14µm
Focus Focus Free
Temperature measurement range 30℃~45℃ (86℉-113℉)
Accuracy ±0.5° (@25˚C ambient temperature)
Emissivity 0.01~1.00 adjustable (0.95 default)
Functions
Color palettes 7
(Ironbow, Rainbow, White hot, Black hot, Red hot, Lava, Rainbow HC)
Image modes Thermal,Visual Image,Fusion
On screen analyzer 3 Points
Digital camera resolution 640×480
Hi/Lo temperature alarm Icon,LED flashlight
Software analysis PC
General Characteristics
Battery Fixed Li-ion battery (3.6V 5000mAh)
Battery operation time  ≥ 6 hours
USB Type-C
Storage 32G Micro SD card
Image/Video storage format BMP
Certificates CE,FCC,RoHS
Product net weight 910g
Product size 236mm×75.5mm×86mm
Packing Details

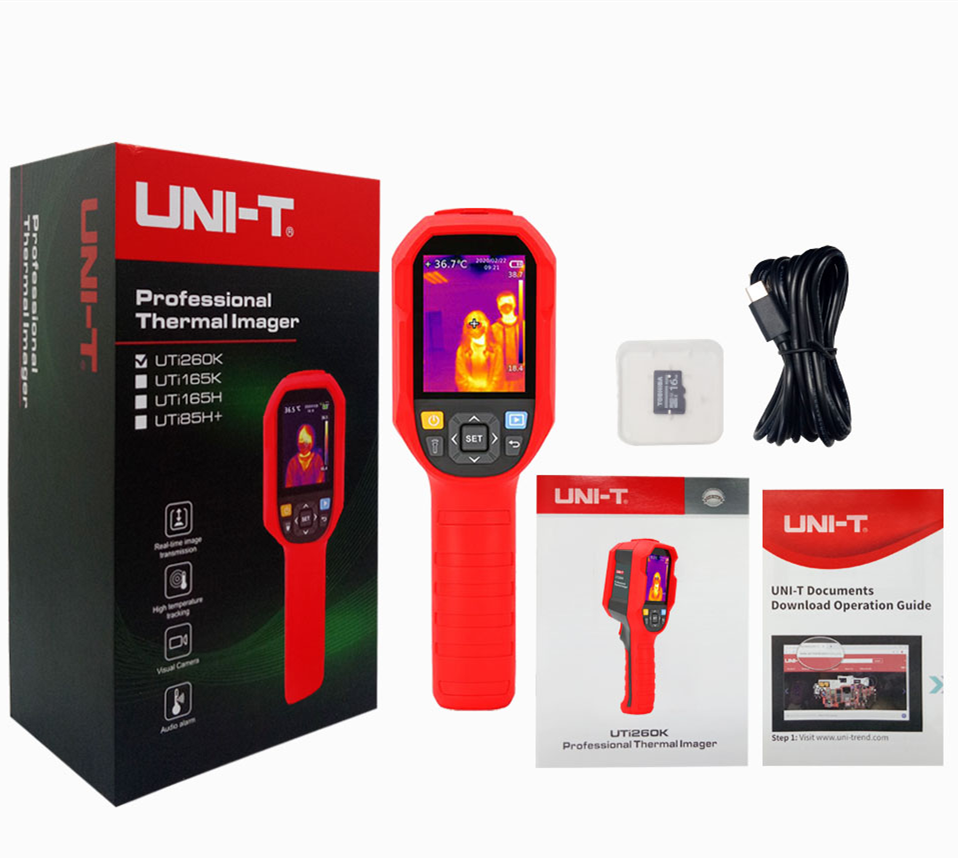

Standard accessories Type-C USB cable, Micro SD card, English manual
Standard individual packing Gift box
Standard Qty per carton 10pcs
Standard carton size 500mm×315mm×295mm
Standard carton G.W. 2.2kg

APPLICATIONS

Application of UTi165K

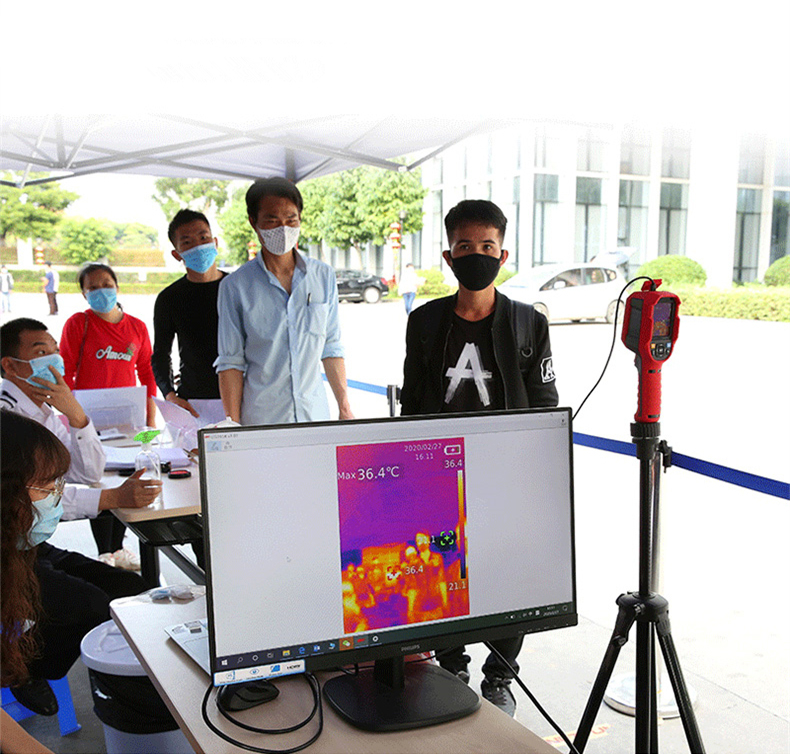

The thermal camera can be widely used in factories, office buildings,shopping malls, schools, airport,subway,community,  residential quarters, etc.
