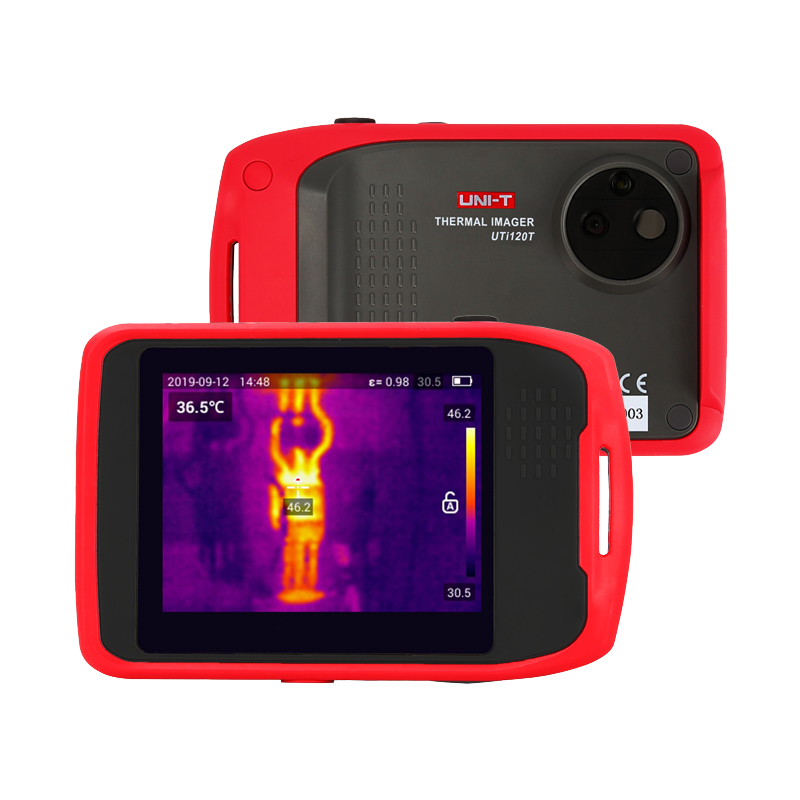

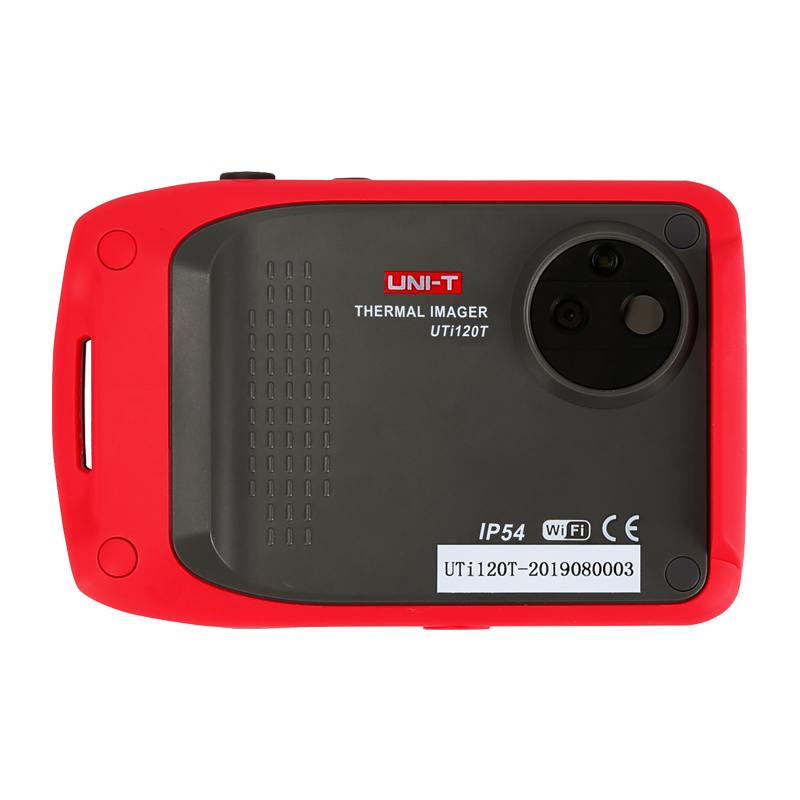

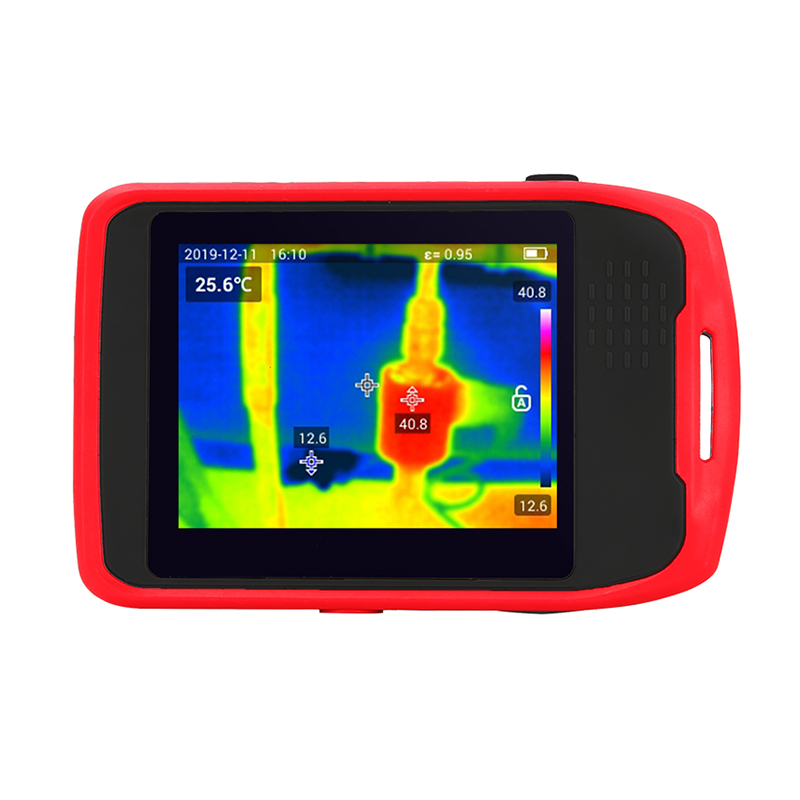

UTi120T
Pocket-sized Thermal Camera

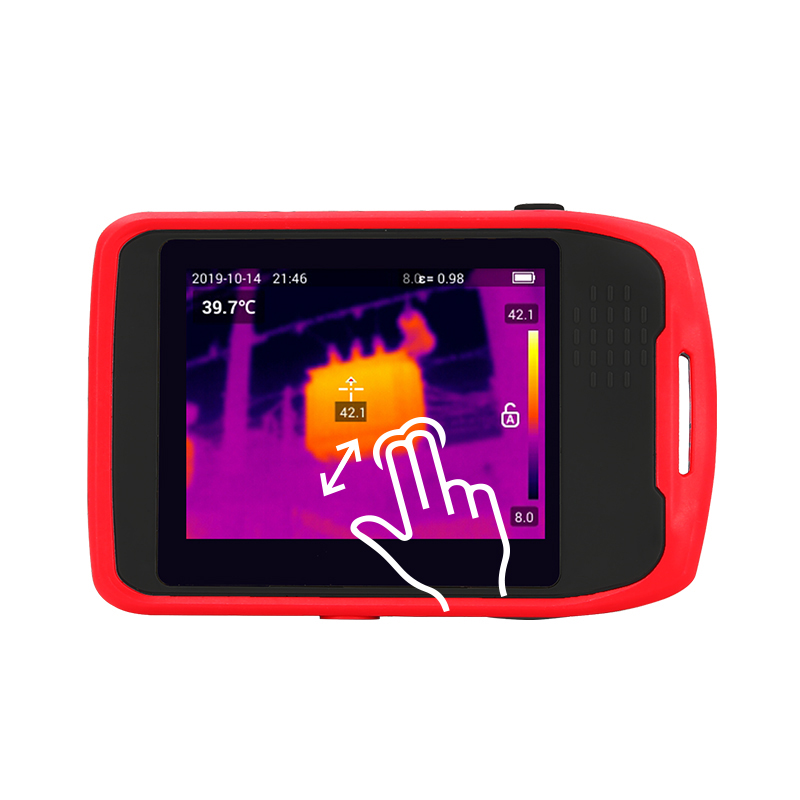

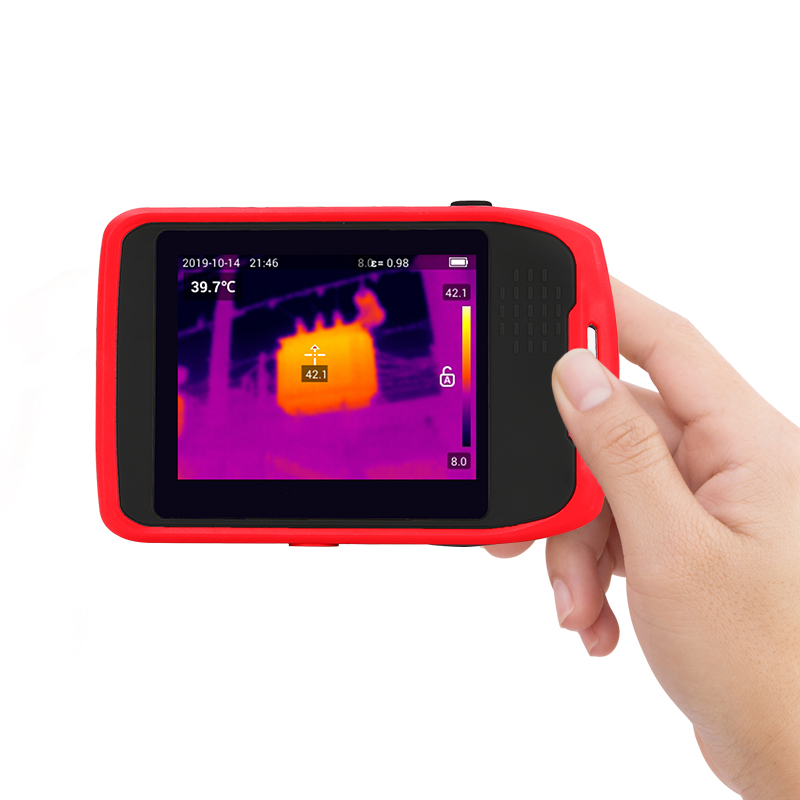

UTi120T is a pocket-sized and compact thermal camera, it can be easily put into pocket, which is very portable for users. Its 3.5’’ large LCD touchable display screen is convenient for users to operate easily. It can automatically track the objective’s temperature from -20℃~400℃. It also supports Wi-Fi connection through UNI-T Mobile App. With UTi120T thermal camera in pocket, users will be ready anytime to diagnose electrical, mechanical, building problems and other potential issues.

Pocket-sized Thermal Camera

UTi120T is a pocket-sized and compact thermal camera, it can be easily put into pocket, which is very portable for users. Its 3.5’’ large LCD touchable display screen is convenient for users to operate easily. It can automatically track the objective’s temperature from -20℃~400℃. It also supports Wi-Fi connection through UNI-T Mobile App. With UTi120T thermal camera in pocket, users will be ready anytime to diagnose electrical, mechanical, building problems and other potential issues.

Features :

  • Compact and portable
  • 5” TFT touch screen (320×240 Pixels)
  • IR resolution: 120×90
  • Temperature measurement range: -20℃ to 400℃ / -4℉ to 752 ℉
  • On screen analyzer: 1 Point /1 Rectangle
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • Image capture
  • Image modes: Thermal, Fusion, Visual Image,PIP
  • Digital camera resolution: 640×480
  • Digital zoom: 1.0~8x (Continuous Zoom)
  • Color palettes: 6(White hot, Black hot, Ironbow, Hot iron, Arctic,Medical)
  • LED flashlight
  • PC Software analysis)
  • Wi-Fi connection through Mobile APP
  • USB rechargeable Li-ion battery

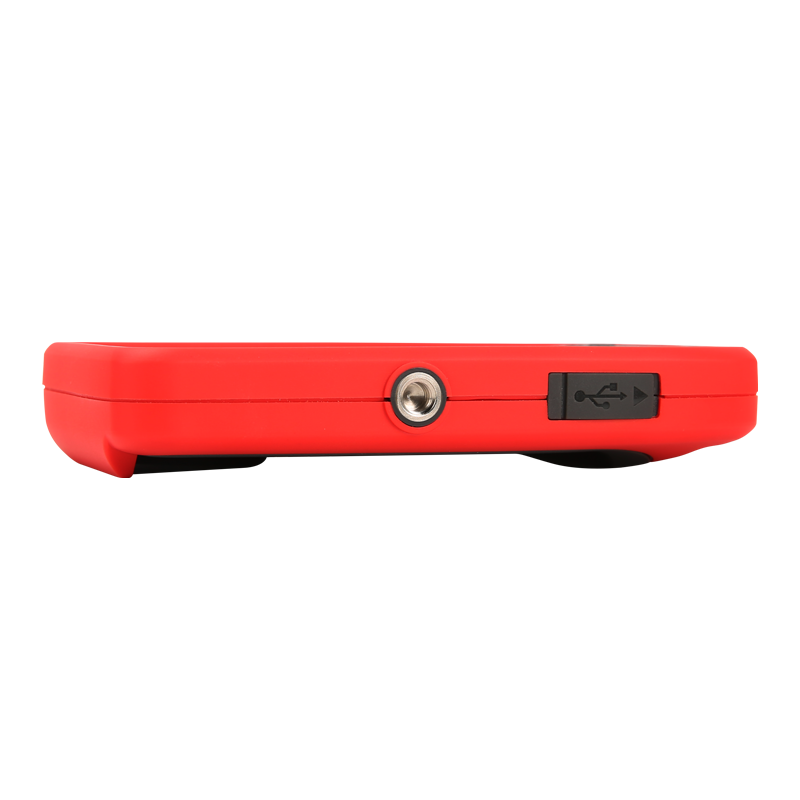

  • 1/4” tripod mounting hole
  • IP54
  • 1m drop proof

SPECIFICATIONS

Product Specification of UTi120T

Technical Data
IR resolution (Pixels) 120×90
Display 3.5” TFT Touch (320×240)
Field of view(FOV) 50°×38°
Thermal sensitivity(NETD) ≤60mK
Spatial resolution(IFOV) 7.6mrad
Frame rate ≤25Hz
Spectral range 7.5~14µm
Focus Focus Free
Temperature measurement range  -20℃~400℃
Accuracy ±2℃ or ±2% whichever is greater
Emissivity 0.01~1.00 adjustable (0.95 default)
Functions
Color palettes 6
(White hot, Black hot, Ironbow, Hot iron, Arctic,Medical)
Image modes Thermal,Visual image,Fusion,PIP
On screen analyzer 1 Point/1 Rectangle
Digital camera resolution 640×480
Digital zoom 1.0~8× continuous
Hi/Lo temperature alarm Icon,LED flashlight
PC software analysis √
Wi-Fi √
General Characteristics
Battery Fixed Li-ion battery (3.7V 5000mAh)
Battery operation time  ≥2 hours (with Wi-Fi off)
USB Type-C
IP rating IP54
Drop proof 1m
Storage 4GB Internal
Image/Video storage format JPEG
Certificates CE,FCC,RoHS
Product net weight 212g
Product size 205mm×124mm×65mm
Packing Details
Standard accessories Hand strap, Carrying Bag, Micro SD card, Type-C USB cable, English manual, Documents download operation guide card
Standard individual packing Gift box
Standard Qty per carton 5
Standard carton size 370mm×250mm×170mm
Standard carton G.W. 3.6kg

APPLICATIONS

Applications of UTi120T

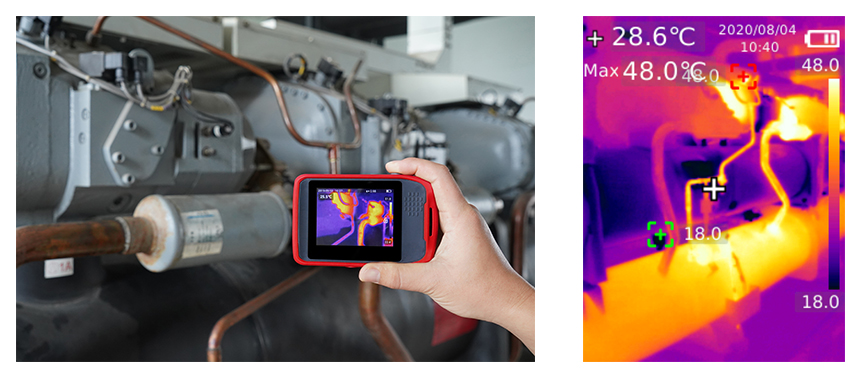

Pipeline Inspection:

Aging, corrosion, blockage, leakage, and other faults can appear during pipeline inspection. With the help of thermal camera UTi120T, faults can be quickly located.

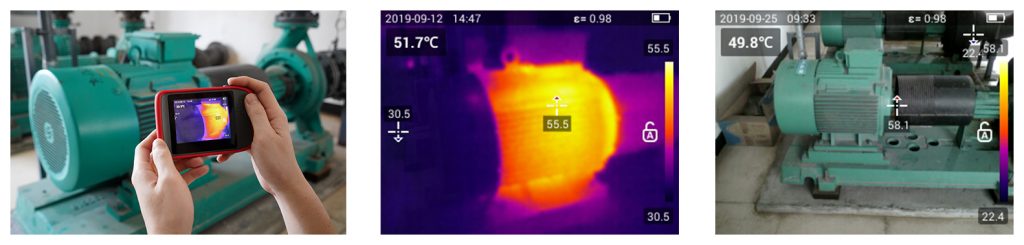

Motor Inspection

Faults such as wiring error, overload, unbalanced-load, component failure of motor equipment in production can be detected by thermal imager. Detecting faults in timely fashion helps to ensure safety of productions.

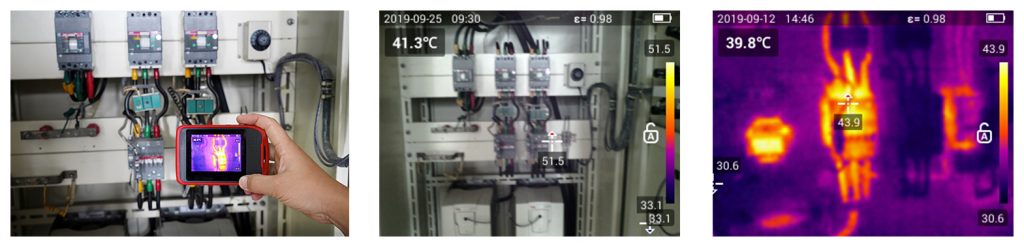

Power Distribution Cabinet Inspection

Measuring distribution cabinet in advance to determine possible fault locations and to reduce maintenance costs. Abnormal thermal phenomenon caused by oxidation, corrosion and loosening of  switches, contacts, transformers, and other parts can quickly be found using this UTi120T thermal camera.
