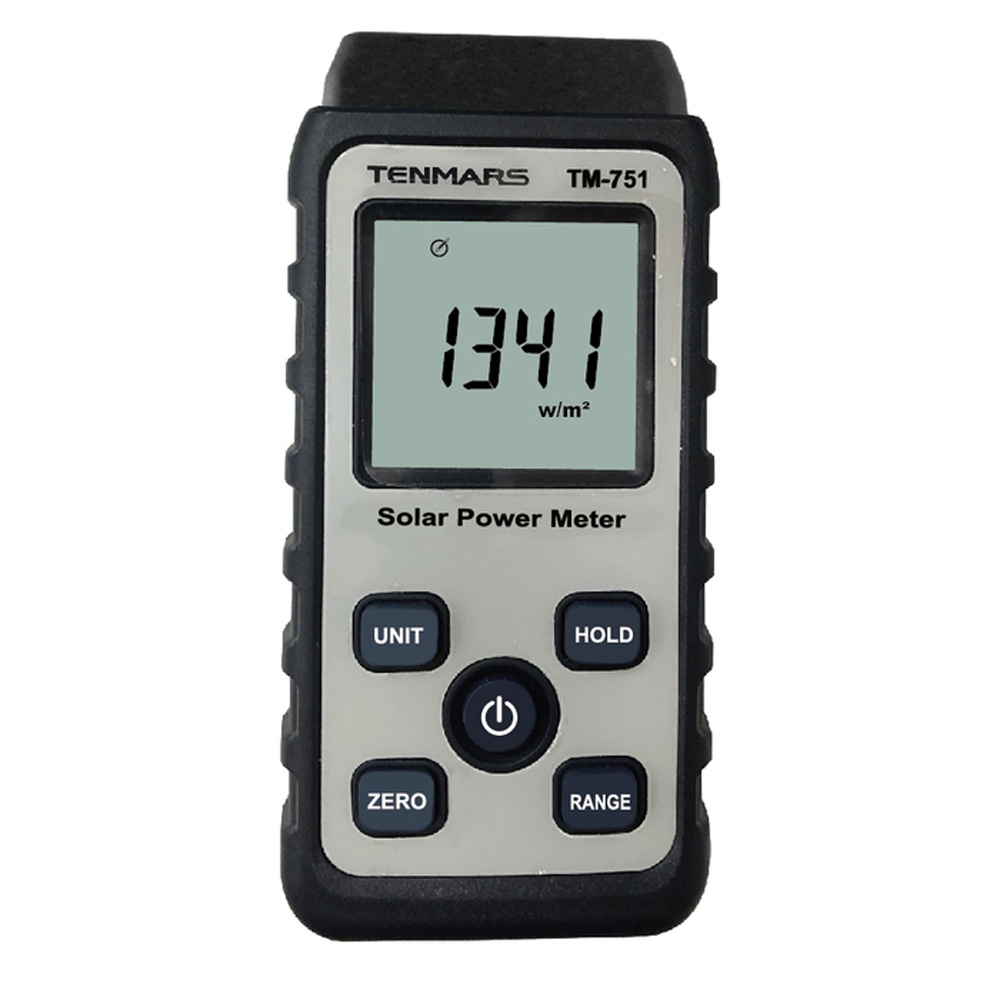

TM-751
Solar Power Meter

Solar meter: a device used to measure solar power.

APPLICATION

  • Transmission measurement is most suitable for measuring the effectiveness of the solar film.
  • Solar radiation measurement.
  • Car windows light intensity measurement.
  • Optimal incident angle for the solar panel.
  • Measurement of the sun’s transmission through transparent and film glass
  • Convenient, no need to adjust, data displayed clearly.

FEATURES

  • Overload display OL.
  • Select either W/m2 or BTU / (ft2*h) units1
  • Stable for long use.
  • Power off: Manual on/off by push button, or auto shut off after 15 minutes

SPECIFICATIONS

  • Dimensions:134x48x27mm(length x width x height).
  • Weight: Approximately 90 grams.
Electric Specification
 Measuring range
 2000W/m²,634 BUT/(ft²*h)
 Accuracy
 Typically within ±10W/m² 【±3 BTU (ft²*h)】
 or ±5%,whichever isgreater in sunlight ;
 additional temperature induced error
 ±0.38 W/m²/°C【±0.12 BTU (ft²*h)/°C】from 25°C
 Display
 3¾ digits LCD with maximum reading 3999
 Sampling time
 Approx. 0.25 second
 Resolution
 0.1W/m²,0.1 BUT/(ft²*h)
 Accuracy
 <±3/year
 Over-input
 Display shows”OL”
 EMC
 this instrument is EMC-compliant and has
 undergone compatibility tests according to
 EN61326 (1997) + A1 (1998) + A2 (2001).

ACCESSORIES

  • User manual.
  • 2 batteries 1.5V AAA MN2400 LR03 AM4.
  • Carrying case.
