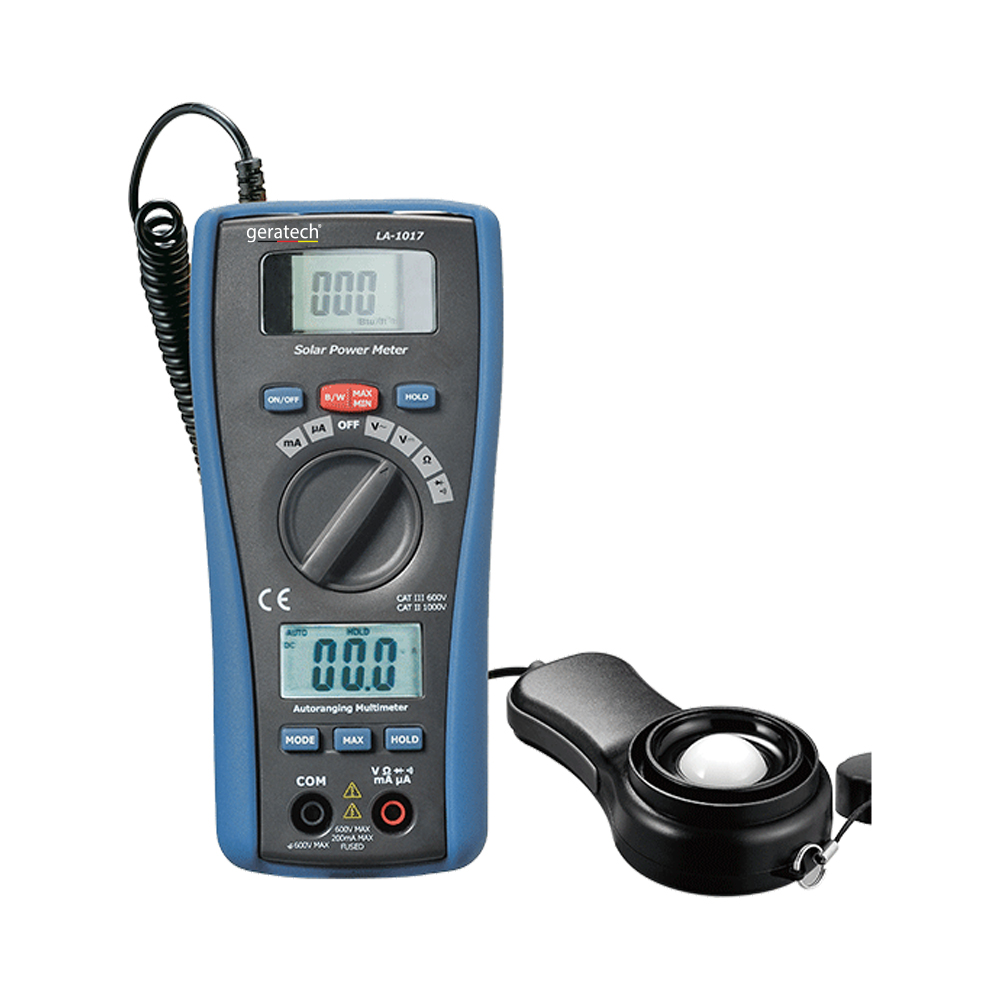

Solar Power Meter & DMM
Sunlight measurement up to 1999w/m 2 or 634BTU/(ft 2 *h)
High accuracy and rapid response
Data HOLD function to hold measurement values
Unit and sign display for easy reading
Measuring unit selection among w/m 2 and BTU/(ft 2 *h)
Manual scale selection
Direct reading with no adjustments needed
Maximum and minimum values
Low battery indication
Solar Power Meter & DMM
| Sunlight measurement up to 1999w/m 2 or 634BTU/(ft 2 *h) |
| High accuracy and rapid response |
| Data HOLD function to hold measurement values |
| Unit and sign display for easy reading |
| Measuring unit selection among w/m 2 and BTU/(ft 2 *h) |
| Manual scale selection |
| Direct reading with no adjustments needed |
| Maximum and minimum values |
| Low battery indication |
Size (H x W x D): 162mm x 74.5mm x 44mm
Weight: 308g
| Function | Max Range | Basic Accuracy |
| Voltage DC | 600V | ±0.5% |
| Voltage AC | 600V | ±1.2% |
| Current DC | 200mA | ±1.5% |
| Current AC | 200mA | ±2.0% |
| Resistance | 20MΩ | ±0.8% |
| Continuity Test | Beep if less than 100Ω | |
| Solar Power Meter | ||
| Display | 3-1/2 digits LCD with maximum reading 1999. | |
| Range | 1999W/m2,634BTU/(ft2*h) | |
| Resolution | 1W/m2; 1BTU/(ft2*h). | |
| Accuracy | Typically within ±10W/m2 [±3BTU/(ft2*h)]or ±5% | |
| Sampling time | Approx 0.25 second. | |
Accessories: 9V battery & Two “AAA” batteries, remote terminator and gift box with carrying case.
