Features of UT330-USB Series Dataloggers
Certificates: CE, RoHS
- 60000 sets data storage
- PC software
- Trend capture to BMP/CSV/TXT files
- High/low temperature alarm, customizable user settings
Specifications of UT330-USB Series Dataloggers

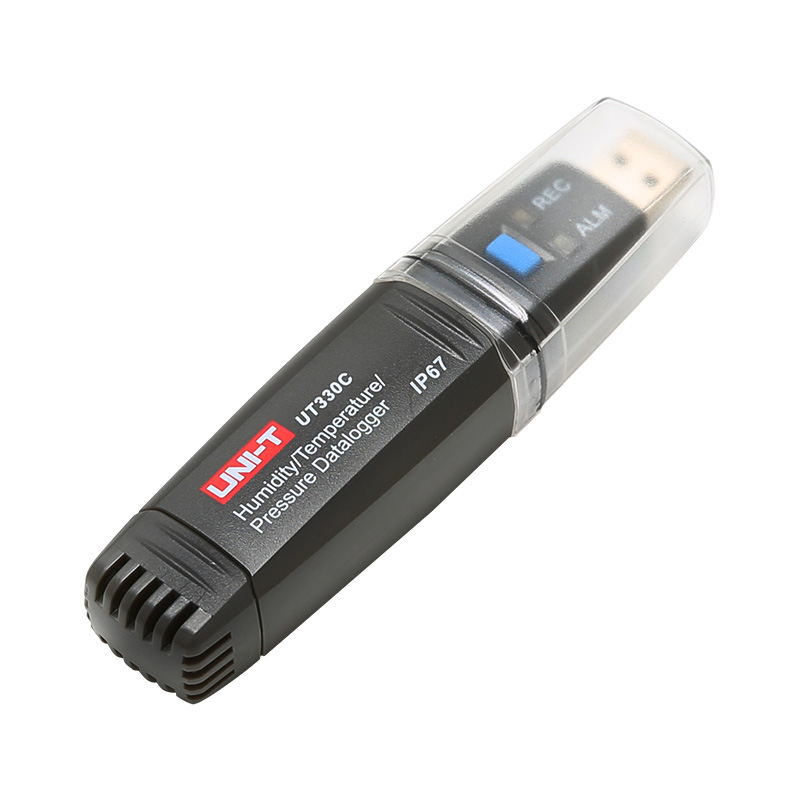

UT330-USB Series
Dataloggers
UT330-USB series USB dataloggers use high-precision temperature, humidity and atmospheric pressure sensors for long period monitor and record. UT330-USB series satisfies IP67 water and dust proof, can store 60000 sets of data and transmit them through USB to PC. They are great solutions for monitoring highly sensitive goods such as medicine or food during transportation and storage, greenhouse, wine cellar and more.

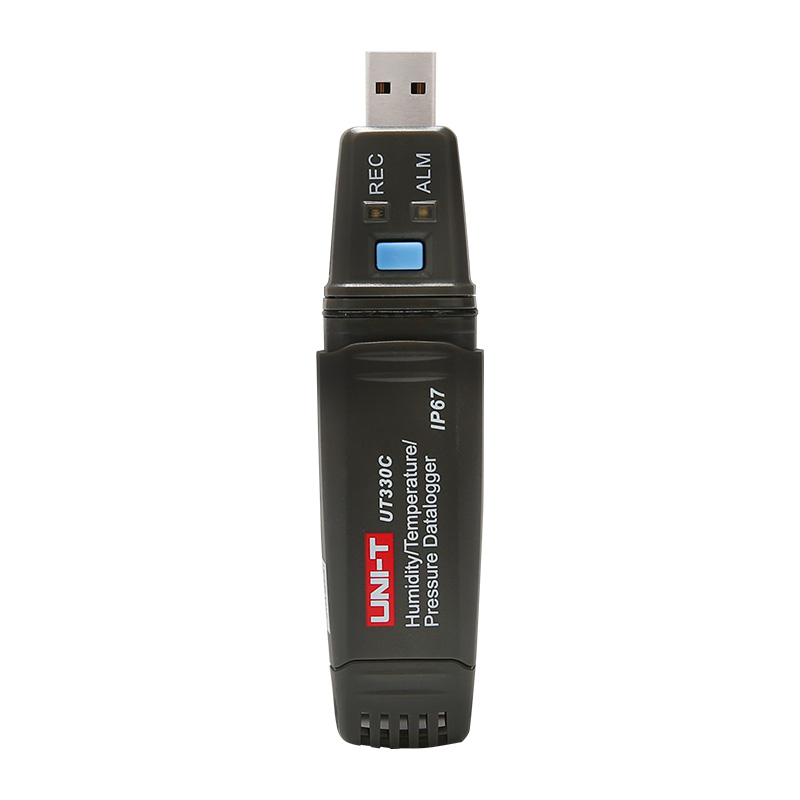

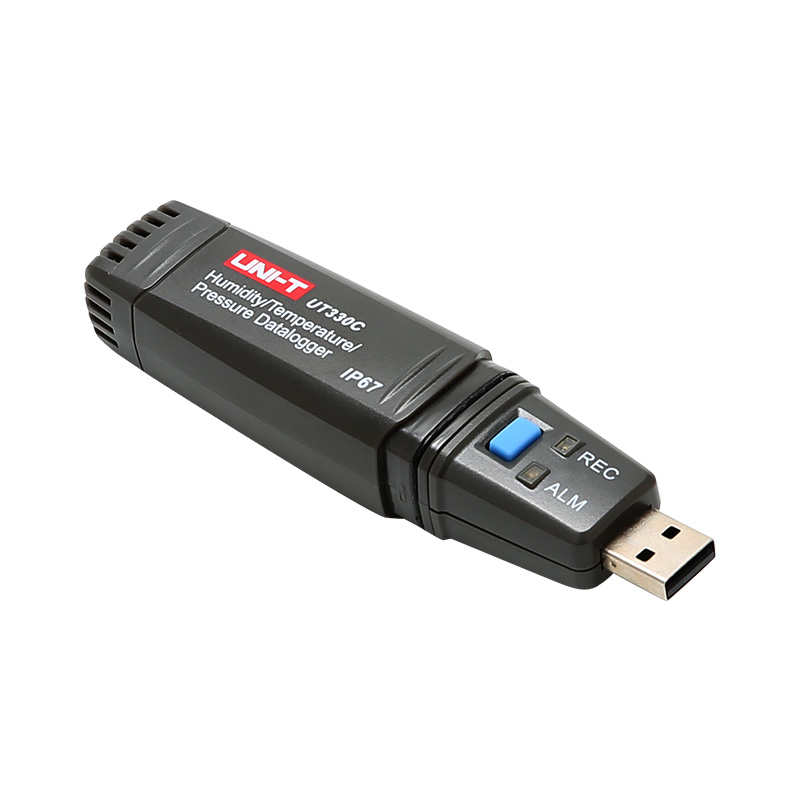

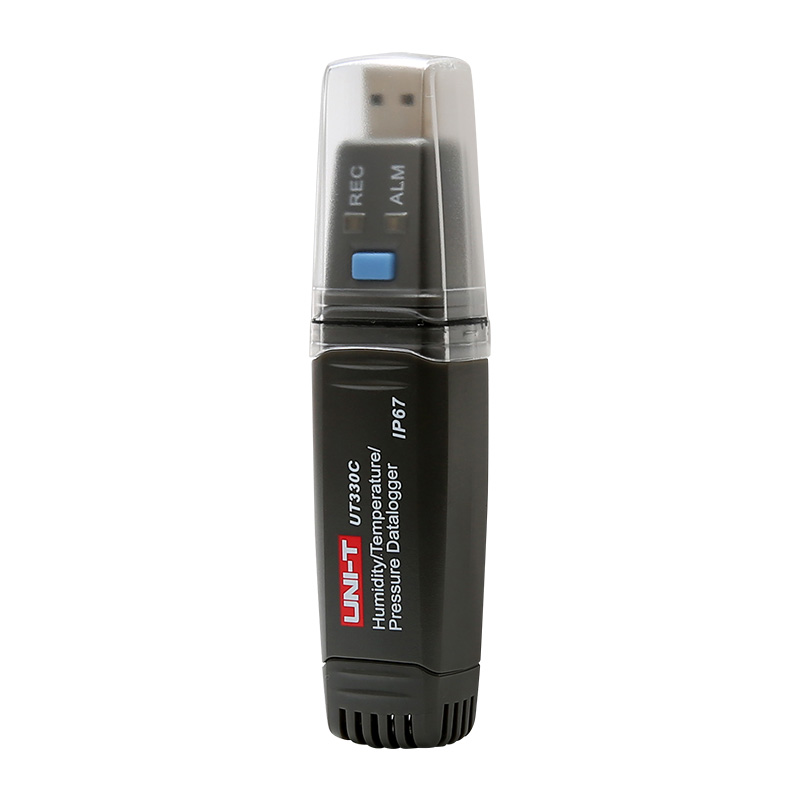

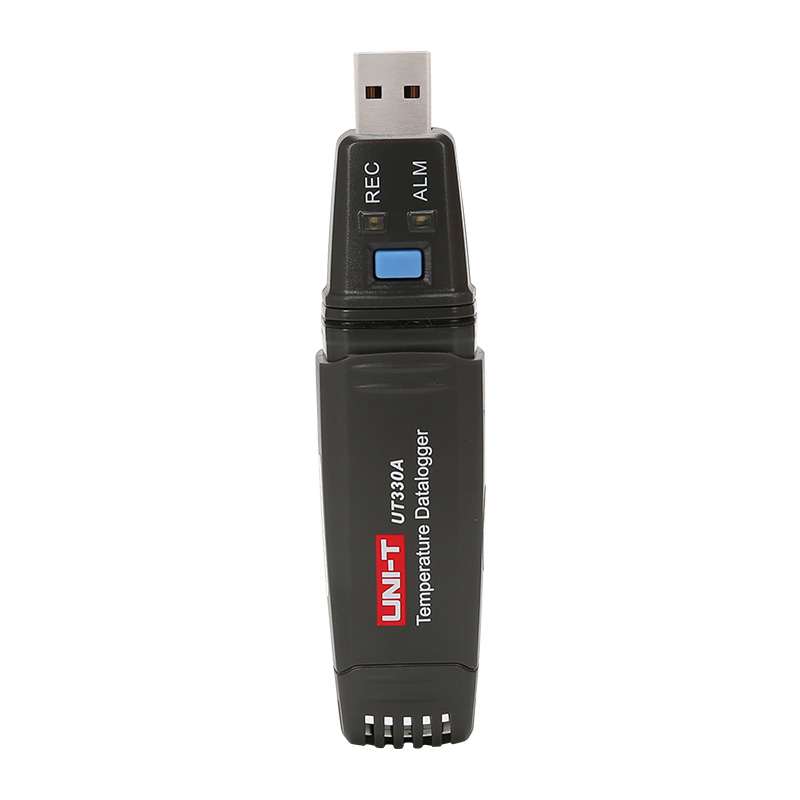

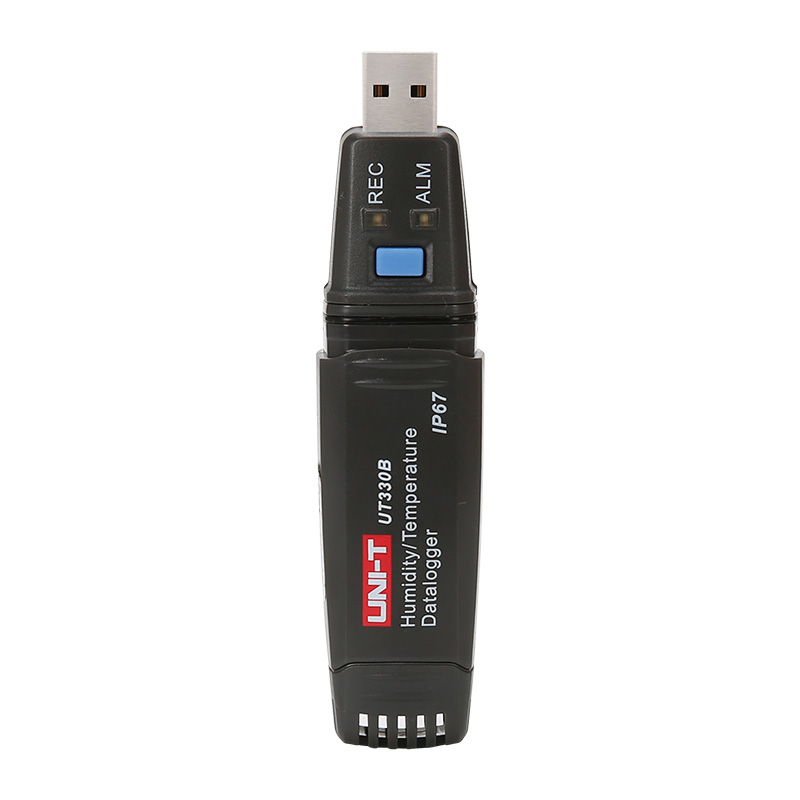

Models in UT330-USB Series: UT330A, UT330B, UT330C
SPECIFICATIONS
| Specifications | UT330A | UT330B | UT330C | ||
| Temperature | Range | -40°C~80C (-40°F~176°F) | √ | √ | √ |
| Accuracy | 0°C~40°C | ±0.5℃ | ±0.5℃ | ±0.5℃ | |
| -30°C~0°C, 40℃~70℃ | ±1℃ | ±1℃ | ±1℃ | ||
| -40°C~-30°C, 70℃~80℃ | ±2℃ | ±2℃ | ±2℃ | ||
| Resolution | 0.1℃/0.1℉ | √ | √ | √ | |
| Relative humidity | Range | 0%RH~100%RH | √ | √ | |
| Accuracy | 20%RH~80%RH | ±3%RH | ±3%RH | ||
| ＜20%RH or
＞80%RH |
±5%RH | ±5%RH | |||
| Resolution | 0.1%RH | √ | √ | ||
| Atmospheric pressure | Range | 750hPa~1100hPa | √ | ||
| Accuracy | ±3hPa | ||||
| Resolution | 0.1hPa | √ | |||
| Features | |||||
| IP67 | √ | √ | √ | ||
| ℃/℉ selection | √ | √ | √ | ||
| Temperature offset settings | √ | √ | √ | ||
| Humidity offset settings | √ | √ | |||
| Pressure offset settings | √ | ||||
| Data storage | 60000 | 60000 | 60000 | ||
| Data recall | √ | √ | √ | ||
| USB interface | √ | √ | √ | ||
| Auto record time setup | √ | √ | √ | ||
| User name settings | √ | √ | √ | ||
| Alarm threshold | √ | √ | √ | ||
| Start mode setup | √ | √ | √ | ||
| General Characterisitics | |||||

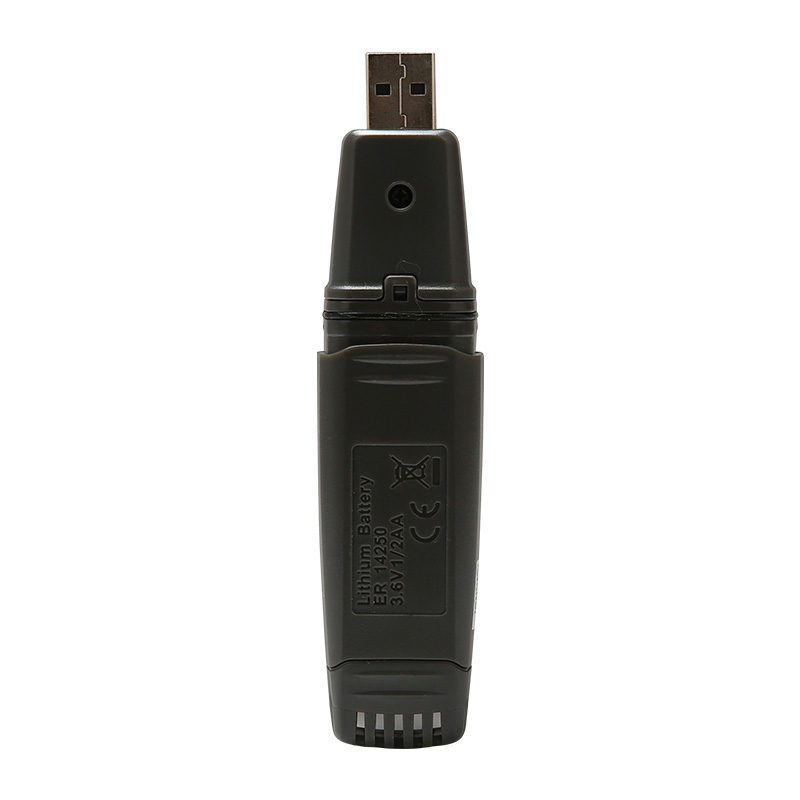

| Power | 3.6V 1/2 battery (R6) x 1 | ||||
| Product color | Grey | ||||
| Product net weight | 52g (with battery, no bracket) | ||||
| Product size | 122mm x 30mm x 24mm | ||||

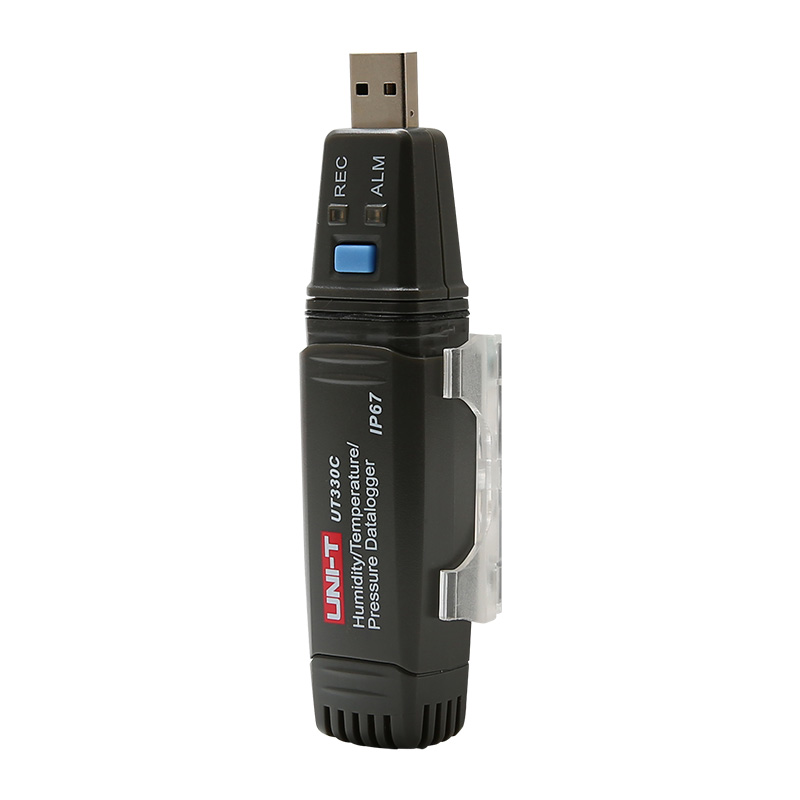

| Standard accessories | Battery, PC software CD, bracket, screws | ||||
| Standard individual packing | Gift box, English manual | ||||
| Standard quantity per carton | 20pcs | ||||
| Standard carton measurement | 287mm x 207mm x 250mm | ||||
| Standard carton gross weight | 2.3kg | ||||
| Optional accessory | Magnet bracket | ||||
APPLICATIONS
Applications of UT330-USB Series Dataloggers

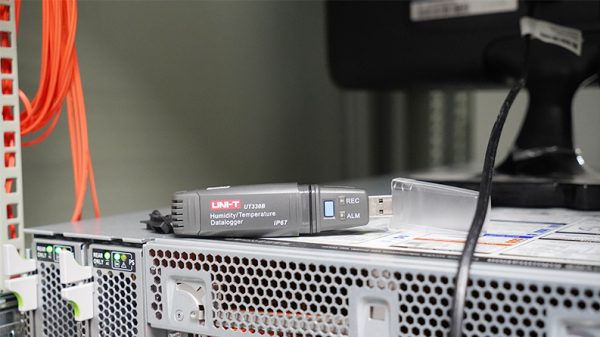

Temperature and humidity measurement in computer room
Environment measurement in office
