APPLICATION

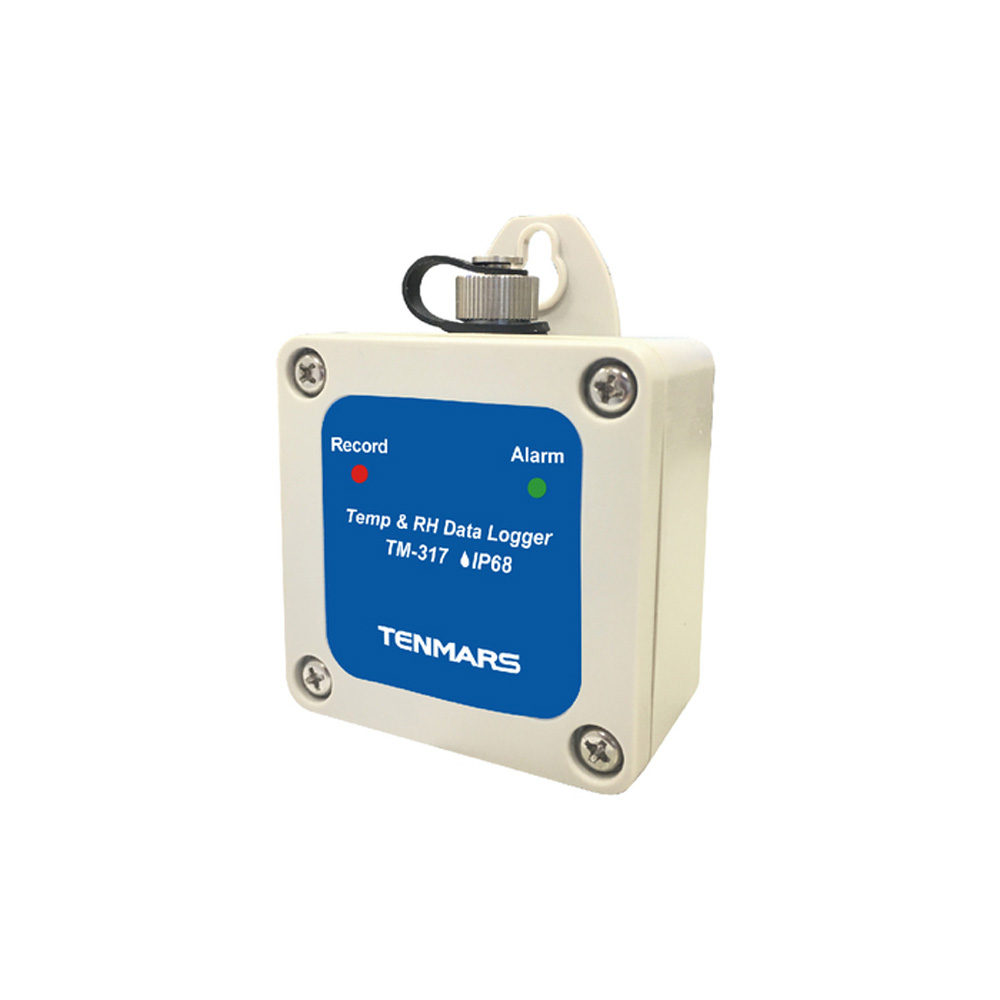

The temperature humidity data logger is designed with a high-precision capacitive humidity sensor and the temperature sensor of NTC thermistor type.
FEATURES
BS EN 12830 Compliant(S;D;1):
1.Suitability for transport:S
2.Climatic environment type:D
3.Accuracy:classes 1:±1°C
The data is directly transferred to computer via USB cable,the docking station is not required
SPECIFICATIONS
-
Measuring temperature,humidity,dew point and wet-blue.
-
The downloaded data can be selected the chart view or
-
graphic view from the PC.
-
Automatically sort out the downloaded records from the datalogger with the
-
top 10(MAX. reading),bottom 10(MIN.reading) and 10 average values.
-
Real-time recording of PC
-
It can be simply connected by a USB connector 5V power supply
-
Dimensions:130x56x38mm(length x width x height).
-
Weight: Approximately 250 grams.
Electrical Specifications
The environmental conditions for the best accuracy: 23°C ± 5°C and RH <80%
|
Temperature
|
|
|
Measurement Range
|
-40.0°C~+85°C(-40.0°F~+185.0°F)
|
|
Resolution
|
0.1
|
|
Accuracy
|
-10~40°C(14~104°F):
±0.6°C (±1.5°F) Other range: ±1.0°C(±1.8°F)
|
|
Response time
|
< 2 seconds
|
|
Humidity
|
|
|
Measurement Range
|
1%~99.0%RH
|
|
Resolution
|
0.1 %RH
|
|
Accuracy
|
±3.0%(20.0~80.0%RH,@25°C)
±5.0%(＜20.0%RH>80.0%RH,@25°C)
|
|
Response time
|
< 3 seconds (50%→0% RH) at 23°C
|
ACCESSORIES
-
User’s Manual
-
3.6V ½AA lithium battery
-
USB cable
-
Installation disk
