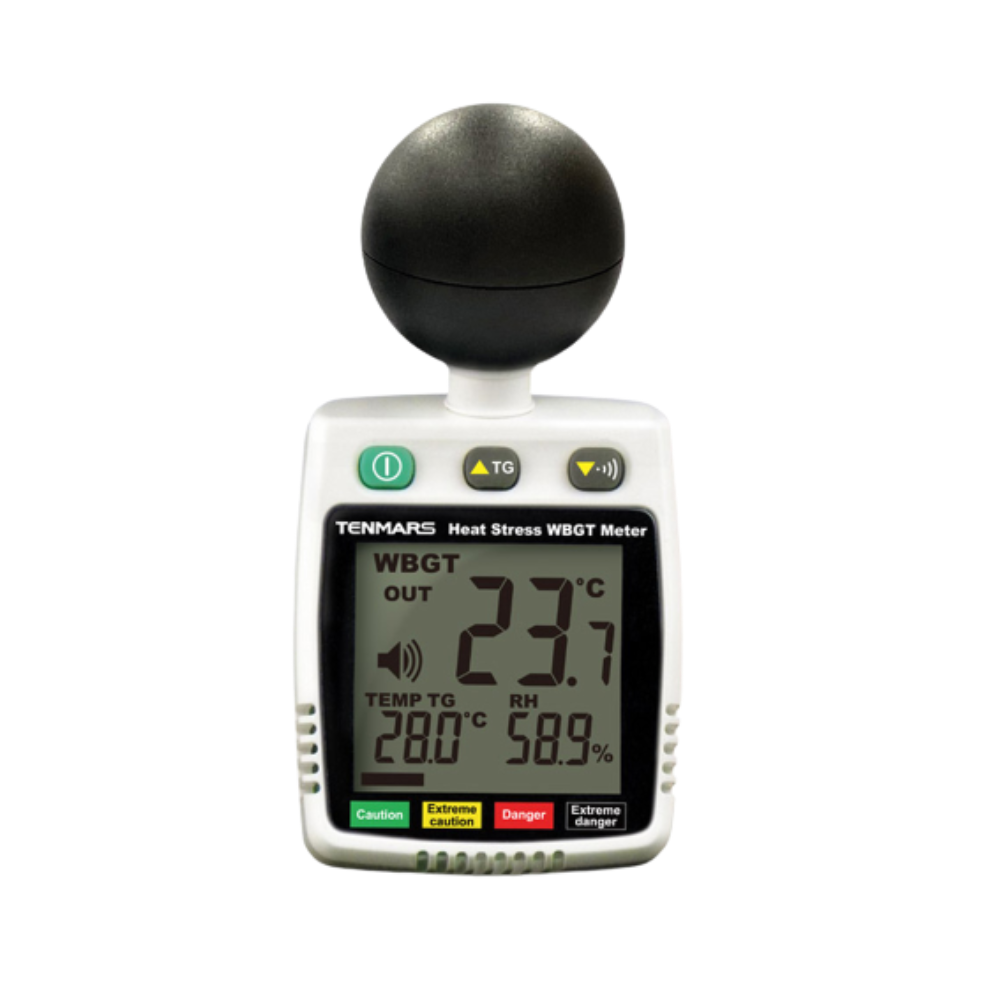

TM-288
Heat Stress WBGT Meter

Measure the WBGT, black-globe temp. (TG), Air temp. (TA), humidity (%RH).

Kategoriler
  • Mekanik (745)
  • PRO-AV (1140)
  • Test ve Ölçü (971)
    • Çevresel Ölçüm (244)
      • Anemometre (16)
      • Basınç Ölçüm Cihazı (3)
      • Desibelmetre (Ses Ölçümü) (19)
      • Gaz Ölçüm Cihazı (14)
      • Hava Durumu İstasyon Cihazları (48)
      • Infrared Termometre (13)
      • Lazer Mesafe Ölçüm Cihazı (6)
      • Lüksmetre (Işık Ölçüm Cihazı) (27)
      • Lüminansmetre (Aydınlık Ölçüm Cihazı) (12)
      • Nem Ölçüm Cihazı (38)
      • Partikül Ölçüm Cihazı (1)
      • pH Ölçüm Cihazı (1)
      • Solar Güç Ölçüm Cihazı (4)
      • Termal Kamera (27)
      • Termometre (53)
    • Elektriksel Ölçüm (269)
    • Fiber Optik Ölçüm (4)
    • Gelişmiş Ölçüm (478)
  • APPLICATION
  • FEATURES
  • SPECIFICATIONS
  • ACCESSORIES
  • VIDEOS
  • DOWNLOADS
  • DESCRIPTION

APPLICATION

As the Holy Infant, the temperature increasingly rises.
The chance of heatstroke increases dramatically in the moist heat environment.
This product, measuring in WBGT, provides real-time alarm immediately so as to
prevent heatstroke in such the environment.

Thermal hazard prevention standards
Heatstroke caution level
Temperature baseline
Alarm Default
Alarm User
Flashing
Caution
>21~25°C
mute
As exceeding the setting value,beep for 15 seconds
Extreme caution
>25~28°C
Beep for 4 seconds
Danger
>28°C~31°C
Beep for 15 seconds
Extreme Danger
>31°C
Beep for 3 second and pause for 2 seconds, repeat until 15 seconds

FEATURES

  • In compliance with JIS B 7922 Level 2
  • Three applications: arm band, tripod, and hanging.
  • High-sensitive capacitive humidity sensor and bandgap temperature sensor.
  • Measure the WBGT, black-globe temp. (TG), Air temp. (TA), humidity (%RH).
  • Low voltage indicator
  • °C or °F selectable.
  • With the plastic black-globe of the diameter Ø40mm.
  • Three-stage WBGT alarm selectable: mute (buzzer not displayed), cyclic setting.
  • Outdoor or indoor (default is OUT) measurement mode selectable.
  • Sampling interval: per 20 seconds
  • Operating wind speed: 0.3 m/s or above.
  • Operation temperature and humidity: 0°C to +50°C,<80%RH (No condensation)
  • Storage temperature and humidity: 0°C to +60°C,<70%RH (No condensation)

SPECIFICATIONS

  • Display dimension: 41mm(W) x 38mm(L)
  • Dimensions:116x60x50mm(length x width x height).
  • Weight: Approximately 80 grams. (excluding battery weight)
Electrical Specification

Wet Bulb Globe Temperature (WBGT)

Unit
Measuring range
Resolution
tolerance range
15~40°C
°C
0~50.0
0.1
±2.0 °C
°F
32.0~122.0
0.1
±3.6 °F
※Indoor & outdoor without sunshine ”IN” :WBGT = (0.7×WET)+(0.3×TG)
Outdoor in sunshine ”OUT” :WBGT=(0.7×WET)+(0.2×TG)+(0.1×TA)

Air temperature (TA)

Unit
Measuring range
Resolution
Tolerance
@15~40°C
°C
0~50.0
0.1
±0.6
°F
32.0~122.0
0.1
±1.1

Black-globe temperature (TG)

Unit
Measuring range
Resolution
Tolerance
@15~40°C
°C
0~80.0
0.1
±0.6
°F
32.0~176.0
0.1
±1.1

Humidity (%RH)

Unit
Measuring range
Resolution
Tolerance
@25°C
%RH
20.0~80.0 0.1
0.1
±5.0%RH
%RH
<20.0 , >80.0
0.1
±7.0%RH

ACCESSORIES

  • User’s Manual
  • CR2032 3V battery
  • Fastener for armband with screws
  • Flexible armband
  • Carabiner
  • Key ring
  • Silicone elbow for anti-skid
  • Screw for silicone elbow

VIDEOS

DOWNLOADS

TM-288 UserManual
