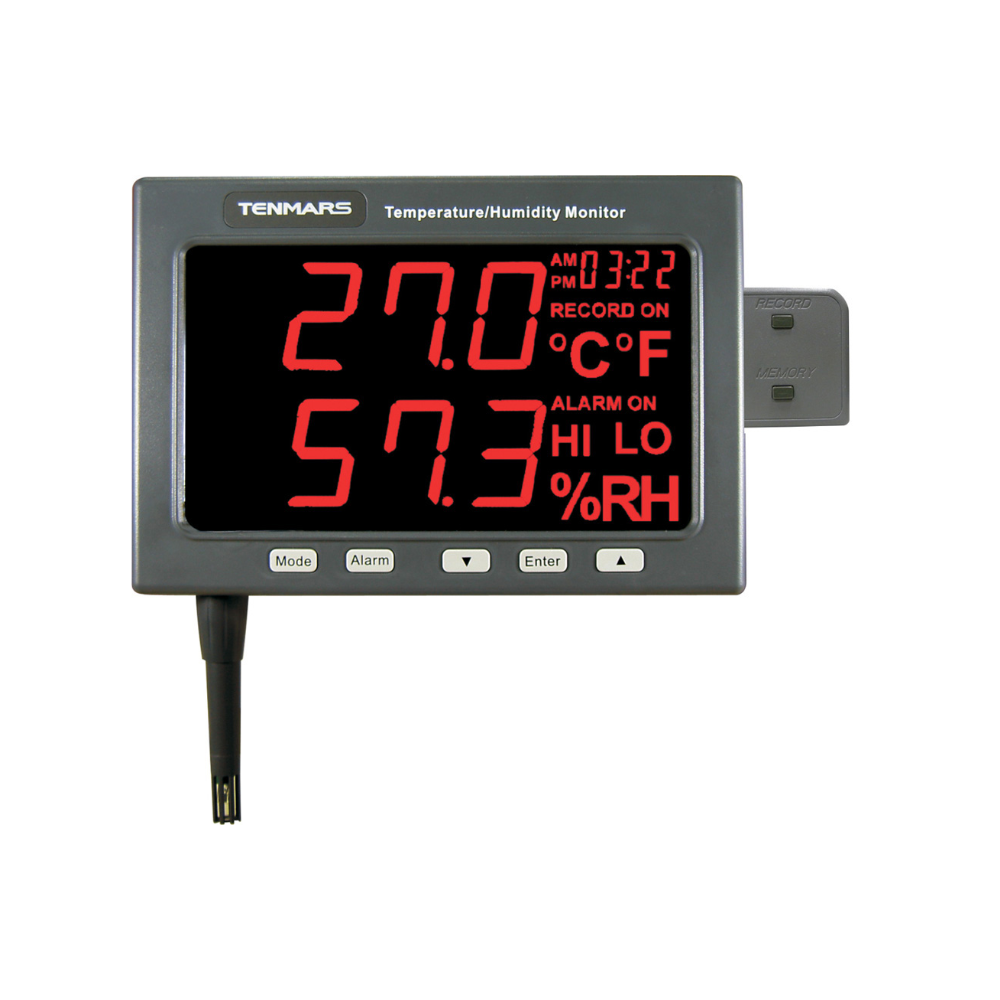

TM-185/TM185D
Temperature/Humidity LED Monitor

  • Large LED display for simultaneous reading of humidity and temperature
  • Dual LED display :the maximum reading on the top display (primary display) is 1999
  • The maximum reading on the bottom display (secondary display) is 999

APPLICATION

  • Chambers / incubator
  • Electronics manufacturing
  • Hospitals blood / Tissue banks
  • Other critical areas
  • Warehouses
  • Refrigerators
  • Computer rooms
  • Laboratories
  • Defense
  • Clean rooms

FEATURES

  • Complete environmental monitoring and alarm solution
  • Wall-mounted LED type for easy reading
  • Alarm set for Hi and Low limit-Temperature and humidity
  • USB datalogging capacity 30,000 records (TM-185D)
  • Real-time data display

SPECIFICATIONS

  • Dimension: 260 X 178 X 47mm (LxWxH)
  • Weight: 1000g
Electrical specifications
Model
TM-185 /TM-185D
Measurement  Range
Humidity
5%~95%
Temperature
-20.0°C～60.0°C
-4.0°F～140.0°F
Temperature  Accuracy
±1.0°C/±1.8°F
(-5°C ~40.0°C /32°F~104°F) ;
other ±2.0°C /3.6°F.
Humidity Accuracy
±2.5%RH (at 25°C, 20%~80%) at 25°C
±5.0%RH(at 25°C,<20%RH,>80%RH)  at 25°C
Sampling
1 times/second
Resolution
0.1%RH,0.1°C,0.1°F
Temp sensor type
Diode
Humidity Sensor
Capacitor Sensor
Power
AC to DC Adapter. (9~12V/1A)
Model
Functions
Functions
Humidity Temprature
30,000
Record
 Clock
TM-185 • • •
TM-185D • • • •

ACCESSORIES

  • User’s Manual
  • AC to DC adaptor
  • Wall Mount
  • USB cable
  • Installation disk
