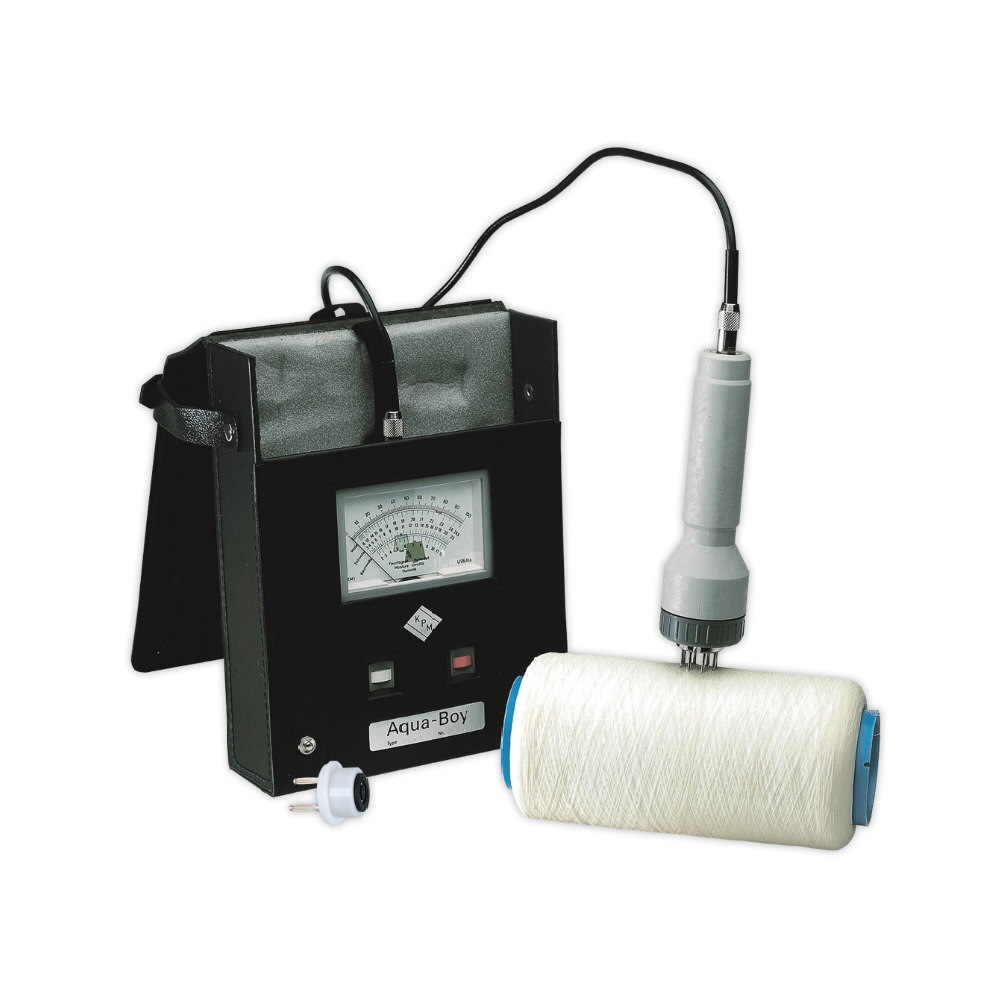

TEM H&M Version
Textile Moisture Meter

Moisture meter according H&M standards to determine the residual moisture of yarn bobbins, rolls of fabric, etc.

Portable with analog display as H&M version, especially for H&M suppliers

Special Features

  • Easy to use textile moisture meter TEM H&M version for many applications and quick measurements

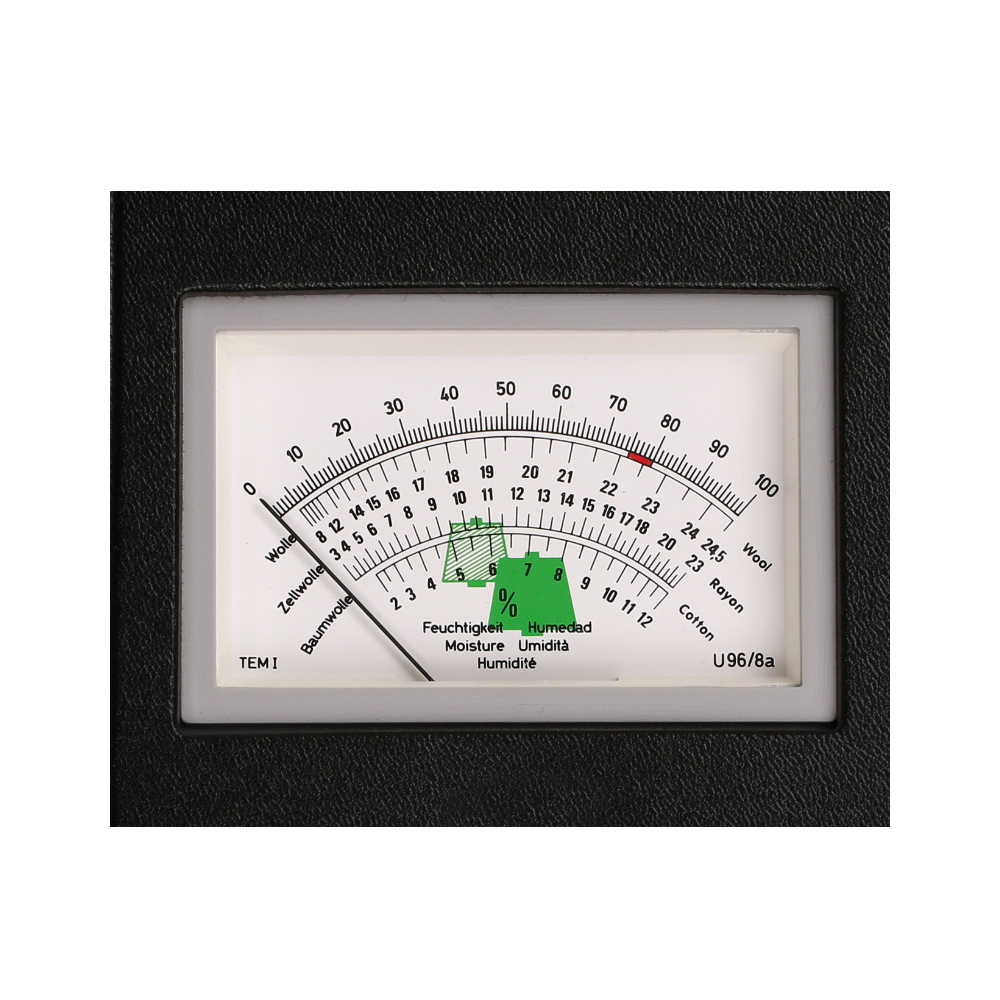

  • Multiple scale for direct readings for wool, rayon and cotton, as well as 0 – 100 scale for comparison tables used for other materials like Polyester, Polyamide and many material mixtures

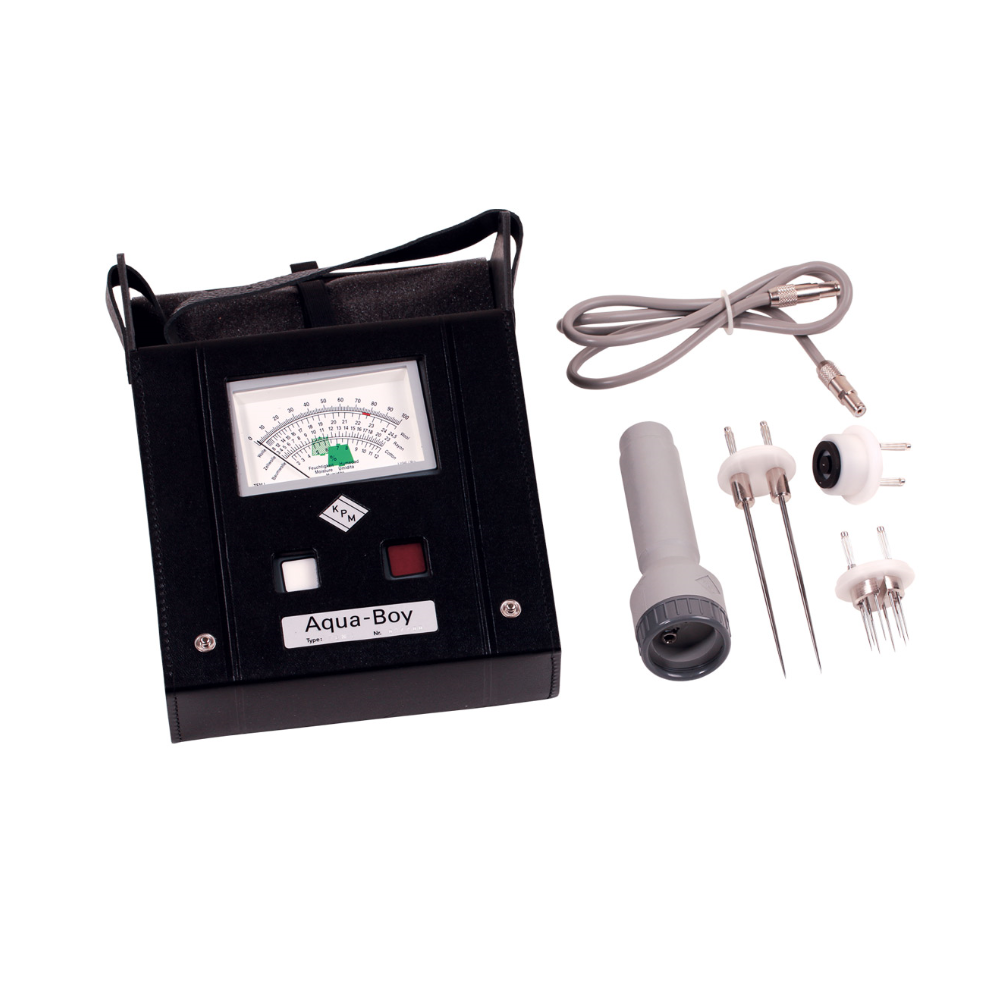

  • Beside 2 needle electrodes a surface electrode is supplied with the textile moisture meter TEM H&M
  • A wide choice of needles, knifes and roller electrodes for many applications are available
  • High accuracy and reproducibility

Standard Features

  • Portable, battery-operated
  • Compact housing supplied in leather carrying case with neck strap
  • Optionally available: Manufacturers test certificate with calibration report

Measuring principle:
The moisture content is determined by measuring the electrical conductivity of the material which always is proportional to the content of the moisture.

 Available Models

Model
 Description
TEM-HM
 Textile moisture meter with standard accessories and surface electrode
TEM Textile moisture meter without standard accessories (only display unit)
alternative
TEM-I
 Textile moisture meter with standard accessories
DHT-3 Textile moisture meter with standard accessories and digital display

SPECIFICATIONS

Measuring ranges: Wool: 8 to 24.5% moisture content
Rayon: 3 to 23% moisture content
Cotton: 2 to 12% moisture content
Comparison measurement: 0 – 100 scale
Battery: 9 V E-block
Weight net (gross): Approx. 900 g (1300g)
Dimensions: 200 x 250 x 70 mm (LxWxH)

Specifications subject to change without notice!

STANDARD ACCESSORIES

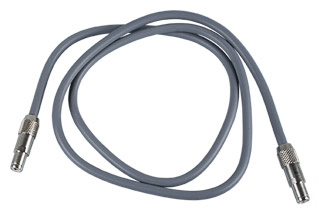

50200M – Measuring Cable

To connect the holder to the instrument, 1 m length
Order number: 50200M

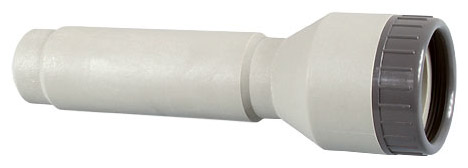

 50204M – Electrode Holder

For mounting the different electrodes, weight 100 g
Order number: 50204M







 50205M – Needle Electrode, Needle Length 25 mm

For measuring yarns, cross-wound bobbins and hanks needle length 25 mm, weight 40 g
Order number: 50205M







 50207M – Needle Electrode, Needle Length 100 mm

For measuring yarns, cross-wound bobbins and hanks, etc., needle length 100 mm, weight 40 g
Order number: 50207M



 50213M – Surface Electrode

For measuring fabrics, surface diameter 23 mm, weight 40 g
Order number: 50213M

ADDITIONAL ELECTRODES

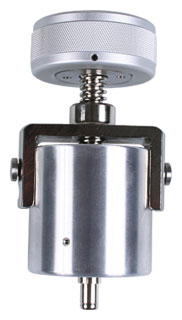

50202M – Cup Electrode

with friction clutch permitting adjustment of a constant pressure. For measurement of bulk goods as cereals etc as well as cotton (For raw cotton a special version is available), dimensions: 140 x 63 mm Ø, weight 55 g
Order number: 50202M

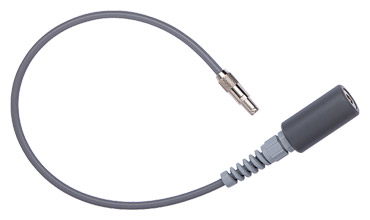

 50202M – Cable for Cup Electrode

Cable to connect the cup electrode to the textile moisture meter, length 0.5 m, weight 70 g
Order number: 50202M

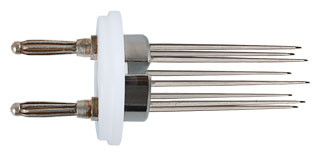

 50206M – Needle Electrode, Needle Length 45 mm

For measuring yarns, cross-wound bobbins and hanks, needle length 45 mm, weight 45 g
Order number: 50206M







 50208M – Needle Electrode, Needle Length 17 mm

For measuring harder materials e. g. felt needle length 17 mm, weight 40 g
Order number: 50208M







 50209AM – Stab Electrode

For measuring textiles in sacks and rolls, especially yarn and fabrics, needle length 325 mm, insulated shank 35 mm, weight 150 g
Order number: 50209AM

 50209BSM – Cotton Electrode

Especially for measuring cotton and similar products in sacks or pressed bales, piercing point 75 mm, insulated shank 175 mm, weight 225 g
Order number: 50209BSM

 50210M – Knife Electrode

For measuring textile fabric, knife length 110 mm, weight 50 g
Order number: 50210M





 50211M – Roller Electrode

Roller electrode for measuring running webs of fabrics with speeds up to max. 4 m/sec, 27 mm roller diameter, weight 100 g
Order number: 50211M









 50211AM – Roller Electrode

Roller electrode for measuring running webs of fabrics with speeds up to max. 4 m/sec, 27 mm roller diameter, weight 100 g
Order number: 50211AM









 50212M – Continuous Run Electrode

For yarn hanks and single filaments 16 mm roller diameter, max. line speed 1 m/sec, weight 70 g
Order number: 50212M

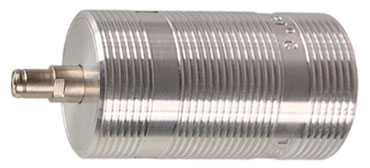

 50299M – Calibration Electrode

With a fixed calibration value. The value is stamped on the electrode. Optional a chargeable calibration certificate is available (When ordering, please specify the type designation of the moisture meter).
Order number: 50299M

DELIVERY INCLUDES

Textile moisture meter TEM H&M version with leather carrying case and battery, 1 connecting cable, electrode holder, electrodes no. 50205 and no. 50207, 1 operating instructions with comparison tables in 5 languages (German, English, French, Spanish, Italian)
