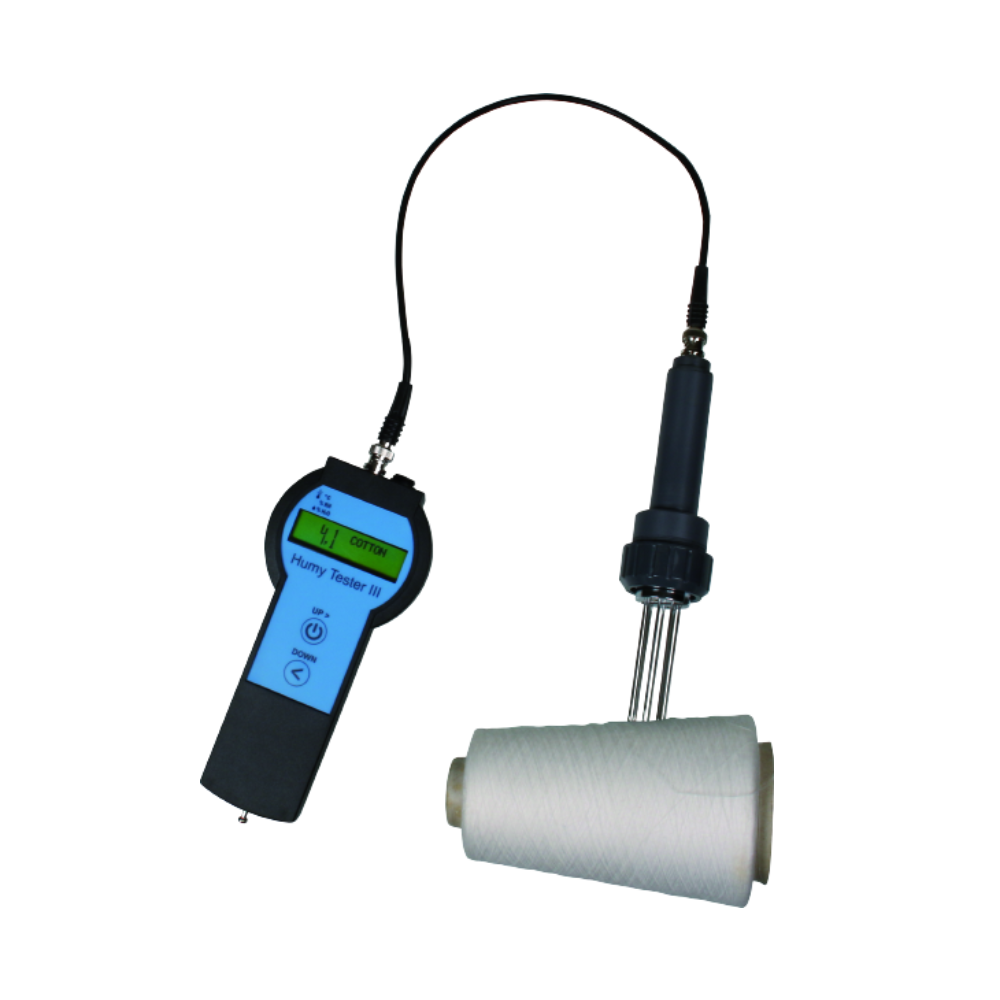

DHT-3
Textile Moisture Meter

Multi function moisture meter to determine the residual moisture of yarn bobbins, fabric rolls, cotton bales, fiber flocks etc., optional to measure room temperature and humidity RH %

Portable textile moisture meter with digital display

Special Features

  • Easy to use textile moisture meter DHT-3 for many applications and quick measurements
  • Digital display for direct moisture percentage reading of 10 materials (wool, rayon, cotton, hemp, jute, paper, linen, nylon, acrylic, polyester) and 10 often used material mixtures.
  • Scale with 0 – 100 for non stored materials; with the help of supplies comparison tables the moisture of additional 20 materials can be determined
  • A wide choice of needles and roller electrodes for many applications are available
  • Easy material selection using 2 push buttons
  • Optional the room temperature °C and humidity RH % can be displayed using a special probe
  • Textile moisture meter DHT-3 is microprocessor controlled.
  • Easy material selection using 2 push buttons
  • Room temperature °C and humidity RH % can be displayed using a special probe (optional accessory)
  • High accuracy and reproducibility

Standard Features

  • Textile moisture meter DHT-3 with compact housing supplied in leather carrying case with neck strap
  • Portable, battery-operated moisture meter
  • Test report of manufacturer free of charge, calibration report optional available

Measuring principle:
The moisture content is determined by measuring the electrical conductivity of the material, which always is proportional to the content of the moisture.

 Available Models

Model Description
DHT-3
 Textile moisture meter with standard accessories and digital display
alternative
TEM Textile moisture meter without standard accessories (only display unit)
TEM-I
 Textile moisture meter with standard accessories
TEM HM Textile moisture meter with standard accessories and surface electrode

SPECIFICATIONS

Application:
Residual moisture:
Room temperature:
RH %:		 Direct reading:
wool, rayon, cotton, hemp, jute, paper, linen, nylon, acrylic, polyester, 50 PES/50 Zw, 50 PES/50 PAC, 50 PES/50 Bw,
67 PES/33 Bw, 70 PES/30 Zw, 70 PES/30 Wo, 67 PAC/33 Bw, 70 PAC/30 Wo, 60 Bw/40 PES, 50 Wo/50 Zw
Indirect reading:
0 – 100 scale and 20 conversion sheets for different materials
-30 to 70 °C (optional)
5 to 95 % RH (optional)
Display: LCD, resolution 0.1
Accuracy: ±1 % full scale
Reproducibility: ±0,3 %
Power supply: Battery 9 V E Block, low battery signal
Auto Power off: After 2 min of non-use
Weight net (gross): Approx. 258 g (1650 g)
Dimensions: 200 x 95 x 40 mm (LxWxH)

Specifications subject to change without notice!

APPLICATION RANGER

Material Measuring Range (relative humidity in %)
Wool (Wo) 8 – 24.5
Cotton (Bw) 2 – 12
Rayon (Zw) 3 – 23
Hemp (Ha) 2 – 15.5
Jute (Ju) 3 – 21.5
Paper (Pa) 2 – 16.5
Linen (Li) 4 – 14.5
Nylon (PA) 1.5 – 6
Acryl (PAC) 0.1 – 2.4
Polyester (PES) 0.5 – 3.5
50 PES/50 Zw 4 – 12.5
50 PES/50 PAC 0.5 – 1.5
50 PES/50Bw 1 – 7
67 PES/33 Bw 1 – 4.5
70 PES/30 Zw 1 – 9.5
70 PES/30 Wo 2 – 6.5
67 PAC/33 Bw 2 – 6
70 PAC/30 Wo 3 – 8
60 Bw/40 PES 2 – 9
50 Wo/50 Zw 4 – 24

STANDARD ACCESSORIES

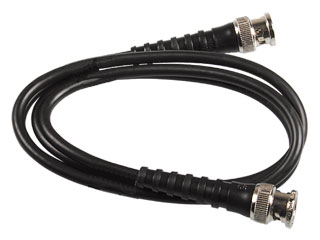

50400M – Measuring Cable

To connect the holder to the instrument, 1 m length
Order number: 50400M

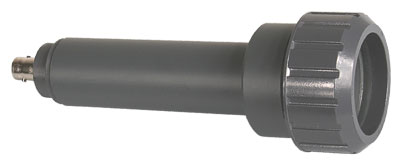

 50404M – Electrode Holder

For mounting different electrodes, weight 100 g
Order number: 50404M

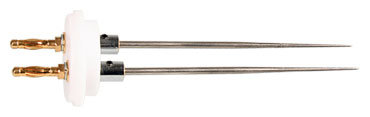

 50414M – Needle Electrode, Needle Length 100 mm

For measuring yarns, cross-wound bobbins and hanks, 2 needles, needle length 100 mm, weight 40 g
Order number: 50414M

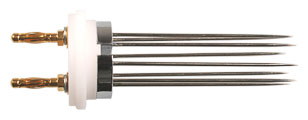

 50418M – Needle Electrode, Needle Length 60 mm

For measuring yarns, cross-wound bobbins and hanks, 8 needles, needle length 60 mm, weight 60 g
Order number: 50418M

MORE ELECTRODES

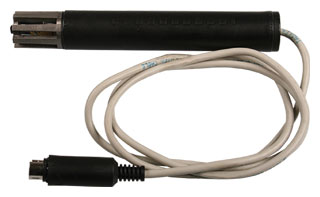

50428M – Thermo-Hygrometric Probe

Using a second input the Thermo-Hygrometric probe can be connected to the display unit. To display the readings, the correct unit has to be selected using the 2 push buttons on the display unit.
Temperature range: -30 up to 70 °C
Humidity: 5 up to 95 % RH.
170 mm Length, Weight 60 g
Order number: 50428M





 50412M – Needle Electrode, Needle Length 300 mm

For measuring textiles in sacks and rolls, especially yarn and fabrics, needle length 300 mm, insulated shank 35 mm, weight 150 g
Order number: 50412M

 50416M – Roller Electrode

Roller electrode for measuring running webs of fabrics, 27 mm roller diameter, weight 120 g
Order number: 50416M











 50426M – Surface Electrode

For measuring fabrics, surface diameter 20 mm, weight 56 g
Order number: 50426M









 50422M – Calibration Electrode

Set of 2 different calibration electrodes with fixed moisture values. Needed for verification and readjusting of the instrument.
Order number: 50422M

DELIVERY INCLUDES

Textile moisture meter DHT-3 with carrying case and battery, 1 connecting cable, electrode holder, Electrodes no. 50414M and no. 50418M, Manufacturers Test Report, 1 operating instruction with comparison tables in English
