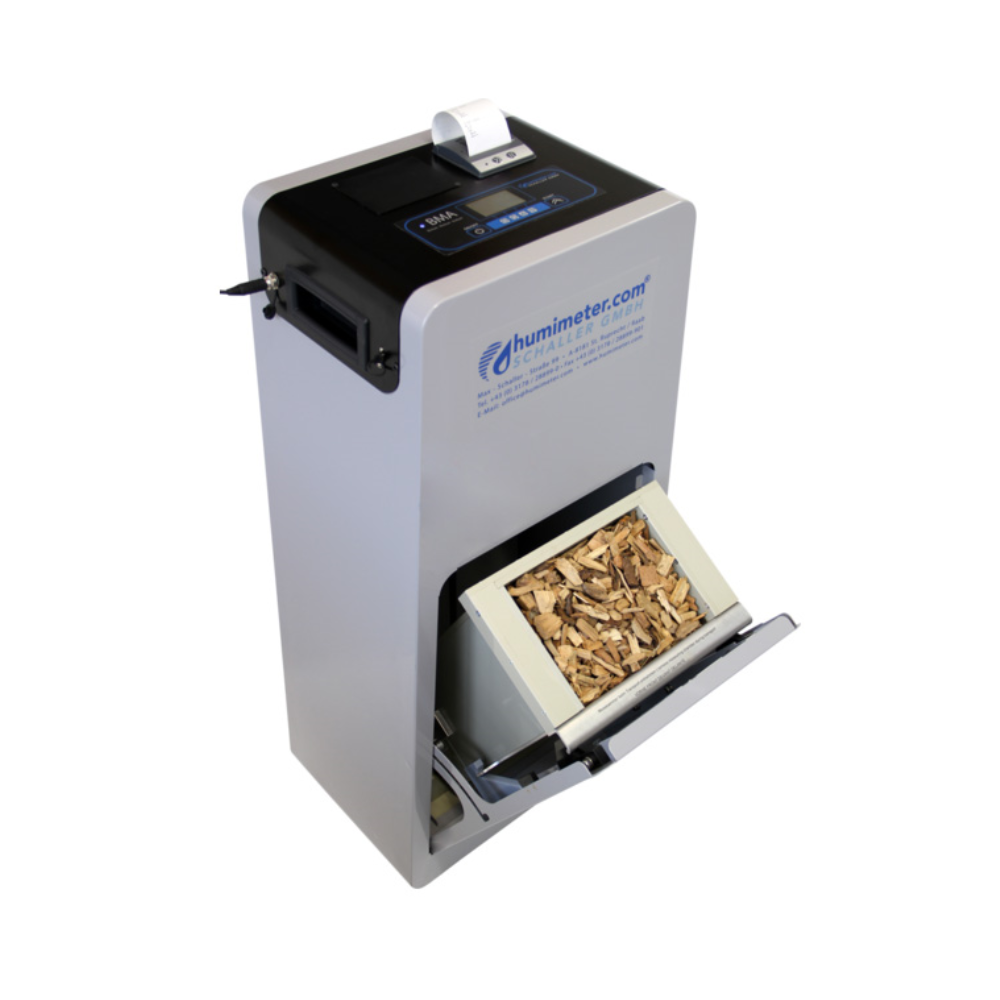

Professional moisture meter for determining the water content of biomass with optional display of bulk density and bone dry weight (tons/m³). For measuring wood chips, barks, wooden pellets, elephant grass, wood shavings, sawdust and corn cobs.
The BMA for measurements within seconds without prior treatment of samples, with manual saving of results, datalog for 10,000 logs with measuring point report. Also available with the option: BMA-ATRO – Display of bulk density and bone dry weight (tons/m³)
Only the exact determination of water content of biomass allows fair payment for producers, suppliers and end customers. The water content determines the fuel value of biomass. This makes quality control in the manufacturing and supplying of biomass increasingly important. Using a high quality biomass moisture meter you can prevent machine problems and avoid paying the high product price only for water.
Factory-supplied Calibration Curves
| Product name | Product type | Measurıng Range |
|---|---|---|
| Woodchips | P31 to P45 | 5 % – 70 % |
| Coarse chips | P45 to P63 | 5 % – 70 % |
| Softwood chips | P16 to P45 | 5 % – 70 % |
| Softwood coarse chips | P45 to P63 | 5 % – 70 % |
| Fine woodchips | P16 | 5 % – 70 % |
| Pellets | Wood pellets Ø 6 mm | 5 % – 14 % |
| Miscanthus | Chopped miscanthus (P16) | 5 % – 35 % |
| Shaving Softwood | Shavings from softwood | 5 % – 45 % |
| Sawdust Softwood | Shavings from softwood | 10 % – 60 % |
| Sawdust Hardwood | Shavings from softwood | 10 % – 60 % |
| Corn cob | Corn cobs (chopped or whole cobs) | 10 % – 60 % |
| Empty 1 | For custom calibration curves | |
| Empty 2 | For custom calibration curves | |
| Empty 3 | For custom calibration curves | |
| Reference | For Self-Test of BMA-2 |
Definition of wood chips types (Norm EN ISO 17225-1)
• P31 at least 75% of the mass between 8 and 31.5mm
• P45 at least 75% of the mass between 8 and 45mm
• P63 at least 75% of the mass between 8 and 63mm
Complete Kit
BMA is delivered as a complete kit including:– BMA gauge
– BMA measuring box (12 litre)
– Power supply unit 12 VDC, 4 A (AC/DC Converter, 100-240V AC)BMA-USB is delivered as a complete kit including:
– BMA gauge
– BMA measuring box (12 litre)
– Power supply unit 12 VDC, 4 A (AC/DC Converter, 100-240V AC)
– USB data output Option including Software & USB cable.
Note: Both versions are available with a Integrated Printer BMA-IP & BMA-ATRO-display of bulk density and bone dry weight (tons/m³),
These options must be specified at time of order.
| Item | Descrıptıon | |||
|---|---|---|---|---|
|
BMA-2
|
Professional Biomass Moisture Meter
|
|||
|
BMA-2-USB
|
Professional Biomass Moisture Meter with USB Output
|
|||
|
BMA-2-USB-ATRO
|
Professional Biomass Moisture Meter with USB Output with ATRO Option & Integrated Printer
|
