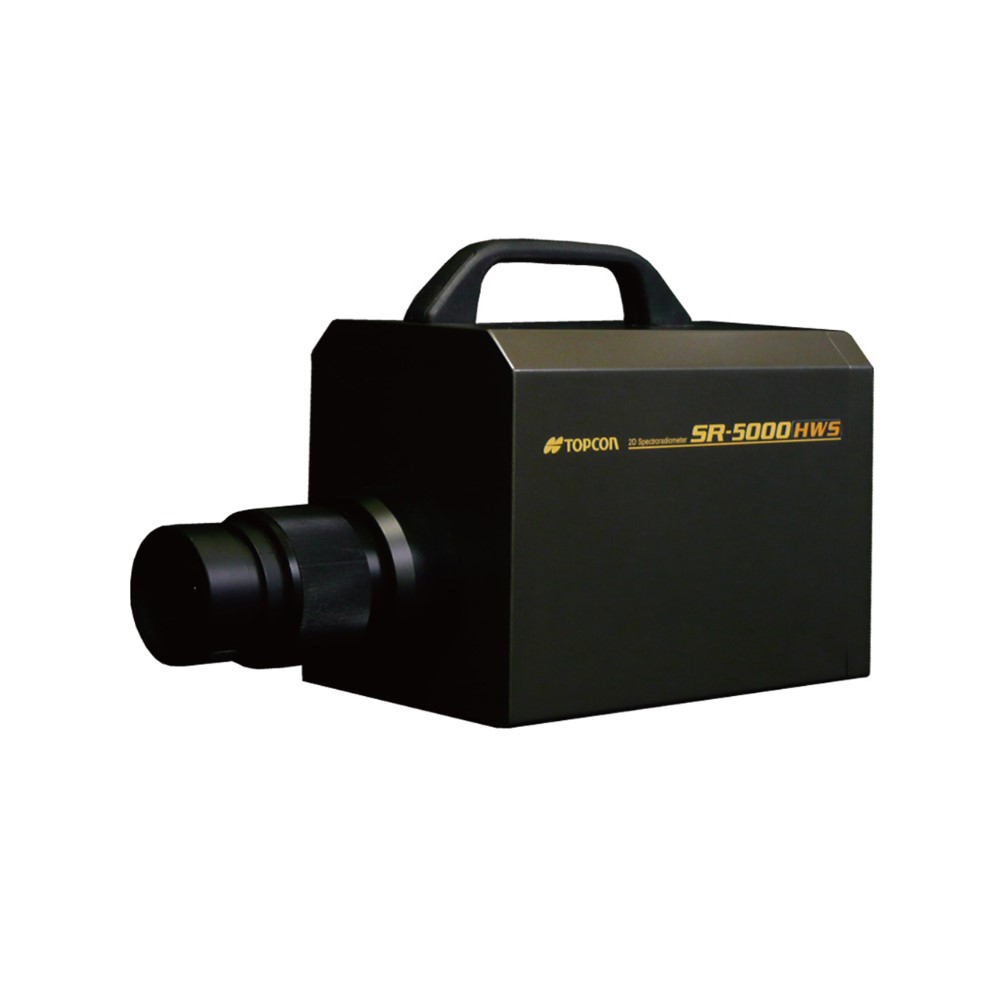

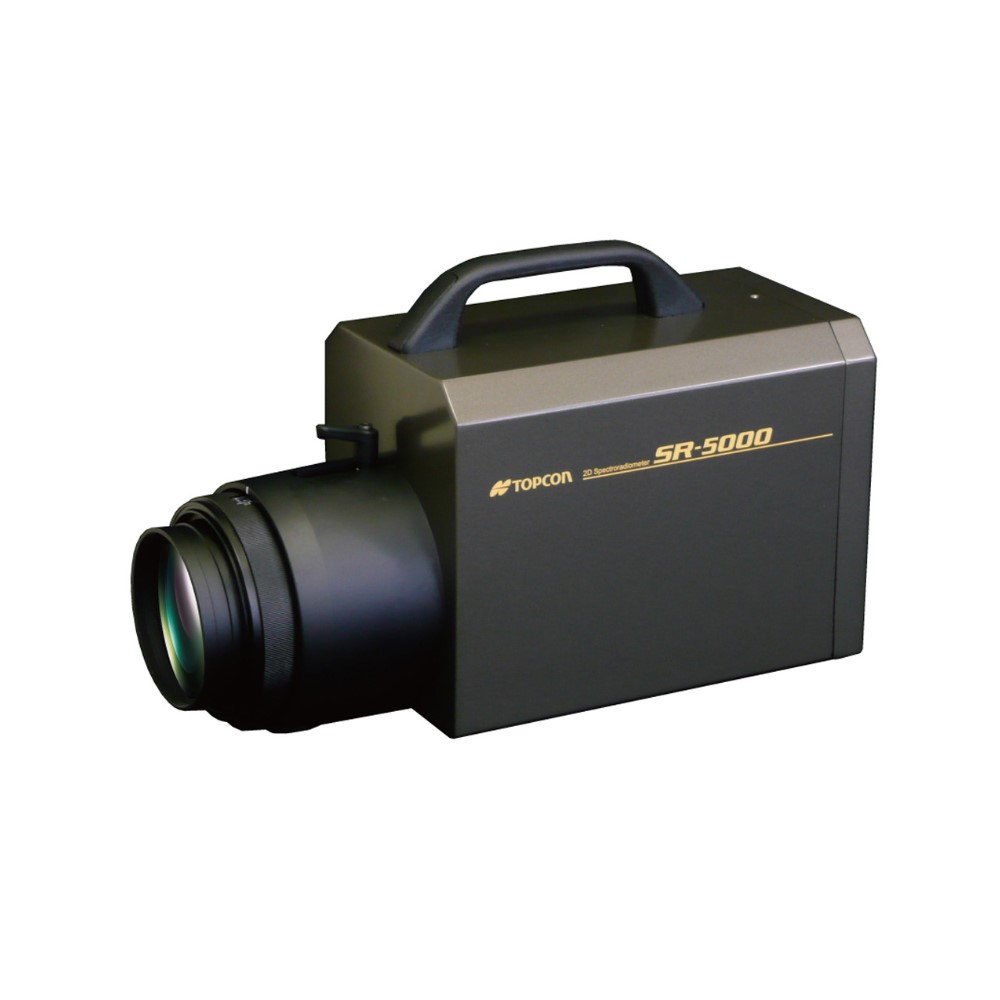

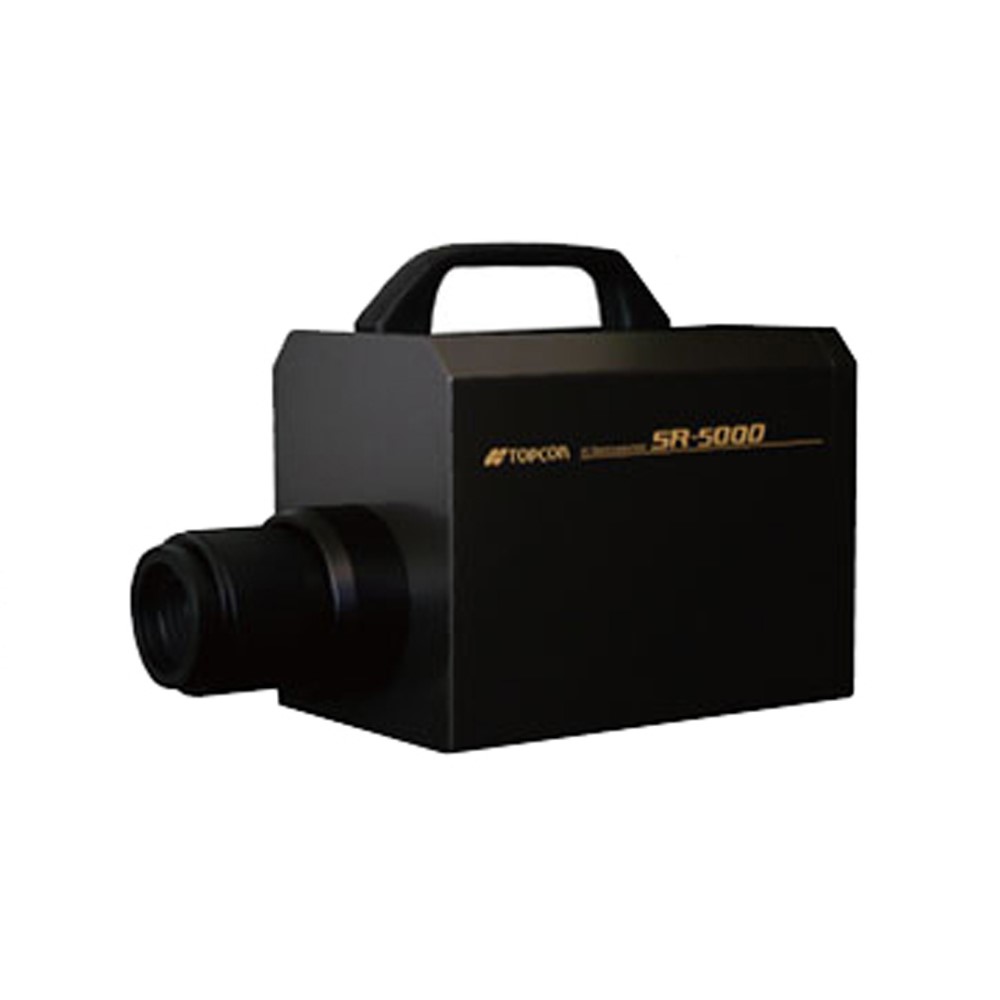

SR-5000-5000H
2D Spectroradiometer

Ultimate and Versatile.
2D spectralradiometer is finally released!!

Kategoriler
  • Mekanik (745)
  • PRO-AV (1140)
  • Test ve Ölçü (971)
    • Çevresel Ölçüm (244)
      • Anemometre (16)
      • Basınç Ölçüm Cihazı (3)
      • Desibelmetre (Ses Ölçümü) (19)
      • Gaz Ölçüm Cihazı (14)
      • Hava Durumu İstasyon Cihazları (48)
      • Infrared Termometre (13)
      • Lazer Mesafe Ölçüm Cihazı (6)
      • Lüksmetre (Işık Ölçüm Cihazı) (27)
      • Lüminansmetre (Aydınlık Ölçüm Cihazı) (12)
      • Nem Ölçüm Cihazı (38)
      • Partikül Ölçüm Cihazı (1)
      • pH Ölçüm Cihazı (1)
      • Solar Güç Ölçüm Cihazı (4)
      • Termal Kamera (27)
      • Termometre (53)
    • Elektriksel Ölçüm (269)
    • Fiber Optik Ölçüm (4)
    • Gelişmiş Ölçüm (478)
  • DESCRIPTION
  • FEATURES
  • PRINCIPLE USE
  • SPECIFICATIONS
  • OPARATING CONDITION
  • ACCESSORIES
  • DOWNLOADS

2D spectroradiometer is high precise and accurate measurement by 1nm spectral technology with powerful data analysis software.
It is possible to be sensing for a various object and purpose by analyzing the image that contains the detailed information such as spectrum.

FEATURES

  • Spectrum measurement with 1376 x 1024 pixel.
  • Spectral analysis enable various kind of usage.
  • World first complete traceability and calibration for Luminance and Chromaticity.

PRINCIPLE USE

  • Evaluation of luminance, chromaticity, optical spectrum for LCD, OLED and related materials.
  • Evaluation of emission spectrum distribution characteristics for meter of automotive, the light of interior
    (exterior).
  • Evaluation of luminance, chromaticity, optical spectrum for light-emitting part of LED(OLED).
  • Evaluation of visualization for color shading(concentration) of paint.
  • Analysis and applications for the medical field.

SPECIFICATIONS

Detector 1.4 mega pixel CCD image sensor
Objective lens Standard lens : Focal length f=32mm
Standard lens with wide attachment lens : Focal length f=24mm (*1)
Effective pixel 1376×1024
Data bit 14 bit
Measurement range 0.5~5,000,000 cd/m2
Wavelength range 380~780nm
Spcetral accuracy ±0.5 nm (On the wavelength of Hg emission line)
Spectral band width 7 nm (Half width)
Wavelength resolution 1 nm
Linearity in luminance ±2%(*2,*3)
Chromaticity accuracy ±0.002(*2,*3) *Telescope・Macro Within ±0.0035 (Less than 1 cd/m2), Within ±0.002 (Above 1 cd/m2)
±0.005(*3,*6)
In-plane uniformity(*7) Luminance:±2%
Chromaticity:±0.003
Repeatability Luminance   :±0.5%(*2,*3,*4)
Chromaticity(x,y):±0.002 (1cd/m2 or less)(*2,*3,*5)
±0.001 (More than 1 cd/m2)(*2,*3,*5)
Interface USB3.0 / External trigger
Power supply AC100 – 240V(50/60Hz) Dedicated AC adapter (Standard accessory)
Power consumption Approx. 20W
Operating condition Temperature: 5 – 40℃
Humidity  : 85%R.H. or less(No condensation)
External dimensions Standard type: W162×H247×D372.5 mm
Wide type  : W162×H247×D402.4 mm
*(Protruding parts are not included)
Weight Standard type: Approx. 5.5kg
Wide type  : Approx. 5.7kg

1 Standard lens with wide attachment lens
2 Standard illuminant A
3 At the center of CCD
4 Within 2σ
5 Max value – Min value
6 Standard illuminant A + our standard colored glass filters.
7 Center of the CCD, Standard illuminant A, within 80% of field of view

MEASUREMENT AREA
SR-5000S:Standard lens

Measurement distance [mm]* 400 500 1000 1500 2000 2500
Display size [Inch] 9.2 11.4 22.5 33.5 44.7 55.3
Horizonal [mm] 187.1 232.8 458.1 682.7 910.3 1127.0
Vertical [mm] 139.2 173.2 340.9 508.1 677.4 838.7


SR-5000WS:Standard lens with wide attachement lens

Measurement distance [mm]* 400 500 1000 1500 2000 2500
Display size[Inch] 12.7 15.6 30.3 44.9 59.6 74.1
Horizonal [mm] 259.1 318.4 617.4 914.1 1213.7 1510.7
Vertical [mm] 192.8 236.9 459.5 680.3 903.2 1124.2

* The measurement distance is the distance from the tip of the metal fixture on the instrument of the objective lens.
** This is production on order.

OPARATING CONDITION

OS Windows 7 Ultimate(64bit)
Windows 7 Professional(64bit)
*Not available XP mode on 64 bit OS.
Windows 10 Pro(64bit)
CPU Intel Core i7-4770 (4 Core 2.8GHz) or more
Memory 8GB or more
HDD 500 GB or more available disk space.

*More than 3GB free space is necessary in the system drive.
*Data size of its result is about 2.5GB if full size measurement.
*Use USB 3.0 port on motherboard should be used.
Otherwise it may cause malfunction.
USB port USB 3.0 :1 port
Display 1024×768 or more, 16.77 million colors(32bit) or more
Optical drive DVD-ROM drive

ACCESSORIES

  • Tripod: Tripod 5N
  • Fine control table: S-4

DOWNLOADS

SR-5000 / 5000H Datasheet
