This product is JIS-compliant AA class of illuminance meter.
It has high reliability and high accuracy.

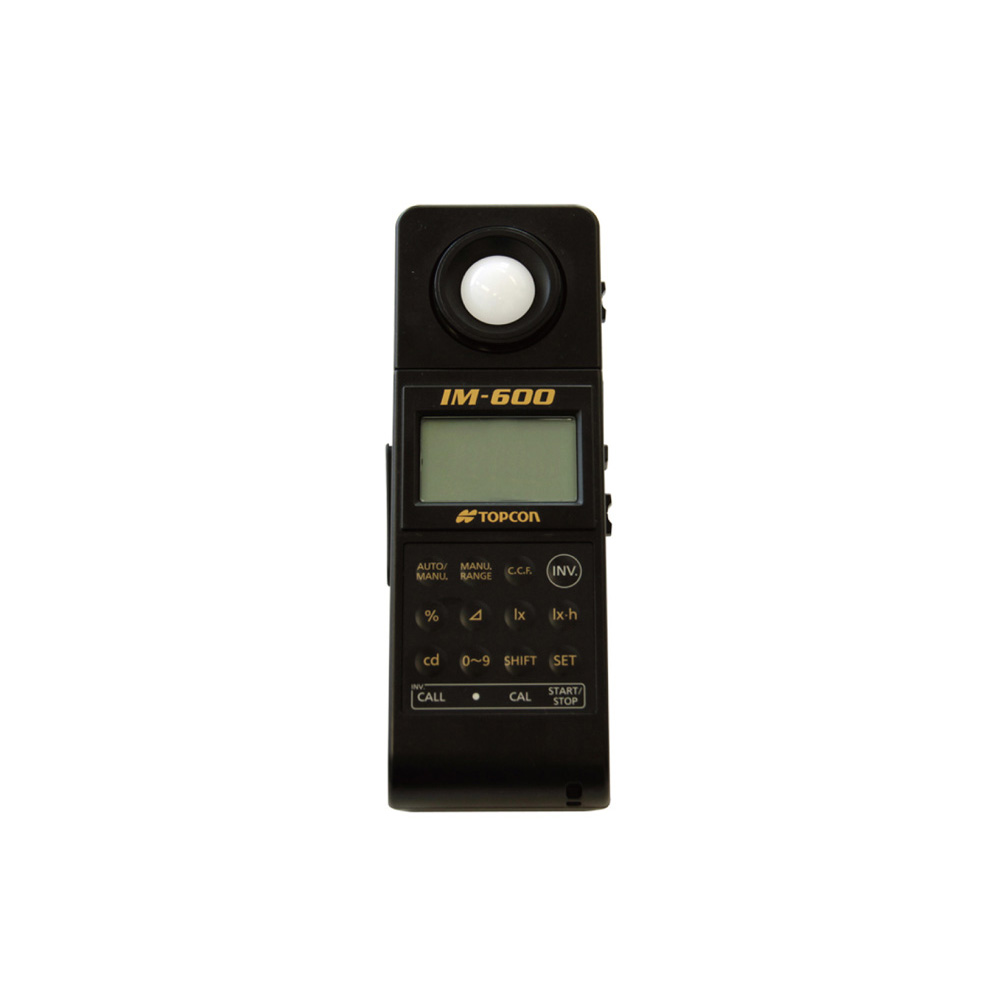

IM-600 is easy-to-use illuminance meter and capable of wide range measurement.
It is ideal for next generation lighting to evaluate, and also there is another type of IM-600M.
This product can be useful for small space and installation of a equipments.
FEATURES
- Wide range measurement (0.005 – 999,000 lx)
- Display unit and light sensing unit are Separable with optional cable(IM-600)
- Multiple measurement function
- Response time, screen flicker can be measured with oscilloscope
- Zero calibration function without cap can be installed equipment
PRINCIPAL USE
- Development and design department for lighting equipment maker.
- Lighting system performance evaluation for building constructor.
- Management of light source for plant factory.
- Maintenance and management of light in factory, school, office, etc.
- As a measurement sensor of production line or a variety equipments.
SPECIFICATIONS
| Item | Specification | |
|---|---|---|
| JIS Class | Conforms to the general AA class illuminance meter (JIS C 1609-1-2006) |
|
| Photo detector | Silicon photo diode | |
| Measurement Range |
0.005 – 999,000 lx | |
| Cosine Correction Characteristics | 【 IM-600 】 10°： Within ±1% 30°： Within ±1% 50°： Within ±5% 60°： Within ±5% 80°： Within ±10% |
【 IM-600M 】 10°： Within ±1% 30°： Within ±2% 50°： Within ±6% 60°： Within ±7% 80°： Within ±25% |
| Relative Spectral Response | 6% or less (*1) | |
| Linearity | ±2% of rdg. ±1 digit (Auto Range) | |
| Measurement Mode |
Auto / Manual (6 range) | |
| Measurement Function |
Standard measurement： Illuminance(lx), Integrated illuminance(lx・h), Integration time(h), Luminous intensity(cd) Deviation measurement： Illuminance difference(lx), Illuminance ratio(%) |
|
| Calibration Function |
CCF (Color Correction Factor) setting | |
| Analog Output | 0 – 3V | |
| Interface | USB | |
| Power Source | Size AA dry-cell battery×2 or Dedicated adapter (Option) | |
| Use conditions | Temperature : -10 – +40℃, Humidity : 85% RH or less (No condensation) |
|
| Outer dimensions (W×D×H) |
188×65×34mm, Sensor Unit (IM-600M): 16×21mm | |
| Weight | IM-600: 200g, IM-600M: 230g *Non-dry cell battery | |
ACCESSORIES
- AC Adapter: ZV-42EX(220V), ZV-42US(110V)
- Extension cable: 2m, 5m, 10m, 20m, 30m
