APPLICATION
Many applications include: Warehouses, factories, office buildings, restaurants, schools, library, hospitals, photographic, many video, parking garages, museums, art galleries, stadiums, building security.

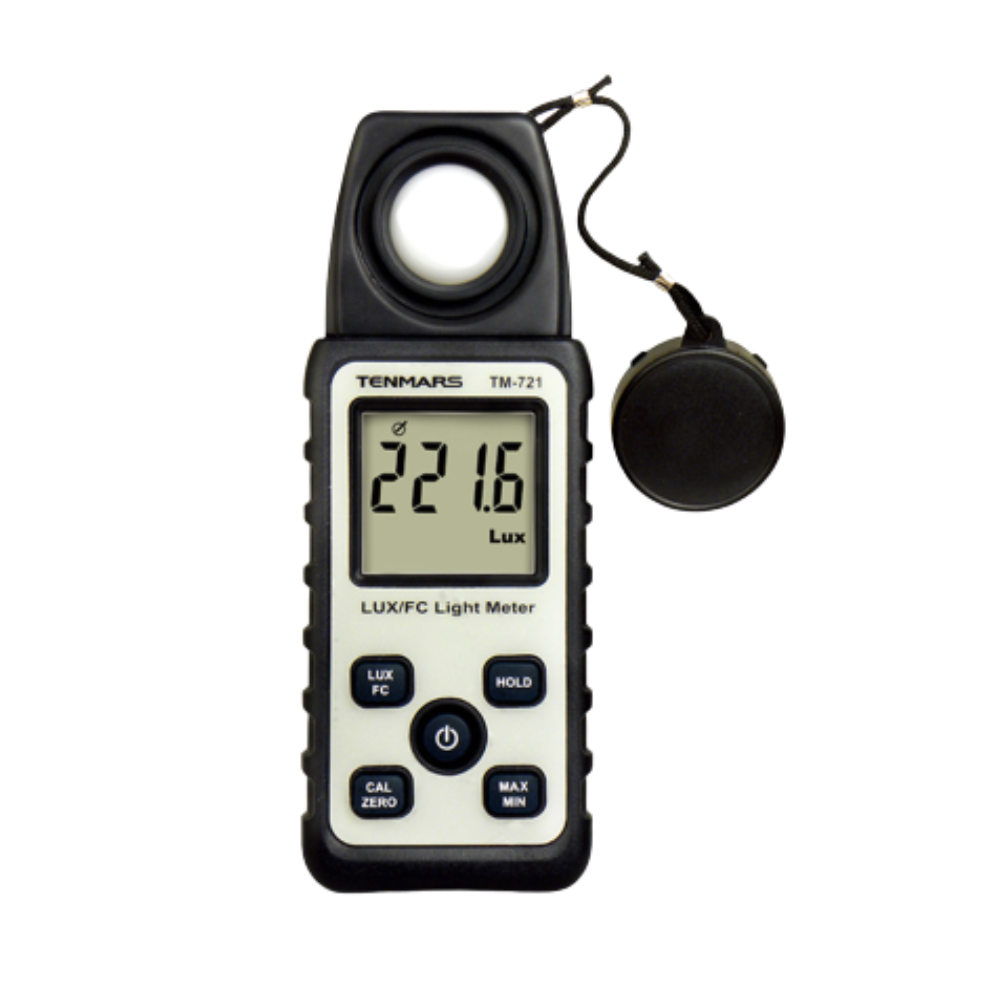

TM-721T
Pocket Size LUX/FC Light Meter
Measures light from visible luminaries equipped fluorescent, metal halide, high-pressure sodium and incandescent sources.
FEATURES
-
Overload Indication: LCD screen will show “OL” on the upper left-hand corner.
-
Low battery Indication ”
“. -
Sampling Rate: 2.5 times per second for digital display.
-
Cosine Angular corrected.
-
According to JIS C 1609:1993 and CNS 5119 general A class Specifications.
-
Measuring lights source: all the visible light.
-
Measuring intensities of illumination in Lux or footcandles.
-
Data hold.(HOLD)
-
Maximum/Average/Minimum Hold.(MAX/MIN)
-
Zero adjustment.(ZERO)
-
Auto power off and disable function.
-
Auto ranging.
“.SPECIFICATIONS
|
Display
|
9999 count, maximum display 9999
|
|
|
Sensor
|
Silicon photodiode and filter
|
|
|
Measuring Range
|
999.9,9999, 99990,400000 Lux
99.99,999.9,9999,40000 Footcandles
|
|
|
Resulation
|
0.1,1, 10,100 Lux
0.01,0.1,1,10 Footcandles
|
|
|
Accuracy
|
±3% ±3Lux(0~500Lux),
±3%(up 501 Lux)
(Calibrated to standard incandescent lamp 2856°K)
±8% other visible light source
|
|
|
Angle deviation
from cosine characteristics |
30°
|
±2%
|
|
60°
|
±6%
|
|
|
80°
|
±25%
|
|
|
Dimensions
|
133(L)x48(W)x23mm(L) mm
5.3(L)x 1.9(W) x0.2(L) inch
|
|
|
Weight
|
250g (include battery) | |
ACCESSORIES
-
User manual.
-
1.5V battery (AAA MN2400 LR03 AM4)*2.
-
Carrying case.
