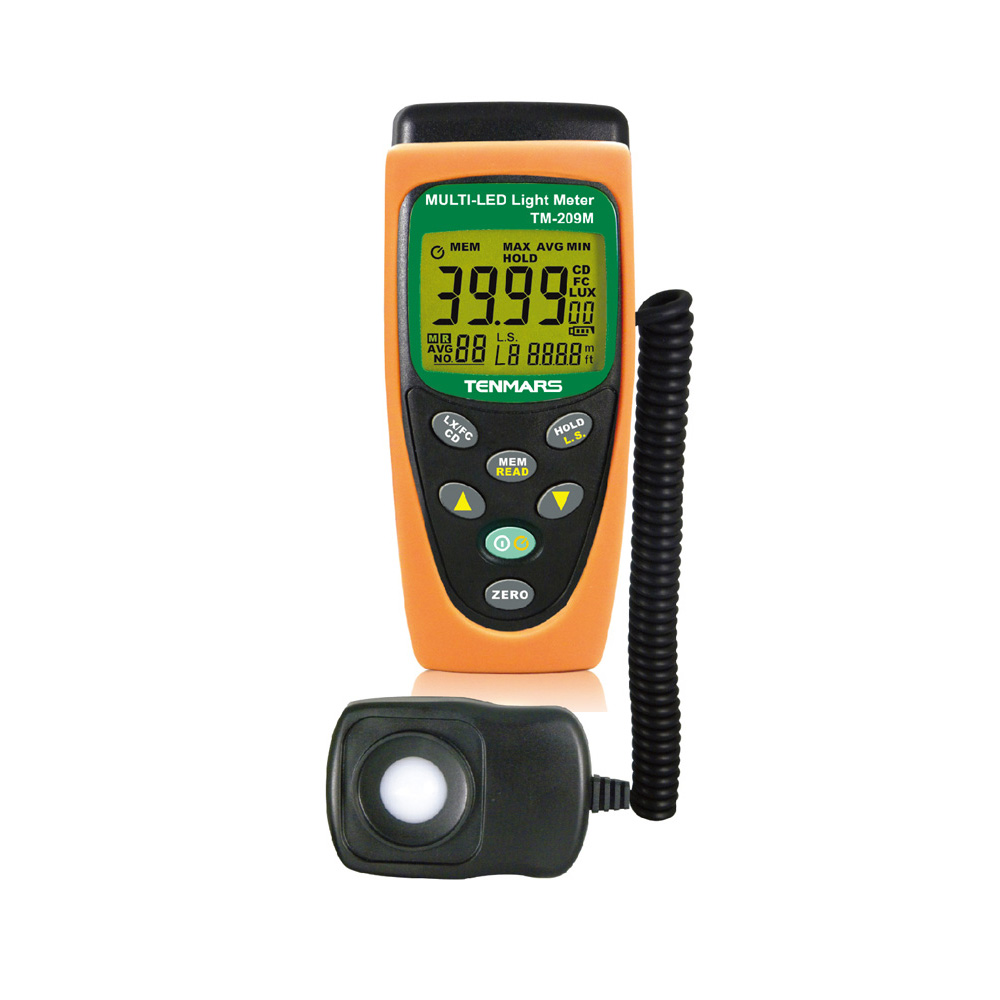

TM-209M
LUX/FC LED Light Meter

6 LED light source and all visible light measuring

Kategoriler
  • Mekanik (745)
  • PRO-AV (1140)
  • Test ve Ölçü (971)
    • Çevresel Ölçüm (244)
      • Anemometre (16)
      • Basınç Ölçüm Cihazı (3)
      • Desibelmetre (Ses Ölçümü) (19)
      • Gaz Ölçüm Cihazı (14)
      • Hava Durumu İstasyon Cihazları (48)
      • Infrared Termometre (13)
      • Lazer Mesafe Ölçüm Cihazı (6)
      • Lüksmetre (Işık Ölçüm Cihazı) (27)
      • Lüminansmetre (Aydınlık Ölçüm Cihazı) (12)
      • Nem Ölçüm Cihazı (38)
      • Partikül Ölçüm Cihazı (1)
      • pH Ölçüm Cihazı (1)
      • Solar Güç Ölçüm Cihazı (4)
      • Termal Kamera (27)
      • Termometre (53)
    • Elektriksel Ölçüm (269)
    • Fiber Optik Ölçüm (4)
    • Gelişmiş Ölçüm (478)
  • APPLICATION
  • FEATURES
  • SPECIFICATIONS
  • ACCESSORIES
  • DOWNLOADS
  • DESCRIPTION

APPLICATION

Measures light from visible luminaries equipped with white light LED, fluorescent, metal halide, high-pressure sodium and incandescent sources.

L.S. (light source)  factor

L0—►Standard light source A : 1.00.
L1—►LED white day light
L2—►LED RED light
L3—►LED AMBER(YELLOW) light
L4—►LED GREEN light
L5—►LED BLUE light
L6—►LED PURPLE light
L7~L9—►Default Standard light source

FEATURES

  • Overload Indication: LCD screen will show “OL” on the upper left-hand corner.
  • Sampling Rate: 2.5 times per second for digital display.
  • Spectral response close to CIE luminous spectral efficiency.
  • Cosine Angular corrected.
  • According to JIS C 1609:1993 and CNS 5119 general A class Specifications.
  • Measuring lights source: LED white light and all visible light.
  • Measuring intensities of illumination in Lux or footcandles.
  • Many applications include: Warehouses, factories, office buildings, restaurants, schools, library, hospitals, photographic, many video, parking garages, museums, art galleries, stadiums, building security.
  • Data hold.
  • Maximum/Average/Minimum Hold
  • Zero adjustment.
  • Auto power off and disable function
  • Auto ranging

SPECIFICATIONS

  • Dimensions:130x55x38mm(length x width x height).
  • Sensor:80X 55X25(length x width x height).
  • Weight: Approximately 250 grams.
Electrical Specifications
 Display
 4000 count, maximum display 3999
 Sensor
 Silicon photodiode and filter
 Measuring Range
 40,400,4000, 40000,400000 Lux
 40,400,4000,40000 Footcandles
 Accuracy
 ±3% (Calibrated to standard   incandescent lamp 2856∘K)
 6% other visible light source
 Angle deviation
 from cosine   characteristics
10
±0.5%
30
±2%
50
±3%
60
±6%
80
±25%

ACCESSORIES

  • User’s Manual
  • 9 Volt battery
  • Carrying Case

DOWNLOADS

TM-209M UserManual
