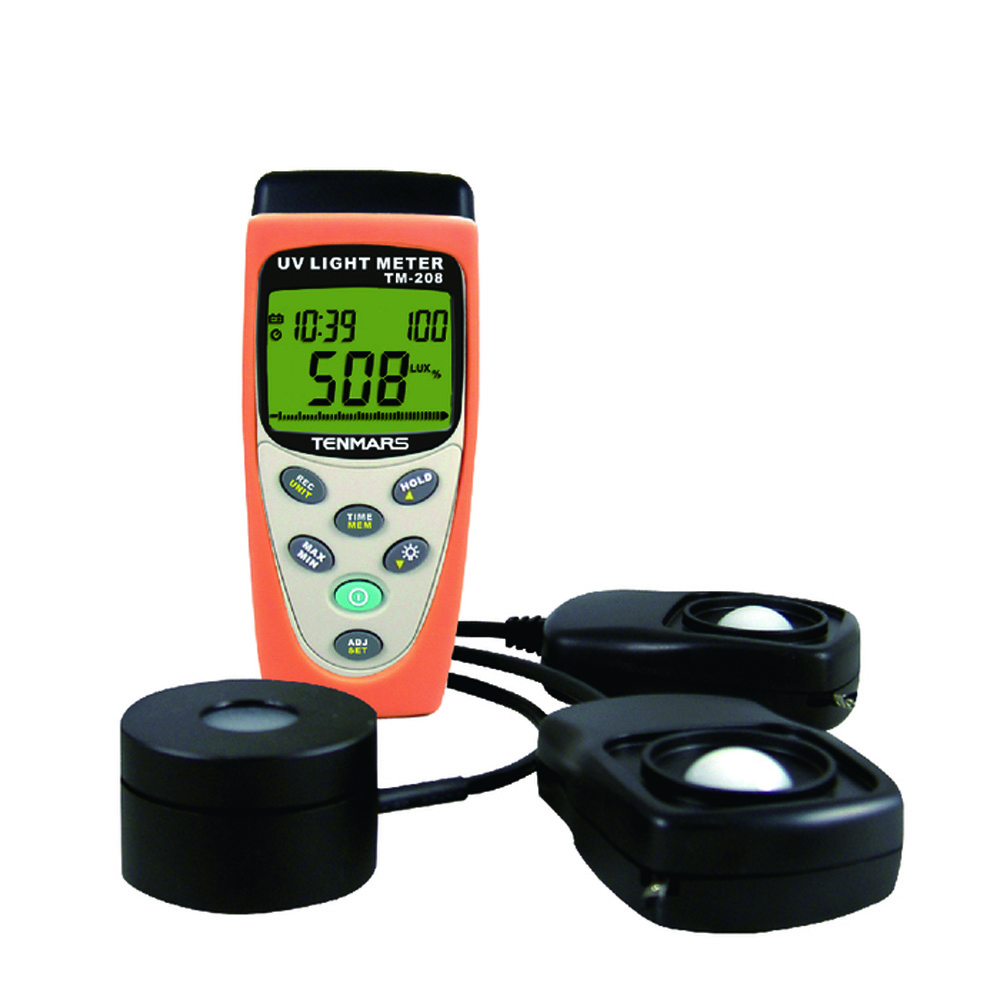

TM-208
Solar, UVA & Light Meter (3 in 1)

  • Illumination -Solar -UVA 3 in 1 Light Meters
  • UV-A meter applications

APPLICATION

Warehouses, factories, office buildings, restaurants, schools, library, hospitals, photographic, many video, parking garages, museums, art galleries, stadiums, building security.
UVA :
  • Highly reliable direct reading instrument designed expressly for measuring light intensity at the wafer plane of mask aligners.
  • UV curing light sources, and any other UV light source.
Solar Power Features:
  • Solar power research.
  • Physics and optical laboratories.
  • Just point the calibrated PV cell at the sun and read the irradiance in Watts/m2 or Btu/ft2.h.
  • It’s great for those who test PV modules or arrays in the field.
Illumination Features:
  • According to JISC1609: 1993 and CNS 5119 general A class spec.
  • Spectral response close to CIE luminous spectral efficiency.
  • Measuring intensities of illumination in unit of Lux or Foot-candle.
  • Silicon photodiode and filter.
  • Cosine angular corrected.

FEATURES

  • It gives the selection of Illumination –Solar. -UVA of one’s own accord unit.
  • Illumination -Solar –UVA.
  • Convenient, no need to adjust, data displayed clearly.
  • Real time data.
  • Data hold function.
  • Auto ranging.
  • Back light.
  • Auto power off and disable auto power off.
  • USB PC interface.
  • Data logging capacity up to 45,000 reading.
  • Data logging of Illumination –Solar. -UVA of one’s reading.
  • Low battery indication“ ”.
  • Over load display “OL”.
  • Maximum/Minimum/Average record and elapse time.
  • Auto zero adjustment.

SPECIFICATIONS

General Specifications
 Display
 3¾LCD display maximum display 4000.
 Illumination -Solar -UVA of one’s own accord unit
 BTU (ft²*h) / W/m² / uW/cm²/ mW/cm²
 Lux /foot candles (fc) unit.
 Sampling
 4 times/second.
 Power off
 Manual off by push button,
 or auto shut off after30 minutes approximately
 Data Outpu
 USB PC serial interface.
 Datalogging capacity up to 45,000 reading.
 Size
 130(L) x 56(W) x 38 (H)mm
 Weight
 approx.250g
 Consumption Current
 ≦10mA
 EMC
 This tester was designed in accordance
 with EMC Standards in force and its compatibility
 has been tested in accordance with EN61326-1 (2006).

Electric Electrical Specification

 Specification
 UVA
measurement
Illumination
measurement
Solar
measurement
 Measuring range
 400µW/cm²
 4000µW/cm²
 20mW/cm²
 40.00Lux,400.0Lux,
 4000 Lux,40000Lux,
 400000Lux,
 40.00FC,400.0FC,
 4000FC,40000FC
40W/m²,400W/m²,
2000W/m²,13Btu (ft².h),
127 Btu (ft².h),
634 Btu (ft².h)
 Resolution
 0.1µW/cm²,
 1µW/cm²,
 0.01mW/cm²
 0.01, 0.1, 1, 10, 100Lux
 0.01, 0.1, 1, 10foot-candle
0.01W/m²,0.1W/m²,
1W/m²,0.01 Btu (ft².h),
0.1 Btu (ft².h),
1 Btu (ft².h)
 Accuracy
 ±4%Fs+2dgt
 ±3% (calibrated to standard
 incandescent lamp 2856°K)
 6% (other visible light   source)
±10 W/m²
(±3 Btu/ (ft².h) or ±5%)
 Wavelength
 320~390nm
380~780nm
400~1100nm

ACCESSORIES

  • User’s manual
  • 9V battery
  • Carrying case
  • MINI USB 4P(MALE) to USB A Type cable
  • Install CD disk of TM-208 AC to DC 9V(300mA)
